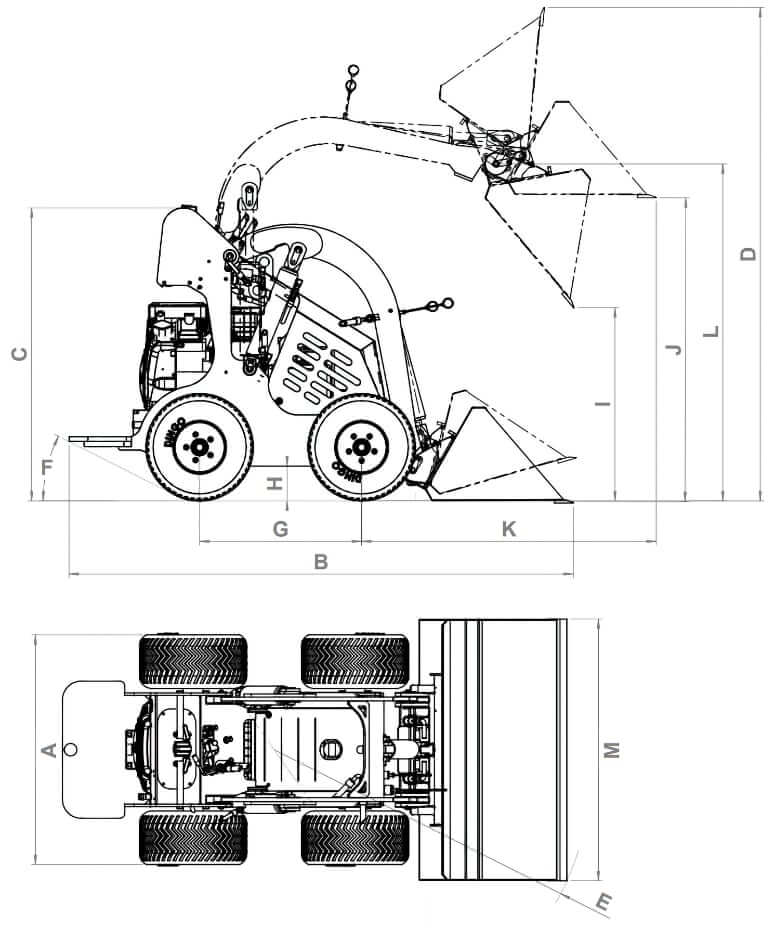

Dimensions
| A. Overall Width | 31-37 in (780-940 mm) |
| B. Overall Length | 55.1 in (1400 mm) |
| C. Overall Height | 47.2 in (1200 mm) |
| D. Max. Operating Height | 74.9 in (1902 mm) |
| E. Turning Radius with Bucket | 45.7 in (1160 mm) |
| F. Departure Angle | 27 degrees |
| G. Wheelbase | 25.6 in (650 mm) |
| H. Ground Clearance | 5.9 in (150 mm) |
Loader Working Range
| Bucket Capacity | 0.16 yd3 (0.12 m3) |
| Max Lifting Capacity | 551 lb (250 kg) |
| Safe Lifting Capacity | 276 lb (125 kg) |
| D. Max. Operating Height | 74.9 in (1902 mm) |
| I. Max Dumping Height | 33.1 in (840 mm) |
| J. Max Height of Bucket Bottom | 48.0 in (1220 mm) |
| K. Reach at Max Lift and Dump | 34.6 in (880 mm) |
| L. Height to Hinge Pin at Max Lift | 53.1 in (1350 mm) |
| M. Bucket Width | 30.7 in (780 mm) |
Engine Details
| Number Of Cylinders | 2 |
| Engine Make | Briggs & Stratton Vanguard |
| Engine Model | Vanguard 18HP V-Twin Petrol Engine |
| Displacement | 34.8 cu in (0.57 L) |
| Gross Power | 18 hp (13.4 kw) |
| Power Measured @ | 3600 rpm |
| Peak Torque | 26.2 lb-ft (35.5 Nm) |
| Torque Measured @ | 2600 rpm |
| Lubrication System | Full Pressure Lubrication with Spin-On Oil Filter |
| Cooling System | Air-cooled |
| Air Cleaner | Low Profile Dual-Clean Air Cleaner |
| Ignition System | Magnetron Electronic Ignition |
Transmission
| Transmission Type | Hydraulic driven |
| Wheel Motors | 4 Wheel Motors |
| Steering | Drive Control Levers |
| Max Travel Speed | 3.4 mph (5.5 km/h) |
Operational Specs
| Operating Weight | 1190 lb (540 kg) |
| Operating Voltage | 12 V |
| Battery | 12 V, CCA 130 |
| Tire Size | 18×8.5-8″. Optional: 8″ Dingo Tires, 8″ Turf, 20 x 8″ Sand, 5″ Forklift Type, 3″ Narrow Solid Tires |
Hydraulic System
| Pump Type | 2x Gear pumps |
| Pump Flow Capacity | 8.6 gal/min (32.4 L/min) |
| Relief Valve Pressure | 2900 psi (20000 kPa) |
| Auxiliary Hydraulic Outlets | 1 |
Service Refill Capacities
| Fuel Tank Capacity | 3.7 gal (14 L) |
| Engine Oil Capacity w/ Filter | 0.4 gal (1.42 L) |
| Hydraulic System Capacity | 9.0 gal (34 L) |
