Loader
| Tipping Load | 2600 lb (1179 kg) |
| Rated Operating Capacity (ROC) | 1300 lb (590 kg) |
| ROC with Counterweight | 1400 lb (635 kg) |
| Tilt Breakout Force (SAE) | 2800 lbf (12.46 kN) |
| Bucket Width (Standard) | 62 in (1575 mm) |
| Bucket Width (Optional) | 54 in (1372 mm) |

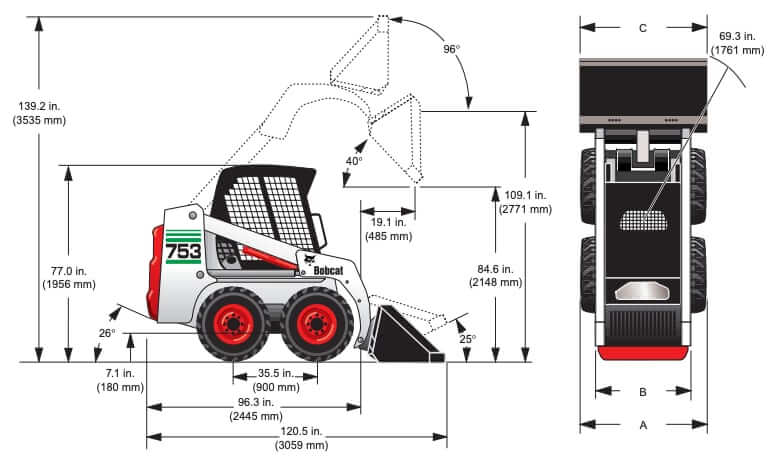

Dimensions
| Operating Height | 139.2 in (3535 mm) |
| Height with Operator Cab | 77 in (1956 mm) |
| Length without Attachment | 96.3 in (2445 mm) |
| Length with Standard Bucket | 120.5 in (3059 mm) |
| A. Width over Tires (10-16.5 Tires) | 50.3 in (1278 mm) |
| B. Wheel Tread | 44 in (1118 mm) |
| C. Width over Standard Bucket | 62 in (1575 mm) |
| Ground Clearance | 7.1 in (180 mm) |
| Angle of Departure | 26° |
| Wheelbase | 35.5 in (900 mm) |
| Turning Radius | 69.3 in (1761 mm) |
| Dump Height with Standard Bucket | 84.6 in (2148 mm) |
| Height to Bucket Hinge Pin | 109.1 in (2771 mm) |
| Dump Reach @ Maximum Height | 19.1 in (485 mm) |
| Dump Angle @ Maximum Height | 40° |
| Rollback Fully Raised @ Maximum Height | 96° |
| Rollback @ Ground | 25° |
Tires
| Tire Type | Tire Size | Pressure |
|---|---|---|
| Standard Tires | 10 x 16.5, 6 Ply Rating / 7 x 15, 6 Ply Rating | 45 – 50 psi (310 – 345 kPa) |
| Medium Duty Float Tires | 10 x 16.5, 6 Ply Rating | 45 psi (310 kPa) |
| Flotation Tires | 10:00-16.5, 8 Ply Rating, Nylon W/Sure Grip Lug | 55 psi (379 kPa) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Kubota |
| Engine Model | Kubota V2203-EB |
| Displacement | 134 cu in (2.197 L) |
| Bore | 3.43 in (87 mm) |
| Stroke | 3.64 in (92.5 mm) |
| Net Horsepower | 43.5 hp (32 kw) |
| Power Measured @ | 2400 rpm |
| Peak Torque | 102.5 lb ft (139 Nm) |
| Torque Measured @ | 1600 rpm |
| Lubrication System | Pressure system with filter |
| Injection Pump | Bosch type mini pump |
| Air Cleaner | Dry replaceable cartridge with dual safety element |
| Combustion System | Direct injection |
| Aspiration | Naturally aspirated |
Operational Specs
| Operating Weight | 4740 lb (2150 kg) |
| Tipping Load | 2600 lb (1179 kg) |
| Rated Operating Capacity (ROC) | 1300 lb (590 kg) |
| Operating Voltage | 12 V |
| Alternator | 55 amps |
| Battery (7269859) | 12 V, RC: 160 min, CCA 625 |
| Starter | 12 V, 2.75 hp (2.8 kw) |
Operator Environment
| Cab | Deluxe Cab |
| Cab (Optional) | Deluxe Cab with Heater |
| ROPS / FOPS | SAE J1040 and SAE J1043 |
| Working Lights | 2x Front working lights + 2 Rear working lights |
| Operator Seat | Adjustable Cushion Seat |
| Operator Seat (Optional) | Suspension Seat (Vinyl or Cloth Cover) |
| Noise Level Operator LpA | 85 dB(A) |
| Noise Level LWA | 103 dB(A) |
Transmissiom
| Type | Tandem hydro, pumps infinitely variable, driving 2 fully reversing hydrostatic motors |
| Final Drive | #80 HS roller chain & sprockets in sealed chaincase with oil lubrication |
| Total Engine to Wheel Reduction | 42:09:1 |
| Max Travel Speed | 6.6 mph (11.3 km/h) |
| Parking Brake | Mechanical disc, foot operated pedal |
Hydraulic System
| Model | Bobcat 753 | Bobcat 753H |
|---|---|---|
| Type | Open center hydraulics | Open center hydraulics |
| Hydraulic Pump Type | Engine driven, gear type pump | Engine driven, gear type pump |
| Standard Pump Flow | 15.9 gpm (60.1 L/min) | 13.0 gpm (49.2 L/min) |
| High Flow Pump Capacity | 21.7 gpm (82.1 L/min) | |
| Standard Relief Pressure at Quick Couplers | 3000 psi (20684 kPa) | 2600 psi (17927 kPa) |
| High Flow Relief Pressure at Quick Couplers | 3600 psi (24822 kPa) | |
| Control Valve | 3-spool, open center, series type Wlfloat detent on lift & electrical controlled auxiliary | |
| Fluid Lines | SAE standard tubelines, hoses, and fittings | |
Service Refill Capacities
| Fuel Tank Capacity | 14 gal (53 L) |
| Engine Oil Capacity (w/ filter) | 1.9 gal (7.1 L) |
| Cooling System Capacity | 3.2 gal (12.3 L) |
| Hydraulic System Fluid Capacity | 6 gal (22.7 L) |
| Hydraulic Tank Capacity | 3.5 gal (13.2 L) |
| Chaincase Reservoir | 8 gal (30.3 L) |
Bobcat 753 Filters
| Filter | Part Number |
|---|---|
| Inner Air Filter | 6598362 |
| Outer Air Filter | 6598492 |
| Engine Oil Filter | 6675517 |
| Fuel Filter | 6667352 |
| Hydraulic Oil Filter | 6661248 |
| Hydraulic Oil Filter (In-Line) | 6661807 |
| Heater Filter | 6660880 |

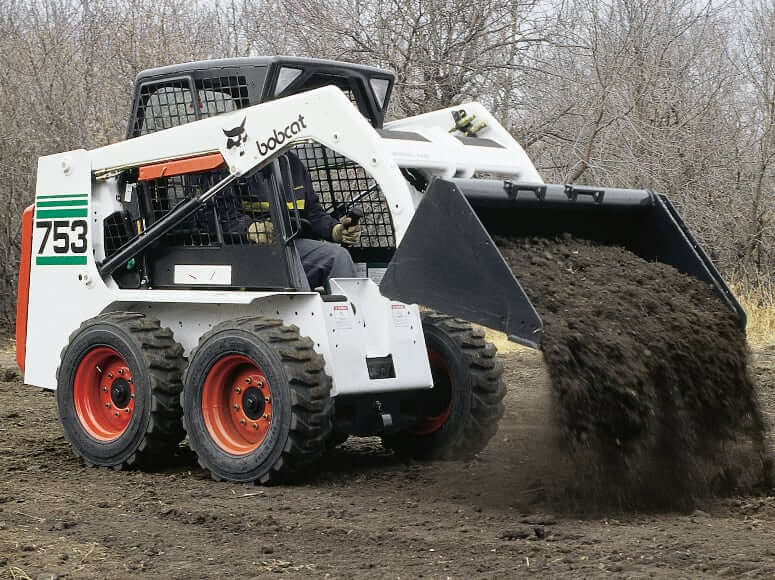

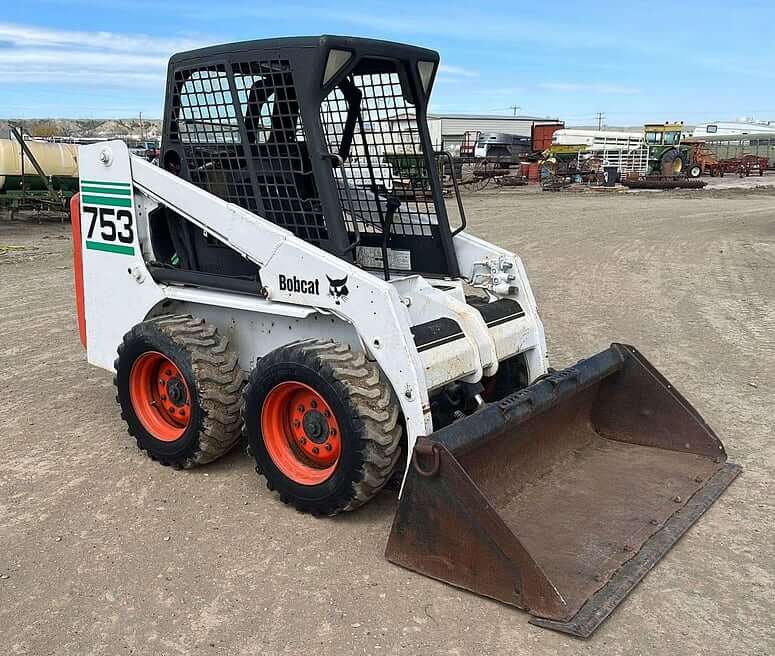

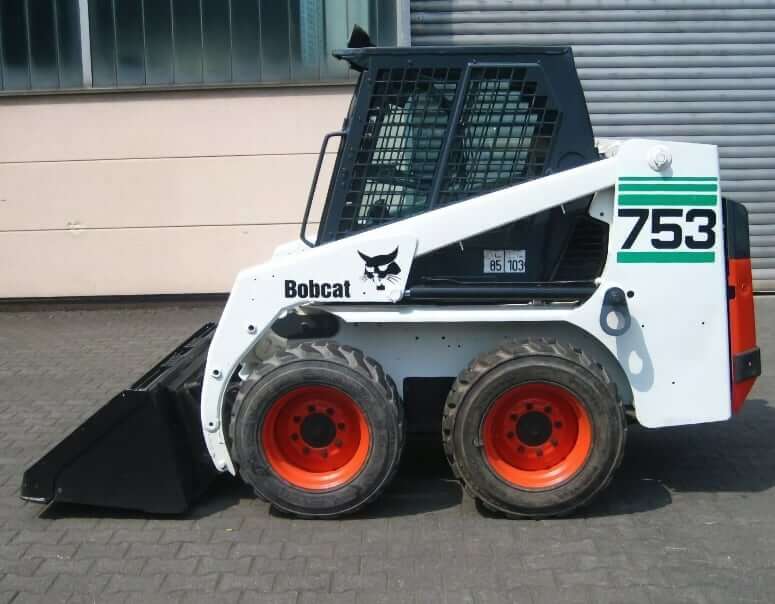

The Bobcat 753 and 753H skid steer loaders are part of Bobcat’s classic lineup of versatile and dependable compact machines, widely recognized for their performance and reliability on construction sites, farms, and landscaping projects.

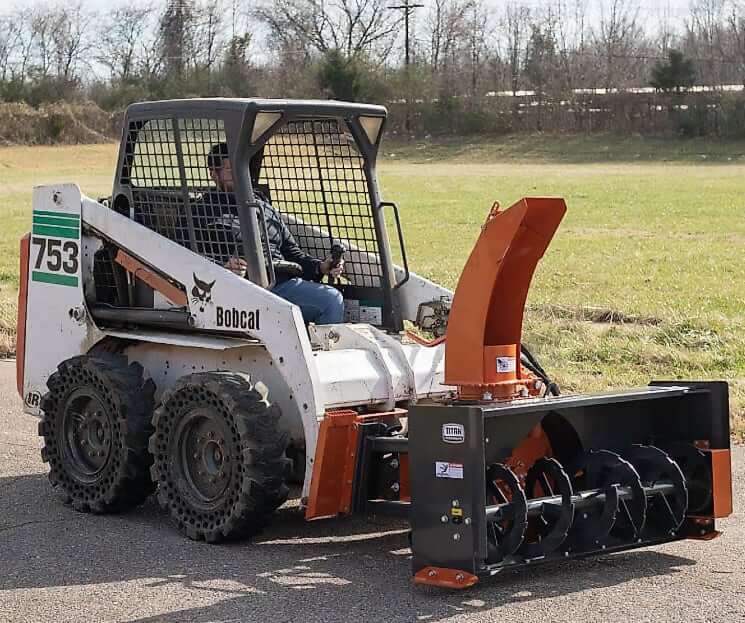

The Bobcat 753 is a mid-sized skid steer loader powered by a liquid-cooled diesel engine, offering an excellent balance of power, maneuverability, and compact dimensions. It delivers reliable breakout force and lift capacity, making it a solid choice for lifting, loading, and grading tasks in tight spaces. The Bobcat 753H variant features High Flow Hydraulics, enhancing its hydraulic power to operate demanding attachments such as planers, trenchers, and snow blowers. This makes the 753H ideal for users needing additional attachment capability without stepping up to a larger loader.
Whether you’re moving pallets, clearing snow, trenching, or digging, the Bobcat 753 and 753H remain practical and capable machines for a variety of heavy-duty tasks.
