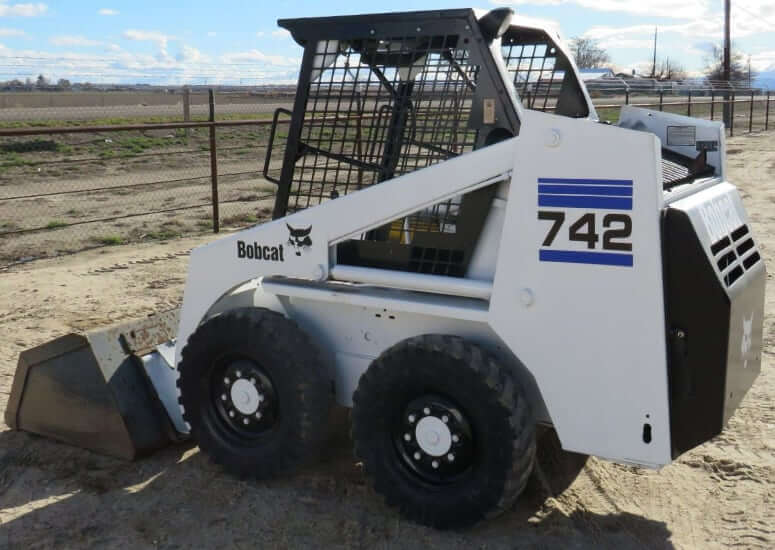

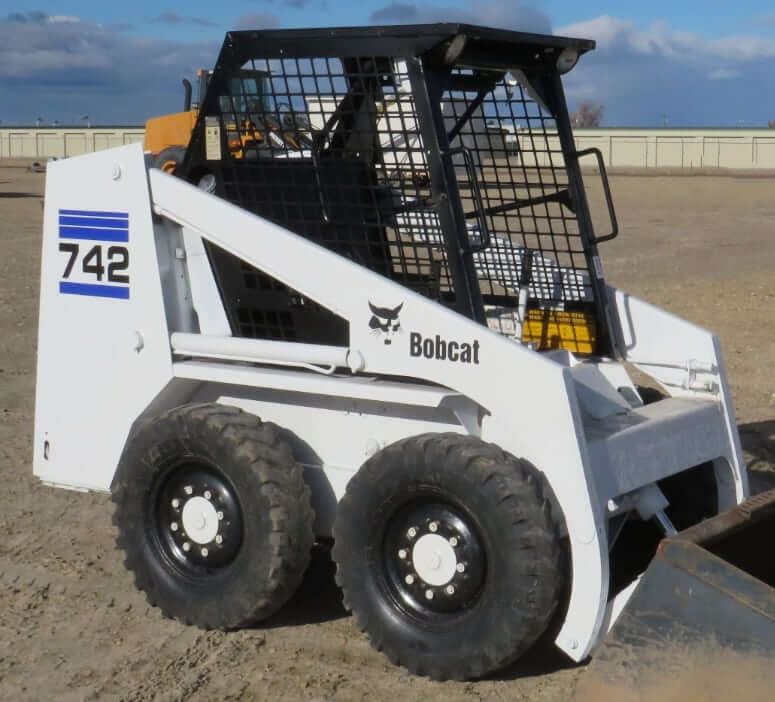

Bobcat 742 Skid Steer Loader Specs, Weight & Dimensions

Contents

Loader

Tipping Load	2600 lb (1179 kg)
Rated Operating Capacity (ROC)	1300 lb (590 kg)

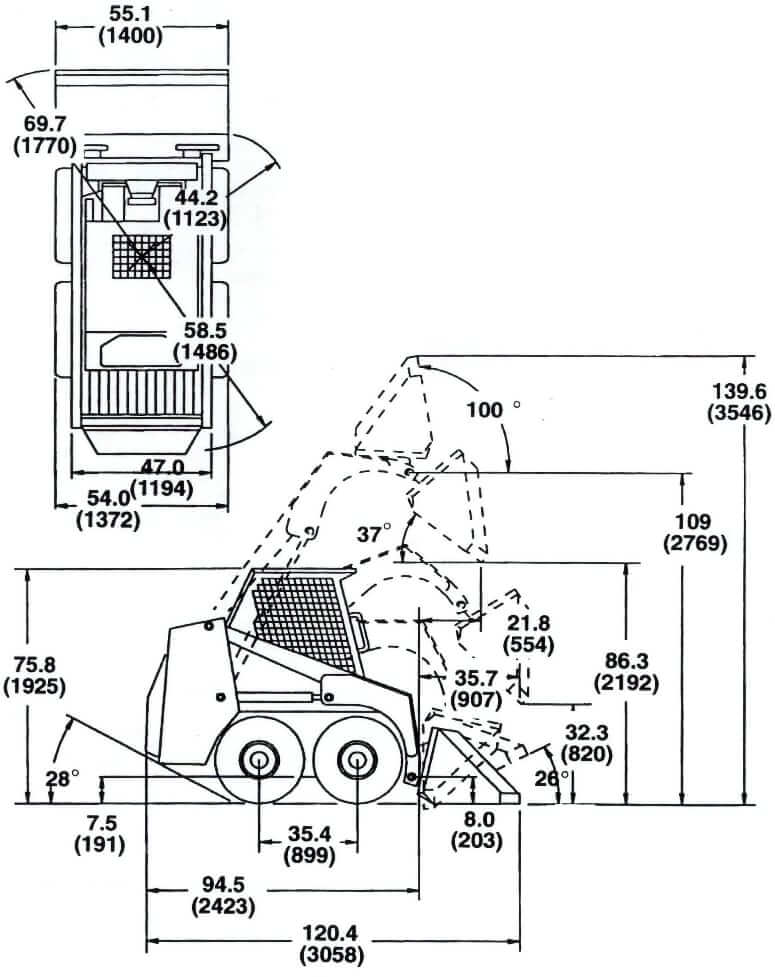

Standard Bucket Width	55.1 in (1400 mm)

Operating Height	139.6 in (3545 mm)
Height with Operator Cab	75.8 in (1925 mm)
Length without Attachment	95.4 in (2422 mm)
Length with Standard Bucket	120.4 in (3058 mm)
Width Over Tires	54 in (1372 mm)
Wheel Tread	47 in (1194 mm)
Width Over Standard Bucket	55.1 in (1400 mm)
Ground Clearance	7.5 in (189 mm)
Angle of Departure	28°
Wheelbase	35.4 in (899 mm)
Turning Radius Over Bucket	69.7 in (1770 mm)
Turning Radius Over Rear Tires	58.5 in (1486 mm)
Turning Radius Over Center	44.2 in (1123 mm)
Dump Height with Standard Bucket	86.3 in (2192 mm)
Height to Bucket Hinge Pin	109 in (2769 mm)
Height to Bucket Hinge Pin @ Ground	8 in (203 mm)
Dump Reach @ Maximum Height	21.8 in (554 mm)
Dump Angle @ Maximum Height	37°
Rollback Fully Raised @ Maximum Height	100°
Rollback @ Ground	26°

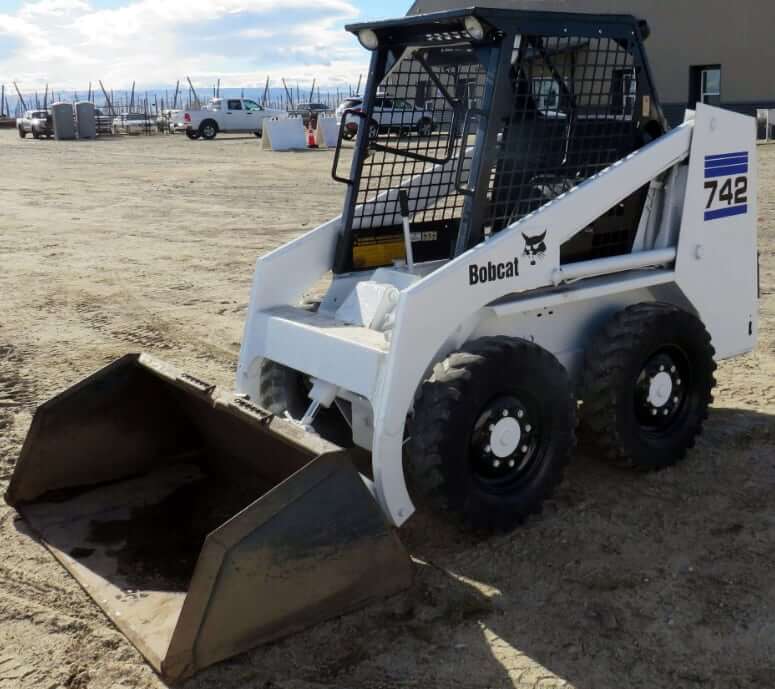

Type	Tire Size	Tire Presssure
Standard	7.00 x 15, 6 ply rating	55 psi (379 kPa)
Flotation	10 x 16.5, 4 ply rating	35 psi (240 kPa)

Engine Make	Ford Kent	Mitsubishi
Number of Cylinders	4	4
Fuel Type	Gasoline	Gasoline
Engine Model	Ford Kent 1600	Mitsubishi 4G32 (Chrysler G32B)
Displacement	98 cu in (1.606 L)	95.6 cu in (1.567 L)
Bore	3.19 in (81 mm)	3.03 in (76.9 mm)
Stroke	3.06 in (77.6 mm)	3.38 in (85.8 mm)
Gross Horsepower	34 hp (25.4 kw)	35 hp (26 kw)
Power Measured @	2800 rpm	2800 rpm
Peak Torque	72.8 lb ft (98.7 Nm)	73 lb ft (99 Nm)
Torque Measured @	1600 rpm	2000 rpm
Lubrication System	Pressure system with filter	Full pressure with full flow oil filter
Air Cleaner	Replaceable dry paper cartridge	Dry replacement paper cartridge
Crankcase Ventilation	Open breathing	PCV
Aspiration	Naturally aspirated	Naturally aspirated

Main Drive	Hydrostatic transmission with tandem pumps driving two fully reversing hydrostatic motors
Final Drive	Gear reduction #80 HS roller chain & sprockets in sealed chaincase with oil lubrication
Total Engine to Wheel Reduction	40:1
Max Travel Speed	6 mph (9.7 km/h)

Control Valve	4-spool, open center type, with float detent on lift, detent on auxiliary
Pump Type	Vane pump
Pump Flow Capacity	11 gal/min (42 L/min)
System Relief Pressure	2400 psi (16548 kPa)
Port Relief Pressure	3500 psi (24132 kPa)
Hydraulic Fluid Type	10W-30 or 10W-40
Type of Cylinders	Doubleacting cylinders
Lift Cylinders, Bore x Rode x Stroke (2)	2.00 x 1.25 x 25.0 in (50.80 x 31.75 x 635 mm)
Tilt Cylinders, Bore x Rode x Stroke (1)	3.25 x 1.50 x 14.5 in (82.55 x 38.1 x 368 mm)

Move Lift Arms to Maximum Height	3.5 sec.
Lower Lift Arms from Maximum Height	2.7 sec.
Move Bucket to Dumping Position	2.7 sec.
Move Bucket to Retracted Position	2.3 sec.

Bobcat 742 Engine	Ford Kent 1600	Mitsubishi 4G32
Fuel Tank Capacity	13 gal (49 L)	13 gal (49 L)
Engine Oil Capacity (w/ filter)	1 gal (3.8 L)	1.03 gal (3.9 L)
Cooling System Capacity	2.7 gal (10.4 L)	2.7 gal (10.4 L)
Chaincase Oil Reservoir Capacity	8 gal (30.3 L)	8 gal (30.3 L)
Hydraulic System Capacity (w/ tank)	6 gal (22.7 L)	6 gal (22.7 L)
Hydraulic Tank Capacity	3.5 gal (13.2 L)	3.5 gal (13.2 L)

Filter	Part Number
Outer Air Filter	6646494
Engine Oil Filter (Ford)	6513601
Engine Oil Filter (Mitsubishi 4G32)	6632745
Fuel Filter In-Line, SN: -20571	6512106
Fuel Filter In-Line, SN: 20572-	6511393
Hydraulic Oil Filter, SN: -14999	6515541 (10 micron)
Hydraulic Oil Filter, SN: 15001-	6598903
Hydraulic Filter (In-Line), SN: -14999	6563995 (Bronze)
