Loader Performance
| Rated Operating Capacity | 950 lb (431 kg) |
| Tipping Load | 1953 lb (886 kg) |
| Clearance at Max Lift and Dump | 82.0 in (2083 mm) |
| Reach at Max Lift and Dump | 12.3 in (312 mm) |
| Dump Angle at Maximum Height | 42° |
| Rollback Fully Raised at Maximum Height | 95° |
| Rollback at Ground Line | 26° |

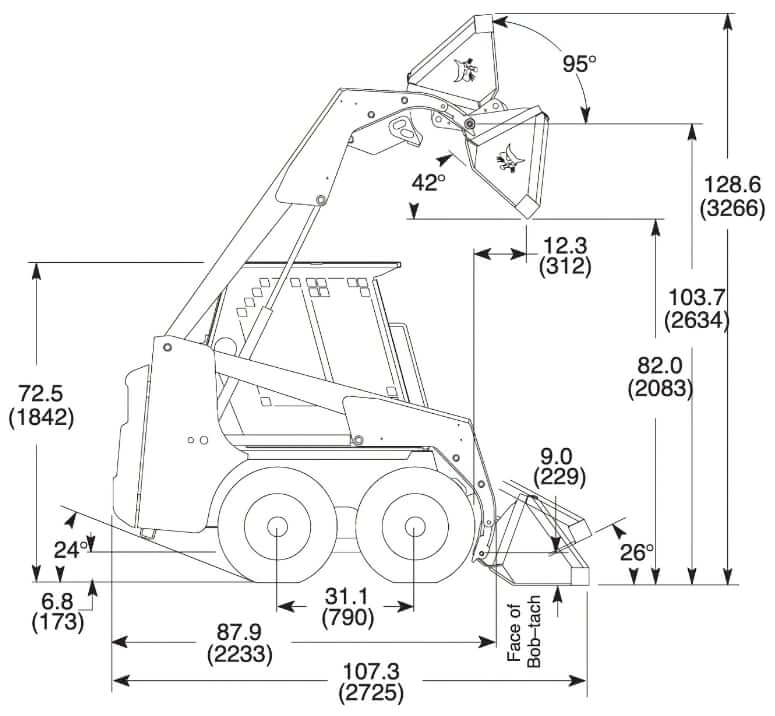

Dimensions
| Overall Length | 107.3 in (2725 mm) |
| Length w/o Bucket | 87.9 in (2233 mm) |
| Wheelbase | 31.1 in (790 mm) |
| Tread Width | 38.2 in (970 mm) |
| Width over Tires | 47 in (1194 mm) |
| Width over Bucket | 49.4 in (1225 mm) |
| Height to Top of Cab | 72.5 in (1842 mm) |
| Max Working Height | 128.6 in (3266 mm) |
| Ground Clearance | 6.8 in (173 mm) |
| Departure Angle | 24° |
| Turning Radius From Center | 61.9 in (1572 mm) |
Engine Details
| Number of Cylinders | 3 |
| Engine Make | Kubota |
| Engine Model | Kubota D1005-B |
| Displacement | 67.2 cu in (1.1 L) |
| Bore | 2.99 in (76.0 mm) |
| Stroke | 2.90 in (73.6 mm) |
| Gross Power | 25 hp (18.6 kw) |
| Net Power | 22.5 hp (16.8 kw) |
| Power Measured @ | 3100 rpm |
| Peak Torque | 43.6 lb ft (59.1 Nm) |
| Torque Measured @ | 2400 rpm |
| Air Cleaner | Dry replaceable paper cartridge w/ safety element |
| Aspiration | Naturally aspirated |
Operational Specs
| Operational Weight | 3664 lb (1662 kg) |
| Max Lift Capacity | 950 lb (431 kg) |
| Max Travel Speed | 6.0 mph (9.7 km/h) |
| Tire Size | 27×8.50-15 (4 or 6 ply rating) |
| Operating Voltage | 12 V |
| Alternator | 40 amps |
| Battery | 12 V, CCA 530 |
Hydraulic System
| Pump Type | Engine Driven, Gear Type |
| Pump Flow Capacity | 8.5 gal/min (32.2 L/min) |
| System Relief Pressure | 2000 psi (13800 kPa) |
| Hydraulic Oil Filter | Full flow replaceable, 3 micron synthetic media element |
| Control Valve | 3-spool, series type, open center w/float detent on lift and detent on auxiliary |
| Raise Lift Arms | 4.7 sec |
| Lower Lift Arms | 3.5 sec |
| Bucket Dump | 3.0 sec |
| Bucket Rollback | 2.4 sec |
Service Refill Capacities
| Fuel Tank Capacity | 10 gal (38 L) |
| Engine Oil Capacity (w/ Filter) | 1.3 gal (5.1 L) |
| Cooling System Capacity | 2.2 gal (8.5 L) |
| Hydraulic / Hydrostatic System Capacity | 4.8 gal (18.2 L) |
| Hydraulic Tank Capacity | 2.3 gal (8.7 L) |
| Chaincase Tank Capacity | 4 gal (15 L) |
