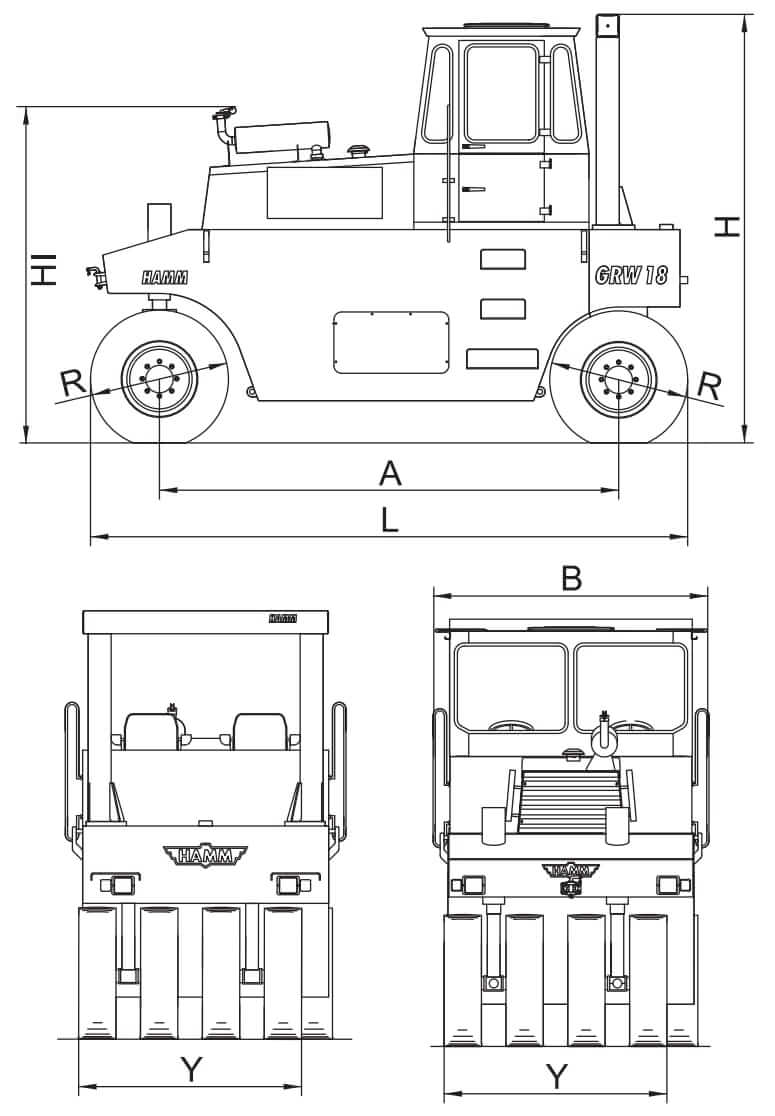

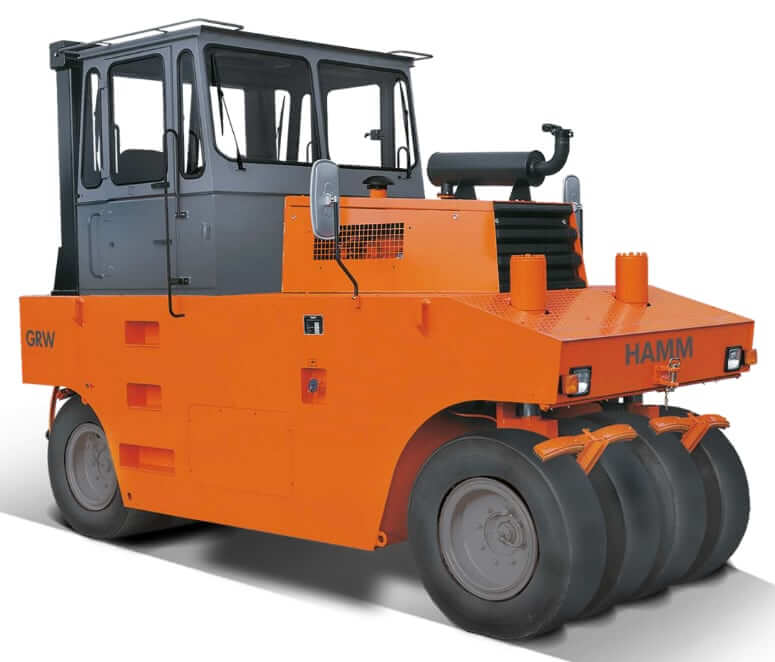

Dimensions
| A. Wheelbase | 141.5 in (3595 mm) |
| B. Overall Width | 85.0 in (2160 mm) |
| Maximum Working Width | 78.2 in (1986 m) |
| H. Height to Top of ROPS | 132.1 in (3355 mm) |
| H1. Height Loading, Minimum | 103.5 in (2630 mm) |
| Height to Top of Cab | 129.3 in (3285 mm) |
| Ground Clearance | 13 in (330 mm) |
| L. Overall Length | 187 in (4745 mm) |
| Tire Overlap, Left / Right | 2 / 2 in (50 / 50 mm) |
| Y. Width over Tires | 68.7 in (1744 mm) |
| R. Diameter of Tires | 42.1 in (1070 mm) |
| Turning Radius – Inside | 232 in (5900 mm) |
| Turning Radius – Outside | 307 in (7800 mm) |
Weight
| Operating Weight w/ Cab | 33169 lb (15045 kg) |
| Operating Weight w/ ROPS | 31835 lb (14440 kg) |
| Operating Weight w/o Cab/ROPS | 30832 lb (13985 kg) |
| Max Operating Weight | 61729 lb (28000 kg) |
| Front Axle Load | 15234 lb (6910 kg) |
| Rear Axle Load | 17935 lb (8135 kg) |
| Load per Tire (front) | 3807 lb (1727 kg) |
| Load per Tire (rear) | 4482 lb (2033 kg) |

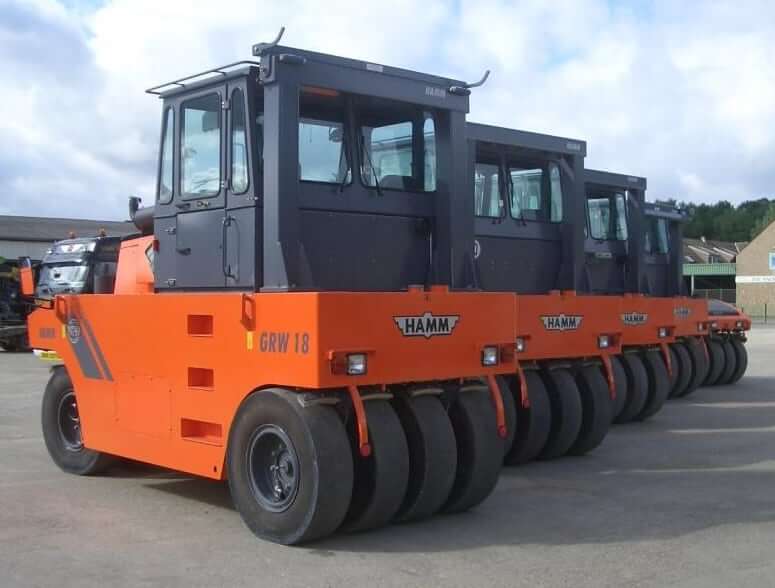

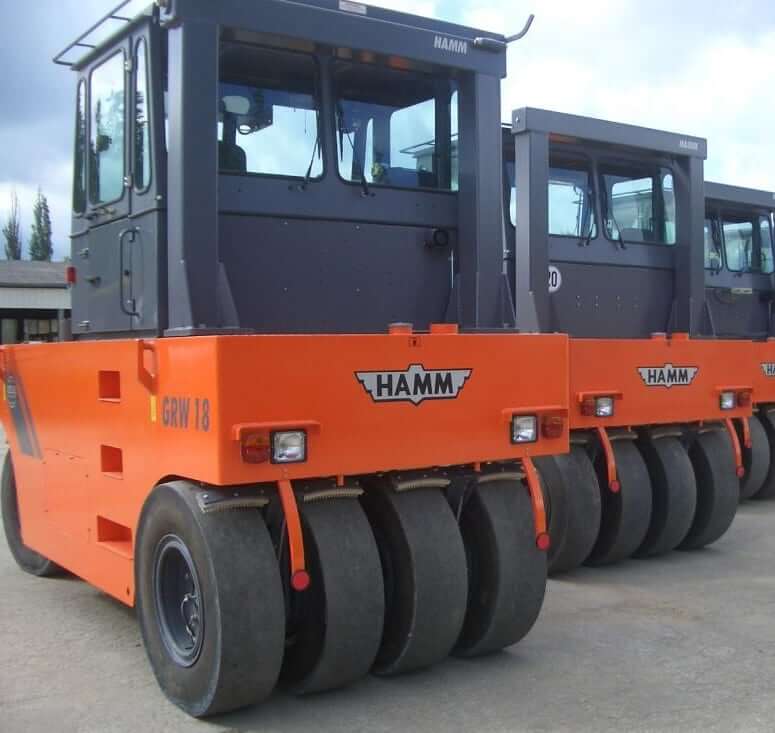

Tires
| Hamm GRW 18 | Front Tires | Rear Tires |
|---|---|---|
| Number of Tires | 4 | 4 |
| Tire Size | 11.00-R20 | 11.00-R20 |
| Width over Tires | 68.7 in (1744 mm) | 68.7 in (1744 mm) |
| Diameter of Tires | 42.1 in (1070 mm) | 42.1 in (1070 mm) |
| Weight of Tire (each) | 287 lb (130 kg) | 287 lb (130 kg) |
| Type of Tires | Rubber | Rubber |
| Tire Air Pressure | 21 – 116 psi (150 – 800 kPa) | 21 – 116 psi (150 – 800 kPa) |
| Wheel Nut Tightening Torque | 332 lb ft (450 Nm) | 332 lb ft (450 Nm) |
Engine Details
| Number Of Cylinders | 4 |
| Engine Make | Deutz |
| Engine Model | Deutz TCD 2012 L04 2V |
| Displacement | 247 cu in (4.038 L) |
| Bore | 4 in (101 mm) |
| Stroke | 5 in (126 mm) |
| Power, ISO 14396 | 115.6 hp (85.0 kw) |
| Power, SAE J134 | 113.9 hp (83.8 kw) |
| Power Measured @ | 2300 rpm |
| Injection System | Deutz Common Rail (DCR) |
| Combustion | Direct injection |
| Aspiration | Turbocharger with charge air cooling |
| Exhaust Gas Recirculation | Internal |
| Emission Standards | US EPA Tier 3 + EU Stage IIIA |
Operational Specs
| Operating Weight w/ Cab | 33169 lb (15045 kg) |
| Operating Weight w/ ROPS | 31835 lb (14440 kg) |
| Max Operating Weight | 61729 lb (28000 kg) |
| Operating Voltage | 12 V |
| Alternator | 150 amps |
| Battery | 12 V, 135 Ah |
| Starter | 12 V, 5.4 hp (4 kw) |
| Noise Level (Cab) | 81 dB(A) |
| Noise Level (ROPS) | 88 dB(A) |
| Sound Power Level | 108 dB(A) |
Water Sprinkler
| Water Sprinkler Type | Pressure |
| Water Sprinkler Pump Type | Membrane pump |
| Actuation, Sprinkling | Interval / manual |
Drive
| Type | Powershift transmission with hydrodynamic gearbox |
| Max Working Speed, 1st gear | 3.2 mph (5.2 km/h) |
| Max Working Speed, 2nd gear | 7.1 mph (11.5 km/h) |
| Max Travel Speed, 3nd gear | 13.2 mph (21.2 km/h) |
| Climbing Ability, w/ Ballast | 25% |
| Climbing Ability, w/o Ballast | 35% |
| Steering | 2-point steering |
| Steering Lock | ±30° |
| Oscillation Angle | ±4° |
| Level Compensation (front) | ±7.87 in (±200 mm) |
Brake System
| Service Brake, Mode of Action | Internal shoe brake |
| Service Brake, Actuation | Foot brake pedal |
| Parking Brake, Mode of Action | Belt brake |
| Parking Brake, Actuation | Hand brake lever |
| Emergency Brake, Mode of Action | Belt brake |
| Emergency Brake, Actuation | Hand brake lever |
Service Refill Capacities
| Fuel Tank Capacity | 52.3 gal (198 L) |
| Engine Oil Capacity | 3.0 gal (11.5 L) |
| Cooling System Capacity | 3.7 gal (14 L) |
| Water Spray Tank Capacity | 198.1 gal (750 L) |
| Hydraulic Tank Capacity | 1.3 gal (5 L) |
| Transmission Oil Capacity | 5.4 gal (20.5 L) |
| Leveling Capacity | 2x 0.95 gal (2x 3.6 L) |
| Differential Gear Capacity | 1.7 gal (6.5 L) |
| Wheel Gear Capacity | 2x 1.3 gal (2x 5 L) |
