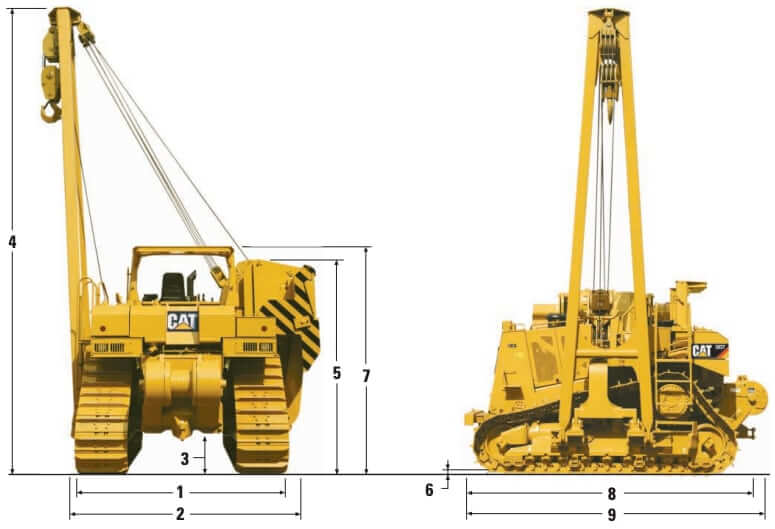

Dimensions
| 1. Width to Outside of Track | 120 in (3047 mm) |
| 2. Minimum Shipping Width* | 121 in (3070 mm) |
| 2. Shipping Width** | 142 in (3598 mm) |
| 3. Ground Clearance (face of shoe), SAE | 19.6 in (497 mm) |
| 4. Boom Height, 24 ft (7.3 m) boom | 319 in (8102 mm) |
| 4. Boom Height, 28 ft (8.5 m) boom | 366 in (9308 mm) |
| 5. Height (ROPS and boom removed) | 138.6 in (3520 mm) |
| 6. Grouser Height | 3.1 in (78 mm) |
| 7. Height to Top of Optional ROPS (boom removed) | 146.7 in (3728 mm) |
| 8. Operating Length (with rear drawbar) | 206 in (5231 mm) |
| 9. Operating Length (with optional rear winch) | 212 in (5385 mm) |
* Coounterweight frame, counterweight mounting brackets, boom and boom mounting brackets removed
** Boom and counterweight removed

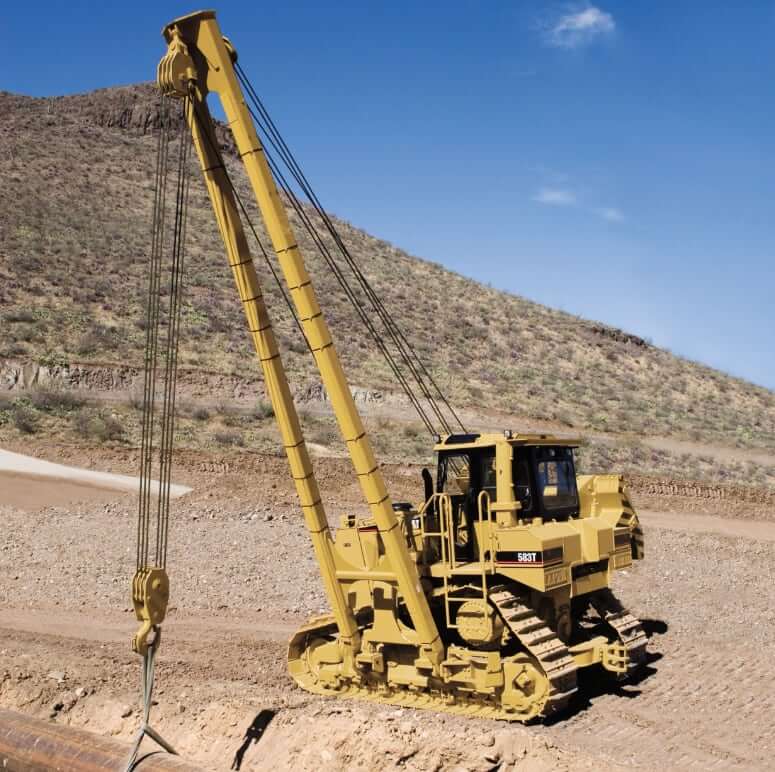

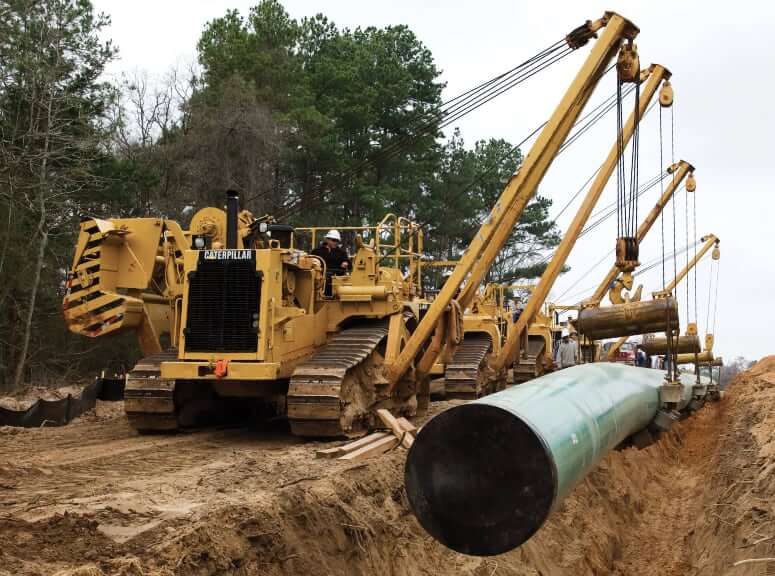

Pipelaying Equipment
| Lift Capacity | 140000 lb (63504 kg) |
| Boom Height | 287.4 in (7.3 m) |
| Boom Height (Optional) | 334.6 in (8.5 m) |
| Drawworks | Hydraulically actuated and controlled |
| Block and Hook | Heavy duty with roller bearings |

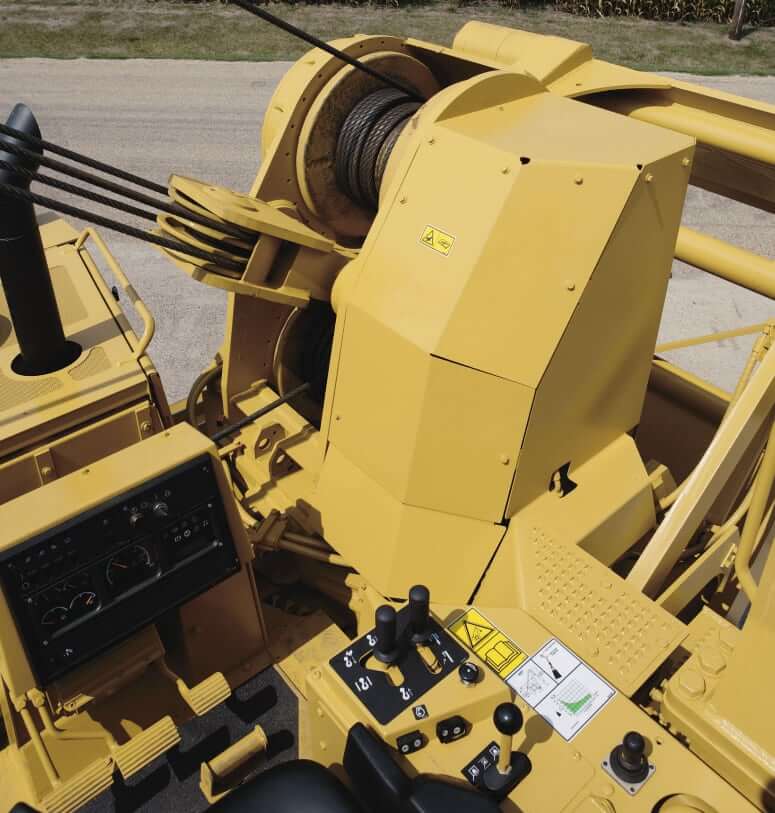

Line and Boom Winches
| CAT 583T Winches | Hook | Boom |
|---|---|---|
| Drum Diameter | 12.5 in (317 mm) | 12.5 in (317 mm) |
| Flange Diameter | 24 in (610 mm) | 24 in (610 mm) |
| Drum Length | 13.3 in (338 mm) | 13.3 in (338 mm) |
| Capacity, 3/4” (19 mm) Diameter | 595 ft (181 m) | 595 ft (181 m) |
| Wire Rope Installed, 3/4” (19 mm) Diameter | 336 ft (102 m) | 336 ft (102 m) |
| Hook Speed (raise) w/ 6 Part Line | 72.1 ft/min (22 m/min) | |
| Boom – Square Section Standard) | 24 ft (7.32 m) |

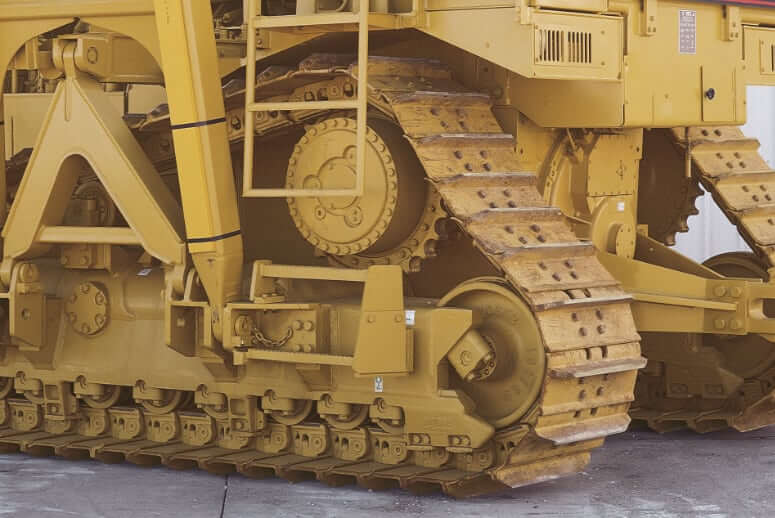

Undercarriage
| Length of Track on Ground | 141 in (3587 mm) |
| Track Gauge | 92 in (2337 mm) |
| Standard Shoe Size | 28 in (710 mm) |
| Optional Shoe Size | 30 in (762 mm) |
| Shoe Type | Moderate Service |
| Number of Carrier Rollers per Side | 1 |
| Number of Track Rollers per Side | 9 |
| Number of Shoes per Side | 47 |
| Grouser Height | 3 in (78 mm) |
| Ground Contact Area | 7896 in2 (5.1 m2) |

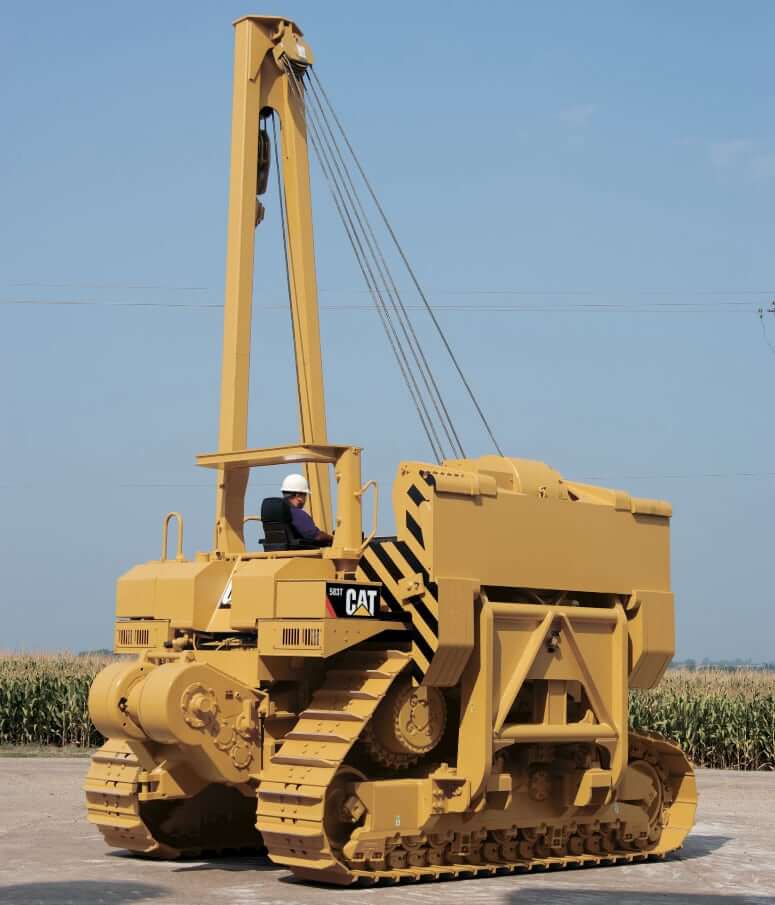

Weight
| Operating Weight | 100000 lb (45359 kg) |
| Shipping Weight | 99000 lb (44906 kg) |
| Removable Counterweight (#1), 2x | 662 lb (300 kg) |
| Removable Counterweight (#2), 6x | 1180 lb (535 kg) |
| Removable Counterweight (#3), 5x | 948 lb (430 kg) |
| Total Counterweight Extendible (13 segments) | 19920 lb (9036 kg) |
Engine Details
| Number of Cylinders | 6 |
| Engine Make | Caterpillar |
| Engine Model | CAT C15 ACERT |
| Displacement | 928 cu in (15.2 L) |
| Bore | 5.4 in (137 mm) |
| Stroke | 6.75 in (172 mm) |
| Gross Power | 347 hp (259 kw) |
| Net Power | 310 hp (231 kw) |
| Power Measured @ | 1850 rpm |
| Peak Torque | 1376 lb ft (1866 Nm) |
| Torque Measured @ | 1200 rpm |
| Fuel System | Direct injection (MEUI injection) |
| Lubrication System | Gear driven oil pump |
| Cooling System | Jacket water pump, centrifugal + water pump, inlet |
| Air Cleaner | Precleaner with dust ejector |
| Aspiration | Turbocharged Aftercooled (Air-to-air aftercooling) |
| Emission Standards | US EPA Tier 3 + EU Stage IIIA |
Operational Specs
| Operating Weight | 100000 lb (45359 kg) |
| Max Lift Capacity | 140000 lb (63504 kg) |
| Operating Voltage | 24 V |
| Alternator | 95 amps (150 amps) |
| Battery | 4x 12 V, 90 Ah, CCA 1000, Size group 31 |
Operator Environment

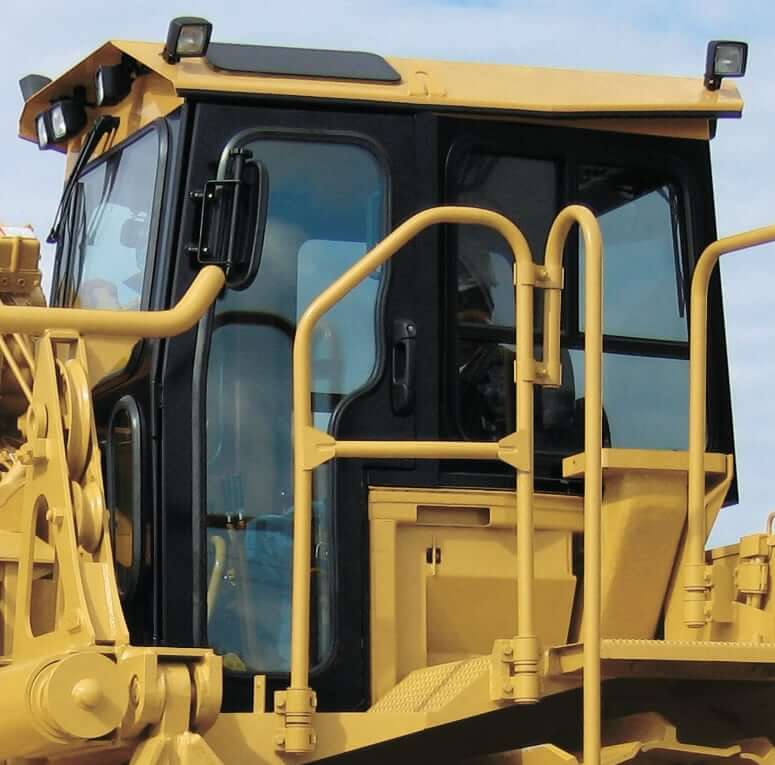

| Operator Station | Optional enclosed cab with a heater (air conditioning available as additional options) |
| ROPS | Available with or without cab. SAE J397 OCT95, SAE J1040 MAY94, ISO 3164 1995 and ISO 3471-1 |
| Operator Seat | Suspension seat, vinyl |
| Seat Belt | Retractable |
| Working Lights | 2x halogen front lights + 2x halogen rear lights |

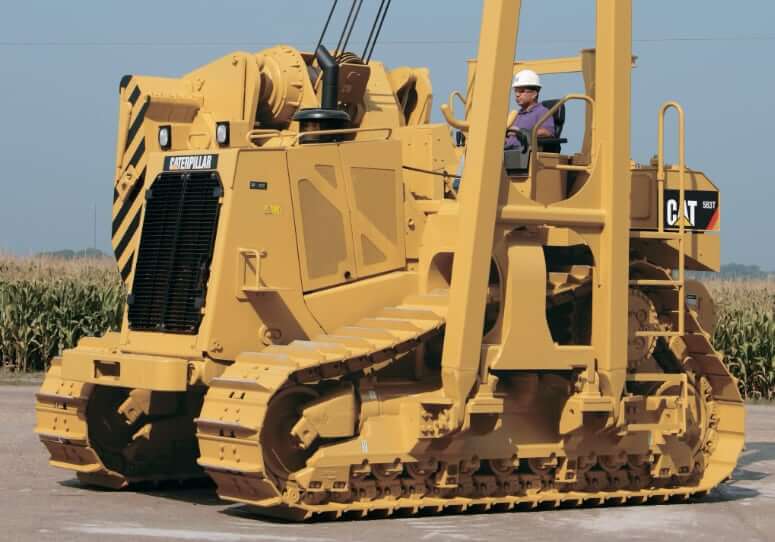

Transmission
| Type | Electronically-controlled powershift transmission |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
| Max Forward Speed | 6.6 mph (10.6 km/h) |
| Max Reverse Speed | 8.8 mph (14.2 km/h) |
| 1F – Drawbar Pull | 139 lbf (618.5 N) |
| 2F – Drawbar Pull | 76 lbf (338.2 N) |
| 3F – Drawbar Pull | 42 lbf (186.9 N) |
| Final Drives | 4x double-reduction planetary final drives |
| Service Brakes | Pedal, dual brake. SAE J/ISO 10265 |
| Parking Brake | Electronic parking brake |
Hydraulic System
| Pump Type | Variable, two section piston-type pumps |
| Max Pump Flow Capacity | 142 gal/min (540 L/min) |
| Relief Valve Pressure | 3000 psi (20684 kPa) |
| Steering Pump Flow Capacity | 7.3 gal/min (27.7 L/min) |
| Counterweight Pump Flow Capacity | 25.9 gal/min (98 L/min) |
| Counterweight Relief Valve Pressure | 2500 psi (17225 kPa) |
| Counterweight Pump Type | Gear pump |

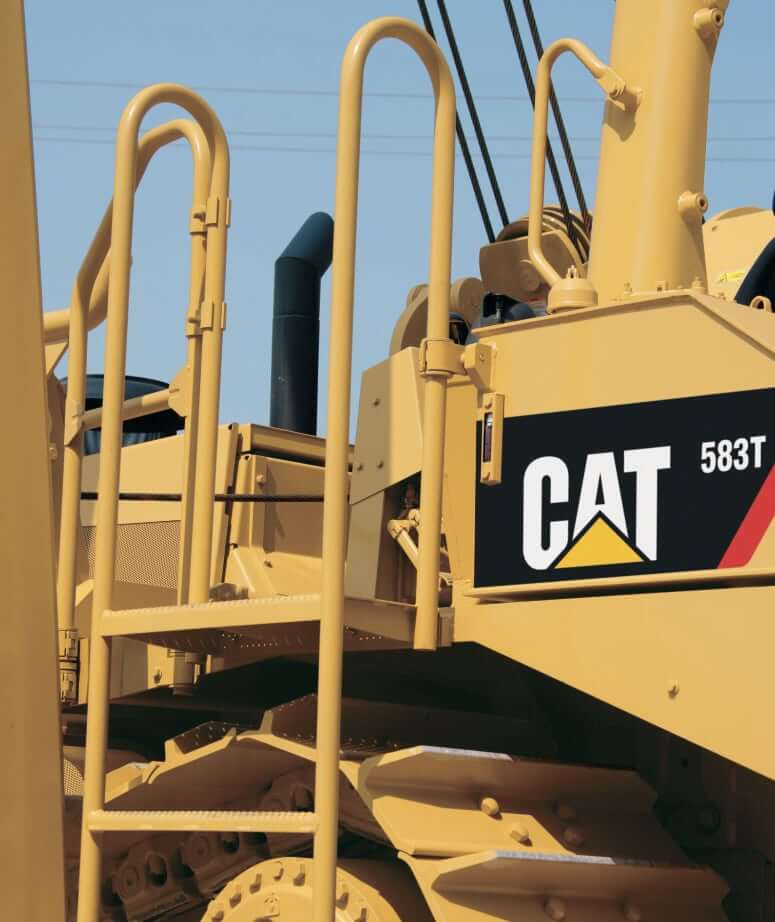

Service Refill Capacities
| Fuel Tank Capacity | 108 gal (409 L) |
| Engine Oil Capacity (w/ filter) | 10 gal (12.8 L) |
| Cooling System Capacity | 20.3 gal (77 L) |
| Hydraulic Tank Capacity | 25.5 gal (96.5 L) |
| Transmission Oil Capacity | 41 gal (155 L) |
| Final Drives Capacity (each side) | 3.4 gal (12.8 L) |
| Roller Frames Capacity (each side) | 19 gal (71.9 L) |
| Variable Fan Hub Capacity | 0.82 gal (3.1 L) |
