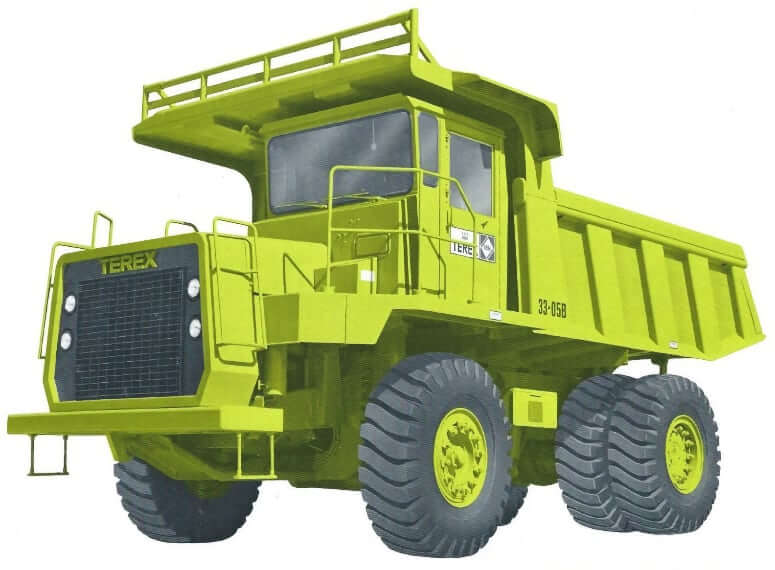

Terex 33-05B Haul Truck

Contents

Dimensions
Weight
Dump
Engine Details
Operational Specs
Transmission
Service Refill Capacities

Dimensions

Overall Length	302 in (7670 mm)
Overall Width	137 in (3480 mm)
Overall Height	153.1 in (3890 mm)
Wheelbase	142.1 in (3610 mm)

Weight

Empty Weight	49500 lb (22453 kg)
Loaded Weight	109500 lb (49668 kg)

Dump

Rated Payload	60000 lb (27220 kg)
Load Capacity – Struck	19.1 yd3 (14.6 m3)
Load Capacity – Heaped	22.9 yd3 (17.5 m3)

Engine Details

Number Of Cylinders	8
Engine Make	Detroit Diesel
Engine Model	Detroit Diesel 8V-71T
Displacement	568 cu in (9.3 L)
Bore	4.25 in (108 mm)
Stroke	5.0 in (127 mm)
Gross Power	350 hp (261 kw)
Power Measured @	2100 rpm
Injection System	Mechanical unit injector fuel system
Compression Ratio	17.0:1
Aspiration	Turbocharged

Operational Specs

Max Operating Weight	109500 lb (49668 kg)
Operating Voltage	24 V
Alternator	50 amps
Battery	2x 12 V
Tire Size	18.00 x 25-28PR

Transmission

Transmission Model	Allison CLBT-5960
Number of Gears – Forward	5
Number of Gears – Reverse	1
Max Travel Speed	34 mph (54.8 km/h)

Service Refill Capacities

Fuel Tank Capacity	98 gal (371 L)
Engine Oil Capacity	10 gal (38 L)
Cooling System Capacity	34 gal (129 L)
