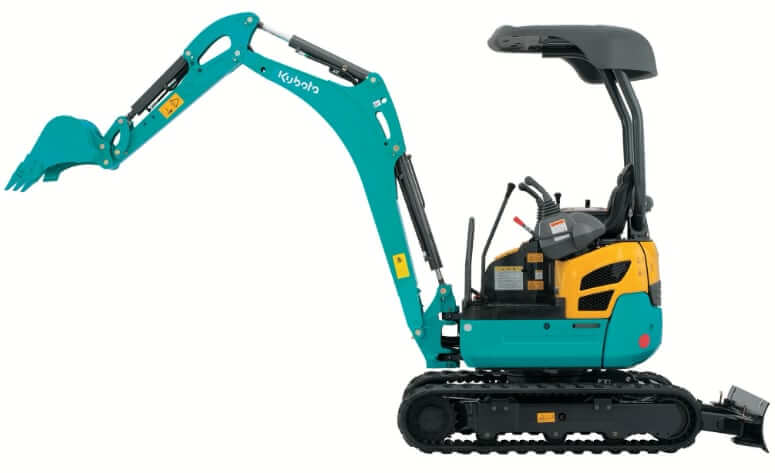

Dimensions
| Overall Length | 139.6 in (3545 mm) |
| Overall Width | 39 in (990 mm) Narrow / 49 in (1240 mm) Standard |
| Track Gauge | 30 in (760 mm) Narrow / 40 in (1010 mm) Standard |
| Overall Height | 92.1 in (2340 mm) |
| Ground Clearance | 5.9 in (150 mm) |

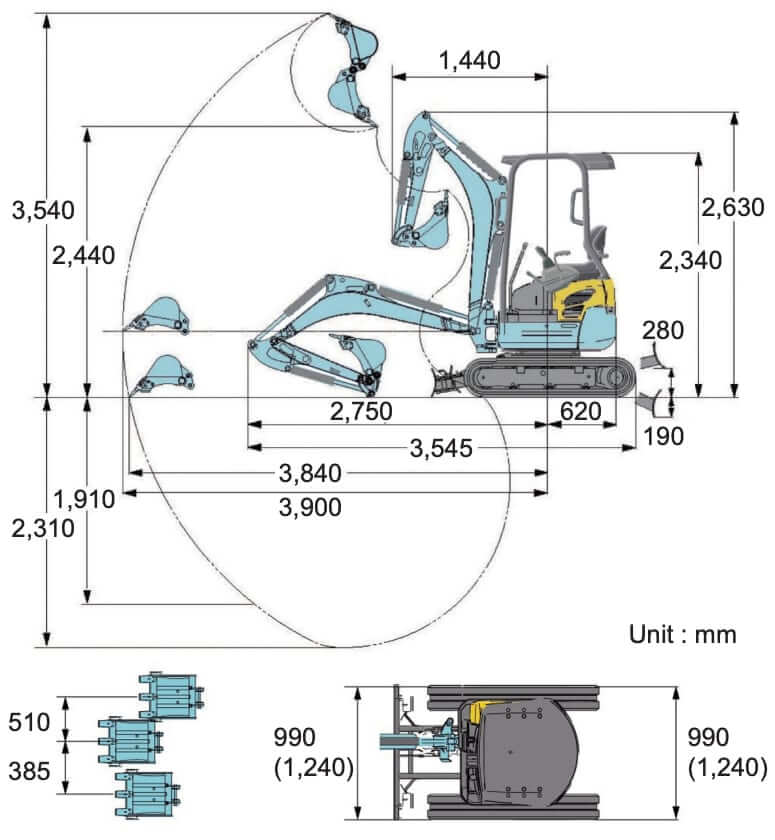

Working Range
| Max Digging Height | 139.4 in (3540 mm) |
| Max Dumping Height | 96.1 in (2440 mm) |
| Max Digging Depth | 90.9 in (2310 mm) |
| Max Vertical Digging Depth | 75.2 in (1910 mm) |
| Max Digging Radius at Ground | 151.2 in (3840 mm) |
| Max Digging Radius | 153.5 in (3900 mm) |
| Min Turning Radius (w/o swing) | 56.7 in (1440 mm) |
| Min Turning Radius (w/ swing) | 47.6 in (1210 mm) |
| Min Tail Turning Radius | 24.4 in (620 mm) |
Swing Mechanism
| Type | Zero tail swing excavator |
| Swivel Motor Type | Orbit motor |
| Swing Speed | 9.1 rpm |
| Boom Swing Angle, Left | 65° |
| Boom Swing Angle, Right | 58° |
| Tail Swing Radius | 24.4 in (620 mm) |

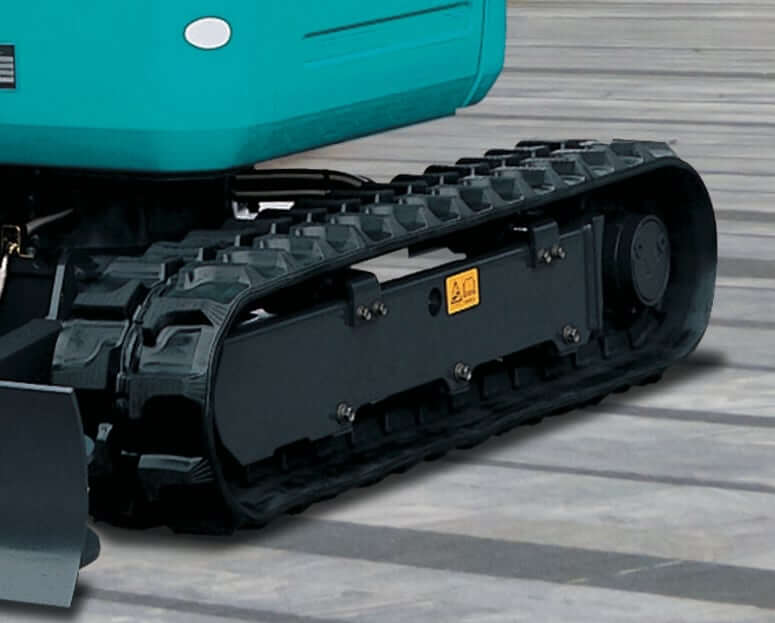

Undercarriage
| Type of Track Rollers | Double-flanged track rollers |
| Type of Tracks | Short-pitched rubber tracks |
| Standard Track Width | 49 in (1240 mm) |
| Narrow Track Width | 39 in (990 mm) |
| Shoe Width | 9.1 in (230 mm) |
| Tumbler Distance | 48.4 in (1230 mm) |
| Crawler Length | 62.4 in (1585 mm) |
| Ground Pressure | 3.8 psi (26.2 kPa) |
| Max Climbing Angle | 30° (58%) |
| Max Traction Force | 4865 lbf (21.6 kN) |

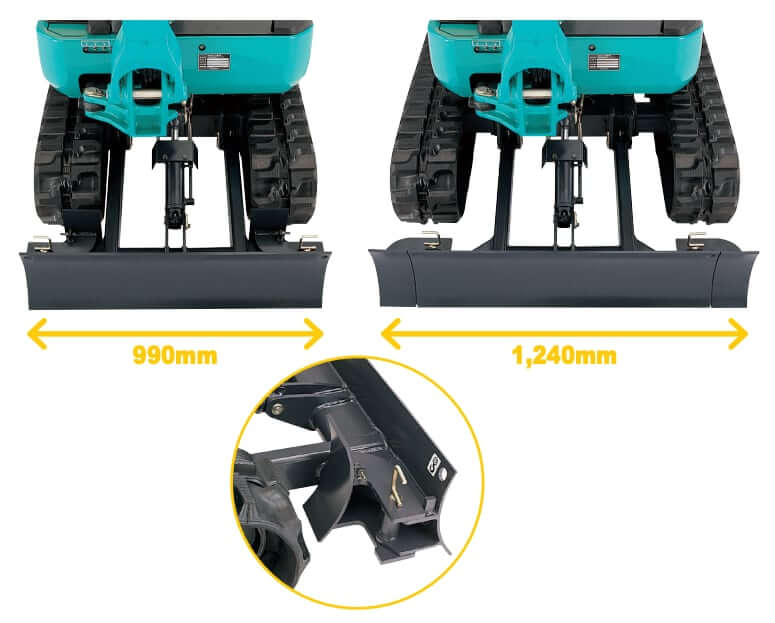

Dozer Blade
| Blade Height | 10.4 in (265 mm) |
| Max Lift Above Ground | 11 in (280 mm) |
| Max Drop Below Ground | 7.5 in (190 mm) |
| Blade Width (Standard Mode) | 49 in (1240 mm) |
| Blade Width (Narrow Mode) | 39 in (990 mm) |
Engine Details
| Number of Cylinders | 3 |
| Engine Make | Kubota |
| Engine Model | Kubota D902-K3A |
| Displacement | 54.8 cu in (0.898 L) |
| Bore | 2.83 in (72 mm) |
| Stroke | 2.90 in (73.6 mm) |
| Gross Power | 16.0 hp (11.8 kw) |
| Power Measured @ | 2300 rpm |
| Aspiration | Naturally aspirated |
| Emission Standards | US EPA Tier 4 + EU Stage V |
Operational Specs

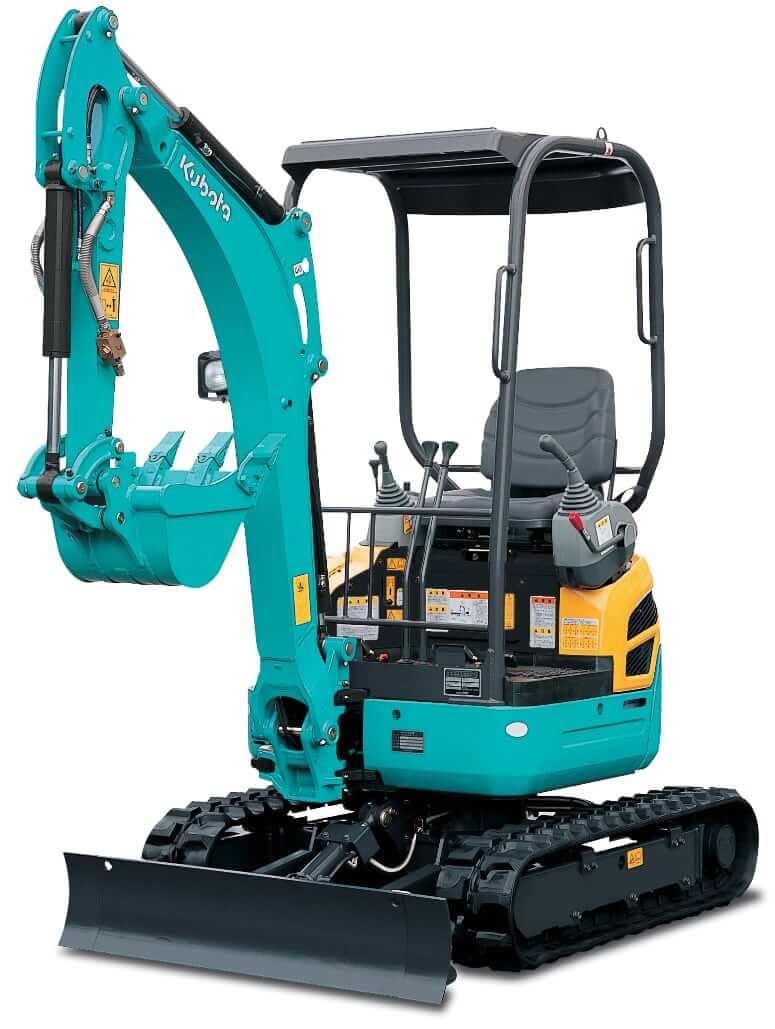

| Operating Weight | 3638 lb (1650 kg) |
| Operating Voltage | 12 V |
| Alternator | 40 amps |
| Battery | 12 V, 48 Ah, CCA 350, RC: 75 min, 55B24R |
| Working Lights | 2 working lights on canopy + 1 light on the boom |
| Operator Station | Canopy / Canopy with ROPS |
| Operator Seat | High-back suspension seat |
| Controls | Hydraulic pilot control levers with wrist rests |
| Instrument Panel | Kubota’s Intelligent Control System LCD panel |
Drive System
| Type | 2-speed hydrostatic transmission, auto-shift |
| Travel Motor Type | Piston motor: 2F |
| Max Travel Speed, Low | 1.3 mph (2.1 km/h) |
| Max Travel Speed, High | 2.5 mph (4.1 km/h) |
| Service Brakes | Hydrostatic brake |

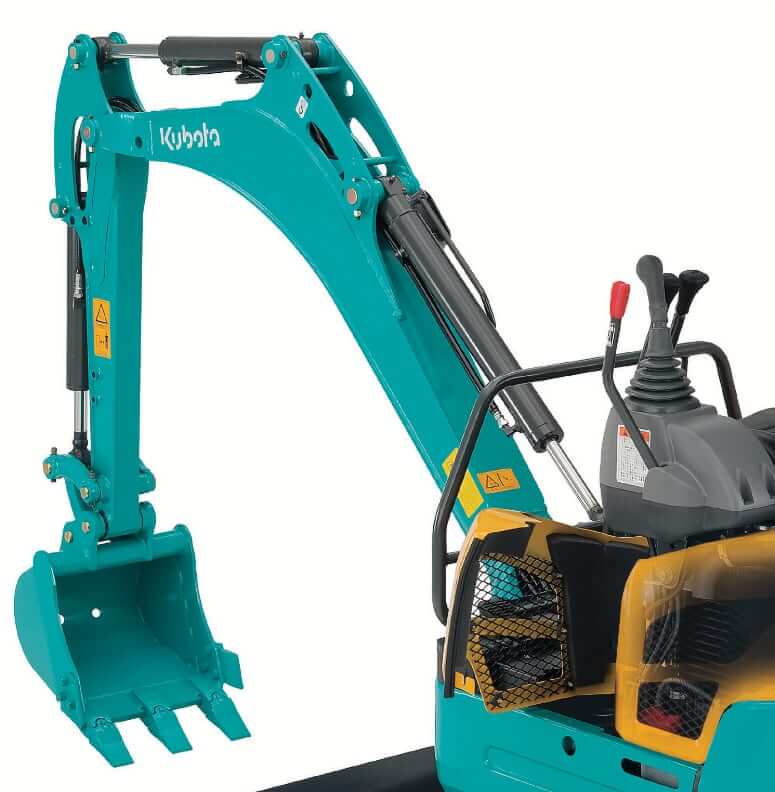

Hydraulic System
| Type | Hydraulic System with 3 independent pumps for boom, arm and swivel |
| Pump Type | 2x variable displacement pumps + 1x gear pump |
| Auxiliary Hydraulic System | Bi-directional auxiliary hydraulic controls, and a control valve |
| Hydraulic Pump Flow Capacity | 2x 4.57 gal/min (2x 17.3 L/min) + 2.75 gal/min (10.4 L/min) |
| Auxiliary Hydraulic Flow | 7.32 gal/min (27.7 L/min) |
| Max Pressure | 2702 psi (18600 kPa) |
| Max Breakout Force, Bucket | 3417 lbf (15.2 kN) |
| Max Breakout Force, Arm | 1918 lbf (8.5 kN) |

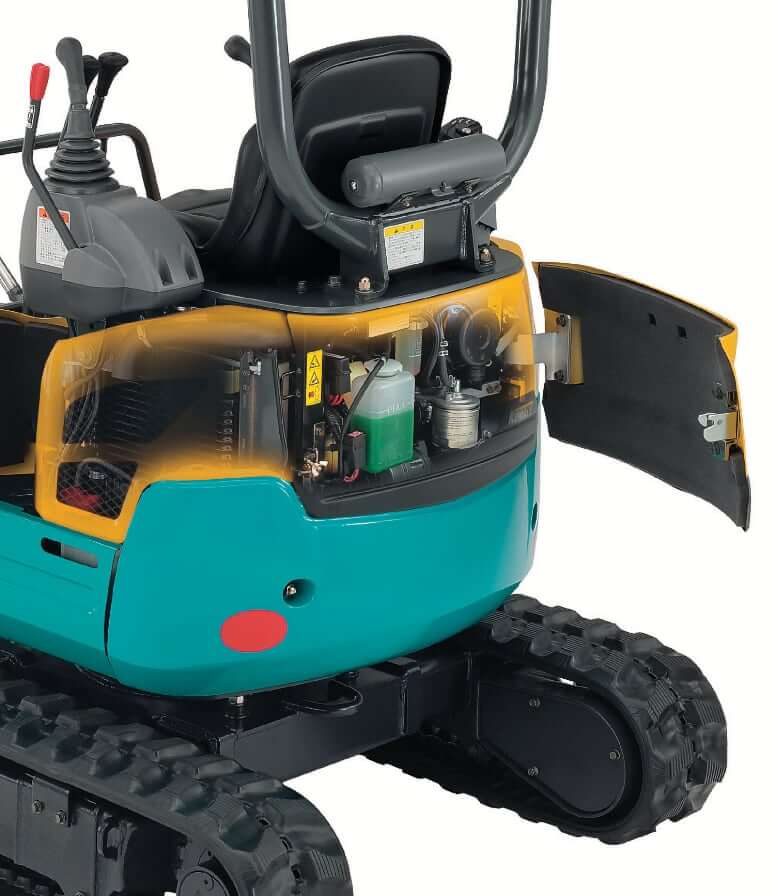

Service Refill Capacities
| Fuel Tank Capacity | 5 gal (19 L) |
| Engine Oil Capacity | 0.95 gal (3.6 L) |
| Cooling System Capacity | 0.63 gal (2.4 L) |
| Hydraulic System Capacity | 6.1 gal (23 L) |
| Hydraulic Tank Capacity | 3.4 gal (13 L) |
| Travel Reduction Unit | 0.07 gal (0.25 L) |
