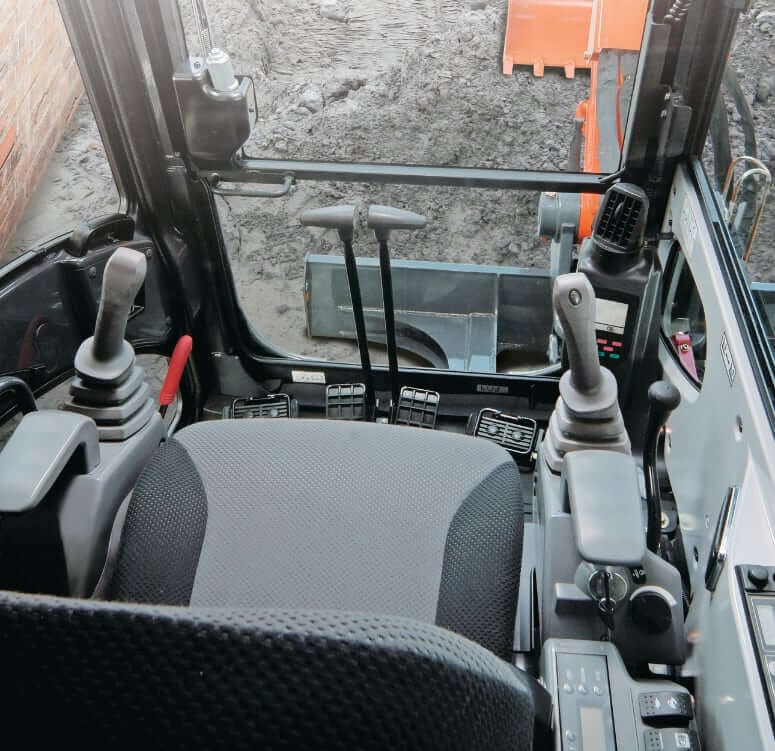

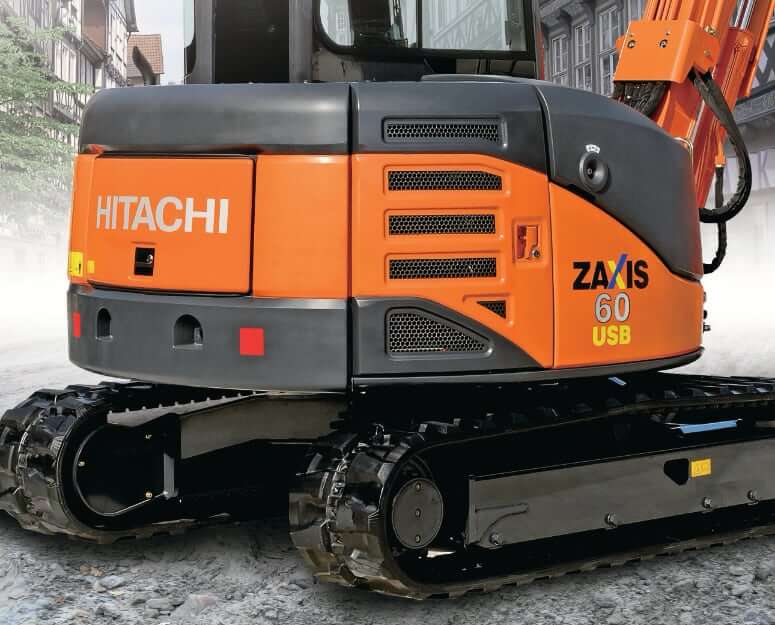

Dimensions
| Overall Length (59″ arm / 72″ arm) |
226.8 in (5760 mm) / 227.9 in (5790 mm) |
| Overall Width |
78.7 in (2000 mm) |
| Overall Height |
100.8 in (2560 mm) |
| Distance Between Tumblers |
78.3 in (1990 mm) |
| Undercarriage Length |
98.4 in (2500 mm) |
| Rear-end Swing Radius |
51.2 in (1300 mm) |
| Track Gauge |
63 in (1600 mm) |
| Engine Cover Height |
61.8 in (1570 mm) |
| Counterweight Clearance |
24.4 in (620 mm) |
| Track Shoe Width |
15.7 in (400 mm) |
| Ground Clearance |
13 in (330 mm) |
Working Range
| Stick Option |
Arm 59″ (1.50 m) |
Arm 72″ (1.85 m) |
| Max. Digging Reach |
245.3 in (6230 mm |
258.3 in (6560 mm) |
| Max. Digging Reach on Ground |
239.8 in (6090 mm) |
252.8 in (6420 mm) |
| Max. Digging Depth |
148.4 in (3770 mm) |
162.2 in (4120 mm) |
| Max. Cutting Height |
234.6 in (5960 mm) |
243.7 in (6190 mm) |
| Max. Dumping Height |
164.2 in (4170 mm) |
173.2 in (4400 mm) |
| Min. Swing Radius |
97.2 in (2470 mm) |
100.8 in (2560 mm) |
| Max. Vertical Wall |
120.1 in (3050 mm) |
133.5 in (3390 mm) |
| Front Height at Min. Swing Radius |
179.5 in (4560 mm) |
179.5 in (4560 mm) |
| Min. Level Crowding Distance |
85.8 in (2180 mm) |
78.7 in (2000 mm) |
| Working Radius at Min. Swing Radius (max. boom-swing angle) |
78.7 in (2000 mm) |
81.9 in (2080 mm) |
| Max Offset Distance, Boom-Swing Angle |
28.3 in (720 mm), 80° |
33.5 in (850 mm), 60° |
| Bucket Digging Force* ISO |
9240 lbf (41.1 kN) |
9240 lbf (41.1 kN) |
| Bucket Digging Force* SAE: PCSA |
8070 lbf (35.9 kN) |
8070 lbf (35.9 kN) |
| Arm Crowd Force* ISO |
6992 lbf (31.1 kN) |
6070 lbf (27.0 kN) |
| Arm Crowd Force* SAE: PCSA |
6632 lbf (29.5 kN) |
5800 lbf (25.8 kN) |
*Excluding track shoe lug
Buckets
| Capacity ISO Heaped |
Width w/o side cutters |
Weight |
| 0.29 yd3 (0.22 m3) |
25.6 in (650 mm) |
297.6 in (135 kg) |
| 0.31 yd3 (0.24 m3) |
27.6 in (700 mm) |
310.8 in (141 kg) |
Blade
| Blade Width |
74.7 in (2000 mm) |
| Blade Height |
16.3 in (415 mm) |
| Horizontal Distance To Blade |
74.8 in (1900 mm) |
| Blade Lever |
1 |
| Blade Bottom Highest Position Above Ground |
17.5 in (445 mm) |
| Blade Bottom Lowest Position Above Ground |
15.5 in (390 mm) |
| Blade Type |
Strengthened blade |
Undercarriage
| Travel Device |
2-speed axial piston motor through planetary reduction gear for counterrotation of the tracks |
| Max Travel Speed (Low) |
1.6 mph (2.5 km/h) |
| Max Travel Speed (High) |
2.8 mph (4.5 km/h) |
| Shoe Size |
15.75 in (400 mm) |
| Track Gauge |
63 in (1600 mm) |
| Maximum Traction Force |
8947 lbf (39.8 kN) |
| Upper Rollers (Each Side) |
1 |
| Lower Rollers (Each Side) |
4 |
| Track Shoes (Each Side) |
39 |
| Track Guard (Each Side) |
1 |
| Gradeability |
58% (30 degree) continuous |
| Ground Pressure (Rubber shoes) |
4.93 psi (34 kPa) |
| Ground Pressure (Grouser shoes) |
5.08 psi (35 kPa) |
| Ground Pressure (Pad crawler shoes) |
5.08 psi (35 kPa) |
Swing Mechanism
| Swing Device |
Axial piston motor with planetary reduction gear is lubricated by hydraulic oil |
| Swing Speed |
9.5 rpm |
| Swing Torque |
8113 lb ft (11.0 kNm) |
Engine Details
| Number Of Cylinders |
4 |
| Engine Make |
Yanmar |
| Engine Model |
Yanmar KDN-4TNV98 |
| Net Power |
54.3 hp (40.5 kw) |
| Power Measured @ |
2000 rpm |
| Peak Torque |
174 lb ft (236 Nm) |
| Torque Measured @ |
1300 rpm |
| Displacement |
202.5 cu in (3.32 L) |
| Emission Standards |
EU Stage III A |
Operational Specs
| Operating Weight (Rubber shoes) |
13205 lb (5990 kg) |
| Operating Weight (Grouser shoes) |
13426 lb (6090 kg) |
| Operating Weight (Pad crawler shoes) |
13492 lb (6120 kg) |
| Voltage |
12 V |
| Alternator |
50 amps |
| Battery |
12 V, 92 Ah |
| Noise Level (LwA) (2000 / 14 / EC) |
98 dB (A) |
| Noise Level (LpA) (ISO 6396) |
77 dB (A) |
Hydraulic System
| Type |
Engine speed sensing system |
| Work Mode Selector |
Digging mode / Attachment mode |
| Main Pump |
1 variable displacement axial piston pump |
| Main Pump Flow |
38.1 gal/min (144 L/min) |
| Pilot Pump |
1 gear pump |
| Pilot Pump Flow |
2.8 gal/min (10.4 L/min) |
| Hydraulic Motor (Travel) |
2 variable displacement axial piston motors |
| Hydraulic Motor (Swing) |
1 axial piston motor |
| Implement Circuit Relief Valve Pressure |
3553 psi (24500 kPa) |
| Swing Circuit Relief Valve Pressure |
3553 psi (24500 kPa) |
| Travel Circuit Relief Valve Pressure |
3727 psi (25700 kPa) |
| Pilot Circuit Relief Valve Pressure |
565 psi (3900 kPa) |
Service Refill Capacities
| Fuel Tank Capacity |
31.7 gal (120 L) |
| Engine Oil Capacity |
3.1 gal (11.9 L) |
| Engine Coolant Capacity |
1.7 gal (6.5 L) |
| Hydraulic System Capacity |
33.7 gal (127.5 L) |
| Hydraulic Tank Capacity |
26.4 gal (100 L) |
| Travel Device (each side) |
0.2 gal (0.9 L) |
