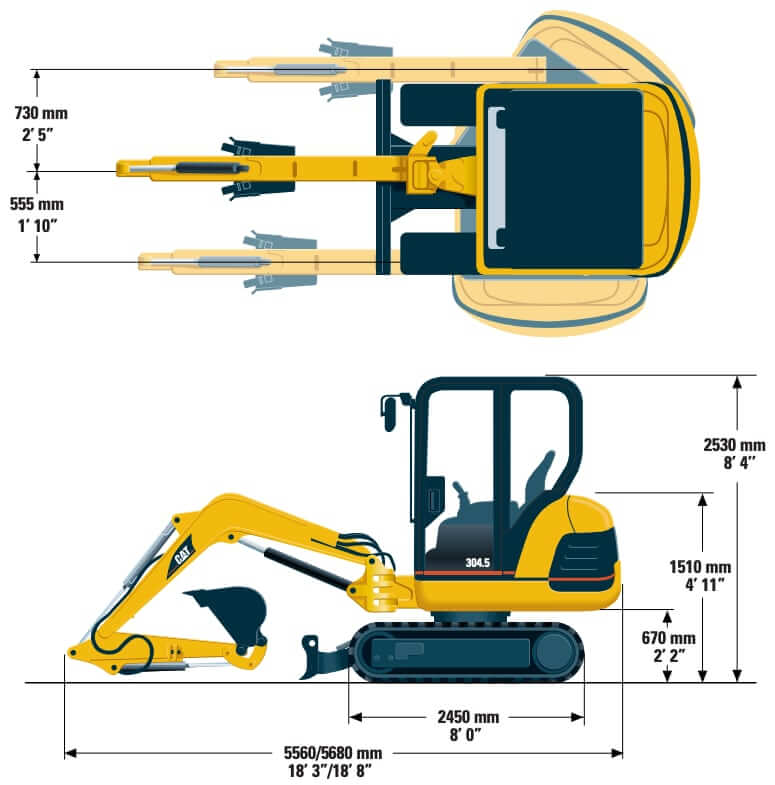

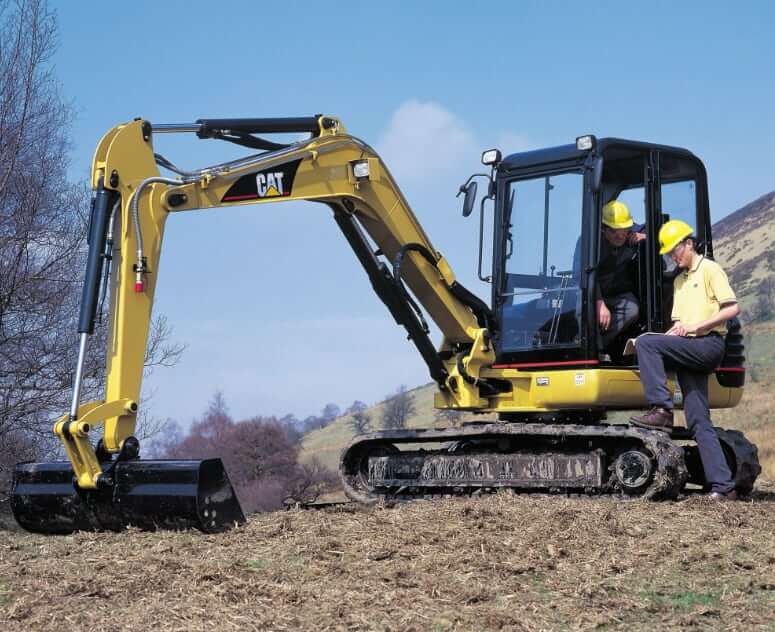

Dimensions
| Shipping Length (Standard) | 218.9 in (5560 mm) |
| Shipping Length (Long Stick) | 223.6 in (5680 mm) |
| Height to Top of Canopy | 99.6 in (2530 mm) |
| Height to Top of Cab | 99.6 in (2530 mm) |
| Width – Upper Structure | 50.6 in (1285 mm) |
| Width – Over Track | 74.8 in (1900 mm) |
| Track Gauge | 59.1 in (1500 mm) |
| Track Shoe Width | 15.7 in (400 mm) |
| Rear Swing Radius | 58.7 in (1490 mm) |
| Ground Clearance | 13.0 in (330 mm) |
Swing System
| Swing System Type | Hydraulic Motor Driven. Centralized lubrication |
| Swing Brake | Automatic swing brake, spring applied, hydraulic release |
| Swing Speed | 8.5 rpm |
| Boom Swing – Left w/o Stop | 90° |
| Boom Swing – Left w/ Stop | 42° |
| Boom Swing – Right | 50° |

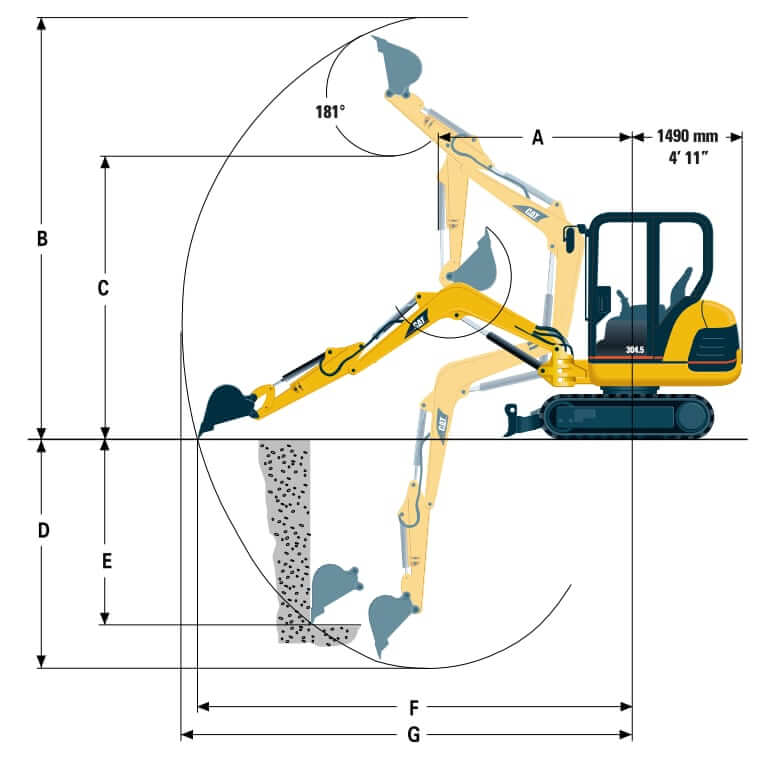

Working Range
| CAT 304.5 | Standard Stick | Long Stick |
|---|---|---|
| Stick Digging Force | 5171 lbf (23.0 kN) | 4361 lbf (19.4 kN) |
| Bucket Digging Force | 8880 lbf (39.5 kN) | 8880 lbf (39.5 kN) |
| A. Boom In Reach | 79.9 in (2030 mm) | 88.6 in (2250 mm) |
| B. Maximum Cutting Height | 223.6 in (5680 mm) | 233.9 in (5940 mm) |
| C. Maximum Dump Height | 158.3 in (4020 mm) | 168.5 in (4280 mm) |
| D. Maximum Digging Depth | 139.0 in (3530 mm) | 154.7 in (3930 mm) |
| E. Maximum Vertical Dig Depth | 105.9 in (2690 mm) | 121.3 in (3080 mm) |
| F. Maximum Reach – Ground Level | 223.2 in (5670 mm) | 238.2 in (6050 mm) |
| G. Maximum Horizontal Reach | 228.7 in (5810 mm) | 243.3 in (6180 mm) |
| Stick Length | 56.3 in (1430 mm) | 72.0 in (1830 mm) |

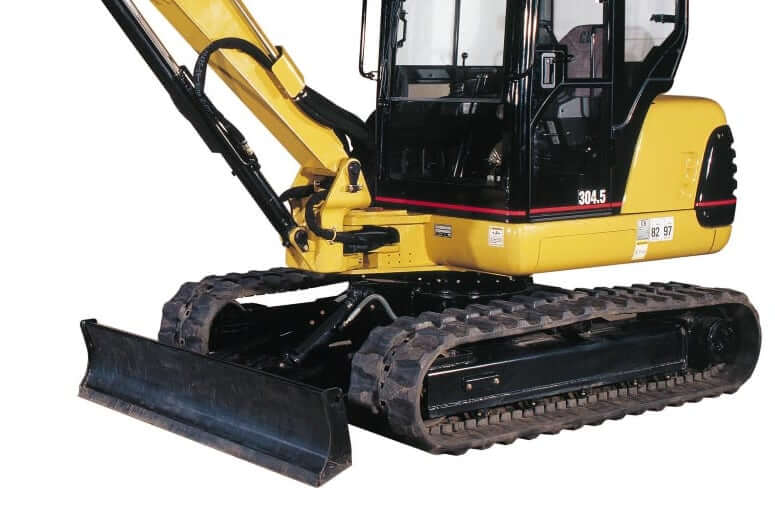

Undercarriage
| Track Shoe Width | 15.7 in (400 mm) |
| Track Gauge | 59.1 in (1500 mm) |
| Undercarriage Width | 74.8 in (1900 mm) |
| Undercarriage Length | 96.5 in (2450 mm) |
| Number of Track Rollers Per Side | 4 |
| Number of Carrier Rollers Per Side | 1 |
Dozer Blade
| Blade Height | 14.6 in (370 mm) |
| Blade Width | 74.8 in (1900 mm) |
| Blade Lift Height | 16.5 in (420 mm) |
| Blade Dig Depth | 14.2 in (360 mm) |

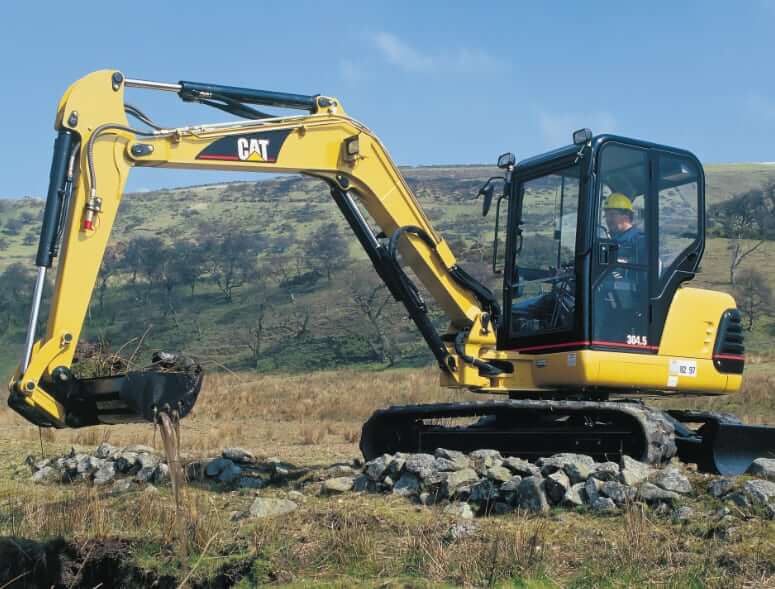

Weights
| Operating Weight (Cab) | 10130 lb (4595 kg) |
| Operating Weight (Canopy) | 9866 lb (4475 kg) |
Engine Details
| Engine Model | Cat 3013 | Cat 3024 |
|---|---|---|
| Number of Cylinders | 3 | 4 |
| Displacement | 91.3 cu in (1.496 L) | 135.2 cu in (2.216 L) |
| Bore | 3.30 in (84 mm) | 3.30 in (84 mm) |
| Stroke | 3.94 in (100 mm) | 3.94 in (100 mm) |
| Gross Power | 39 hp (29 kw) | 39 hp (29 kw) |
| Net Power | 38 hp (28 kw) | 36 hp (27 kw) |
| Power Measured @ | 3000 rpm | 2300 rpm |
| Aspiration | Naturally Aspirated | Naturally Aspirated |
Operational Specs
| Operating Weight (Cab) | 10130 lb (4595 kg) |
| Operating Weight (Canopy) | 9866 lb (4475 kg) |
| Operating Voltage | 12 V |
| Alternator | 55 amps |
| Battery | 12 V, 55 Ah, CCA 650 |
| Noise Level (inside cab) | 82 dB(A) |
| Noise Level (inside canopy) | 80 dB(A) |
| Noise Level (exterior) | 97 dB(A) |
Travel System
| Type | Hydrostatic transmission. Each track is driven by one independent two-speed motor |
| Max Travel Speed, High | 2.9 mph (4.7 km/h) |
| Max Travel Speed, Low | 1.7 mph (2.8 km/h) |
| Max Traction Force, High Speed | 4721 lbf (21.0 kN) |
| Max Traction Force, Low Speed | 8767 lbf (39.0 kN) |
| Gradeability | 30° |
Hydraulic System
| Type | Auxiliary valve, lines to the swing post and foot pedal are standard |
| Pump Type | Two piston pumps + one gear-type pump |
| Piston Pump Flow Capacity | 2 x 13 gal/min (2 x 49.1 L/min) |
| Gear Pump Flow Capacity | 10.3 gal/min (39.1 L/min) |
| Operating Pressure (Equipment) | 3336 psi (23000 kPa) |
| Operating Pressure (Travel) | 3336 psi (23000 kPa) |
| Operating Pressure (Swing) | 2698 psi (18600 kPa) |
| Auxiliary Circuit Flow | 23.2 gal/min (88 L/min) |
| Secondary Auxiliary Line | Optional |
| Controls | Boom, stick, bucket and machine swing are pilot-controlled |

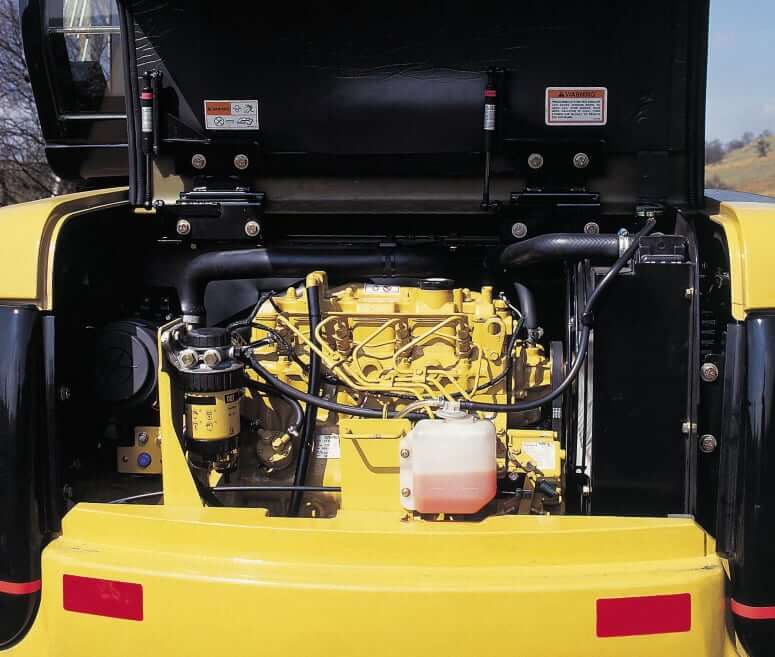

Service Refill Capacities
| Fuel Tank Capacity | 14.5 gal (55 L) |
| Engine Oil Capacity | 2.0 gal (7.4 L) |
| Cooling System Capacity | 1.7 gal (6.3 L) |
| Hydraulic System Capacity (w/ tank) | 22.5 gal (85 L) |
| Hydraulic Tank Capacity | 14.8 gal (56 L) |
| Final Drive Fluid Capacity | 0.3 gal (1.1 L) |
