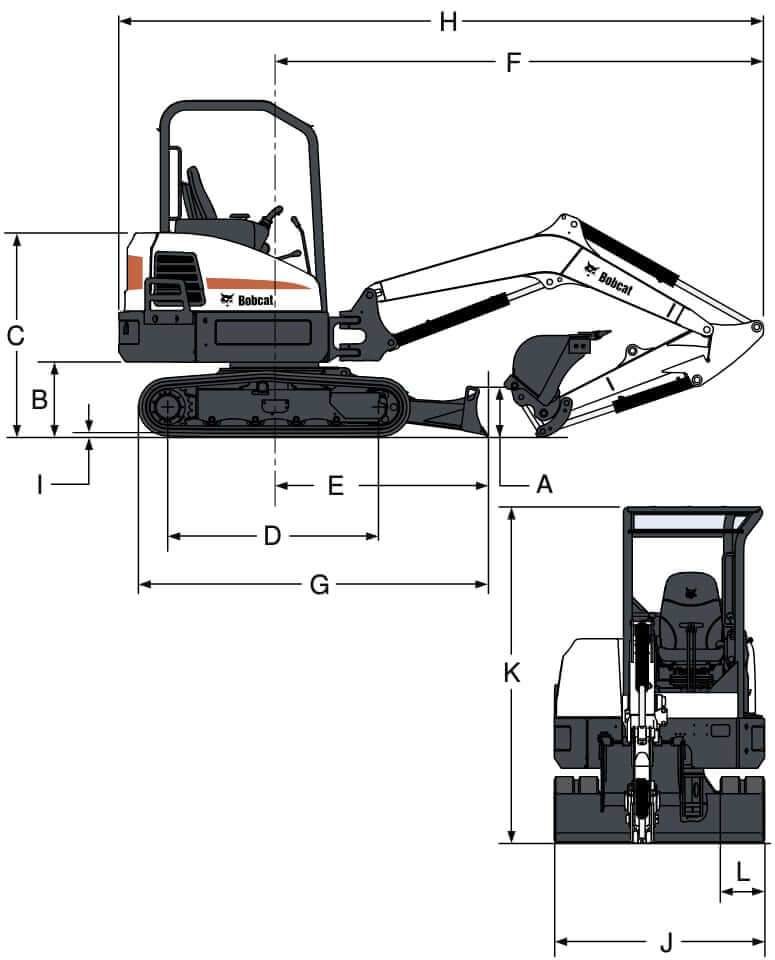

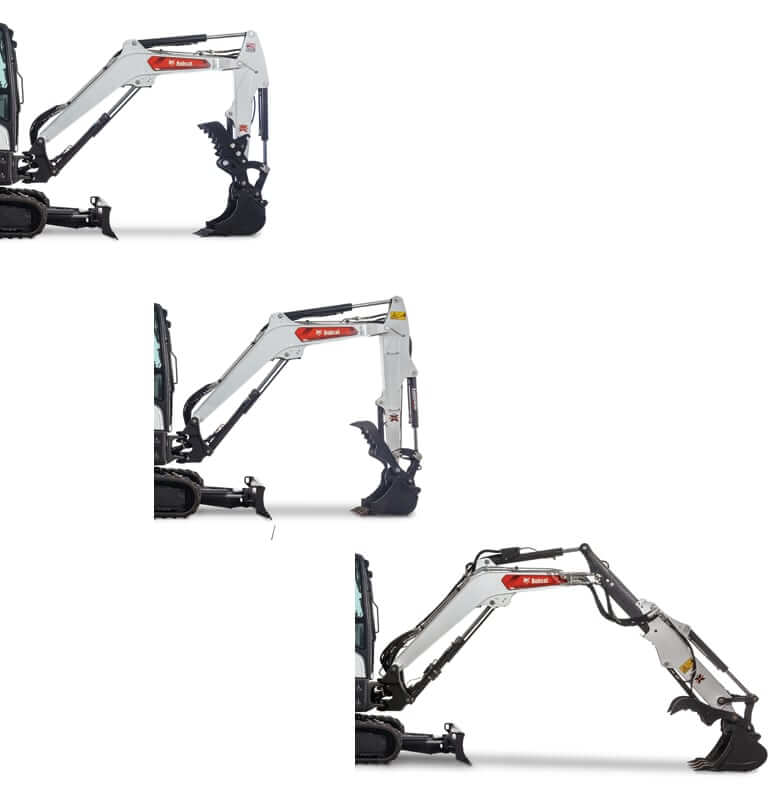

Dimensions
| Bobcat E32 | Standard Arm | Long Arm | Extendable Arm |
|---|---|---|---|
| A. Blade Height | 13.9 in (353 mm) | 13.9 in (353 mm) | 13.9 in (353 mm) |
| B. Upper Structure Clearance to Ground Line | 21.1 in (537 mm) | 21.1 in (537 mm) | 21.1 in (537 mm) |
| C. Ground Line to Top of Engine Cover | 58.0 in (1473 mm) | 58.0 in (1473 mm) | 58.0 in (1473 mm) |
| D. Length of Track on Ground | 60.7 in (1543 mm) | 60.7 in (1543 mm) | 60.7 in (1543 mm) |
| E. Machine Centre Line to Blade | 60.9 in (1546 mm) | 60.9 in (1546 mm) | 60.9 in (1546 mm) |
| F. Minimum Radius in Travel Position | 139.2 in (3537 mm) | 139.2 in (3537 mm) | 139.2 in (3537 mm) |
| G. Overall Length of Track Assembly | 77.3 in (1964 mm) | 77.3 in (1964 mm) | 77.3 in (1964 mm) |
| H. Overall Length | 183.5 in (4662 mm) | 187.4 in (4761 mm) | 187.7 in (4767 mm) |
| I. Track Lug Height | 0.9 in (23 mm) | 0.9 in (23 mm) | 0.9 in (23 mm) |
| J. Overall Width | 61.8 in (1569 mm) | 61.8 in (1569 mm) | 61.8 in (1569 mm) |
| K. Overall Height | 96.2 in (2443 mm) | 96.2 in (2443 mm) | 96.2 in (2443 mm) |
| L. Track Width | 11.8 in (300 mm) | 11.8 in (300 mm) | 11.8 in (300 mm) |

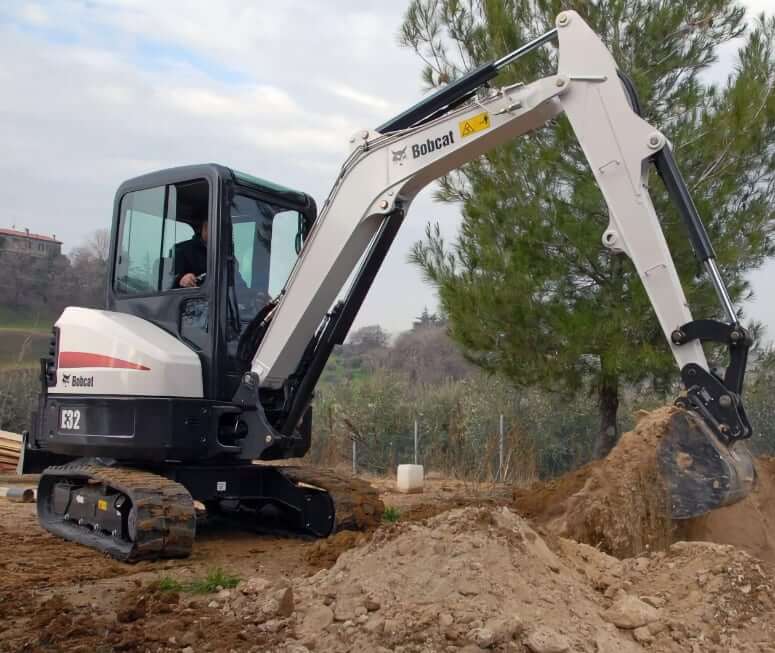

Lift Capacity
| Rated Lift Capacity (Over blade, ground level, 10 ft / 3 m reach) | 2975 lb (1349 kg) |
| Rated Lift Capacity (Over side, ground level, 10 ft / 3 m reach) | 1329 lb (603 kg) |

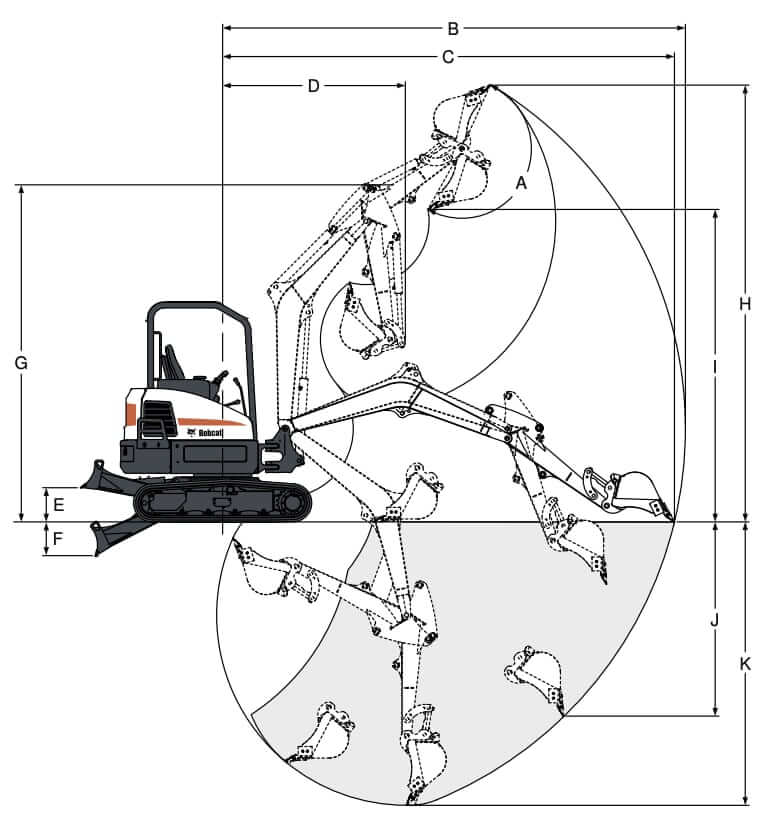

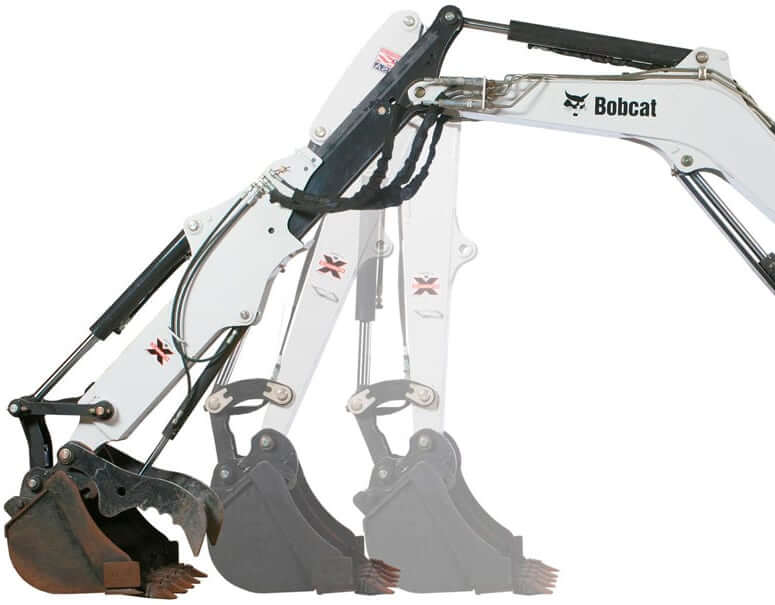

Working Range
| Bobcat E32 | Standard Arm | Long Arm | Extendable Arm |
|---|---|---|---|
| Arm Digging Force | 4589 lbf (20.4 kN) | 3986 lbf (17.8 kN) | 4478 lbf (19.9 kN) |
| Bucket Digging Force | 6968 lbf (31.0 kN) | 6968 lbf (31.0 kN) | 6968 lbf (31.0 kN) |
| A. Bucket Pivot Angle | 185° | 185° | 185° |
| B. Max Reach | 200.8 in (5101 mm) | 211.9 in (5383 mm) | |
| C. Max Reach at Ground Level | 194.5 in (4940 mm) | 205.9 in (5230 mm) | 225.3 in (5722 mm) |
| D. Max Radius w/ Boom at Max Height & Arm Fully Retracted | 79.4 in (2017 mm) | 81.8 in (2077 mm) | |
| E. Blade Lift Height | 14.8 in (376 mm) | 14.8 in (376 mm) | 14.8 in (376 mm) |
| F. Blade Dig Depth | 14.6 in (371 mm) | 14.6 in (371 mm) | 14.6 in (371 mm) |
| G. Max Height of Retracted Dipperstick | 146.0 in (3708 mm) | 146.0 in (3708 mm) | 146.0 in (3708 mm) |
| H. Maximum Dig Height | 189.1 in (4804 mm) | 196.3 in (4985 mm) | |
| I. Max Dump Height | 137.2 in (3484 mm) | 144.3 in (3665 mm) | 154.5 in (3925 mm) |
| J. Vertical Wall Digging Depth | 84.1 in (2136 mm) | 95.0 in (2414 mm) | |
| K. Max Digging Depth | 121.2 in (3077 mm) | 133.0 in (3377 mm) | 153.2 in (3892 mm) |
* Bobcat E32 Rated Lift Capacity Over Blade, Ground Level, 10 ft (3000 mm) Reach

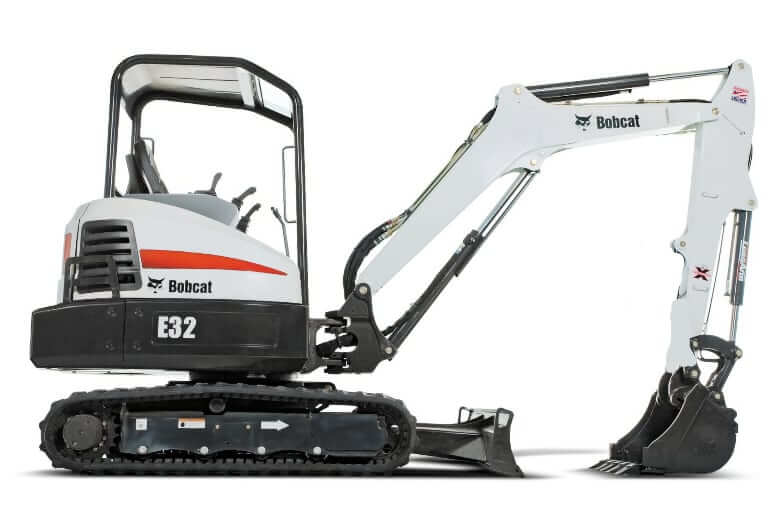

Weights
| Operating Weight (E32, 33 hp)** | 7183 lb (3258 kg) |
| Operating Weight (E32, 25 hp)** | 7403 lb (3358 kg) |
| Max Operating Weight (E32, 25 hp)*** | 8499 lb (3855 kg) |
| Additional Counterweight | + 650 lb (295 kg) |
| Optional Steel Tracks | + 212 lb (96 kg) |
| Long Arm | + 675 lb (306 kg) |
| Cab w/ Heater | + 267 lb (121 kg) |
| Cab w/ HVAC | + 309 lb (140 kg) |
| Ground Pressure (E32, 33 hp) | 4.6 psi (31.7 kPa) |
| Ground Pressure (E32, 25 hp) | 4.7 psi (32.4 kPa) |
** Operating Weight w/ Canopy, standard rubber tracks, and 24 in (610 mm) bucket
*** Operating Weight w/ Canopy, standard rubber tracks, and 24 in (610 mm) bucket, extendable arm & counterweight
Engine Details
| Model | Bobcat E32 (25 hp) |
Bobcat E32 (33 hp) |
|---|---|---|
| Number of Cylinders | 3 | 3 |
| Engine Model | Kubota D1703-M-DI-EF03 | Kubota D1803-M-D1-E3B-BC-3 |
| Displacement | 100.5 cu in (1.647 L) | 111.4 cu in (1.826 L) |
| Bore | 3.43 in (87.0 mm) | 3.43 in (87.0 mm) |
| Stroke | 3.64 in (92.4 mm) | 4.03 in (102.4 mm) |
| Net Horsepower | 24.8 hp (18.5 kw) | 33.5 hp (24.6 kw) |
| Power Measured @ | 2200 rpm | 2400 rpm |
| Peak Torque | 71.8 lb ft (97.4 Nm) | 83.8 lb ft (113.6 Nm) |
| Torque Measured @ | 1500 rpm | 1400 rpm |
| Fuel System | In-line pump | In-line pump |
| Combustion System | Direct Injection | Direct Injection |
| Lubrication System | Forced circulation | Forced circulation |
| Air Cleaner | Air cleaner with indicator | Dry, dual element with indicator |
| Aspiration | Naturally aspirated | Naturally aspirated |
| Emission Standards | US EPA/CARB Tier 4 + EU Stage V | US EPA / CARB interim Tier 4 + EU Stage IIIA |
Electrical System
| Operating Voltage | 12 V |
| Alternator | 90 amps |
| Starter | 12 V, 2.0 kW, gear reduction type |
| Battery | 12 V, CCA 530 (7269858) |
| Working Lights | 2 Front Lights (Boom and Frame Mounted) |
Travel System
| Type | Each track is driven by a hydraulic axial piston motor |
| Type of Reduction | Two-stage planetary gear reduction 48.6:1 |
| Travel Speed, High | 2.9 mph (4.7 km/h) |
| Travel Speed, Low | 1.6 mph (2.6 km/h) |
| Traction Force (Drawbar Pull) | 7680 lbf (34.13 kN) |
| Service Brakes | Hydraulic brake on motor |
| Parking Brake | Spring applied, hydraulically released, multi-disk brake |

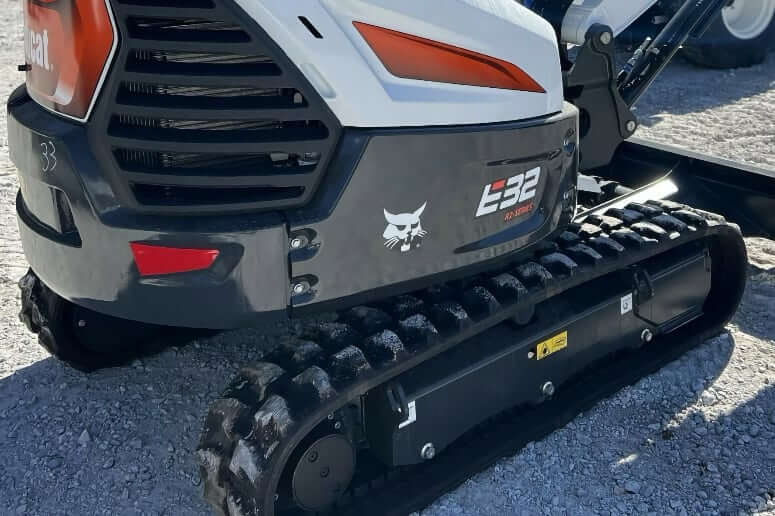

Undercarriage
| Type | Crawler X-frame design with reinforced box section track roller frame and sealed track rollers |
| Track Adjusters | Grease type with shock absorbing recoil springs |
| Rubber Tracks (Standard) | 11.8 in (300 mm) |
| Steel Tracks (Optional) | 11.8 in (300 mm) |
| Number of Track Rollers (per side) | 4 |
| Number of Carrier Rollers (per side) | 1 |
| Length of Track on Ground | 60.7 in (1543 mm) |
| Machine Centre Line to Blade | 60.9 in (1546 mm) |
| Overall Length of Track Assembly | 77.3 in (1964 mm) |

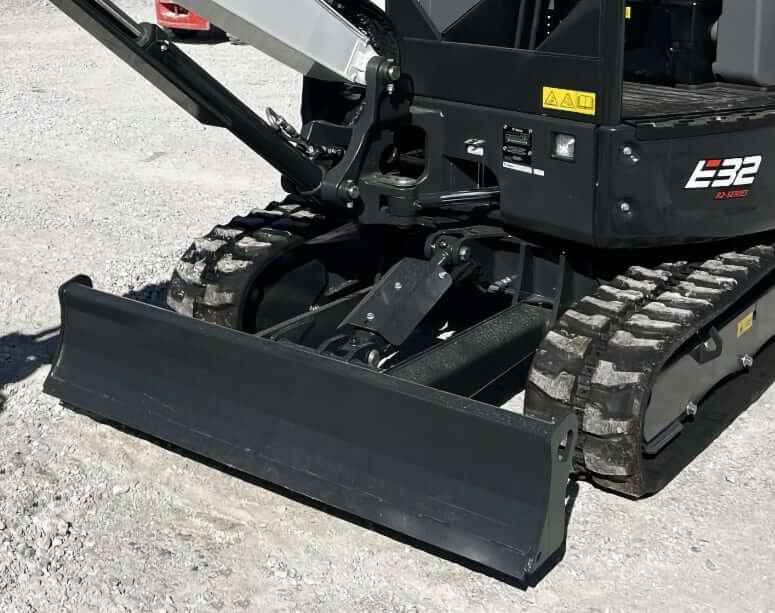

Dozer Blade
| Type | Automatically controlled floating blade |
| Blade Height | 13.9 in (353 mm) |
| Blade Width | 59.8 in (1520 mm) |
| Max Blade Lift Height | 14.8 in (376 mm) |
| Max Blade Dig Depth | 14.6 in (371 mm) |
| Machine Centre Line to Blade | 60.9 in (1546 mm) |
| Blade Control | Right hand lever |
Swing System
| Swing Speed | 8.6 rpm |
| Tail Swing Radius | 13.4 in (340 mm) |
| Tail Swing Overhang | 16.9 in (429 mm) |
| Boom Swing, Left | 75° |
| Boom Swing, Right | 55° |
| Swing Motor | Axial piston connected to a planetary drive |
| Slew Circle | Single row shear-type ball bearings with internal gear |
| Swing Service Brake | Spring applied, hydraulically released |
Hydraulic System
| Type | Closed centre, individually compensated |
| Controls | Joystick control boom, bucket, arm and upper structure slew |
| Pump Type | Single outlet variable displacement, load sensing torque limited pump with gear pumps |
| Piston Pump Flow | 26.6 gal/min (100.8 L/min) |
| Gear Pump Flow | 2.5 gal/min (9.6 L/min) |
| Auxiliary Hydraulic Flow | 16.9 gal/min (63.9 L/min) |
| Auxiliary Hydraulic Pressure | 2987 psi (20595 kPa) |
| Arm Port Relief Base and Rod Wnd | 3916 psi (27000 kPa) |
| Boom Port Relief Base and Rod Wnd | 4206 psi (29000 kPa) |
| Bucket Port Relief Base and Rod Wnd | 3916 psi (27000 kPa) |
| Hydraulic Filter | Full flow replaceable, 3 micron synthetic media element |
| Auxiliary Quick Couplers on Arm | Standard |
| 2nd Auxiliary Hydraulics | Optional |
Hydraulic Cycle Times
| Boom Raise Time | 4.4 sec |
| Boom Lower | 5.1 sec |
| Bucket Curl | 2.7 sec |
| Bucket Dump | 1.9 sec |
| Dipperstick Retract | 2.9 sec |
| Dipperstick Extend | 2.4 sec |
| Boom Swing Left | 7.0 sec |
| Boom Swing Right | 7.2 sec |
| Blade Raise | 3.1 sec |
| Blade Lower Time | 3.5 sec |

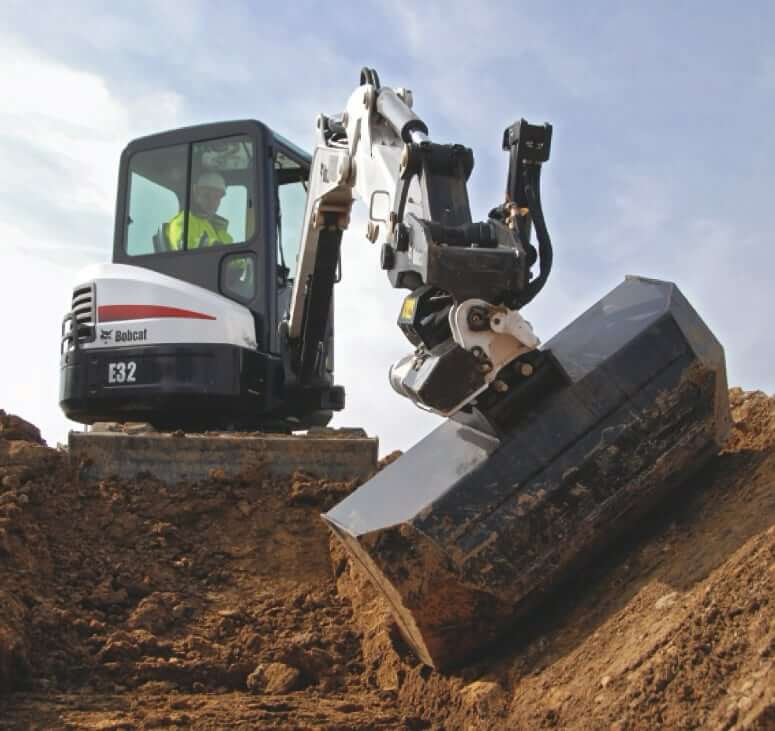

Bobcat E32 Buckets
| Bucket Type / Width | Weight | Capacity |
|---|---|---|
| Trenching, 230 mm (9 in) | 123 lb (55.8 kg) | 0.036 yd3 (0.028 m3) |
| Trenching, 300 mm (12 in) | 129 lb (58.7 kg) | 0.054 yd3 (0.041 m3) |
| Trenching, 400 mm (16 in) | 153 lb (69.5 kg) | 0.078 yd3 (0.060 m3) |
| Trenching, 450 mm (18 in) | 163 lb (74 kg) | 0.092 yd3 (0.070 m3) |
| Trenching, 500 mm (20 in) | 173 lb (78.5 kg) | 0.105 yd3 (0.080 m3) |
| Trenching, 600 mm (24 in) | 197 lb (89.2 kg) | 0.131 yd3 (0.100 m3) |
| Trenching, 700 mm (28 in) | 220 lb (99.9 kg) | 0.157 yd3 (0.120 m3) |
| Trenching, 750 mm (30 in) | 230 lb (104.4 kg) | 0.171 yd3 (0.131 m3) |
| Trenching, 800 mm (31.5 in) | 240 lb (108.9 kg) | 0.183 yd3 (0.140 m3) |
| Trenching, 900 mm (35.4 in) | 264 lb (119.6 kg) | 0.212 yd3 (0.162 m3) |
| Trenching HD, 300 mm (12 in) | 152 lb (68.9 kg) | 0.054 yd3 (0.041 m3) |
| Trenching HD, 600 mm (24 in) | 224 lb (101.5 kg) | 0.131 yd3 (0.100 m3) |
| Trenching HD, 700 mm (28 in) | 267 lb (121 kg) | 0.157 yd3 (0.120 m3) |
Operator Environment
| ROPS | ISO 3471 |
| TOPS | ISO 12117 |
| Noise level LpA/EU Directive 2006/42/EC | 78 dB(A) |
| Noise level LWA/EU Directive 2000/14/EC | 93 dB(A) |
| Whole-Body Vibration (ISO 2631-1) | 0.14 m/s2 |
| Hand-Arm Vibration (ISO 5349-1) | 0.44 m/s2 |
| HVAC | Optional for Cab |
| Instrumentation Panel | Charging system indicator; engine oil pressure indicator; engine temperature gauge; fuel gauge; hour meter, resettable; hydraulic system indicator; tachometer; engine throttle dial; auto idle switch; A/C control switches; windshield wiper/washer switch; high travel speed indicator; work light switch; work light indicator; battery kill switch |
| Delux Instrumentation Panel (Optional) | Deluxe instrumentation and 7-inch display give you complete control and job monitoring. |

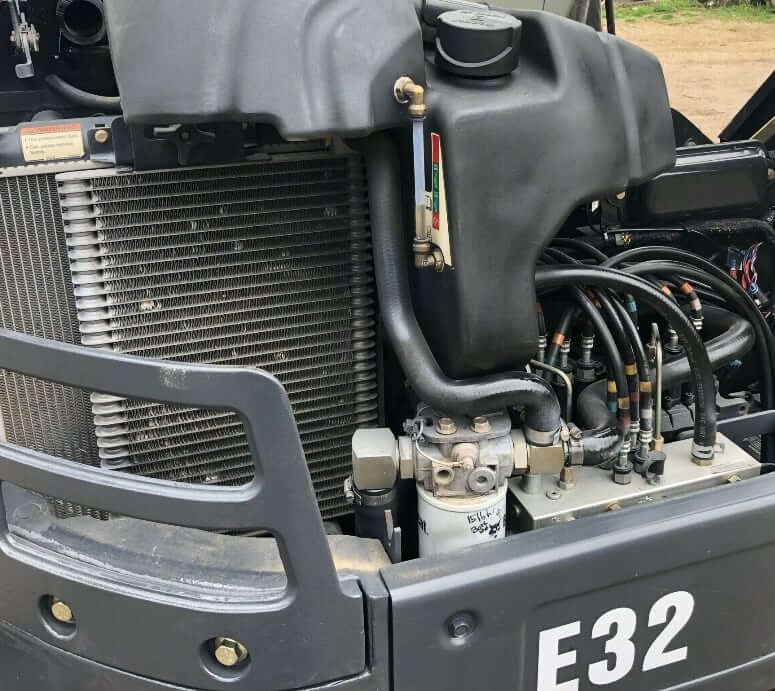

Service Refill Capacities
| Bobcat | E32 (25 hp) Kubota D1703 | E32 (33 hp) Kubota D1803 |
|---|---|---|
| Fuel Tank Capacity | 13.7 gal (51.9 L) | 14 gal (53.1 L) |
| Engine Oil Capacity (with Filter) | 1.4 gal (5.3 L) | 1.4 gal (5.2 L) |
| Cooling System Capacity | 2.1 gal (7.8 L) | 2.1 gal (8.0 L) |
| Hydraulic System Capacity | 10.5 gal (39.7 L) | 10.5 gal (39.7 L) |
| Hydraulic Tank Capacity | 2.5 gal (9.5 L) | 2.2 gal (8.3 L) |
| Final Drive Capacity (each) | 0.13 gal (0.5 L) | 0.13 gal (0.5 L) |
