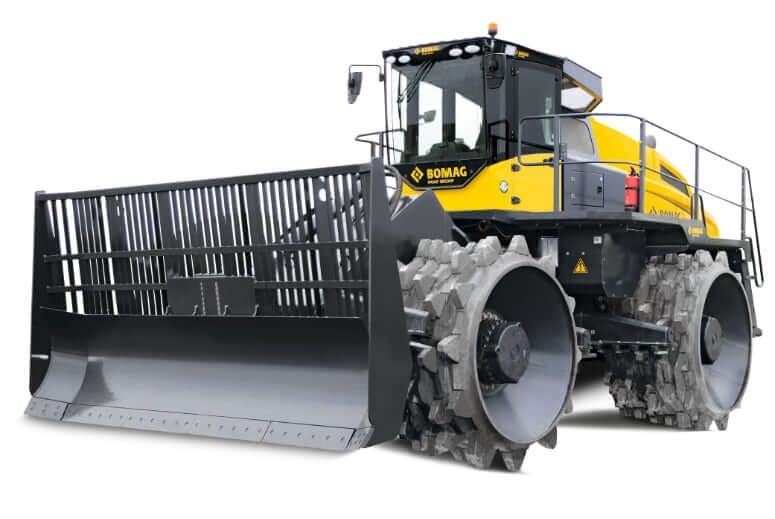

Dimensions
| Length With Blade On Ground | 385 in (9780 mm) |
| Wheelbase | 161.8 in (4110 mm) |
| Width Over Wheels | 177.2 in (4500 mm) |
| Height To Top Of Cab | 173.2 in (4400 mm) |
| Ground Clearance | 30.1 in (765 mm) |
| Track Radius | 129.6 in (3292 mm) |

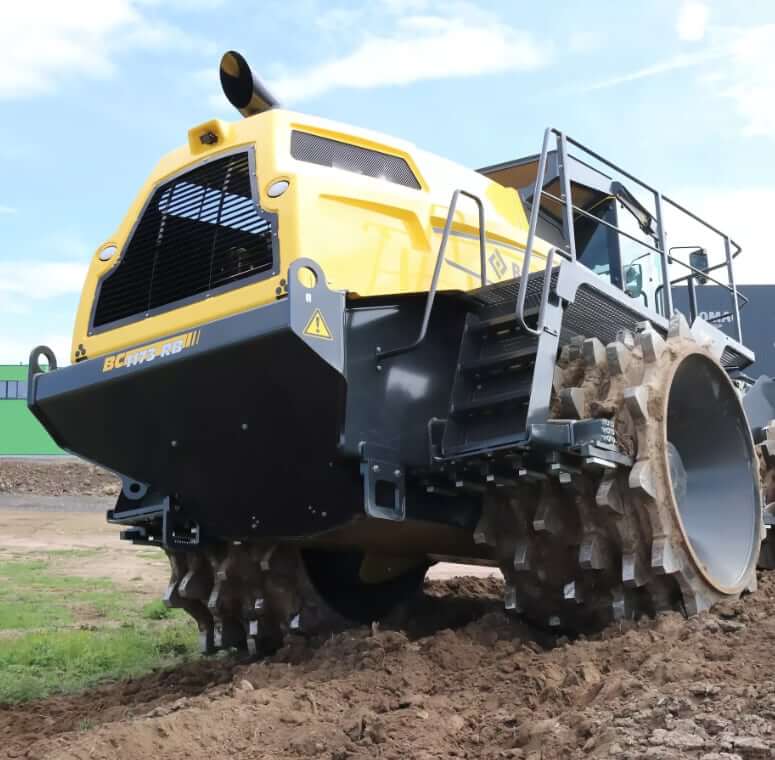

Compaction Wheels
| Front Wheels Drum Width | 55.1 in (1400 mm) |
| Front Wheels Drum Diameter | 86.6 in (2200 mm) |
| Rear Wheels Drum Width | 55.1 in (1400 mm) |
| Rear Wheels Drum Diameter | 86.6 in (2200 mm) |
| Number of Teeth/Cutters (Front) | 72 |
| Number of Teeth/Cutters (Rear) | 72 |
| Compaction coverage per side | 59.8 in (1520 mm) |

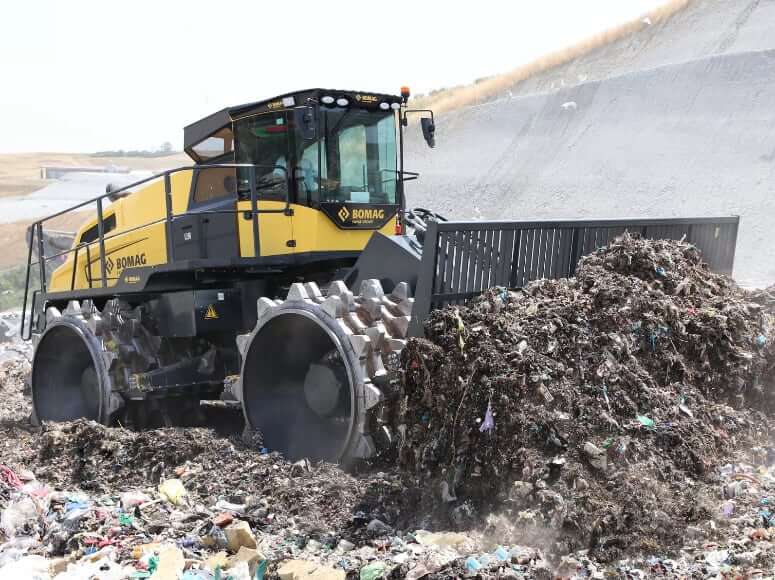

Dozer Blade
| Blade Height | 90 in (2286 mm) |
| Blade Width | 204.7 in (5200 mm) |
| Height adjustment over ground level | 54.1 in (1375 mm) |
| Height adjustment below ground level | 2 in (50 mm) |
| Dozer blade capacity acc. to SAE J 1265 | 20.7 yd3 (15.8 m3) |
Engine Details
| Number Of Cylinders | 6 |
| Engine Make | Cummins |
| Engine Model | Cummins X15 575 (Stage V) |
| Gross Power | 575 hp (429 kw) |
| Power Measured @ | 1800 rpm |
| Peak Torque | 1950 lb ft (2645 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 909.2 cu in (14.9 L) |
| Emission Standards | Stage V / Tier 4f, DOC+DPF+SCR |
Transmission
| Transmission Type | Hydrostatic drive converts |
| Max Forward Speed | 0 – 7.5 mph (0 – 12 km/h) |
| Max Reverse Speed | 0 – 7.5 mph (0 – 12 km/h) |
| Max. Pushing Force | 137,808 lbf (613 kN) |
| Max. Gradeability (dep. on soil con.) | 100% |
Operational Specs
| Operating Weight (CECE) | 124782 lb (56600 kg) |
| Gross Weight | 126546 lb (57400 kg) |
| Steering Angle | ±40 degree |
| Oscillating Angle | ±15 degree |
| Service Brake | Hydrostatic |
| Parking Brake | Hydromechanical |
Electric System
| Operating Voltage | 24 V |
| Alternator | 140 A |
| Cold Start Device (Optional) | 115V / 230V |
| Working Lights | 4 front / 4 rear / 2 lateral LED working lights |
Service Refill Capacities
| Fuel Tank Capacity | 258.9 gal (980 L) |
| Engine Oil Capacity | 12.4 gal (47 L) |
| DEF Tank Capacity | 26.4 gal (100 L) |
| Hydraulic System Fluid Capacity | 155.9 gal (590 L) |
