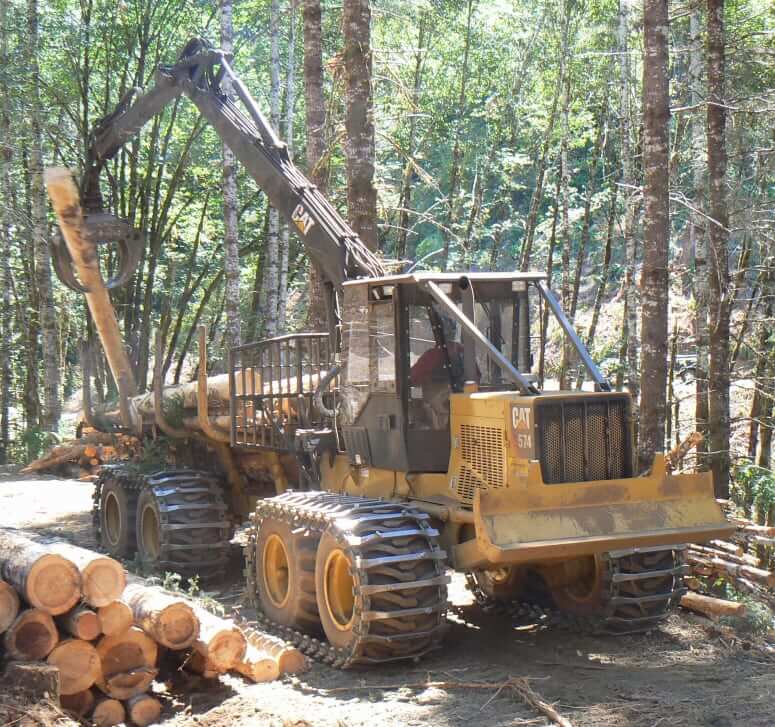

Operating Specs
| Load Capacity | 32000 lb (14515 kg) |
| Load Capacity – With Clam Bunk Attachment | 26000 lb (11794 kg) |
| Wood Bunk Length | 222 in (5639 mm) |
| Loader Reach | 275 in (7000 mm) |
| Max Travel Speed | 14.5 mph (23.3 km/h) |
| Gross Weight | 35274 lb (16000 kg) |
| Operating Weight | 38000 lb (17237 kg) |

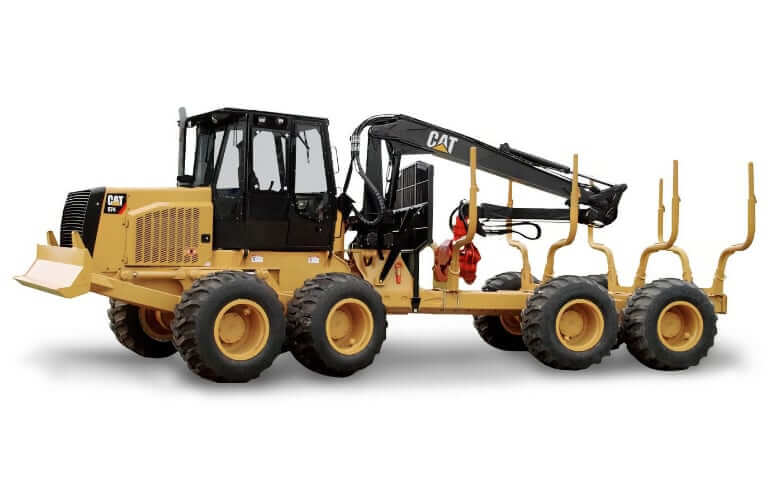

Dimensions
| Length (With 16′ Bunk & Blade Raised) | 402 in (10210 mm) |
| Length (With 18.5′ Bunk & Blade Raised) | 432 in (10970 mm) |
| Wheelbase (With 16′ Bunk) | 210 in (5334 mm) |
| Wheelbase (With 18.5′ Bunk) | 225 in (5715 mm) |
| Length Of Bunk Area, 16′ (Standard) | 192 in (4880 mm) |
| Length Of Bunk Area, 18.5′ (Optional) | 222 in (5640 mm) |
| Width Over Tires | 120 in (3048 mm) |
| Transport Height | 141 in (3581 mm) |
| Ground Clearance | 22.8 in (579 mm) |
| Load Stake Width (Inside) | 102 in (2591 mm) |

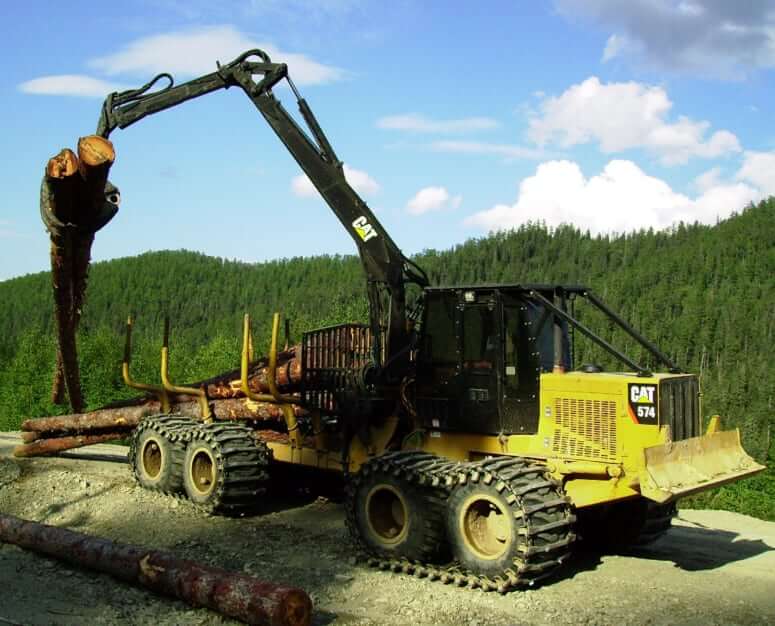

Loader
| Loader Type | Rear mounted loader with durable rack and pinion swing system (F71 / F73) |
| Telescopic Boom Max Reach | 272.8 in (6930 mm) |
| Rotation | 250° |
Weight
| Operating Weight | 38000 lb (17237 kg) |
| Gross (Loaded) Machine Weight | 35274 lb (16000 kg) |
Engine Details
| Engine Model | 3126 DITA | Cat C6.6 ACERT |
|---|---|---|
| Number Of Cylinders | 6 | 6 |
| Displacement | 439 cu in (7.2 L) | 402.8 cu in (6.6 L) |
| Engine Power | 175 hp (131 kw) | 173 hp (129 kw) |
| Power Measured @ | 1440-2500 rpm | 2200 rpm |
| Peak Torque | 420 lb ft (569 Nm) | 608 lb ft (825 Nm) |
| Torque Measured @ | 1440 rpm | 1400 rpm |
| Aspiration | ATAAC (Turbocharged and Air-to-Air AfterCooling) | Turbocharged Aftercooled (TA) |
| Emission Standards | Tier 1, Stage I Compliant | Tier 4 Interim / Stage IIIB |
Transmission
| Transmission Type | Electric power shift transmission + torque converter |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed | 15.5 mph (25 km/h) |

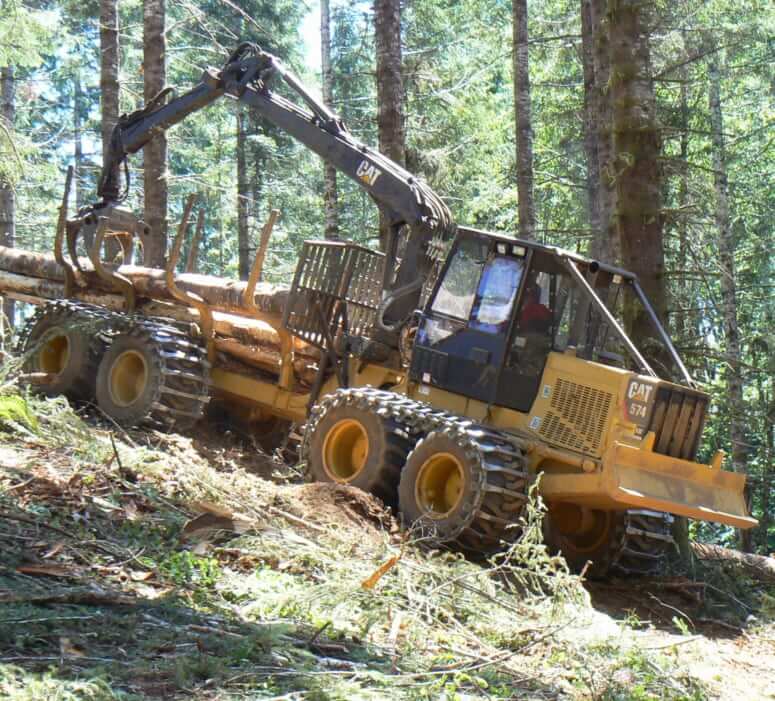

Axles, Brakes & Tires
| Number of Wheels | 4F + 4R |
| Drive | 8WD |
| Articulation | Full 40° articulation with frame lock. Heavy frame articulation points |
| Front Axles | NAF Bogie (HD – heavy duty), optional: front axle bogie lift |
| Rear Axles | NAF Bogie (HD – heavy duty) |
| Front Tire Size | 700/50-26.5 16PR; optional 800/50 x 26.5; bogie tracks |
| Rear Tire Size | 700/50-26.5 16PR; optional 800/50 x 26.5; bogie tracks |
| Service Brakes | Wet disc axle brakes |
| Parking brakes | Wet disc |
Hydraulic System
| Type | Closed center proportional control valves |
| Hydraulic Pump | Variable displacement load sensing piston pump PVG 100 cc |
| Pump Flow Rate | 66 gal/min (250 L/min) |
| Hydraulic Oil Cooling | Hydraulic oil cooler with thermal bypass |
Service Refill Capacities
| CAT 574 | 3126 DITA | Cat C6.6 ACERT |
|---|---|---|
| Fuel Tank Capacity | 47 gal (178 L) | 47 gal (178 L) |
| Engine Oil Capacity (with Filter) | 4.7 gal (18 L) | 4.2 gal (16 L) |
| Cooling System Capacity | 3.5 gal (13.2 L) | 3.6 gal (13.7 L) |
| Hydraulic Tank Capacity | 32 gal (121 L) | 32 gal (121 L) |
