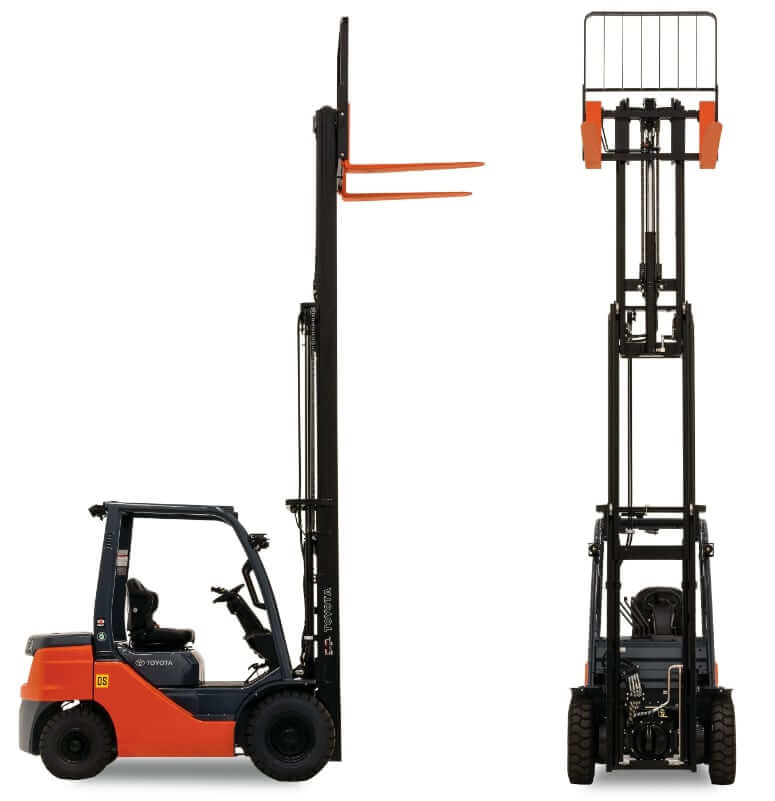

Mast Performance
| Load Capacity | 5000 lb (2250 kg) |
| Lifting Speed (Full Load) | 118 fpm (600 mm/sec) |
| Lifting Speed (No Load) | 126 fpm (640 mm/sec) |
| Lowering Spread (Full Load) | 98 fpm (500 mm/sec) |
| Lowering Spread (No Load) | 98 fpm (500 mm/sec) |
| Mast Type | Limited free-lift 2-stage mast (V) |

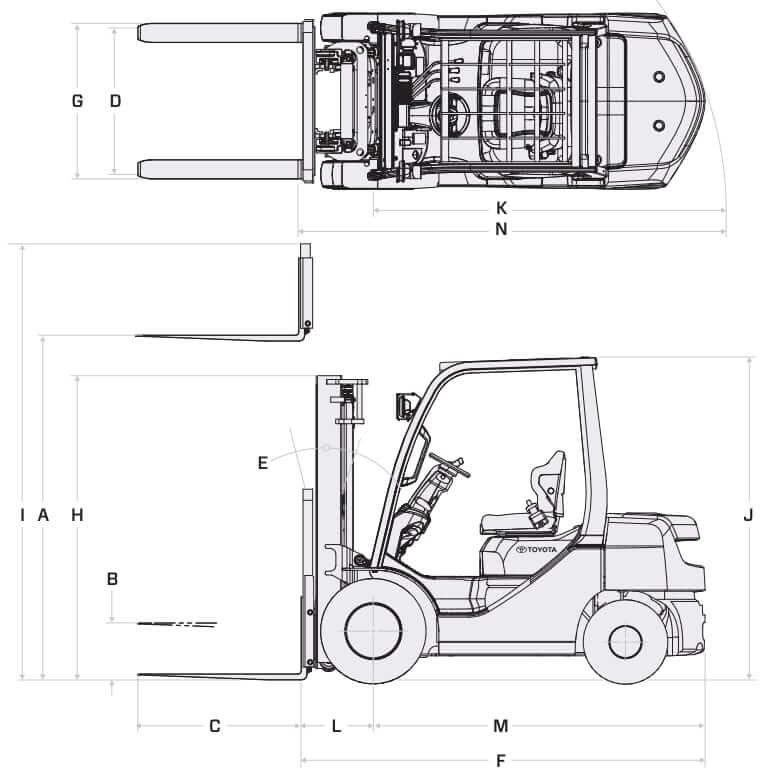

Dimensions
| A. Maximum Fork Height (top of forks) | 131.5 in (3340 mm) |
| B. Free-Lift (top of forks) | 6.1 in (155 mm) |
| C. Fork Size (T x W x L) | 1.6 x 5 x 42 in (40 x 125 x 1070 mm) |
| D. Fork Spread Max. / Min. (outer edge to edge) | 40 in (1020 mm) / 10 in (250 mm) |
| E. Tilt Range (forward / backward) | 6° / 11° |
| F. Length to Fork Face | 103.9 in (2640 mm) |
| G. Overall Width | 45.3 in (1150 mm) |
| H. Mast Lowered Height | 84.5 in (2145 mm) |
| I. Mast Extended Height (top of load backrest) | 179.5 in (4560 mm) |
| J. Overhead Guard Height | 83.1 in (2110 mm) |
| K. Turning Radius (inside / outside) | 5.91 in (150 mm) / 87.5 in (2220 mm) |
| L. Load Distance * | 18.5 in (470 mm) |
| M. Rear Overhang | 20.5 in (520 mm) |
| N. Basic Right-Angle Stacking Aisle Width ** | 105.9 in (2690 mm) |
| Wheelbase | 65 in (1650 mm) |
| Ground Clearance (full load) | 3.7 in (95 mm) |
*Load distance at centerline of front axle to front face of forks.
**Basic right-angle stacking aisle width, add load length & clearance.

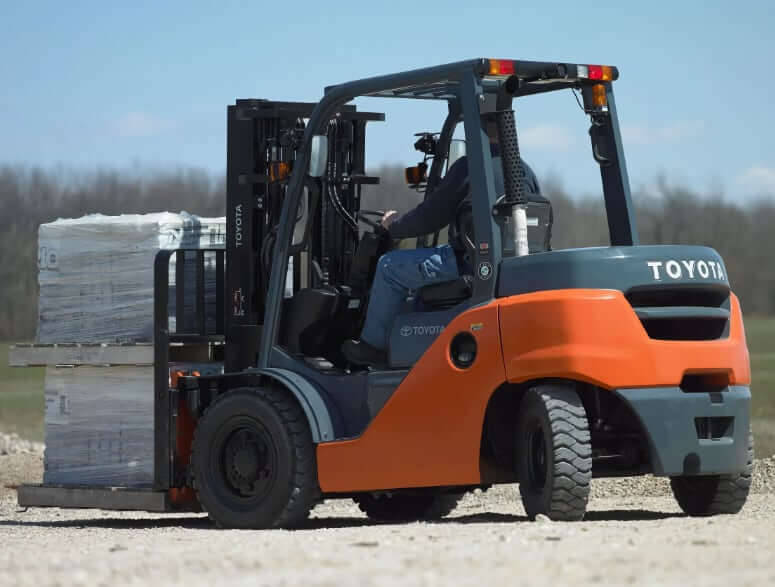

Weight
| Toyota | 40-8FGU25 | 50-8FGU25 |
|---|---|---|
| Operating Weight | 8000 lb (3640 kg) | 7840 lb (3560 kg) |
| Front Axle Load (Full Load) | 11340 lb (5360 kg) | 11260 lb (5330 kg) |
| Rear Axle Load (Full Load) | 1670 lb (770 kg) | 1580 lb (730 kg) |
| Front Axle Load (No Load) | 3050 lb (1380 kg) | 2980 lb (1350 kg) |
| Rear Axle Load (No Load) | 4950 lb (2250 kg) | 4860 lb (2210 kg) |
Engine Details
| Toyota | 40-8FGU25 | 50-8FGU25 |
|---|---|---|
| Number of Cylinders | 4 | 4 |
| Fuel Type | Gasoline / LPG | LPG |
| Engine Model | Kubota WG2503 | Toyota 4Y US |
| Displacement | 152 cu in (2.5 L) | 136 cu in (2.2 L) |
| Bore | 3.5 in (88 mm) | 3.6 in (91 mm) |
| Stroke | 4.0 in (102.4 mm) | 3.4 in (86 mm) |
| Net Horsepower | 56 hp (42 kw), Gasoline / 58 hp (44 kw), LPG | 51 hp (38 kw) |
| Power Measured @ | 2600 rpm | 2570 rpm |
| Peak Torque | 122 lb ft (165 Nm), Gasoline / 129 lb ft (175 Nm), LPG | 112 lb ft (152 Nm) |
| Torque Measured @ | 1800 rpm, Gasoline / 1600 rpm, LP | 1800 rpm |
| Aspiration | Naturally aspirated | Naturally aspirated |
| Emission Standards | OHV EPA/CARB certified | OHV EPA/CARB certified |
Operational Specs
| Toyota | 40-8FGU25 | 50-8FGU25 |
|---|---|---|
| Operating Weight | 8000 lb (3640 kg) | 7840 lb (3560 kg) |
| Max Load Capacity | 5000 lb (2250 kg) | 5000 lb (2250 kg) |
| Operating Voltage | 12 V | 12 V |
| Alternator | 70 amps | 50 amps |
| Battery | 12 V, 35 Ah | 12 V, 35 Ah |
Transmission
| Toyota | 40-8FGU25 | 50-8FGU25 |
|---|---|---|
| Type | Powershift | Powershift |
| Number of Gears | 1F / 1R | 1F / 1R |
| Max Travel Speed (Full Load) | 10.9 mph (17.5 km/h) | 10.9 mph (17.5 km/h) |
| Max Travel Speed (No Load) | 11.2 mph (18.0 km/h) | 11.2 mph (18.0 km/h) |
| Drawbar Pull (Full Load) | 4160 lb (1890 kg) Gasoline / 4250 lb (1930 kg) LPG | 4250 lb (1930 kg) |
| Drawbar Pull (No Load) | 1910 lb (870 kg) | 1910 lb (870 kg) |
| Gradeability, Full Load, 1 mph (1.5 km/h) | 26% Gasoline / 28% LP | 28% |
| Max Gradeability, Full Load | 31% Gasoline / 33% LP | 33% |
| Max Gradeability, No Load | 20% | 20% |
Tires
| Toyota | 40-8FGU25 | 50-8FGU25 |
|---|---|---|
| Tire Type | Pneumatic | Pneumatic |
| Number of Wheels (Front / Rear) | 2 / 2 | 2 / 2 |
| Front Tire Size | 7.00-12-12PR | 7.00-12-12PR |
| Rear Tire Size | 6.00-9-10PR | 6.00-9-10PR |
| Wheelbase | 65 in (1650 mm) | 65 in (1650 mm) |
| Front Tread Width | 37.8 in (960 mm) | 37.8 in (960 mm) |
| Rear Tread Width | 38.0 in (965 mm) | 38.0 in (965 mm) |
| Underclearance (full load), Minimum | 3.7 in (95 mm) | 3.7 in (95 mm) |
| Underclearance (full load), Center of Wheelbase | 5.5 in (140 mm) | 5.5 in (140 mm) |
| Service Brakes | Hydraulic, self-adjusting brakes | Hydraulic, self-adjusting brakes |
| Parking Brake | Mechanical | Mechanical |

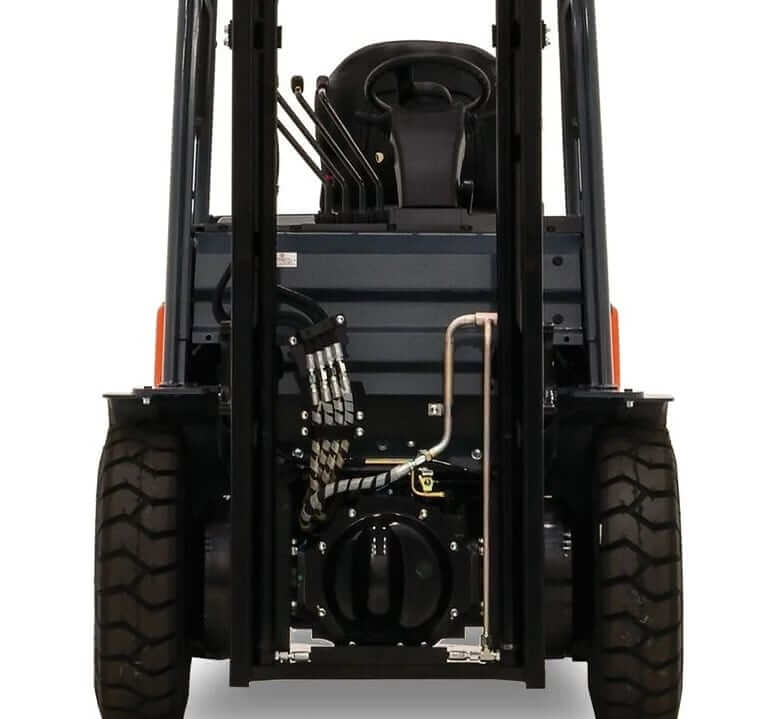

Hydraulic System
| Pump Flow Capacity | 20 gal/min (75.8 L/min) |
| Max Operating Pressure | 2275 psi (15686 kPa) |
Values taken at Hydraulic Control Valve. Does not take in to consideration losses through mast plumbing (hosing, fittings, QDs, etc.).

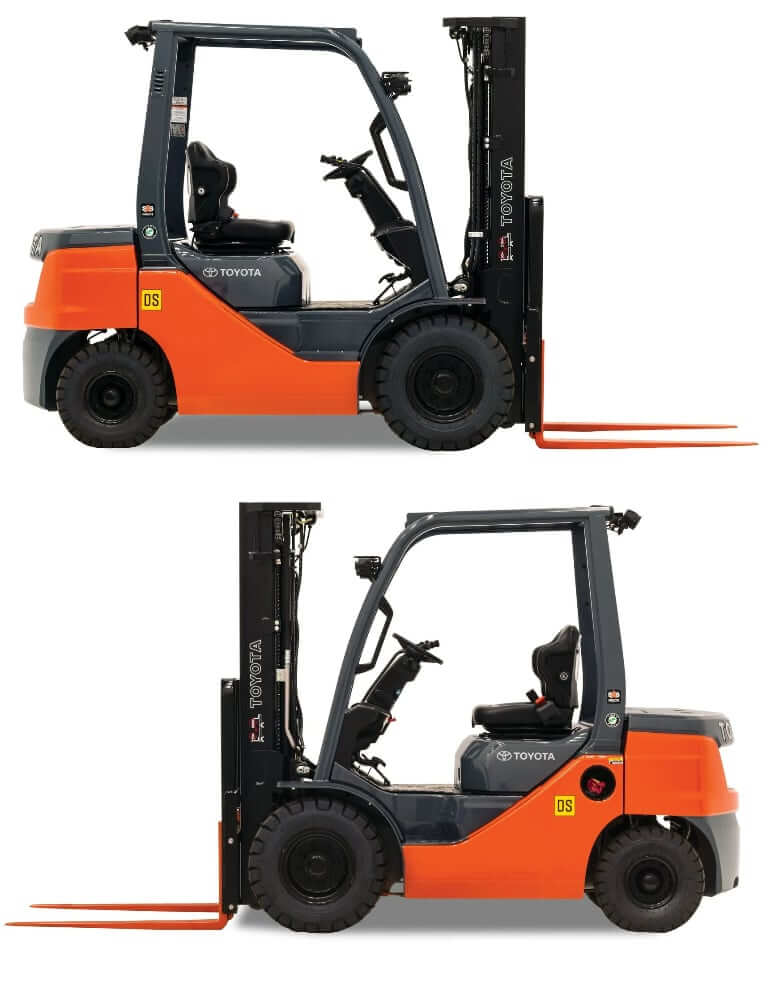

Service Refill Capacities
| Toyota | 40-8FGU25 (Toyota 4Y US) | 50-8FGU25 (Kubota WG2503) |
|---|---|---|
| Fuel Tank Capacity | 15.9 gal (60.2 L) | 15.9 gal (60.2 L) |
| Engine Oil Capacity | 1.1 gal (4.2 L) | 2.5 gal (9.5 L) |
| Cooling System Capacity | 2.5 gal (9.6 L) | 2.5 gal (9.5 L) |
| Hydraulic System Capacity | 14.4 gal (54.5 L) | 14.4 gal (54.5 L) |
| Transmission Oil Capacity | 4.5 gal (17.0 L) | 4.5 gal (17.0 L) |
| Final Drive Oil Capacity (each side) | 0.13 gal (0.5 L) | 0.13 gal (0.5 L) |
The Toyota 40-8FGU25 is equipped with the Kubota WG2503 gasoline/LPG engine, delivering smooth power and efficient fuel performance in mixed-use environments. This model offers a great balance between low emissions and strong lifting capability, making it well-suited for both indoor and outdoor tasks.
The Toyota 50-8FGU25, on the other hand, runs on the Toyota 4Y US LPG engine – renowned for its reliability, easy maintenance, and consistent power output under tough operating conditions. With higher lift capacities and enhanced durability, it is ideal for heavier-duty applications in warehousing, logistics, and manufacturing.
Both forklifts are built with Toyota’s System of Active Stability (SAS) and ergonomic operator features, ensuring safe operation and reduced fatigue throughout the workday. Whether handling pallets in tight warehouse aisles or loading materials outdoors, the 40-8FGU25 and 50-8FGU25 stand out as high-performance workhorses in the Toyota lineup.
