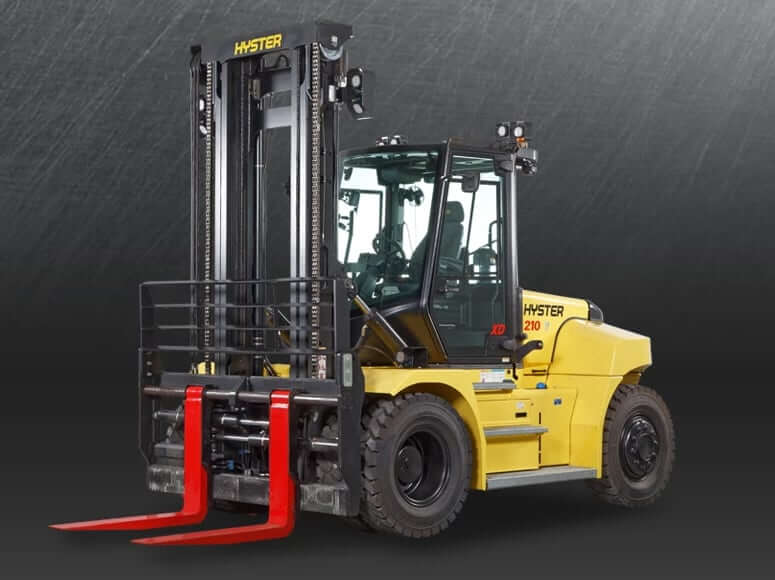

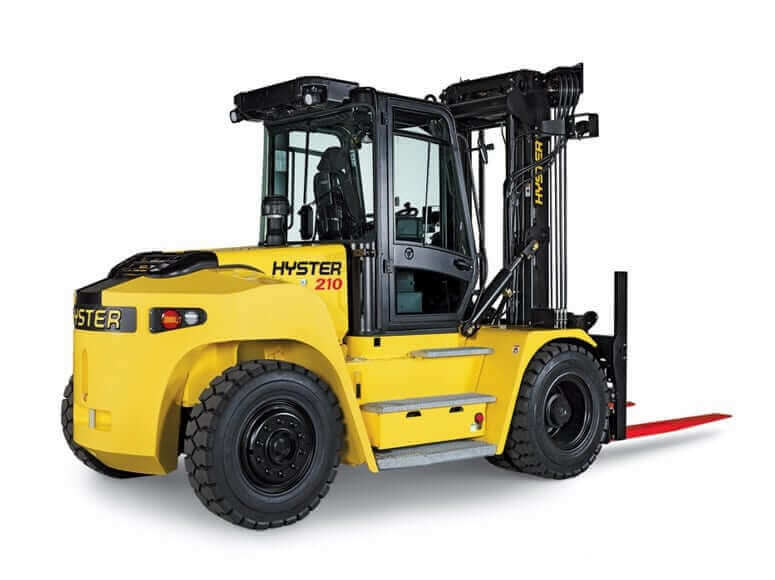

Dimensions
| Length To Fork Face | 169.0 in (4292 mm) |
| Wheelbase | 106.3 in (2700 mm) |
| Overall Width | 96.30 in (2446 mm) |
| Front Tread Range | 86.2 in (2190 mm) |
| Rear Tread Range | 76.0 in (1930 mm) |
| Lift Height | 212.0 in (5401 mm) |
| Height of Mast, Lowered | 165.0 in (4179 mm) |
| Height of Mast, Extended (w/o LBE) | 270.0 in (6846 mm) |
| Height to Top of Overhead Guard | 118.7 in (3015 mm) |
| Ground Clearance (under mast, with load) | 9.8 in (250 mm) |
| Ground Clearance (center of wheelbase) | 10.8 in (274 mm) |
| Gradeability (w/ load) | 49% |
| Gradeability (w/o load) | 31% |
| Outer Turning Radius | 154.1 in (3914 mm) |
| Inner Turning Radius | 8.7 in (220 mm) |
Mast
| Mast Tip Forward | 15° |
| Mast Tip Rear | 12° |
| Load Center | 24 in (610 mm) |
| Load Capacity | 21000 lb (9000 kg) |
| Lifting Speed, Loaded (Standard Performance) | 89 ft/min (27.1 m/min) |
| Lower Speed, Loaded (Standard Performance) | 98 ft/min (29.9 m/min) |
Engine Details
| Engine Model | Cummins QSB6.7 | Cummins QSB4.5 |
|---|---|---|
| Number of Cylinders | 6 | 4 |
| Displacement | 409 cu in (6.7 L) | 275 cu in (4.5 L) |
| Bore | 4.21 in (107 mm) | 4.02 in (102 mm) |
| Stroke | 4.88 in (124 mm) | 5.39 in (137 mm) |
| Net Power | 155 hp (116 kw) | 160 hp (119 kw) |
| Power Measured @ | 2300 rpm | 2300 rpm |
| Peak Torque | 443 lb ft (600 Nm) | 460 lb ft (624 Nm) |
| Torque Measured @ | 1500 rpm | 1500 rpm |
| Aspiration | Turbocharged (Wastegate) | Turbocharged (Variable Geometry, Water Cooled) |
| Emission Standards | US EPA Tier 3 + EU Stage IIIA | US EPA Tier 4 Final + EU Stage IV |
Operational Specs

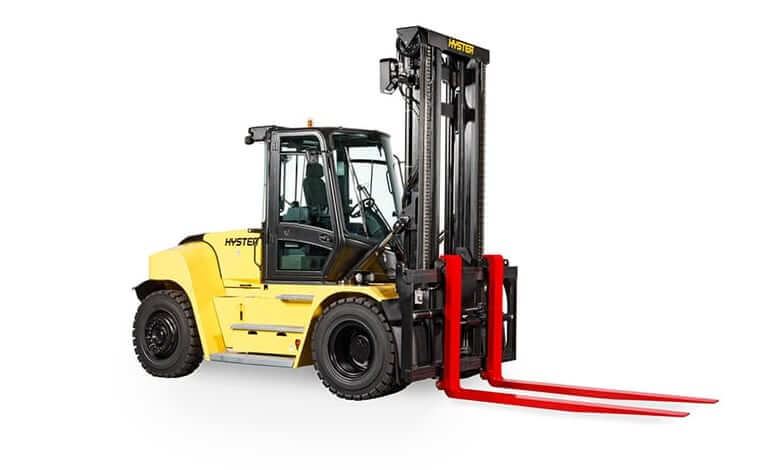

| Operating Weight | 29368 lb (13321 kg) |
| Max Drawbar Pull (Loaded) | 23600 lbf (105 kN) |
| Operating Voltage | 24 V |
| Alternator | 120 amps |
| Battery | 2x 12 V |
| Drive Axle Model | AxleTech PRC 485 |
Tires
| Tire Type | Pneumatic |
| Number of Front Wheels | 4X |
| Number of Rear Wheels | 2 |
| Front Tire Size | 10.00-20 16PR |
| Rear Tire Size | 10.00-20 16PR |
| Front Axle Loading (w/ load) | 43333 lb (19652 kg) |
| Axle Rear Loading (w/ load) | 4525 lb (2052 kg) |
Transmission
| Transmission Type | 3-speed autoshift transmission |
| Transmission Model | ZF WG161 |
| Number of Gears | 3F / 3R |
| Max Travel Speed (w/ load) | 18.8 mph (30.2 km/h) |
| Max Travel Speed (w/o load) | 19.4 mph (31.2 km/h) |
| Service Brakes | Oil immersed (wet) disc |
| Parking Brake | Spring applied, dry disc on drive axle |
Hydraulic System
| Type | On-demand load-sensing hydraulic system |
| Pump Flow Capacity | 26.4 gal/min (100 L/min) |
| Working Pressure | 2799 psi (19300 kPa) |
Service Refill Capacities
| Engine Model | Cummins QSB6.7 Tier 3 | Cummins QSB4.5 Tier 4F |
|---|---|---|
| Fuel Tank Capacity | 27 gal (102 L) | 27 gal (102 L) |
| DEF Tank Capacity | – | 5 gal (19 L) |
| Engine Oil Capacity | 6.3 gal (24 L) | 3.4 gal (13 L) |
| Cooling System Capacity | 2.6 gal (10 L) | 5.8 gal (22 L) |
| Transmission Oil Capacity | 5.3 gal (20 L) | 5.3 gal (20 L) |
| Hydraulic System Capacity | 36 gal (136 L) | 36 gal (136 L) |
