| Max Reach w/ head* |
26 ft 6 in (8.1 m) |
| Max Reach w/ head** |
32 ft (9.8 m) |
| Bare Pin Lift @ Max Reach (w/o head)* |
15600 lb @ 20 ft (7100 kg @ 6.1 m) |
| Bare Pin Lift @ Max Reach (w/o head)** |
9100 lb @ 29.5 ft (4100 kg @ 9.0 m) |

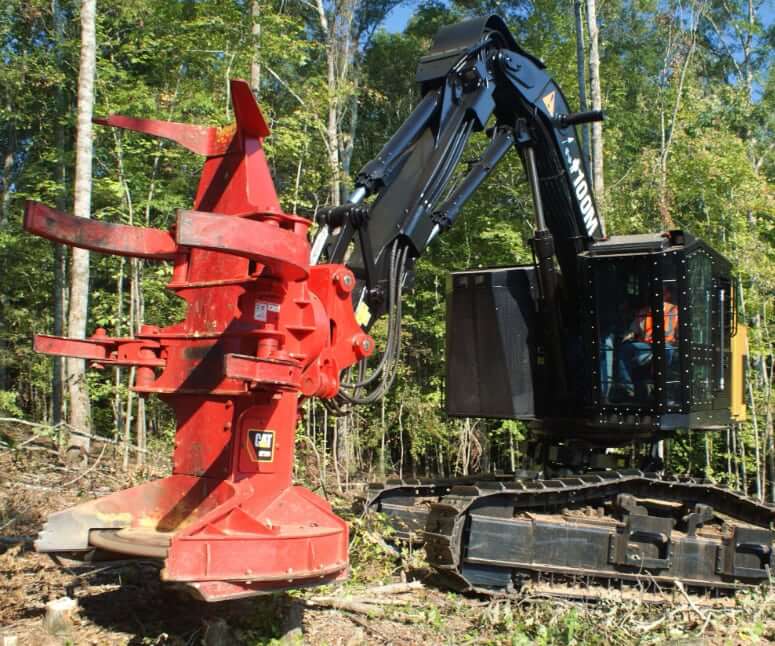

| Boom System |
Cat HF201B with Partial Tilt |
* Track Feller Buncher – Lift over front of tracks
** Track Harvester Configuration – Lift over front of tracks

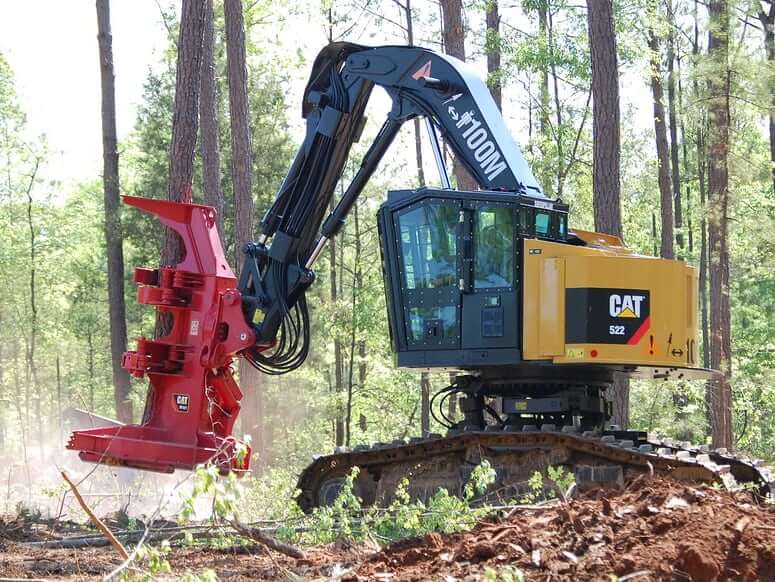

Dimensions
| Shipping Length w/ Attachment |
431 in (10947 mm) |
| Shipping Length w/o Attachment |
340 in (8636 mm) |
| Shipping Length w/o Attachment (Harvester Configuration) |
318 in (8077 mm) |
| Height to Top of Cab |
152 in (3861 mm) |
| Undercarriage Width 1 |
126 in (3200 mm) |
| Undercarriage Width 2 |
137 in (3480 mm) |
| Ground Clearance |
33 in (838 mm) |

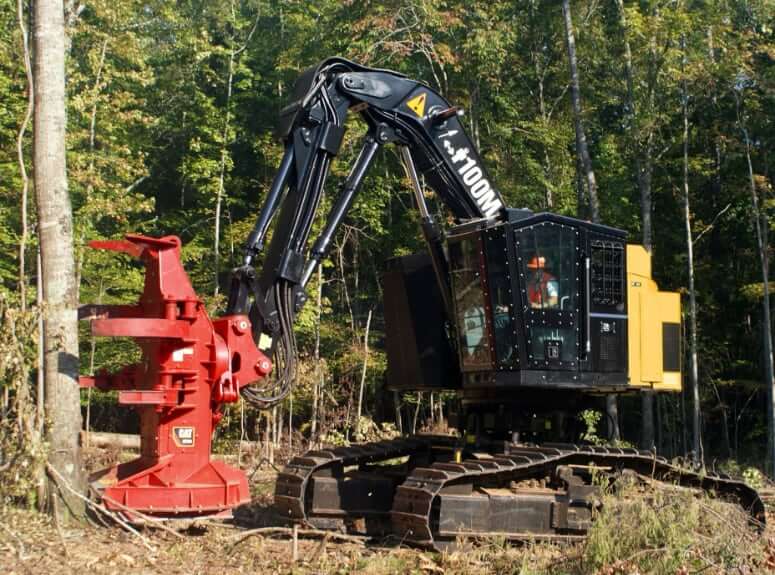

Undercarriage
| Undercarriage Size |
Caterpillar D6H HD |
| Track Gauge |
102 in (2591 mm) |
| Shoe Size |
24 in (610 mm) |
| Track Pitch |
8 in (203 mm) |
| Track Length |
189 in (4801 mm) |
| Track Rollers per side |
9 |
| Ground Clearance |
33 in (838 mm) |
| Tractive Effort |
75500 lb (34246 kg) |
| Max Travel Speed |
3.4 mph (5.5 km/h) |
Upperstructure Leveling
| Leveling System |
Three-cylinder tilt mechanism w/ simultaneous 20° forward tilt and 11° side-to-side tilt |
| Upperstructure Front Leveling |
20° |
| Upperstructure Side Leveling |
11° |
Engine Details
| Number of Cylinders |
6 |
| Engine Make |
Caterpillar |
| Engine Model |
CAT C9 ACERT |
| Displacement |
537 cu in (8.8 L) |
| Bore |
4.41 in (112 mm) |
| Stroke |
5.87 in (149 mm) |
| Gross Power |
284 hp (211.8 kw) |
| Net Power |
263 hp (196.2 kw) |
| Power Measured @ |
2100 rpm |
| Peak Torque |
1148 lb ft (1557 Nm) |
| Torque Measured @ |
1400 rpm |
| Compression Ratio |
16.1:1 |
| Combustion System |
Direct Injection |
| Aspiration |
Turbocharged and aftercooled |
| Emission Standards |
US EPA Tier 3 + EU Stage IIIA + China Nonroad III |

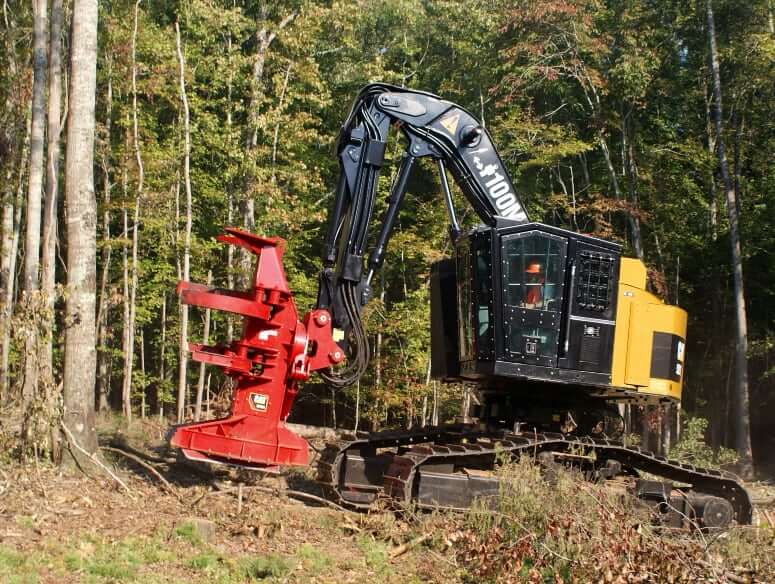

Operational Specs
| Operating Weight (w/o atachment) |
67043 lb (30410 kg) |
| Operating Weight, Harvester Configuration (w/o atachment) |
65710 lb (29806 kg) |
| Operating Voltage |
24 V |
| Alternator |
95 amps |
| Battery |
2x 12 V, CCA 950 |
| Controls |
Dual joystick control |
| Cab Safety |
OPS + FOPS + ROPS cab |
Hydraulic System
| Type |
Closed Center hydraulic system with electronic programmable controls |
| Pump Type |
Variable Displacement Pump |
| Saw Pump Low |
30 gal/min (113.6 L/min) |
| Pump Size – Saw Circuit |
3.4 cu in (0.1 L) |
| Pump Size – Boom, Implements |
11.6 cu in (0.2 L) |
| Pump Size – Travel Circuit |
12.2 cu in (0.2 L) |
Service Refill Capacities
| Fuel Tank Capacity |
140 gal (530 L) |
| Pony Fuel Tank (Optional) |
90 gal (341 L) |
| Engine Oil Capacity |
10.3 gal (39 L) |
| Cooling System Capacity |
16.1 gal (61 L) |
| Hydraulic Tank Capacity |
69.2 gal (262 L) |
| Hydraulic System Capacity |
79.3 gal (300 L) |
| Swing Drive Capacity |
2.6 gal (10 L) |
