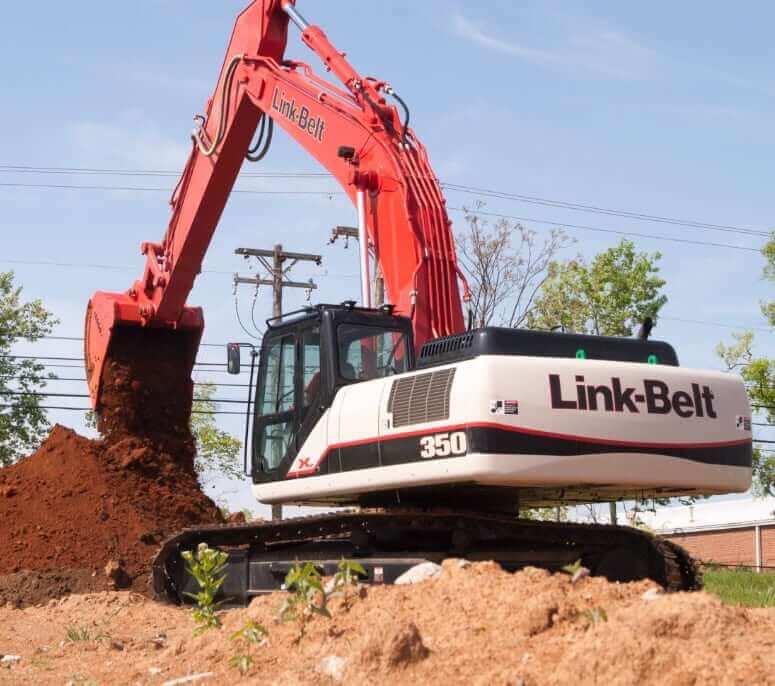

Working Range
| Shipping Length Of Unit | 36.26 ft in (11050 mm) |
| Shipping Height Of Unit | 10.7 ft in (3260 mm) |
| Max Cutting Height | 34.03 ft in (10370 mm) |
| Max Loading Height | 23.73 ft in (7230 mm) |
| Max Reach Along Ground | 36.03 ft in (10980 mm) |
| Max Vertical Wall Digging Depth | 20.84 ft in (6350 mm) |
| Max Digging Depth | 24.09 ft in (7340 mm) |
| Boom/Arm Length | Boom 21 ft 2 in (6450 mm) / Stick 10 ft 8 in (3250 mm) |
Working Range (Boom/Arm Option 2)
| Shipping Length Of Unit | 36.52 ft in (11130 mm) |
| Max Cutting Height | 33.86 ft in (10320 mm) |
| Shipping Height Of Unit | 11.49 ft in (3500 mm) |
| Max Loading Height | 23.43 ft in (7140 mm) |
| Max Reach Along Ground | 34.36 ft in (10470 mm) |
| Max Vertical Wall Digging Depth | 19.59 ft in (5970 mm) |
| Max Digging Depth | 22.09 ft in (6730 mm) |
| Boom/Arm Length | Boom 21 ft 2 in (6450 mm) / Stick 8 ft 8 in (2630 mm) |
Working Range (Boom/Arm Option 3)
| Shipping Length Of Unit | 36.39 ft in (11090 mm) |
| Max Cutting Height | 35.01 ft in (10670 mm) |
| Max Loading Height | 24.74 ft in (7540 mm) |
| Shipping Height Of Unit | 11.42 ft in (3480 mm) |
| Max Reach Along Ground | 38.46 ft in (11720 mm) |
| Max Vertical Wall Digging Depth | 23.46 ft in (7150 mm) |
| Max Digging Depth | 26.71 ft in (8140 mm) |
| Boom/Arm Length | Boom 21 ft 2 in (6450 mm) / Stick 13 ft 3 in (4040 mm) |
Dimensions
| Ground Clearance | 1.58 ft in (480 mm) |
| Height To Top Of Cab | 10.6 ft in (3230 mm) |
| Width To Outside Of Tracks | 11.16 ft in (3400 mm) |
| Length Of Track On Ground | 13.26 ft in (4040 mm) |
| Tail Swing Radius | 11.23 ft in (3420 mm) |
| Removal Counterweight Clearance | 3.97 ft in (1210 mm) |
Undercarriage
| Track Gauge | 8.54 ft in (2600 mm) |
| Shoe Size | 31.5 in (800 mm) |
| Length Of Track On Ground | 13.26 ft in (4040 mm) |
| Number Of Track Rollers Per Side | 8 |
| Number Of Shoes Per Side | 48 |
| Number Of Carrier Rollers Per Side | 2 |
| Ground Pressure | 7.25 psi (45 kPa) |
Swing Mechanism
| Swing Speed | 9.8 rpm |
| Swing Torque | 82607 lb ft (112 kNm) |
Buckets
| Reference Bucket Capacity | 1.6 yd3 (1.3 m3) |
| Minimum Bucket Capacity | 1.1 yd3 (0.9 m3) |
| Maximum Bucket Capacity | 3 yd3 (2.3 m3) |
Engine Details
| Number Of Cylinders | 6 |
| Engine Make | Isuzu |
| Engine Model | Isuzu AH-6HK1XYSS |
| Displacement | 476 cu in (7.8 L) |
| Displacement | 4.53 in (115 mm) |
| Displacement | 4.92 in (125 mm) |
| Net Power | 271 hp (202 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 797 lb ft (1080 Nm) |
| Torque Measured @ | 1500 rpm |
| Aspiration | Turbocharged with Intercooler |
| Emission Standards | US EPA Tier 3 |

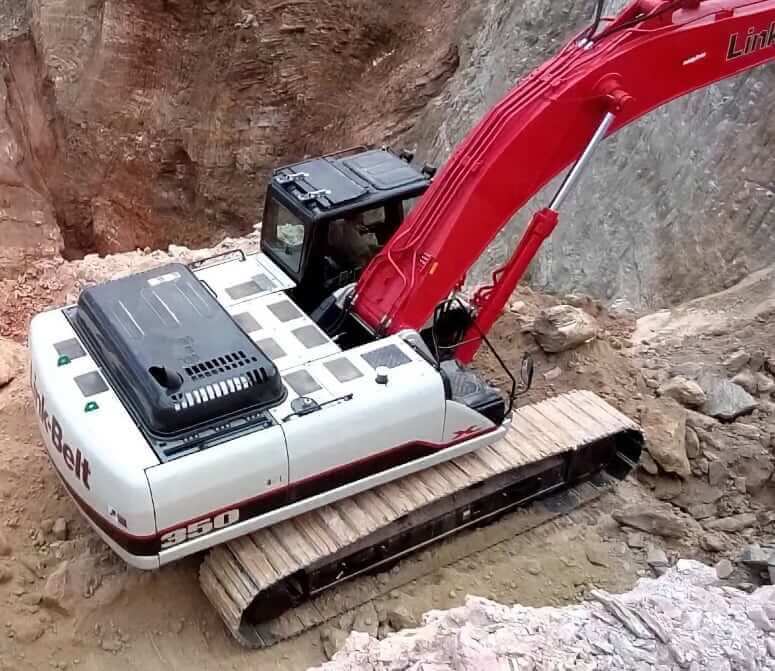

Operational Specs
| Operating Weight | 79146 lb (35900 kg) |
| Operating Voltage | 24 V |
| Alternator | 50 amps |
| Battery | 2x 12 V, 128 Ah |
| Fuel Consumption, Heavy | 10.6 gal/h (40.1 L/h) |
| Fuel Consumption, Average | 8.5 gal/h (32.2 L/h) |
| Fuel Consumption, Light | 5.3 gal/h (20.0 L/h) |
| Sound Level (inside cab) | 70.7 dB(A) |
| Sound Level (exterior) | 102.9 dB(A) |
| Working Lights | 70-watt work lights on boom and upper |
Travel System
| Type | Two-speed independent hydrostatic travel with compact axial piston motors |
| Max Travel Speed | 3.4 mph (5.5 km/h) |
| Drawbar Pull | 59619 lbf (265 kN) |
| Gradeability | 70% (35°) |
| Parking Brake | Spring applied, hydraulically released disc parking brake built into each motor |
| Control | Single pedal travel. Automatic downshift |
| Hydraulic Motors | Hydraulic motor powered output shaft coupled to a planetary reduction unit and track sprocket |

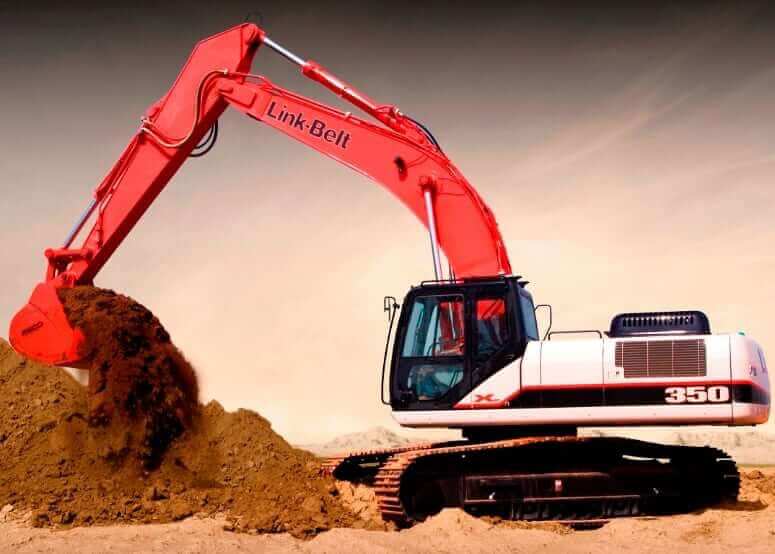

Hydraulic System
| Type | Open-center hydraulic system |
| Pump Type | Two variable displacement axial piston pumps and one gear pump for pilot controls |
| Main Pump Flow | 2x 76.6 gal/min (2x 290 L/min) |
| Pilot Pump Flow | 7.9 gal/min (30 L/min) |
| Relief Valve Pressure, Boom / Arm / Bucket | 4970 psi (34300 kPa) |
| Relief Valve Pressure, Power-Boost Mode | 5410 psi (37300 kPa) |
| Relief Valve Pressure, Swing Circuit | 4410 psi (30400 kPa) |
| Relief Valve Pressure, Travel Circuit | 4970 psi (34300 kPa) |
| Control Valve | Main control valve with one 4-spool valve and one 5-spool valve with auxiliary spool |
| Hydraulic Oil Filtration | Return filter – 6 micron; Pilot filter – 8 micron; Suction screen – 105 micron |
Service Refill Capacities
| Fuel Tank Capacity | 153.3 gal (580 L) |
| Engine Oil Capacity | 10.1 gal (38 L) |
| Cooling System Capacity | 7.9 gal (30 L) |
| Hydraulic System Capacity | 92.5 gal (350 L) |
| Hydraulic Tank Capacity | 46.2 gal (175 L) |
| Swing Drive Fluid Capacity | 2.1 gal (7.9 L) |
| Final Drive Capacity (per side) | 2.5 gal (9.5 L) |
