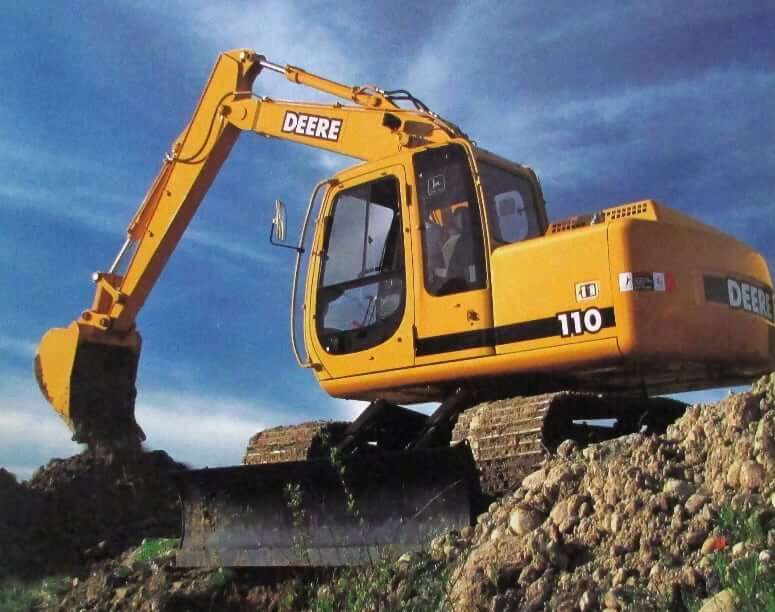

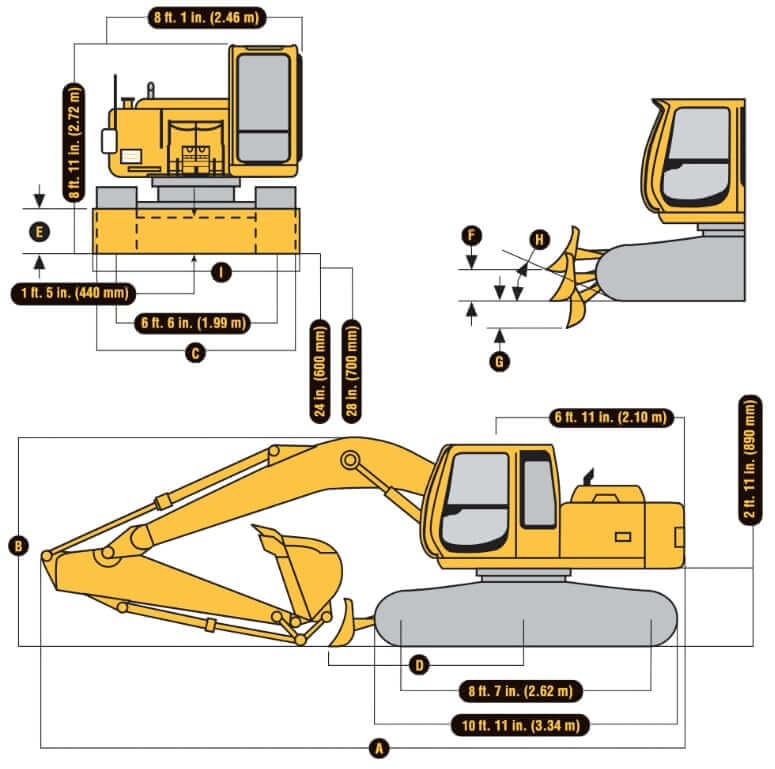

Dimensions
| A. Length with 7 ft 4 in (2.26 m) Arm | 283.1 in (7190 mm) |
| A. Length with 9 ft 3 in (2.80 m) Arm | 284.0 in (7210 mm) |
| B. Height with 7 ft 4 in (2.26 m) Arm | 107.0 in (2720 mm) |
| B. Height with 9 ft 3 in (2.80 m) Arm | 107.0 in (2720 mm) |
| C. Width with 24 in (600 mm) Shoes | 102.0 in (2590 mm) |
| C. Width with 28 in (700 mm) Shoes | 106.0 in (2690 mm) |
| D. Blade Length | 98.0 in (2478 mm) |
| E. Blade Height | 24.0 in (605 mm) |
| F. Blade Lift Height | 19.0 in (489 mm) |
| G. Blade Cut Below Grade | 20.0 in (501 mm) |
| H. Blade Lift Angle | 26° |
| I. Dozer Blade Width | 98.0 in (2490 mm) |
Weight
| Operating Weight, 24 in (600 mm) Shoes | 26725 lb (12122 kg) |
| Operating Weight, 28 in (700 mm) Shoes | 27100 lb (12292 kg) |
| Upperstructure Weight, Less Front Attachments and 3748 lb (1700 kg) Counterweight | 7039 lb (3193 kg) |
| Undercarriage Weight, 24 in (600 mm) Shoes | 8889 lb (4032 kg) |
| Undercarriage Weight, 28 in (700 mm) Shoes | 9264 lb (4202 kg) |
| One-piece Boom (with arm cylinder) | 1812 lb (822 kg) |
| Arm with Bucket Cylinder and Linkage, 7 ft. 4 in. (2.26 m) | 1129 lb (512 kg) |
| Arm with Bucket Cylinder and Linkage, 9 ft. 3 in. (2.80 m) | 1301 lb (590 kg) |
| Boom Lift Cylinders (2) Total Weight | 432 lb (196 kg) |
| Counterweight | 3748 lb (1700 kg) |
| Dozer Blade | 2262 lb (1026 kg) |

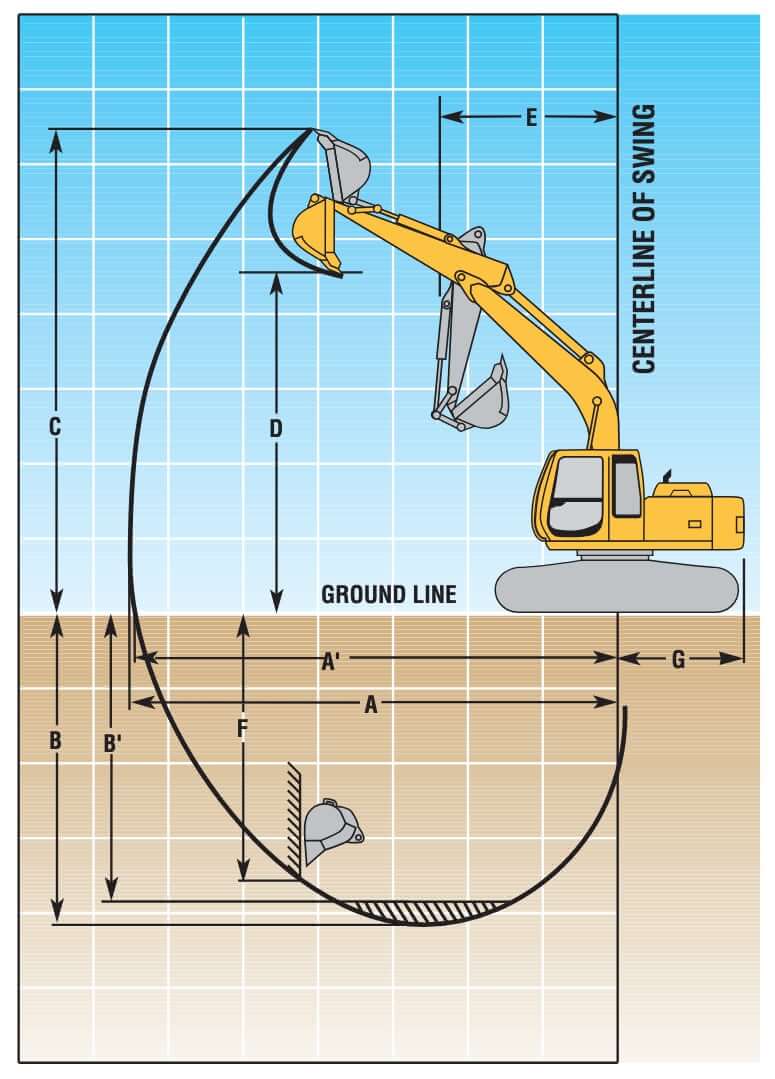

Working Range
| John Deere 110 | Arm Length (2.26 m) |
Arm Length (2.80 m) |
|---|---|---|
| A. Maximum Reach | 298.4 in (7580 mm) | 317.3 in (8060 mm) |
| A’. Maximum Reach @ Ground Level | 294.6 in (7460 mm) | 310.0 in (7880 mm) |
| B. Maximum Digging Depth | 195.0 in (4960 mm) | 217.0 in (5510 mm) |
| B’. Maximum Digging Depth @ 96 in (2440 mm) Flat Bottom | 189.0 in (4800 mm) | 212.0 in (5380 mm) |
| C. Maximum Cutting Height | 314.0 in (7990 mm) | 324.0 in (8230 mm) |
| D. Maximum Dumping Height | 229.0 in (5820 mm) | 240.0 in (6090 mm) |
| E. Minimum Swing Radius | 92.0 in (2330 mm) | 102.0 in (2590 mm) |
| F. Maximum Vertical Wall | 177.0 in (4500 mm) | 197.0 in (5000 mm) |
| G. Tail Swing Radius | 84.0 in (2130 mm) | 84.0 in (2130 mm) |
| Arm Force with 0.79 yd3 (0.60 m3) 42 in (1067 mm) GP Bucket | 12348 lbf (54.9 kN) | 10805 lbf (48.1 kN) |
| Bucket Digging Force with 0.79 yd3 (0.60 m3) 42 in (1067 mm) GP Bucket | 19640 lbf (87.3 kN) | 19640 lbf (87.3 kN) |
| Lifting Capacity over Front @ Ground Level 240 in (6100 mm) Reach | 4353 lb (1974 kg) | 4303 lb (1952 kg) |
Undercarriage
| Shoe Size (Standard) | 24 in (600 mm) |
| Shoe Size (Optional) | 28 in (700 mm) |
| Track Gauge | 78.3 in (1990 mm) |
| Length of Track on Ground | 103 in (2620 mm) |
| Length of Undercarriage | 132 in (3340 mm) |
| Number of Shoes per Side | 41 |
| Number of Track Rollers per Side | 6 |
| Number of Carrier Rollers per Side | 1 |
| Track Adjustment | Hydraulic |
| Drawbar Pull | 19400 lbf (86.3 kN) |
| Max Travel Speed, Low | 2.1 mph (3.5 km/h) |
| Max Travel Speed, High | 3.4 mph (5.5 km/h) |
Ground Pressure
| Ground Pressure, 24 in (600 mm) Shoes – recommended for rocky terrain, hard ground, and stumps | 4.97 psi (34.3 kPa) |
| Ground Pressure, 28 in (700 mm) Shoes – recommended for general conditions and soft terrain | 4.32 psi (29.8 kPa) |
Swing Mechanism
| Swing Speed | 13.5 rpm |
| Swing Torque | 19955 lb ft (27058 Nm) |
| Tail Swing Radius | 84 in (2130 mm) |
| Tail Swing Clearance | 35 in (890 mm) |
Buckets
| Material (loose weight) | GP Bucket Capacity | HD Bucket Capacity |
|---|---|---|
| Earth, loam – 2100 lb/yd3 (1250 kg/m3) | 0.88 yd3 (0.7 m3) | 0.75 yd3 (0.6 m3) |
| Shale – 2250 lb/yd3 (1330 kg/m3) | 0.88 yd3 (0.7 m3) | 0.75 yd3 (0.6 m3) |
| Sand, dry – 2400 lb/yd3 (1420 kg/m3) | 0.88 yd3 (0.7 m3) | 0.75 yd3 (0.6 m3) |
| Clay, dry – 2500 lb/yd3 (1480 kg/m3) | 0.88 to 0.63 yd3 (0.7 to 0.5 m3) | 0.75 yd3 (0.6 m3) |
| Earth, dry – 2550 lb/yd3 (1510 kg/m3) | 0.75 to 0.63 yd3 (0.6 to 0.5 m3) | 0.63 yd3 (0.5 m3) |
| Limestone, broken – 2600 lb/yd3 (1540 kg/m3) | 0.75 to 0.5 yd3 (0.6 to 0.4 m3) | 0.63 to 0.5 yd3 (0.5 to 0.4 m3) |
| Earth, wet – 2700 lb/yd3 (1600 kg/m3) | 0.75 yd3 (0.6 m3) | 0.63 yd3 (0.5 m3) |
| Clay, wet – 2800 lb/yd3 (1660 kg/m3) | 0.75 yd3 (0.6 m3) | 0.63 yd3 (0.5 m3) |
| Rock, granite, blasted – 2800 lb/yd3 (1660 kg/m3) | 0.88 to 0.63 yd3 (0.7 to 0.5 m3) | 0.75 to 0.5 yd3 (0.6 to 0.4 m3) |
| Sand, moist – 2850 lb/yd3 (1690 kg/m3) | 0.75 yd3 (0.6 m3) | 0.63 yd3 (0.5 m3) |
| Sand and gravel, dry – 2900 lb/yd3 (1720 kg/m3) | 0.75 yd3 (0.6 m3) | 0.63 yd3 (0.5 m3) |
| Sand, wet – 3100 lb/yd3 (1840 kg/m3) | 0.63 yd3 (0.5 m3) | 0.50 yd3 (0.4 m3) |
| Sand and gravel, wet – 3400 lb/yd3 (2020 kg/m3) | 0.63 yd3 (0.5 m3) | 0.50 yd3 (0.4 m3) |
| Wood chips – 700 lb/yd3 (420 kg/m3) | 3.25 yd3 (2.5 m3) | – |
| Peat, dry – 750 lb/yd3 (440 kg/m3) | 2.75 yd3 (2.1 m3) | – |
| Cinders – 950 lb/yd3 (560 kg/m3) | 2.00 yd3 (1.5 m3) | – |
| Peat, wet – 1170 lb/yd3 (690 kg/m3) | 1.75 yd3 (1.3 m3) | – |
| Topsoil – 1600 lb/yd3 (950 kg/m3) | 1.38 yd3 (1.1 m3) | – |
| Coal – 1780 lb/yd3 (1050 kg/m3) | 1.25 yd3 (1.0 m3) | – |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | John Deere |
| Engine Model | John Deere 4045T |
| Displacement | 276 cu in (4.6 L) |
| Bore | 4.17 in (106 mm) |
| Stroke | 5.00 in (127 mm) |
| Net Power | 80 hp (59.7 kw) |
| Power Measured @ | 2200 rpm |
| Peak Torque | 244 lb ft (330 Nm) |
| Torque Measured @ | 1300 rpm |
| Fuel Consumption, Typical | 2.0 to 3.0 gal/h (7.6 to 11.4 L/h) |
| Aspiration | Turbocharged |
Operational Specs
| Operating Weight | 26725 lb (12122 kg) |
| Operating Voltage | 24 V |
| Alternator | 45 amps |
| Battery | 2x 12 V, CCA 1250, RC: 180 min |
| Working Lights | One mounted on boom + One mounted on frame |
| Operator Seat | Adjustable seat with independent control positions (levers-to-seat, seat-to-pedals) or Deluxe suspension cloth seat with adjustable armrests |
| Seat Belt | Retractable seat belt, 2 in (51 mm) |
Hydraulic System
| Main Pump Type | 2x variable-displacement axial-piston pumps |
| Pump Flow Capacity | 2x 26 gal/min (2x 100 L/min) |
| Pilot Pump Type | 1x gear pump |
| Pump Flow Capacity | 8.7 gal/min (32.9 L/min) |
| Hydraulic Oil Filtration | 10-micron full-flow return filter with by-pass one pilot oil filter |
| Relief Valve Pressure (Implement) | 4980 psi (34336 kPa) |
| Relief Valve Pressure (Travel) | 4980 psi (34336 kPa) |
| Relief Valve Pressure (Swing) | 4550 psi (31371 kPa) |
| Relief Valve Pressure (Pilot) | 540 psi (3723 kPa) |
Service Refill Capacities
| Fuel Tank Capacity | 66 gal (250 L) |
| Engine Oil Capacity (w/ filter) | 3.5 gal (13 L) |
| Cooling System Capacity | 5.9 gal (22 L) |
| Hydraulic System Capacity (w/ tank) | 35 gal (134 L) |
| Hydraulic Tank Capacity | 20 gal (76 L) |
| Swing Gearbox Capacity | 0.74 gal (2.8 L) |
| Propel Gearbox Capacity (each) | 0.85 gal (3.2 L) |
| Pump Drive Gearbox Capacity | 0.21 gal (0.8 L) |
