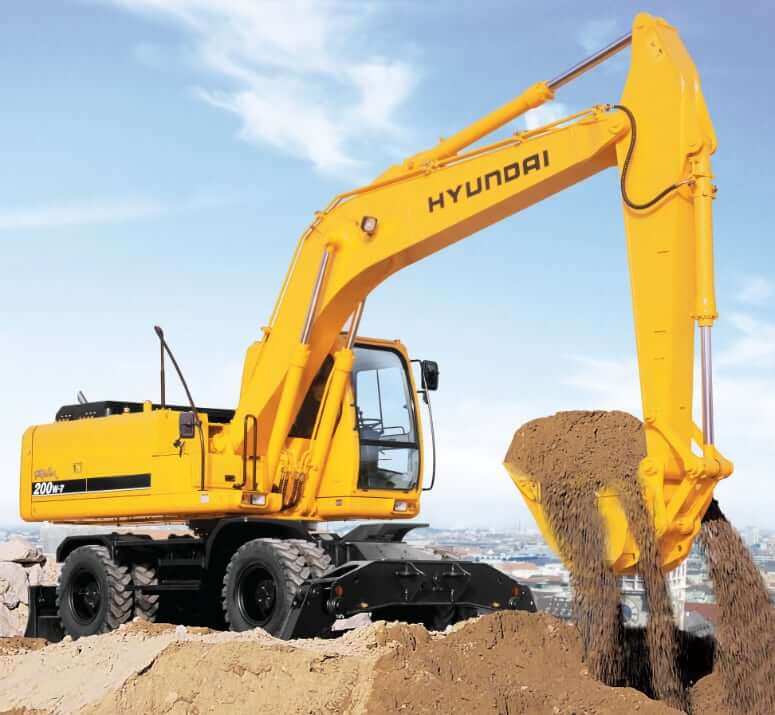

Working Range
| Arm Length | 79 in (2000 mm) | 95 in (2400 mm) | 114 in (2900 mm) |
|---|---|---|---|
| SAE Arm Crowd Force (Standard) | 30420 lbf (135.3 kN) | 25350 lbf (112.8 kN) | 21830 lbf (97.1 kN) |
| SAE Arm Crowd Force (Power Boost) | 33190 lbf (147.6 kN) | 27650 lbf (123.1 kN) | 23810 lbf (105.9 kN) |
| SAE Bucket Digging Force (Standard) | 29980 lbf (133.4 kN) | 29980 lbf (133.4 kN) | 29980 lbf (133.4 kN) |
| SAE Bucket Digging Force (Power Boost) | 32710 lbf (145.5 kN) | 32710 lbf (145.5 kN) | 32710 lbf (145.5 kN) |
| Shipping Length Of Unit | 31.53 ft in (9610 mm) | 31.21 ft in (9510 mm) | 31.14 ft in (9490 mm) |
| Shipping Height Of Unit | 11.03 ft in (3360 mm) | 10.67 ft in (3250 mm) | 122 in (3100 mm) |
| Max Cutting Height | 31.17 ft in (9500 mm) | 31.93 ft in (9730 mm) | 32.39 ft in (9870 mm) |
| Max Loading Height | 21.89 ft in (6670 mm) | 22.64 ft in (6900 mm) | 23.13 ft in (7050 mm) |
| Max Reach Along Ground | 29.11 ft in (8870 mm) | 30.39 ft in (9260 mm) | 31.8 ft in (9690 mm) |
| Max Vertical Wall Dig Depth | 16.31 ft in (4970 mm) | 17.85 ft in (5440 mm) | 19.07 ft in (5810 mm) |
| Max Digging Depth | 17.98 ft in (5480 mm) | 19.3 ft in (5880 mm) | 20.94 ft in (6380 mm) |
Dimensions
| Overall Width – Lower Structure | 98 in (2490 mm) |
| Overall Width – Outriggers Down | 148.4 in (3770 mm) |
| Tail Swing Radius | 110.2 in (2800 mm) |
| Height to Top of Cab | 125.2 in (3180 mm) |
| Clearance of Counterweight | 51.4 in (1305 mm) |
| Clearance of Outrigger Up | 48 in (1220 mm) |
| Wheelbase | 110.2 in (2800 mm) |
| Ground Clearance | 13.6 in (345 mm) |

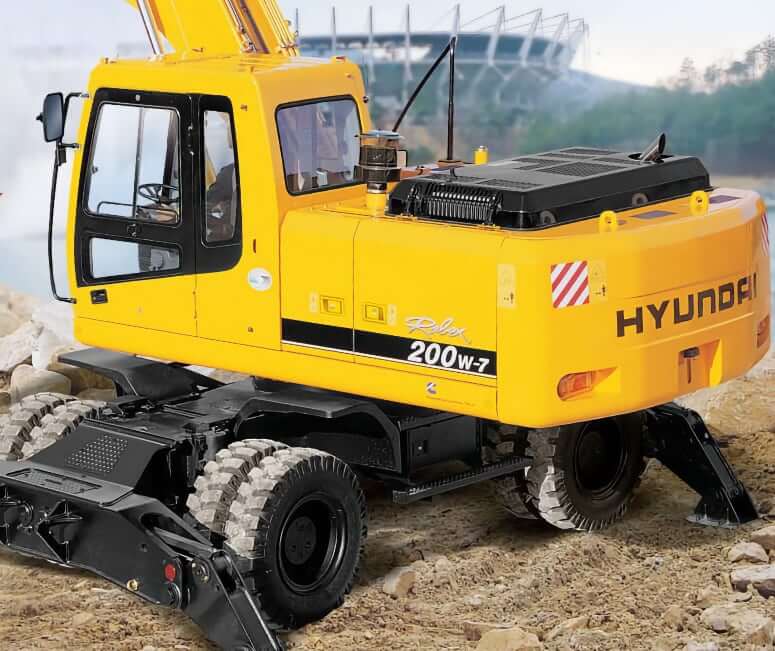

Weight
| Operating Weight (Front outrigger + rear blade) | 45200 lb (20500 kg) |
| Operating Weight (Four outrigger) | 45400 lb (20600 kg) |
| Upperstructure Weight | 19730 lb (8950 kg) |
| Counterweight | 7500 lb (3400 kg) |
| Boom Weight (with arm cylinder) | 3260 lb (1480 kg) |
Buckets
| Standard Bucket Capacity | 1.05 yd3 (0.80 m3) |
| Min Bucket Capacity | 0.67 yd3 (0.51 m3) |
| Max Bucket Capacity | 1.75 yd3 (1.34 m3) |

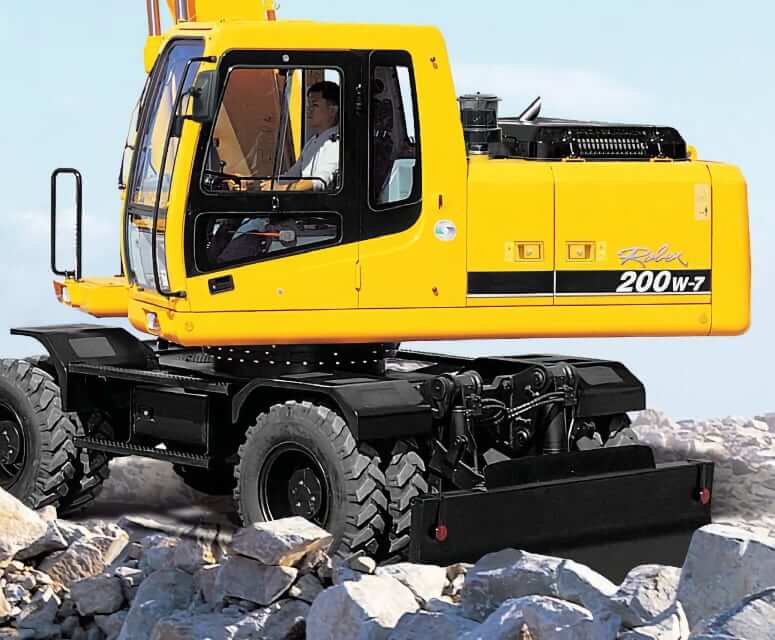

Dozer Blade
| Type | Rear dozer blade |
| Blade Width | 98 in (2490 mm) |
| Blade Height | 24 in (610 mm) |
| Depth of Blade Down | 4.9 in (125 mm) |
| Height of Blade Up | 17.5 in (445 mm) |
Engine Details
| Number of Cylinders | 6 |
| Engine Make | Cummins |
| Engine Model | Cummins B5.9-C |
| Displacement | 359 cu in (5.880 L) |
| Bore | 4.02 in (102 mm) |
| Stroke | 4.72 in (120 mm |
| Gross Power | 166 hp (123.8 kw) |
| Net Power | 153 hp (114.1 kw) |
| Power Measured @ | 1950 rpm |
| Peak Torque | 495 lb ft (671.2 Nm) |
| Torque Measured @ | 1500 rpm |
| Aspiration | Turbocharged |
| Emission Standards | US EPA Tier 2 |
Operational Specs
| Max Operating Weight | 45400 lb (20600 kg) |
| Operational Voltage | 24 V |
| Alternator | 50 amps |
| Battery | 2x 12 V, 100 Ah |
| Starter | 24 V, 6 hp (4.5 kw), Nippon Denso |
| Standard Tire Size | 10.00-20-14PR, Dual (tube type) |
| Optional Tire Size | 10.00-20, Dual (solid type) |
Swing Mechanism
| Swing Speed | 12.5 rpm |
| Swing Reduction | 2-stage planetary |
| Swing Hydraulic Motor | Axial piston motor with automatic brake |
Transmission
| Type | Hydrostatic transmission |
| Travel Hydraulic Motors | Two speed axial piston motor with brake valve |
| Max Travel Speed, Low | 5.2 mph (8.5 km/h) |
| Max Travel Speed, High | 20.6 mph (33 km/h) |
| Drawbar Pull | 23800 lbf (105.87 kN) |
| Gradeability | 31.5° (61 %) |
| Parking brake | Multi wet disc |
Hydraulic System
| Hydraulic Pump Type | 2x variable displacement piston pumps |
| Pump Flow Capacity | 2x 58.1 gal/min (2x 220 L/min) |
| Sub-pump for Pilot Circuit | Gear pump |
| Relief Valve Pressure (Implement) | 4690 psi (32336 kPa) |
| Relief Valve Pressure (Travel) | 5120 psi (35301 kPa) |
| Relief Valve Pressure (Boom, arm, bucket) | 5120 psi (35301 kPa) |
| Relief Valve Pressure (Swing) | 3410 psi (23511 kPa) |
| Relief Valve Pressure (Pilot) | 570 psi (3930 kPa) |

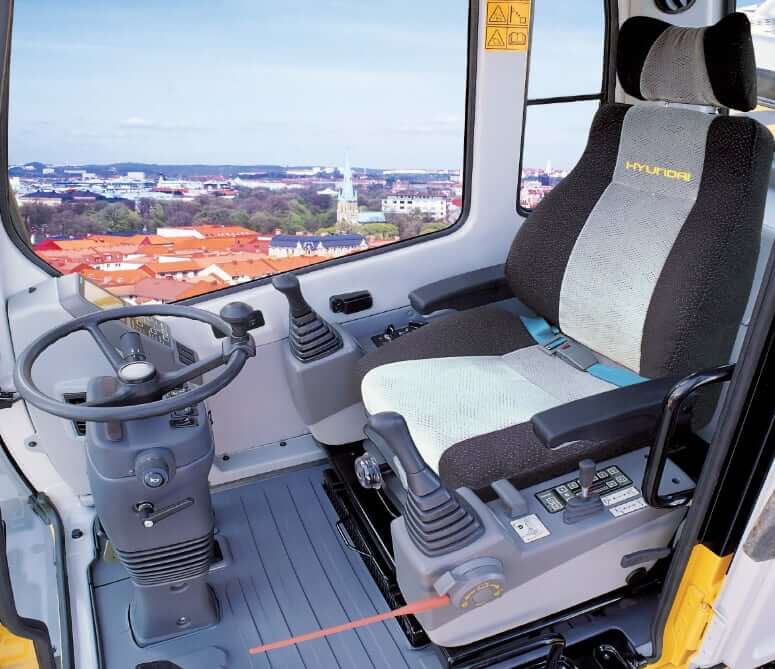

| Controls | Two joysticks with one safety lever (LH): Swing and arm; (RH): Boom and bucket (ISO) |

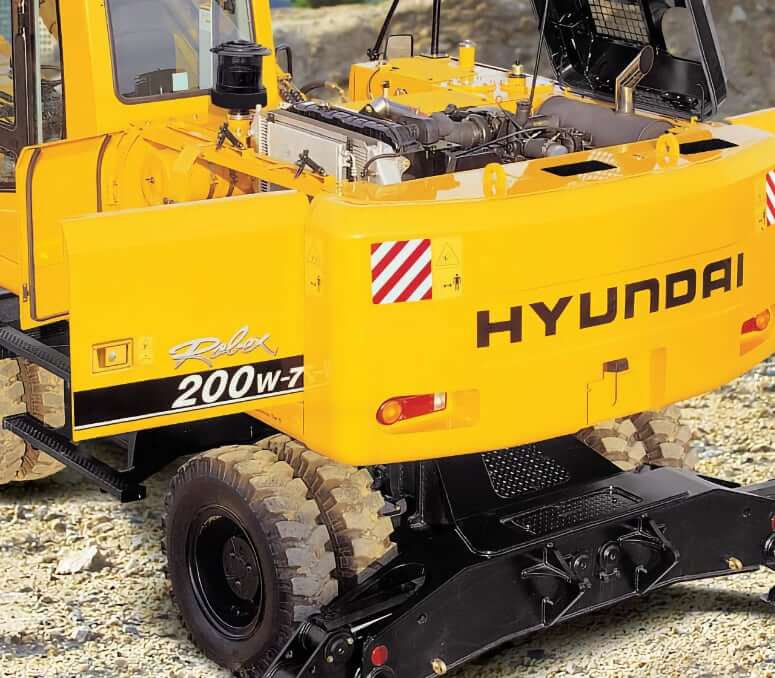

Service Refill Capacities
| Fuel Tank Capacity | 81.9 gal (310 L) |
| Engine Oil Capacity | 3.8 gal (14.2 L) |
| Cooling System Capacity | 9.2 gal (35 L) |
| Swing Device Fluid Capacity | 1.3 gal (5 L) |
| Transmission Oil Capacity | 1 gal (3.8 L) |
| Hydraulic System Capacity (w/ tank) | 71.4 gal (270 L) |
| Hydraulic Tank Capacity | 47.6 gal (180 L) |
| Front Axle Fluid Capacity | 4.2 gal (16 L) |
| Rear Axle Fluid Capacity | 4.2 gal (16 L) |
