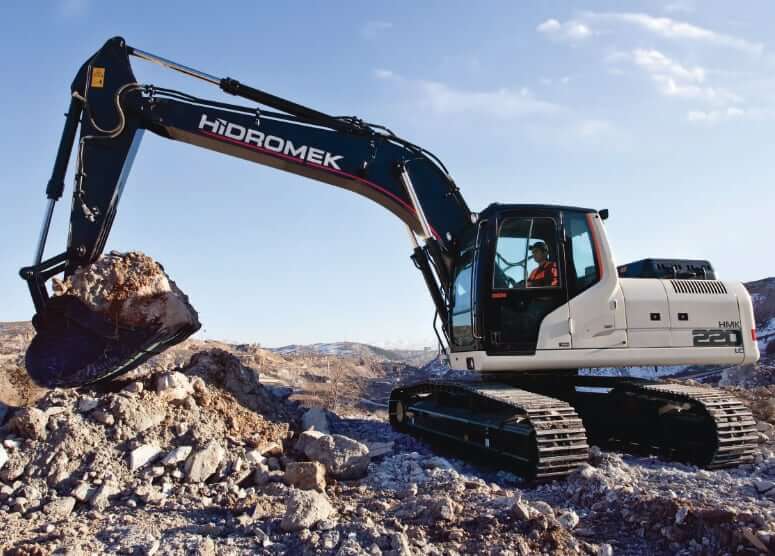

Working Range
| Boom Length | 228.3 in (5800 mm) |
| Arm Length | 115.0 in (2920 mm) |
| Max Digging Depth | 262.6 in (6670 mm) |
| Max Vertical Wall Dig Depth | 200.8 in (5100 mm) |
| Max Loading Height | 271.7 in (6900 mm) |
| Max Reach Along Ground | 389.0 in (9880 mm) |
| Max Cutting Height | 376.8 in (9570 mm) |

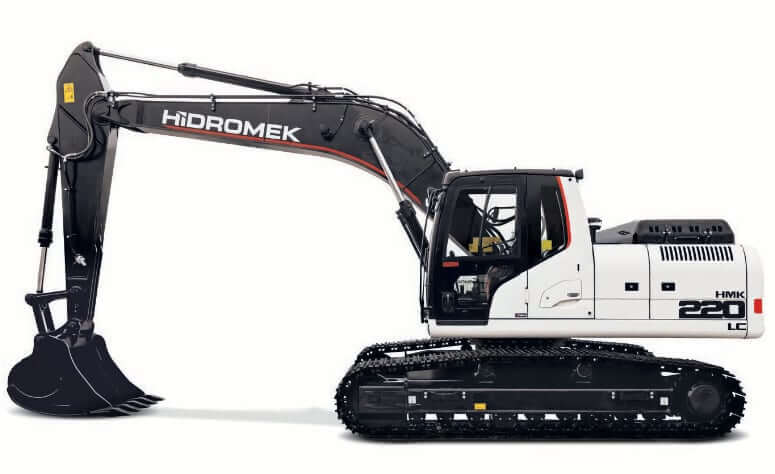

Dimensions
| Shipping Length | 385.4 in (9790 mm) |
| Shipping Height | 121.7 in (3090 mm) |
| Height to Top of Cab | 117 in (2970 mm) |
| Ground Clearance | 18.3 in (465 mm) |
| Width to Outside of Tracks | 117.7 in (2990 mm) |
| Length of Track on Ground | 143.3 in (3640 mm) |
| Tail Swing Radius | 110.2 in (2800 mm) |
| Removal Counterweight Clearance | 41.7 in (1060 mm) |
Undercarriage
| Track Gauge | 94 in (2390 mm) |
| Shoe Size, HMK 220LC | 24 in (600 mm) |
| Shoe Size, HMK 220NLC | 20 in (500 mm) |
| Shoe Size, HMK 220LC LR | 24 in (600 mm) |
| Length of Track on Ground | 143.3 in (3640 mm) |
| Number of Shoes per Side | 49 |
| Number of Track Rollers per Side | 9 |
| Number of Carrier Rollers per Side | 2 |
| Max Travel Speed (Low) | 2.4 mph (3.8 km/h) |
| Max Travel Speed (High) | 3.7 mph (5.9 km/h) |
| Max Drawbar Pull | 40642 lb (180.8 kN) |
| Ground pressure 220LC, 24 in (600 mm) | 6.97 psi (48.1 kPa) |
| Ground pressure 220NLC, 20 in (500 mm) | 8.25 psi (56.9 kPa) |
| Ground pressure 220LC LR, 24 in (600 mm) | 7.40 psi (51.0 kPa) |
Swing Mechanism
| Swing Motor | Axial piston motor with integrated super shock absorbing valve,with fixed displacement and inclined plate |
| Swing Reduction | 2 stage planetary gear type |
| Swing Speed | 10.8 rpm |
| Swing Brake | Hydraulic, disc type with warning |
Engine Details
| Engine Make | Mitsubishi | ISUZU |
|---|---|---|
| Number of Cylinders | 6 | 4 |
| Engine Model | Mitsubishi 6D34-TLU2D | ISUZU AI-4HK1X |
| Displacement | 357.6 cu in (5.9 L) | 316.9 cu in (5.2 L) |
| Bore | 4.09 in (104 mm) | 4.53 in (115 mm) |
| Stroke | 4.53 in (115 mm) | 4.92 in (125 mm) |
| Net Power | 148 hp (110 kw) | 162 hp (120.7 kw) |
| Power Measured @ | 2000 rpm | 2000 rpm |
| Max Torque | 435.2 lb ft (590 Nm) | 481.6 lb ft (653 Nm) |
| Torque Measured @ | 1500 rpm | 1500 rpm |
| Fuel System | Direct injection | Direct injection |
| Aspiration | Turbocharger | Turbocharger |
| Emission Standards | US EPA Tier 2 + EU Stage II | US EPA Tier 4 Interim + EU Stage IIIB |

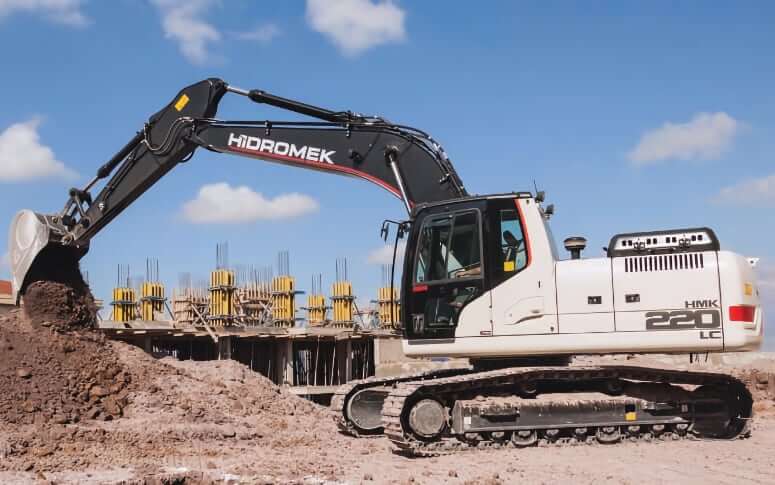

Operational Specs
| Operating Weight (220 LC) | 50596 lb (22950 kg) |
| Operating Weight (220 NLC) | 50045 lb (22700 kg) |
| Operating Weight (220 LC LR) | 54675 lb (24800 kg) |
| Operating Voltage | 24 V |
| Alternator | 50 amps |
| Battery | 2x 12 V, 100 Ah |
| Starter | 24 V, 6.7 hp (5 kw) |
| Cab | 6x viscomount cab mountings that dampen the vibrations |
| Controls | Opera Control System |
Hydraulic System
| Main Pump Type | 2x axial piston pumps with double variable displacement and inclined plate |
| Main Pump Flow | 2x 59.2 gal/min (2x 224 L/min) |
| Pilot Pump Type | Gear type |
| Pilot Pump Flow | 5.3 gal/min (20 L/min) |
| Relief Valve Pressure (Cylinders) | 4694 psi (32362 kPa) |
| Relief Valve Pressure (Power Boost) | 4978 psi (34323 kPa) |
| Relief Valve Pressure (Travel) | 4978 psi (34323 kPa) |
| Relief Valve Pressure (Swing) | 3414 psi (23536 kPa) |
| Relief Valve Pressure (Pilot) | 569 psi (3923 kPa) |
Service Refill Capacities
| Engine Model | Mitsubishi 6D34-TLU2D | ISUZU AI-4HK1X |
|---|---|---|
| Fuel Tank Capacity | 93.6 gal (354 L) | 93.6 gal (354 L) |
| Engine Oil Capacity (w/ filter) | 4.8 gal (18 L) | 5.4 gal (20.5 L) |
| Cooling System Capacity | 5.8 gal (22 L) | 7.7 gal (29.3 L) |
| Hydraulic System Capacity (w/ tank) | 76.6 gal (290 L) | 77.9 gal (295 L) |
| Hydraulic Tank Capacity | 42.3 gal (160 L) | 39.6 gal (150 L) |
| Swing Drive Fluid Capacity | 1.3 gal (5 L) | 1.3 gal (5 L) |
| Travel Drive Capacity (each) | 1.4 gal (5.4 L) | 1.4 gal (5.3 L) |
