Dimensions
| Length w/ Dozer Blade (Options) | 131.1 in (3330 mm) 131.3 in (3335 mm) 131.5 in (3340 mm) 131.7 in (3345 mm) 132.3 in (3360 mm) 133.3 in (3385 mm) |
| Length w/o Dozer Blade | 91.9 in (2335 mm) |
| Length of Track on Ground (Options) | 68.5 in (1740 mm) 73.8 in (1875 mm) 81.9 in (2080 mm) |
| Width Over Tracks (Options) | 59.1 in (1500 mm) 74.8 in (1900 mm) 90.6 in (2300 mm) 113.4 in (2880 mm) |
| Height to Top of Canopy (Options) | 91.9 in (2335 mm) 92.1 in (2340 mm) 92.3 in (2345 mm) |
| Ground Clearance (Options) | 11.4 in (290 mm) 11.6 in (295 mm) 11.8 in (300 mm) |
| Max Gradeability | 30° |
Weight
| Operating Weight, BD2J-DD | 8157 lb (3700 kg) |
| Operating Weight, BD2J-DPS | 8334 lb (3780 kg) |
| Operating Weight, BD2JS-DD | 8929 lb (4050 kg) |
| Operating Weight, BD2JS-DPS | 9105 lb (4130 kg) |
| Operating Weight, BD2JSS-DD | 9480 lb (4300 kg) |
| Operating Weight, BD2JSS-DPS | 9656 lb (4380 kg) |
| Operating Weight, BD2JSSS-DD | 10252 lb (4650 kg) |
| Power Angling / Tilt Blade Weight | 1213 lb (550 kg) |
| Power Tilt Blade Weight | 882 lb (400 kg) |
| Loader Bucket Weight | 529 lb (240 kg) |
Dozer Blade
| Blade Type | Power Tilt Blade or Power Angling / Tilt Blade |
| Blade Width (Option 1) | 87.8 in (2230 mm) |
| Blade Width (Option 2) | 100 in (2540 mm) |
| Blade Width (Option 3) | 102.4 in (2600 mm) |
| Blade Width (Option 4) | 125.2 in (3180 mm) |
| Blade Height | 23.5 in (595 mm) / 19.7 in (500 mm) |
| Maximum Dozer Blade Raise | 34.1 in (865 mm) |
| Maximum Dozer Blade Lower | 16.5 in (420 mm) |
| Tilt Stroke | 13.4 in (340 mm) |
| Blade Angle | 25° |
S – Swamp Dozer with Broad Straight Blade and Track Shoe Width 28 in (710 mm)
SS – Super Swamp Dozer with Broad Straight Blade and Track Shoe Width 39.4 in (1000 mm)

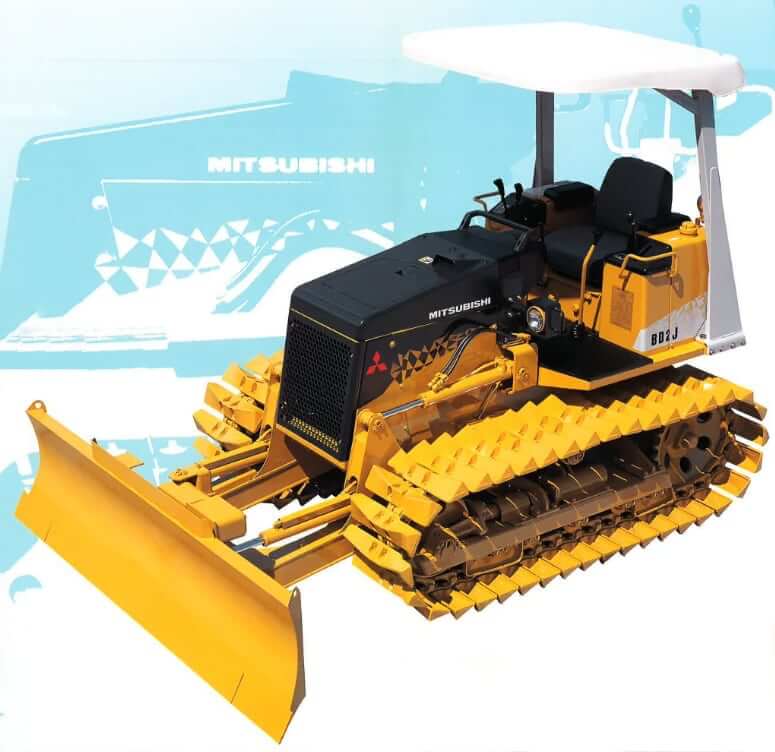

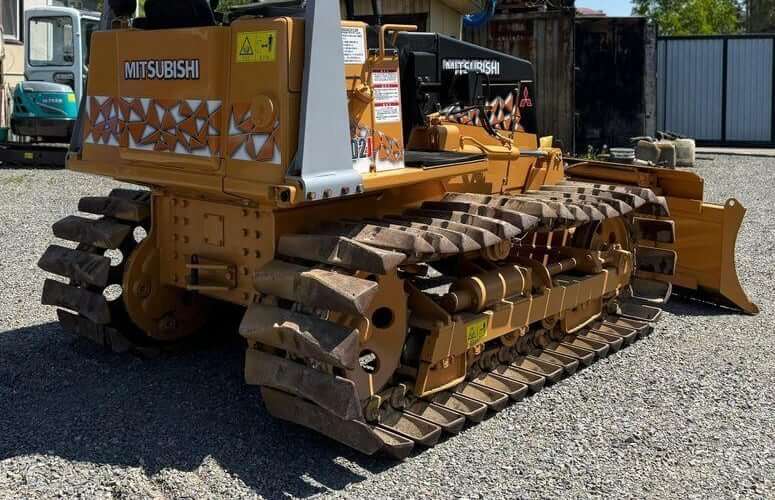

Undercarriage
| Track Gauge (Standard) | 47.2 / 55.1 in (1200 / 1400 mm) |
| Track Gauge (Swamp Dozer) | 62.6 in (1590 mm) |
| Track Gauge (Super Swamp Dozer) | 74.0 in (1880 mm) |
| Track Shoe Width (Standard) | 11.8 / 20 in (300 / 500 mm) |
| Track Shoe Width (Swamp Dozer) | 28 in (710 mm) |
| Track Shoe Width (Super Swamp Dozer) | 39.4 in (1000 mm) |
| Length of Track on Ground (Standard) | 68.5 in (1740 mm) |
| Length of Track on Ground (Swamp Dozer) | 73.8 in (1875 mm) |
| Length of Track on Ground (Super Swamp Dozer) | 81.9 in (2080 mm) |
| Ground Pressure (Standard Dozer) | 3.13 – 5.12 psi (21.6 – 35.3 kPa) |
| Ground Pressure (Swamp Dozer) | 2.28 / 2.42 psi (15.7 / 16.7 kPa) |
| Ground Pressure (Super Swamp Dozer) | 1.57 psi (10.8 kPa) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Mitsubishi |
| Engine Model | Mitsubishi S4SE1 |
| Displacement | 203.3 cu in (3.33 L) |
| Bore | 3.70 in (94 mm) |
| Stroke | 4.72 in (120 mm) |
| Gross Power (Standard Dozer) | 40 hp (29.4 kw) |
| Power Measured @ (Standard Dozer) | 2300 rpm |
| Gross Power (Swamp / Super Swamp Dozer) | 50 hp (36.8 kw) |
| Power Measured @ (Swamp / Super Swamp Dozer) | 2400 rpm |
| Lubrication System | Pressure feed by gear pump |
| Fuel Filter | Cartridge, paper element |
| Combustion Chamber | Swirl chamber |
| Air Cleaner | Paper element |
| Aspiration | Naturally aspirated |
Operational Specs
| Operating Voltage | 24 V |
| Alternator | 20 amps |
| Battery | 2x 12 V, 60 Ah |
| Indicators, Gauges, Switches | Water temperature gauge; Service meter; OK monitor; Battery switch; Fuel gauge; Lighting switch; Glow plug indicator; Starter switch |
Transmission
| Mitsubishi BD2J (Standard) | DD | DPS |
|---|---|---|
| Transmission Type | Direct Drive transmission | Direct Power Shift |
| Number Of Forward Gears | 3 | 3 |
| Number Of Reverse Gears | 2 | 3 |
| Max Travel Speed (forward) | 4.5 mph (7.3 km/h) | 4.6 mph (7.4 km/h) |
| Max Travel Speed (reverse) | 3.7 mph (6.0 km/h) | 5.5 mph (8.8 km/h) |

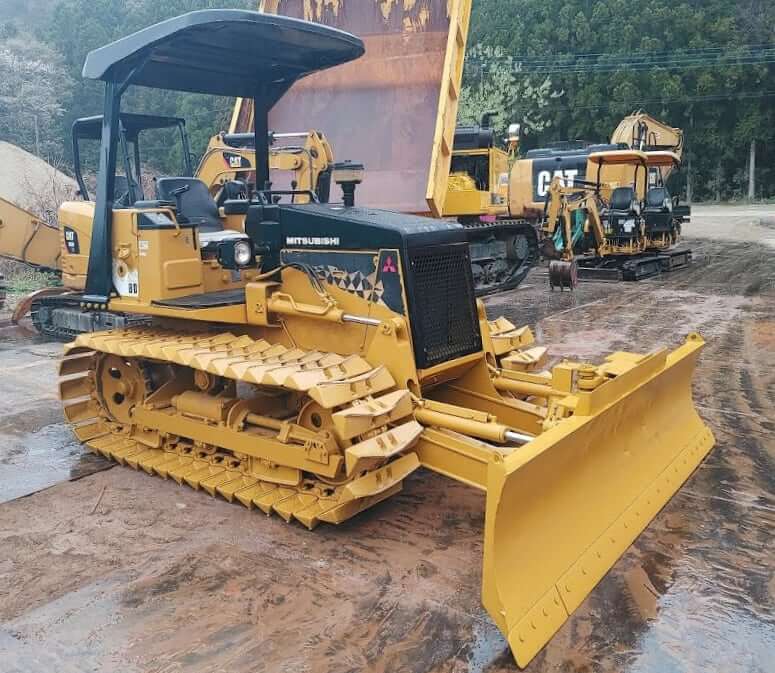

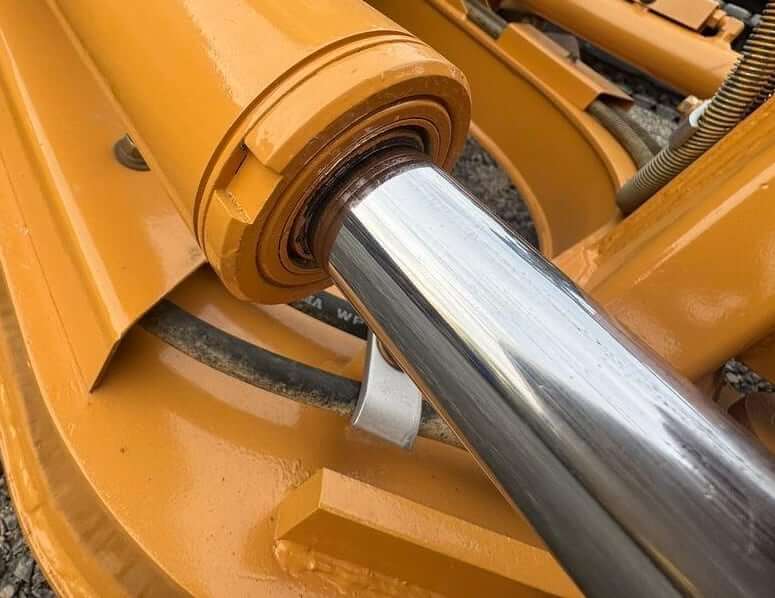

Hydraulic System
| Hydraulic Pump Flow | 14.3 gal/min (54 L/min) |
| Main Relief Valve | 2560 psi (17700 kPa) |
| Main Pump Speed | 2400 rpm |
Service Refill Capacities
| Fuel Tank Capacity | 15.8 gal (60 L) |
| Engine Oil Capacity | 2.4 gal (9 L) |
| Cooling System Capacity | 3.4 gal (13 L) |
| Main Clutch Capacity (DD) | 1.5 gal (5.5 L) |
| Damper Case Capacity (DPS) | 0.9 gal (3.5 L) |
| Transmission Case Capacity (DD) | 2.5 gal (9.5 L) |
| Transmission Case Capacity (DPS) | 2.9 gal (11 L) |
| Transfer/Bevel Gear Capacity (DPS) | 1.8 gal (7 L) |
| Final Drives Capacity | 1.7 gal (6.5 L) |
| Hydraulic Tank Capacity | 8.7 gal (33 L) |
