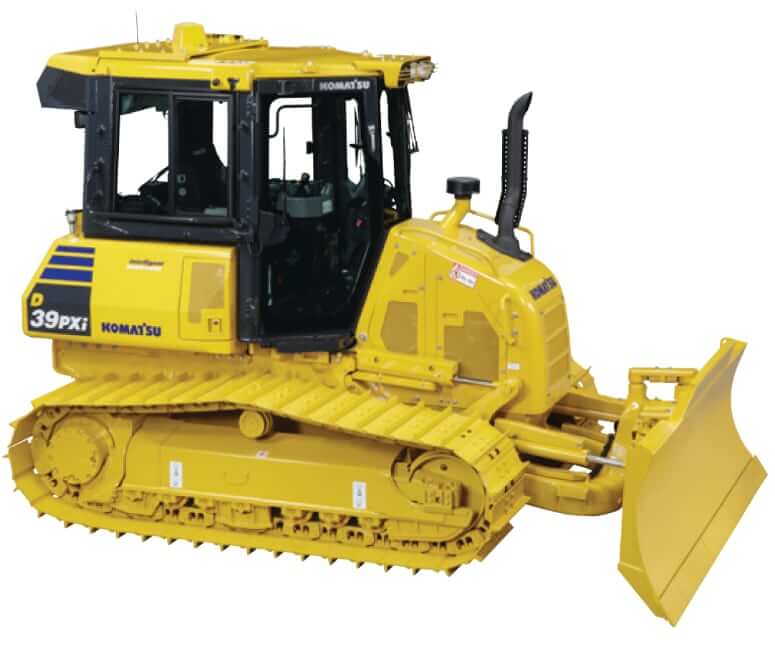

PAT Dozer Blades
| Type | Standard Blade 10’8″ | Narrow Blade 9’9″ |
|---|---|---|
| Blade Width | 10’8″ (3250 mm) | 9’9″ (2980 mm) |
| Blade Height | 3’0″ (910 mm) | 3’0″ (910 mm) |
| Blade Capacity | 3.14 yd3 (2.40 m3) | 2.90 yd3 (2.22 m3) |
| Blade Angle (Both Directions) | 25° | 25° |
| Maximum Drop below Ground | 1’5″ (440 mm) | 1’5″ (440 mm) |
| Maximum Tilt Adjustment | 1’5″ (440 mm) | 1’4″ (405 mm) |
| Maximum Lift above Ground | 2’8″ (820 mm) | 2’8″ (820 mm) |

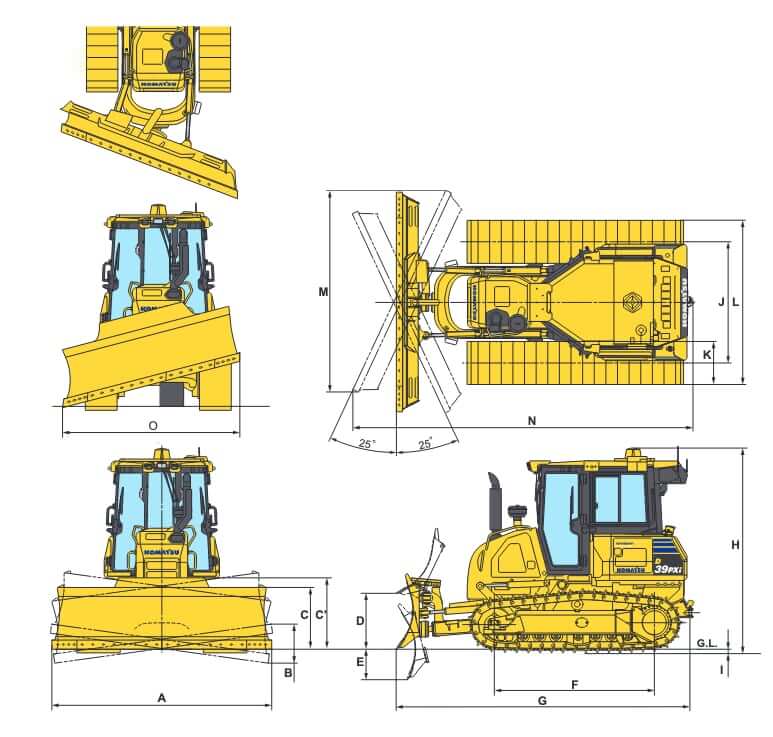

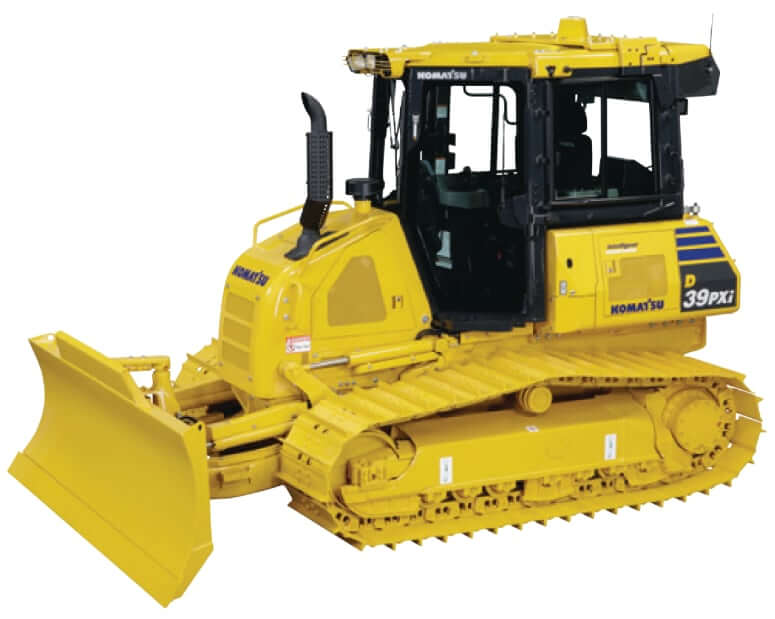

Dimensions
| D39PXi-24 | PAT Blade 10’8″ + Narrow Shoe |
|---|---|
| A. Width of Blade | 10’8″ (3250 mm) |
| B. Max Tilt at Blade Corner | 1’5″ (440 mm) |
| C. Blade Height | 3’0″ (910 mm) |
| C’. Blade Height (Top Shield) | 3’7″ (1105 mm) |
| D. Max Lift above Ground | 2’8″ (820 mm) |
| E. Digging Depth | 1’5″ (440 mm) |
| F. Length of Track on Ground | 7’8″ (2345 mm) |
| G. Overall Length w/ Blade | 14’5″ (4385 mm) |
| H. Height to Top of Cab | 9’4″ (2850 mm) |
| I. Grouser Height | 1.9″ (47 mm) |
| J. Track Gauge | 5’11” (1810 mm) |
| K. Width of Track Shoe | 2’1″ (635 mm) |
| L. Width over Tracks | 8’2″ (2445 mm) |
| M. Width across End Bits (Blade Angled 25°) | 9’10” (2990 mm) |
| N. Length w/ Blade Angled 25° | 16’6″ (5020 mm) |
| O. Width across End Bits (Blade Tilt & Angled 25°) | 9’8″ (2940 mm) |
| Ground Clearance | 15″ (390 mm) |
| Minimum Turning Radius | 94″ (2400 mm) |

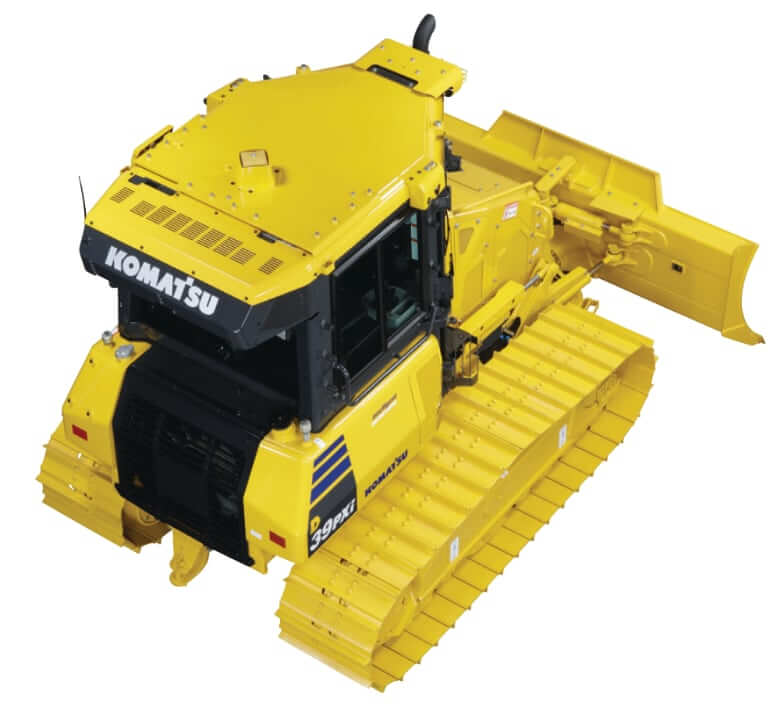

Undercarriage
| Dozer Type | D39PXi-24 Narrow | D39PXi-24 Wide |
|---|---|---|
| Number Of Track Rollers Per Side | 7 | 7 |
| Number Of Shoes Per Side | 39 | 39 |
| Type of Shoes (standard) | Single grouser | Single grouser |
| Suspension | Rigid type | Rigid type |
| Track Rollerframe | Monocoque, large section, durable construction | Monocoque, large section, durable construction |
| Grouser Height | 1.9″ (47 mm) | 1.9″ (47 mm) |
| Standard Shoe Size | 25.0″ (635 mm) | 27.5″ (700 mm) |
| Track Gauge | 5’11” (1810 mm) | 5’11” (1810 mm) |
| Length of Track on Ground | 7’8″ (2345 mm) | 7’8″ (2345 mm) |
| Ground Contact Area | 4616 in2 (29782 cm2) | 5110 in2 (32830 cm2) |
| Ground Pressure (w/ blade, ROPS cab) | 4.39 psi (30.1 kPa) | 3.98 psi (27.4 kPa) |
Engine Details
| Number Of Cylinders | 4 |
| Engine Make | Komatsu |
| Engine Model | Komatsu SAA4D95LE-7 |
| Displacement | 199 cu in (3.26 L) |
| Bore | 3.75 in (95 mm) |
| Stroke | 4.52 in (115 mm) |
| Gross Power | 107 hp (79 kw) |
| Net Power | 105 hp (78 kw) |
| Power Measured @ | 2200 rpm |
| Lubrication Method | Gear pump, force lubrication |
| Fan Drive Type | Hydraulic |
| Fuel Filter | Fuel pre-filter (10 micron) and fuel filter (2 micron) |
| Aspiration | Turbocharged, air-to-air aftercooled |
| Emission Standards | EPA Tier 4 Final |
Operational Specs
| Base Weight (w/o Blade) | 20282 lb (9200 kg) |
| Max Operating Weight | 22950 lb (10410 kg) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 85 amps |
| Battery | 2x 12 V, 92 Ah, large capacity |
| Starter | 24 V, 6.0 hp (4.5 kw) |

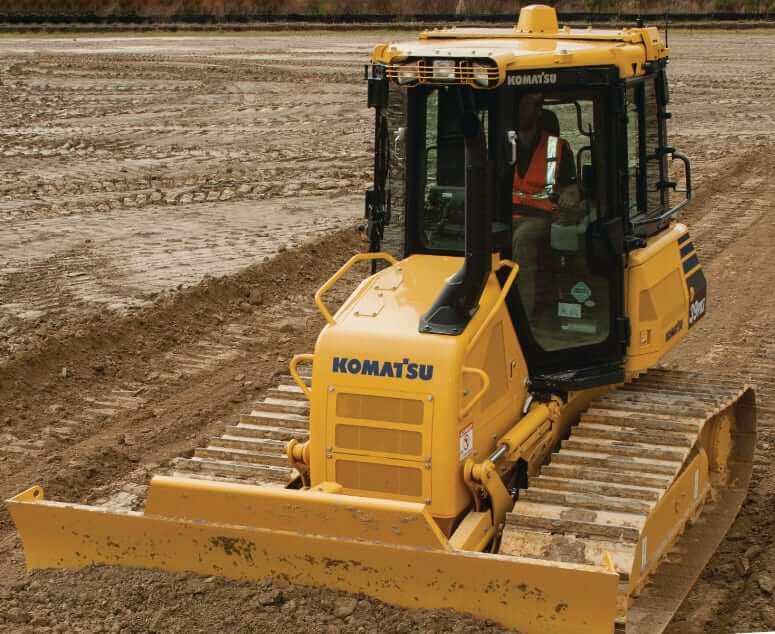

Transmission
| Transmission Type | Dual-path electronically controlled Hydrostatic Transmission (HST) with quick-shift and variable speed settings |
| Control | Fully electronic control enables smooth control that can be adjusted in the monitor. The PCCS utilizes shift buttons to increase and decrease speed |
| Number Of Gears | 3F / 3R |
| Max Forward Speed | 5.3 mph (8.5 km/h) |
| Max Reverse Speed | 5.3 mph (8.5 km/h) |
| Steering | The low-effort PCCS joystick controls all directional movements, including machine travel speed as well as counter-rotation |
| Final Drives | In-shoe mounted, axial-piston-type travel motors, with integrated two-stage planetary gear reduction |
| Brakes | Brake function has been integrated into the decelerator pedal |
Hydraulic System
| Type | Closed-Center Load Sensing System (CLSS) designed for precise and responsive control |
| Pump Type | Piston-type hydraulic pump |
| Pump Flow Capacity | 26.2 gal/min (99 L/min) |
| Relief Valve Pressure | 3974 psi (27400 kPa) |
| Hydraulic cylinders | Double-acting, piston type |
| Blade Lift Cylinders | 2x 3″ (75 mm) |
| Blade Tilt Cylinder | 1x 3.5″ (90 mm) |
| Blade Angle Cylinders | 2x 3.2″ (80 mm) |

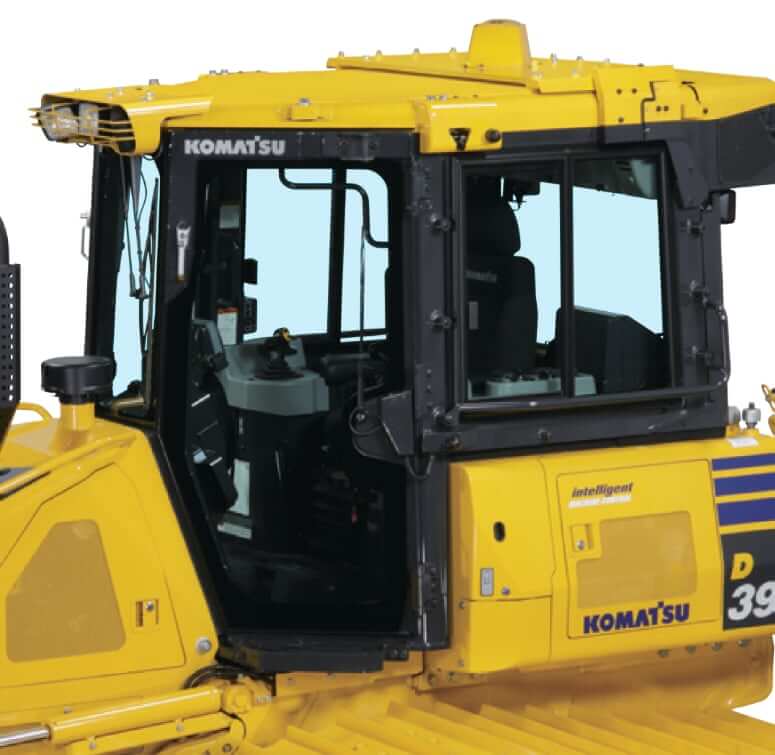

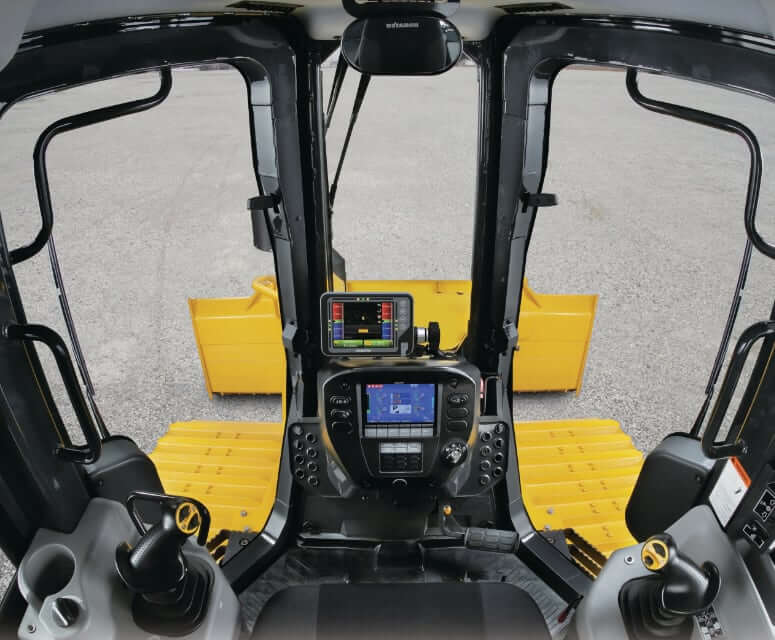

Operator Environment
| ROPS | Meets ISO 3471, SAE J/ISO 3471 ROPS standards |
| FOPS | Meets ISO 3449 FOPS standard |
| Operator’s Seat | Air suspension, fabric, heated, low back, headrest, 3″ (76 mm) retractable seat belt |
| Working Lights | 3x front lights, 2x rear lights |
| Dashboard | Electronic monitor panel with on-board diagnostics, large high-resolution LCD with rear view camera |
| HVAC | Air conditioner (A/C) |
| Noise Level in Cab | 72 dB(A) |
Service Refill Capacities
| Fuel Tank Capacity | 50.2 gal (190 L) |
| DEF Tank Capacity | 2.6 gal (10 L) |
| Engine Oil Capacity | 2.9 gal (11 L) |
| Cooling System Fluid Capacity | 9.0 gal (34 L) |
| Hydraulic System Capacity | 17 gal (64 L) |
| Final drive (each side) | 0.9 gal (3.5 L) |
