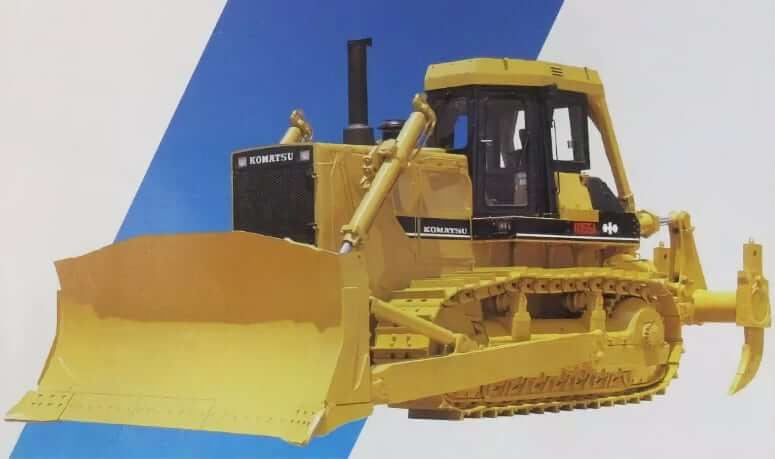

Dimensions
| Length w/ Blade | 362.2 in (9200 mm) |
| Length w/o Blade | 262.2 in (6660 mm) |
| Width Over Tracks | 119.3 in (3030 mm) |
| Height to Top of Cab w/ ROPS | 162.4 in (4125 mm) |
| Length of Track on Ground | 132.3 in (3360 mm) |
| Ground Clearance | 22.6 in (575 mm) |
Undercarriage
| Track Gauge | 88.0 in (2260 mm) |
| Standard Shoe Size | 24.0 in (610 mm) |
| Track Pitch | 10.3 in (260 mm) |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Track Rollers Per Side | 7 |
| Number Of Shoes Per Side | 39 |
Standard Blade
| Blade Width | 169.9 in (4315 mm) |
| Blade Height | 73.9 in (1875 mm) |
| Max Lift Above Ground | 36.0 in (915 mm) |
| Max Drop Below Ground | 57.5 in (1460 mm) |
Engine Details
| Number Of Cylinders | 6 |
| Engine Make | Komatsu |
| Engine Model | Komatsu SA6D155-4 |
| Displacement | 1175.4 cu in (19.3 L) |
| Bore | 6.10 in (155 mm) |
| Stroke | 6.69 in (170 mm) |
| Gross Power | 410 hp (306 kw) |
| Power Measured @ | 2000 rpm |
| Aspiration | Turbocharged and aftercooled |
Operational Specs
| Operating Weight (with blade and ripper) | 119931 lb (54400 kg) |
| Operating Weight (with blade) | 110940 lb (50322 kg) |
| Weight of Bare Tractor | 80800 lb (36650 kg) |
| Operating Voltage | 24 V |
| Alternator | 35 amps |
| Starter | 24V, 14.8 hp (11 kw) |
| Battery | 2x 12 V, 200 Ah |
| Cab | Panoramic view cab with ROPS |
| Gradeability | 30° |
Transmission
| Transmission Type | Komatsu TORQFLOW |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
| Max Travel Speed, Forward | 7.9 mph (12.7 km/h) |
| Max Travel Speed, Reverse | 7.8 mph (12.6 km/h) |
| Serevice Brakes | Wet, contracting band, foot-operated interconnected with steering clutch with hydraulic booster |
Hydraulic System
| Pump Type | Gear pump |
| Pump Flow Capacity | 104 gal/min (394 L/min) |
| Relief Valve Pressure | 2000 psi (13790 kPa) |
| Hydraulic Cylinder Type | Double-action, piston |
| Hydraulic Filter | Full-flow type |
Service Refill Capacities
| Fuel Tank Capacity | 198 gal (750 L) |
| Engine Oil Capacity | 19 gal (71 L) |
| Cooling System Capacity | 46 gal (175 L) |
| Hydraulic Oil Tank Capacity | 74 gal (280 L) |
| Transmission Oil Capacity | 61 gal (230 L) |
| Final Drive Capacity (each) | 18 gal (68 L) |
| Recoil Spring Capacity (each) | 11 gal (40 L) |
