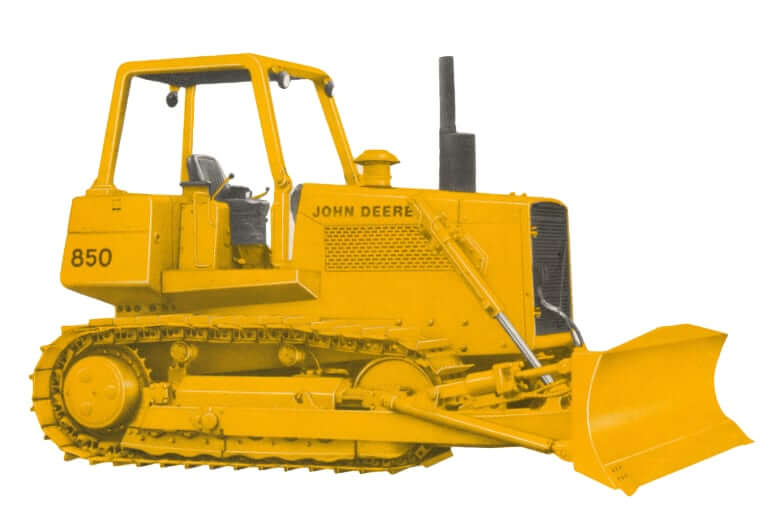

Dimensions
| Overall Length w/ Straight Dozer Blade | 202 in (5130 mm) |
| Overall Width w/ Straight Dozer Blade | 123 in (3124 mm) |
| Height to Top of Cab with ROPS | 126 in (3200 mm) |
| Length Of Track On Ground | 93 in (2413 mm) |
| Ground Clearance | 16.4 in (417 mm) |
Blades
| Type | Straight | Semi U | Angle |
|---|---|---|---|
| Capacity | 3.89 yd3 (2.97 m3) | 5.44 yd3 (4.16 m3) | 3.77 yd3 (2.88 m3) |
| Blade Width | 123 in (3124 mm) | 138 in (3505 mm) | 152 in (3860 mm) |
| Blade Height | 42 in (1067 mm) | 43 in (1092 mm) | 40 in (1016 mm) |
| Blade Lift | 44.5 in (1130 mm) | 46.5 in (1181 mm) | 44 in (1118 mm) |
| Cutting Depth | 20.6 in (523 mm) | 20.2 in (513 mm) | 17.2 in (437 mm) |
| Max Tilt | 15 in (381 mm) | 15 in (381 mm) | 13.3 in (336 mm) |
| Blade Angle | ±25° | ±25° | ±25° |
Undercarriage
| Standard Shoe Size | 24 in (610 mm) |
| Track Gauge | 74 in (1880 mm) |
| Ground Contact Area | 4560 in2 (2.95 m2) |
| Ground Pressure | 8.31 psi (57.2 kPa) |
| Number Of Track Rollers Per Side | 2 |
| Number Of Shoes Per Side | 37 |
| Drawbar Pull @ 1.2 mph (1.9 km/h) | 33500 lb (149 kN) |
| Drawbar Pull @ 2.0 mph (3.2 km/h) | 21000 lb (93 kN) |
Engine Details
| Number Of Cylinders | 6 |
| Engine Make | John Deere |
| Engine Model | John Deere 6466A |
| Displacement | 466 cu in (7.7 L) |
| Gross Power | 175 hp (130.5 kw) |
| Net Power | 165 hp (123.1 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 578 lb ft (784 Nm) |
| Torque Measured @ | 1200 rpm |
| Aspiration | Turbocharger |
| Fuel Consumption | 4.3 – 6.4 gal/h (16.3 – 24.2 L/h) |
Operational Specs
| Operating Weight w/ Straight Blade | 37515 lb (17016 kg) |
| Operating Weight w/ Semi U Blade | 37900 lb (17192 kg) |
| Operating Weight w/ Angle Blade | 37915 lb (17198 kg) |
| Operating Voltage | 24 V |
| Alternator | 40 amps |
Transmission
| Type | Hydrostatic drive, automatic, dual-path transmission |
| Number of Gears | Infinite |
| Max Forward Speed | 6.5 mph (10.5 km/h) |
| Max Reverse Speed | 6.5 mph (10.5 km/h) |
Hydraulic System
| Pump Type | Vane |
| Relief Valve Pressure | 2250 psi (15514 kPa) |
| Pump Flow Capacity | 44 gal/min (166 L/min) |
Service Refill Capacities
| Fuel Tank Capacity | 82 gal (310.4 L) |
| Engine Oil Capacity (w/ Filter) | 8.6 gal (32.2 L) |
| Cooling System Capacity | 9 gal (34 L) |
| Hydraulic System Capacity | 35 gal (132.5 L) |
| Hydrostatic Drives | 40 gal (151.4 L) |
| Final Drives Fluid Capacity | 3.5 gal (13.2 L) |
