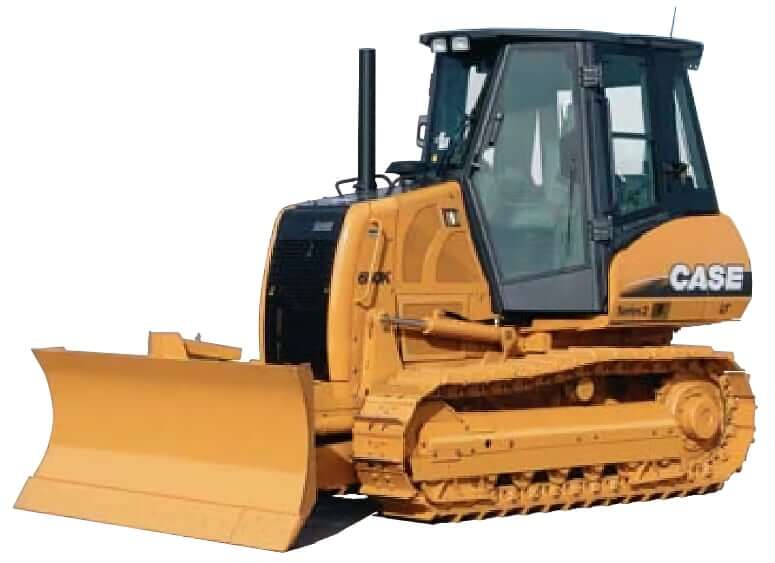

Dimensions
| Length W/ Blade | 14.03 ft in (4276 mm) |
| Width Over Tracks | 6.09 ft in (1854 mm) |
| Height To Top Of Cab | 9.1 ft in (2773 mm) |
| Length Of Track On Ground | 7.32 ft in (2230 mm) |
| Ground Clearance | 1.26 ft in (383 mm) |
Undercarriage
| Track Gauge | 4.76 ft in (1450 mm) |
| Standard Shoe Size | 15.99 in (406 mm) |
| Track Pitch | 6.73 in (170.95 mm) |
| Number Of Shoes Per Side | 38 |
| Ground Pressure | 6.5 psi (44.82 kPa) |
| Number Of Carrier Rollers Per Side | 1 |
| Ground Contact Area | 2810 in2 (1.82 m2) |
| Number Of Track Rollers Per Side | 6 |
Engine Details
| Number Of Cylinders | 4 |
| Engine Make | Case |
| Engine Model | Case 445T/M2 Family III |
| Gross Power | 80 hp (59.7 kw) |
| Net Power | 74.8 hp (55.8 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 262 lb ft (355.3 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 274 cu in (4.5 L) |
Operational Specs
| Operating Weight | 18200 lb (8244 kg) |
| Operating Voltage | 12 V |
| Alternator | 65 amps |
| Battery | 12 V, CCA 650, low-maintenance |
Transmission
| Transmission Type | Hydrostatic |
| Max Speed – Forward | 6 mph (9.7 km/h) |
| Max Speed – Reverse | 6 mph (9.7 km/h) |
Hydraulic System
| Pump Type | Deep sump plate cooler with pressurized under piston nozzle |
| Pump Flow Capacity | 20.8 gal/min (78.7 L/min) |
| Relief Valve Pressure | 3025 psi (20855 kPa) |
Standard Blade
| Width | 8.2 ft in (2489 mm) |
| Height | 36 in (914 mm) |
| Capacity | 2.1 yd3 (1.6 m3) |
| Blade Angle (Both Directions) | 25 degrees |
| Cutting Depth | 19.1 in (483 mm) |
Service Refill Capacities
| Fuel Tank Capacity | 50 gal (190 L) |
| Engine Oil Capacity | 14.4 gal (13.6 L) |
| Cooling System Capacity | 20 gal (18.9 L) |
| Hydraulic System Capacity | 20 gal (75.7 L) |
| Final Drive Fluid Capacity (each) | 15 gal (14.2 L) |
| Track Rollers (each) | 0.19 qt (0.18 L) |
| Front Idlers (each) | 0.42 qt (0.40 L) |
| Carrier Rollers (each) | 0.25 qt (0.24 L) |
