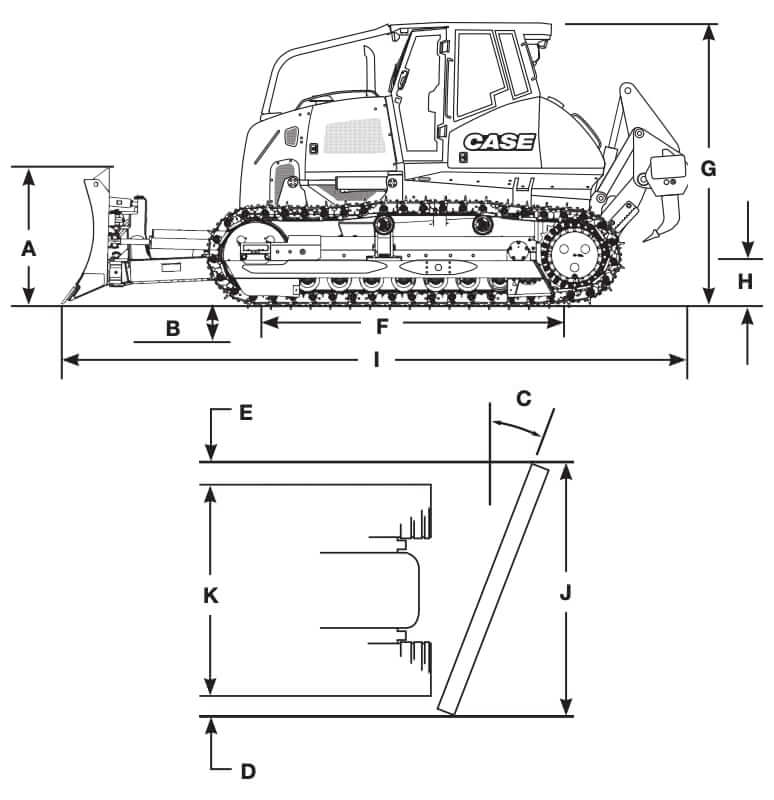

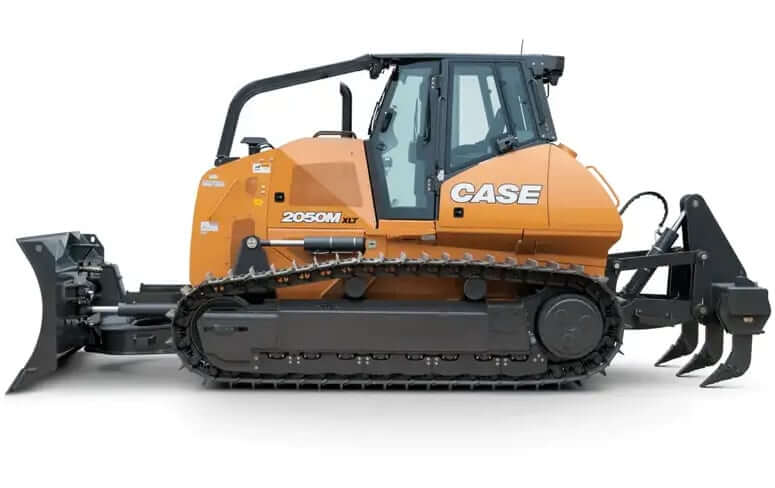

Dimensions (Extra Long Track)
| Case 2050M Dozer | XLT with Semi-U blade | XLT with PAT blade |
|---|---|---|
| Blade Width | 134.7 in (3422 mm) | 142 in (3607 mm) |
| SAE Blade Capacity | 7.29 yd3 (5.57 m3) | 6.32 yd3 (4.83 m3) |
| A. Blade Height | 56 in (1418 mm) | 53.8 in (1366 mm) |
| Blade Lift Above Ground | 49 in (1237.7 mm) | 44.5 in (1130 mm) |
| B. Blade Depth Below Ground | 21.5 in (546.8 mm) | 21.4 in (542.8 mm) |
| C. Blade Angle Both Directions | – | 25° |
| D. Cast Reach | 17.3 in (438.9 mm) | 22.7 in (576.4 mm) |
| E. Cut Reach | 17.3 in (438.9 mm) | 5.7 in (145.7 mm) |
| Blade Tilt, Each End | 17 in (433 mm) | 21.7 in (550 mm) |
| Track Gauge | 76 in (1.94 m) | 76 in (1.94 m) |
| Maximum Shoe Width | 24 in (609 mm) | 24 in (609 mm) |
| F. Length of Track on Ground | 128 in (3.25 m) | 128 in (3.25 m) |
| Area of Track on Ground | 7161 in2 (4.62 m2) | 7161 in2 (4.62 m2) |
| Ground Pressure (XLT) | 7.33 psi (50.54 kPa) | 7.33 psi (50.54 kPa) |
| G. Height to Top of ROPS Cab | 124 in (3150 mm) | 124 in (3150 mm) |
| Height to Top of Exhaust | 113 in (2871 mm) | 113 in (2871 mm) |
| H. Ground Clearance | 16.1 in (408 mm) | 16.1 in (408 mm) |
| I. Blade Straight with Drawbar | 211 in (5359 mm) | 232.4 in (5902 mm) |
| I. Blade Straight with Ripper | 269 in (6833 mm) | 290 in (7366 mm) |
| J. Blade Angled | – | 129.4 in (3287 mm) |
| K. Over Track | 99 in (2515 mm) | 99 in (2515 mm) |

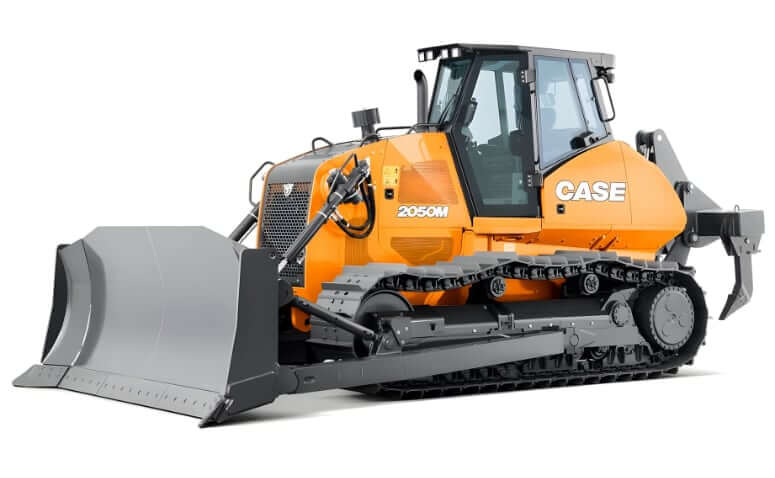

Dimensions (LGP Track)
| Case 2050M with | Straight PT | LGP with PAT | LGP with Semi-U |
|---|---|---|---|
| Blade Width | 154 in (3900 mm) | 157.5 in (4064 mm) | 157 in (3988 mm) |
| SAE Blade Capacity | 4.94 yd3 (3.78 m3) | 7.12 yd3 (5.54 m3) | 7.98 yd3 (6.10 m3) |
| A. Blade Height | 43.5 in (1105 mm) | 53.9 in (1369 mm) | 53 in (1349 mm) |
| Blade Lift Above Ground | 46 in (1169 mm) | 44.5 in (1130 mm) | 48.4 in (1228 mm) |
| B. Blade Depth Below Ground | 20.0 in (507.8 mm) | 21.4 in (542.8 mm) | 21.6 in (548 mm) |
| C. Blade Angle Both Directions | – | 25° | – |
| D. Cast Reach | 14.3 in (363 mm) | 18.6 in (472.1 mm) | 16.2 in (411 mm) |
| E. Cut Reach | 14.3 in (363 mm) | 1.7 in (43.0 mm) | 16.2 in (411 mm) |
| Blade Tilt, Each End | 16.2 in (411 mm) | 21.7 in (550 mm) | 15.7 in (400 mm) |
| Track Gauge | 89 in (2.26 m) | 89 in (2.26 m) | 89 in (2.26 m) |
| Maximum Shoe Width | 36 in (914 mm) | 36 in (914 mm) | 36 in (914 mm) |
| F. Length of Track on Ground | 128 in (3.25 m) | 128 in (3.25 m) | 128 in (3.25 m) |
| Area of Track on Ground | 9107 in2 (5.88 m2) | 9107 in2 (5.88 m2) | 9107 in2 (5.88 m2) |
| Ground Pressure (LGP) | 5.35 psi (36.89 kPa) | 5.35 psi (36.89 kPa) | 5.35 psi (36.89 kPa) |
| G. Height to Top of ROPS Cab | 124 in (3150 mm) | 124 in (3150 mm) | 124 in (3150 mm) |
| Height to Top of Exhaust | 113 in (2871 mm) | 113 in (2871 mm) | 113 in (2871 mm) |
| H. Ground Clearance | 16.1 in (408.2 mm) | 16.1 in (408.2 mm) | 16.1 in (408.2 mm) |
| I. Blade Straight with Drawbar | 231 in (5867 mm) | 235.4 in (5980 mm) | 235.4 in (5980 mm) |
| I. Blade Straight with Ripper | 273 in (6934 mm) | 290 in (7366 mm) | 289.5 in (7353 mm) |
| J. Blade Angled | – | 142.7 in (3625 mm) | – |
| K. Over Track | 124 in (3150 mm) | 124 in (3150 mm) | 124.6 in (3166 mm) |

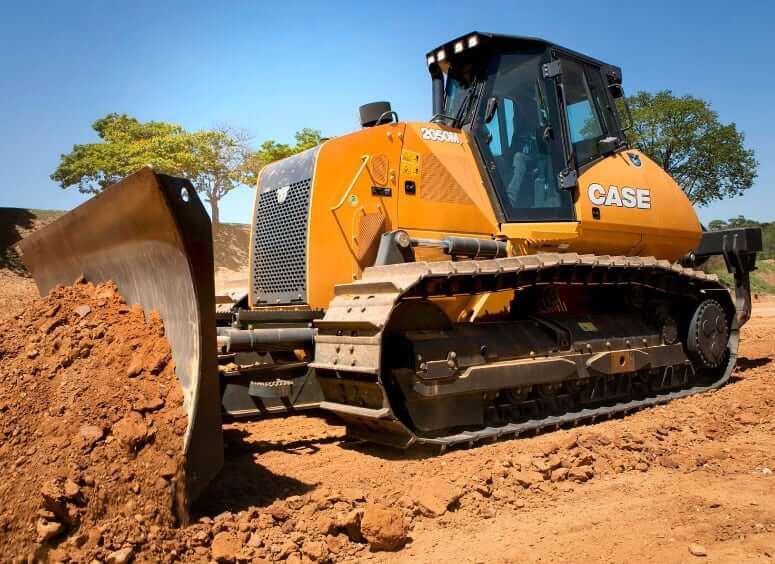

Case 2050M Blades
| Case 2050M Blade | XLT Semi-U | XLT PAT blade | LGP PAT blade | LGP Semi-U |
|---|---|---|---|---|
| Blade Capacity | 7.29 yd3 (5.57 m3) | 6.32 yd3 (4.83 m3) | 7.12 yd3 (5.54 m3) | 7.98 yd3 (6.10 m3) |
| Width | 134.7 in (3422 mm) | 142 in (3607 mm) | 157.5 in (4064 mm) | 157 in (3988 mm) |
| Height | 56 in (1418 mm) | 53.8 in (1366 mm) | 53.9 in (1369 mm) | 53 in (1349 mm) |
| Blade Lift Above Ground | 49 in (1238 mm) | 44.5 in (1130 mm) | 44.5 in (1130 mm) | 48.4 in (1228 mm) |
| Blade Depth Below Ground | 21.5 in (546.8 mm) | 21.4 in (542.8 mm) | 21.4 in (542.8 mm) | 21.6 in (548 mm) |

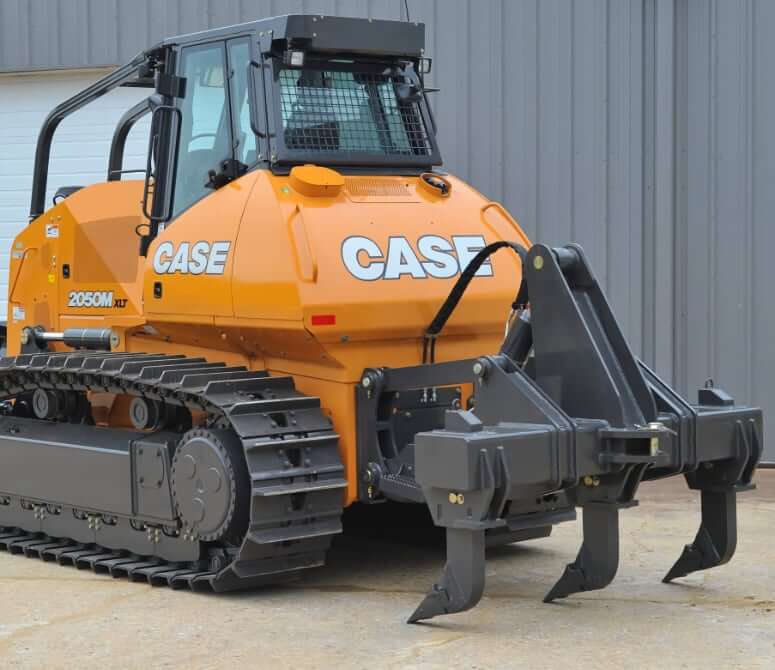

Ripper
| Ripper Width | 76.3 in (1 937 mm) |
| Cut Width | 74.4 in (1 890 mm) |
| Max Ground Clearance | 23.7 in (601.7 mm) |
| Max Penetration | 18.6 in (472.5 mm) |
| Max Number of Shanks | 3 |
| Tooth Spacing (w/ 3 teeth) | 33.6 in (854.3 mm) |
| Double-acting Cylinder (Diameter x Stroke x Rod) | 6.14 x 23.5 x 2.75 in (156 x 597 x 70 mm) |

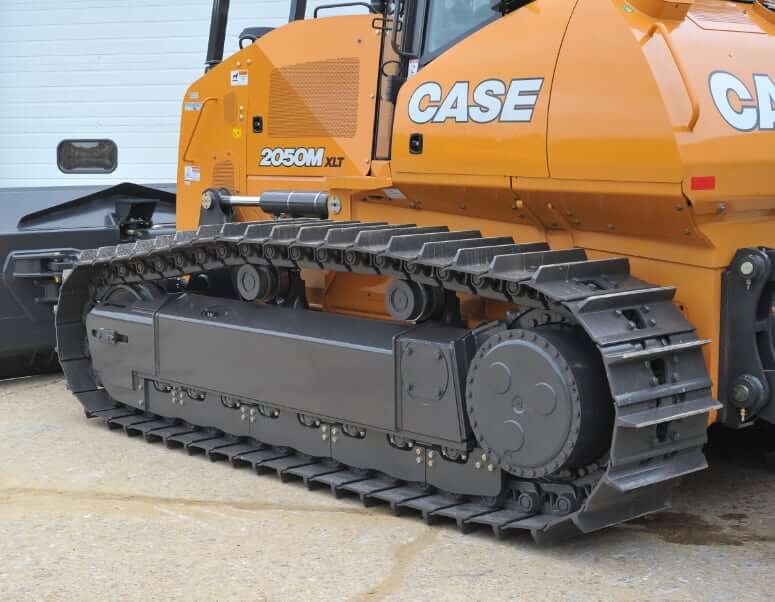

Undercarriage
| XLT Track | 24 in (610 mm), Closed grousers and SALT HD / Open grousers and Ultra Life |
| Wide Track | 28 in (711 mm), Closed grousers and SALT HD / Open grousers and Ultra Life |
| Wide Track | 30 in (762 mm), Closed grousers and SALT HD / Open grousers and Ultra Life |
| LGP Track | 36 in (914 mm), Closed grousers and SALT HD / Open grousers and Ultra Life |
| Track Adjustment | Hydraulic |
| Frame | Pivot shaft and oscillating equalizer beam suspension |
| Track Gauge (XLT) | 76 in (1940 mm) |
| Track Gauge (LGP) | 89 in (2260 mm) |
| Length of Track on Ground | 128 in (3250 mm) |
| Track Link Pitch | 8 in (203 mm) |
| Track Shoe Height | 2.81 in (71.5 mm) |
| Pin Diameter | 1.75 in (44.5 mm) |
| Bushing Diameter (SALT HD track) | 2.87 in (72.9 mm) |
| Bushing Diameter (Ultra Life track) | 2.87 in (72.9 mm) |
| Track Roller Rail Diameter | 8.94 in (227 mm) |
| Number of Bottom Rollers Per Side | 8 |
| Number of Shoes Per Side | 45 |
| Number of Upper Rollers | 2 |
| Ground Pressure (XLT) | 7.33 psi (50.54 kPa) |
| Ground Pressure (LGP) | 5.35 psi (36.89 kPa) |

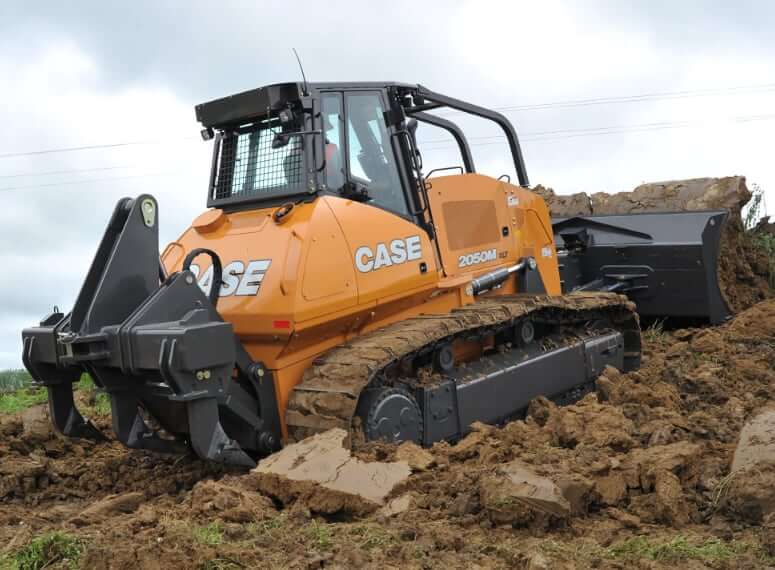

Weight
| Operating Weight (XLT) | 45414 lb (20599 kg) |
| Operating Weight (Wide Track) | 46891 lb (21269 kg) |
| Operating Weight (LGP) | 48773 lb (22123 kg) |
| Ripper (3 shank) Weight | 4145 lb (1880 kg) |
| Winch Weight | 5512 lb (2500 kg) |
| Sweeps Weight | 139 lb (63 kg) |
| Drawbar Weight | 146 lb (66 kg) |
| Full Rock Guard | 505 lb (229 kg) |
| Ultra-Life Chain, 24 in (610 mm) | 320 lb (145 kg) |
| Ultra-Life Chain, 28 in (711 mm) | 251 lb (114 kg) |
| Ultra-Life Chain, 30 in (762 mm) | 295 lb (134 kg) |
| Ultra-Life Chain, 36 in (914 mm) | 302 lb (137 kg) |
Engine Details
| Number of Cylinders | 6 |
| Engine Make | Iveco / FPT Industrial |
| Engine Model | FPT F4HFE613J |
| Displacement | 409 cu in (6.7 L) |
| Bore | 4.1 in (104 mm) |
| Stroke | 5.2 in (132 mm) |
| Gross Power | 232 hp (173 kw) |
| Net Power | 214 hp (160 kw) |
| Power Measured @ | 2000 rpm |
| Lubrication System | Deep sump plate cooler with pressurized under-piston nozzles |
| Fuel System | Common rail |
| Aspiration | Turbocharged with Air-to-Air intercooler |
| Emission Standards | US EPA Tier 4 Final + EU Stage V |
Operational Specs
| Operating Weight (XLT) | 45414 lb (20599 kg) |
| Operating Weight (Wide Track) | 46891 lb (21269 kg) |
| Operating Weight (LGP) | 48773 lb (22123 kg) |
| Operating Voltage | 24 V |
| Alternator | 120 amp |
| Battery | 2x 12 V, CCA 950 (1200) |
| Cab | Fully enclosed ROPS cab |
| Operator Seat | Cloth air suspension seat with back adjustment |
| Seat Belt | Retractable 3 in (76 mm) seat belt |
| Working Lights | 2x front + 1x rear light |
| Noise Level (inside) | 78 dB(A) |

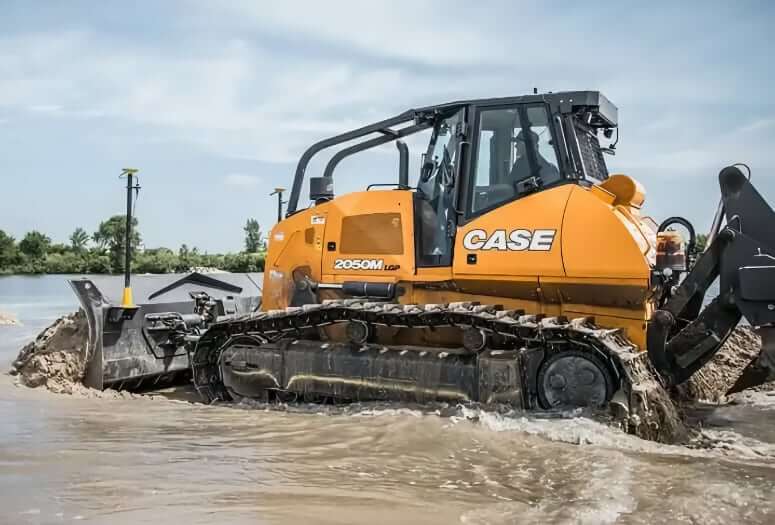

Transmission
| Type | Hydrostatic transmission |
| Hydrostatic Motor | Variable bent axis piston |
| Max Forward Speed | 6.1 mph (9.8 km/h) |
| Max Reverse Speed | 6.1 mph (9.8 km/h) |
| Max Drawbar Pull | 80931 lbf (360 kN) |
| Control | Single lever control – electronic straight tracking |
| Final Drive | 2 helical gear reduction to planetary output |
| Transmission Oil Filter | 4 micron at beta 75, replaceable with 100 mesh suction screen |
| Service Brakes | Hydrostatic |
| Parking Brake | Heavy-duty, spring-applied, hydraulic pressure release |
Hydraulic System
| Pump Type | Variable axial piston |
| Pump Flow Capacity | 40.4 gal/min (153 L/min) |
| Relief Valve Setting | 2830 psi (19512 kPa) |
| Lift cylinder w/ PAT (Bore x Rod x Stroke), 2x | 4.50 x 2.50 x 19.21 in (114.3 x 63.5 x 488 mm) |
| Angle cylinder w/ PAT (Bore x Rod x Stroke), 2x | 4.50 x 2.50 x 19.79 in (114.3 x 63.5 x 502.7 mm) |
| Tilt cylinder w/ PAT One (Bore x Rod x Stroke), 1x | 5.00 x 2.50 x 5.84 in (127 x 63.5 x 148.4 mm) |
| Lift cylinder – Bulldozer (Bore x Rod x Stroke), 2x | 3.68 x 2.25 x 35.67 in (93.5 x 57.2 x 906 mm) |
| Tilt cylinder – Bulldozer (Bore x Rod x Stroke), 1x | 4.50 x 2.50 x 3.89 in (114.3 x 63.5 x 98.9 mm) |
| Blade Lift Speed | 19 in/sec (483 mm/sec) |
Service Refill Capacities
| Fuel Tank Capacity | 107 gal (405 L) |
| DEF Tank Capacity | 14 gal (52 L) |
| Engine Oil Capacity (w/ filter) | 4.4 gal (16.4 L) |
| Cooling System Capacity | 8 gal (30.3 L) |
| Hydraulic Tank Capacity | 55 gal (210 L) |
| Final Drive Capacity (per side) | 6.6 gal (25 L) |
| Track Rollers Capacity (each) | 0.095 gal (0.36 L) |
| Front Idlers Capacity (each) | 0.087 gal (0.33 L) |
| Carrier Rollers Capacity (each) | 0.082 gal (0.31 L) |
