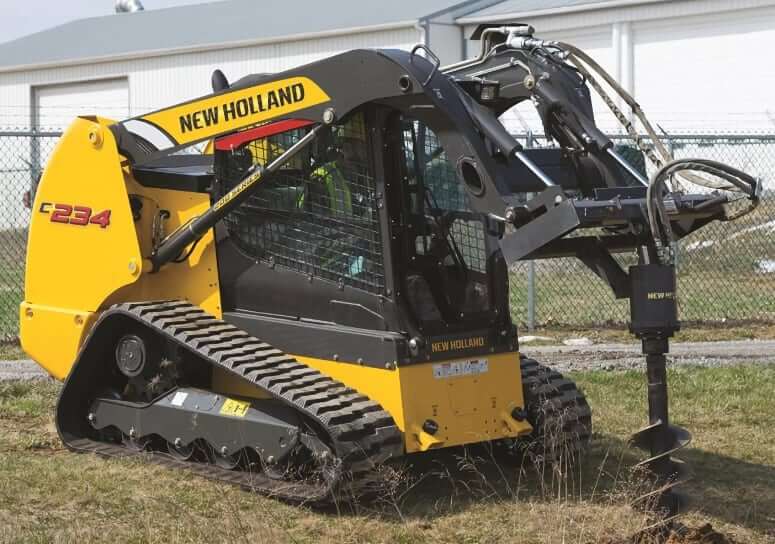

Loader Performance
| Tipping Load | 6800 lb (3084 kg) |
| Rated Operating Capacity, 50% | 3400 lb (1542 kg) |
| Rated Operating Capacity, 35% | 2380 lb (1079 kg) |
| Bucket Breakout Force | 8700 lbf (38.7 kN) |
| Boom Breakout Force | 7760 lbf (34.5 kN) |
| Standard Bucket Width | 78 in (1981 mm) |
| Lift Arm Path | Radial |

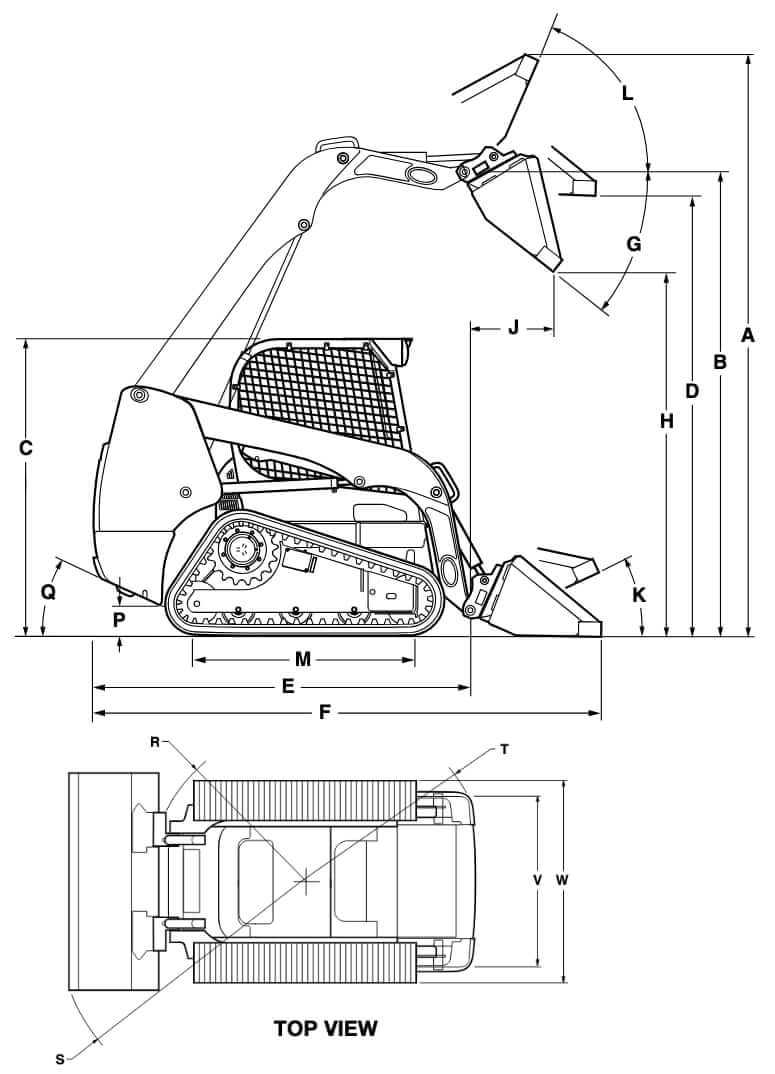

Dimensions
| A. Overall Operating Height w/ Foundry Bucket Short Lip | 157.8 in (4009 mm) |
| A. Overall Operating Height w/ Low Profile/Standard Lip Bucket | 161.8 in (4111 mm) |
| A. Overall Operating Height w/ Low Profile Extended/Long Lip Bucket | 166.8 in (4238 mm) |
| B. Bucket Hinge Pin Height | 126.5 in (3215 mm) |
| C. Height to Top of Cab w/ ROPS | 80.4 in (2043 mm) |
| D. Bottom of Level Bucket, Fully Raised | 119.6 in (3038 mm) |
| E. Overall Length w/o Attachment (w/ Coupler) | 118.7 in (3016 mm) |
| F. Overall Length w/ Foundry Excavation Bucket on Ground | 143.5 in (3646 mm) |
| F. Overall Length w/ Low Profile Bucket | 141.5 in (3749 mm) |
| F. Overall Length w/ Low Profile Extended Bucket | 152.7 in (3878 mm) |
| G. Dump Angle | 38.1° |
| H. Dump Height w/ Foundry/Excavating Bucket Short Lip @ 38.3° | 102.4 in (2602 mm) |
| H. Dump Height w/ Low Profile/Standard Lip Bucket @ 38.1° | 99.9 in (2537 mm) |
| J. Dump Reach (Max Height) @ 38.1° | 21.6 in (548 mm) |
| K. Rollback at Ground | 29.7° |
| L. Bucket at Full Height | 99.7° |
| M. Track on Ground | 64.5 in (1639 mm) |
| P. Ground Clearance (Bottom of Belly Pan) | 9.5 in (243 mm) |
| Q. Angle of Departure | 32° |
| R. Clearance Circle w/o Bucket | 57.7 in (1466 mm) |
| S. Clearance Circle w/ 78 in Foundry Bucket in Carry Position | 87 in (2210 mm) |
| S. Clearance Circle w/ 78 in Low Profile Bucket on Ground | 90.8 in (2307 mm) |
| S. Clearance Circle w/ 78 in Extended Low Profile on Ground | 95.2 in (2419 mm) |
| T. Clearance Circle Rear | 67.9 in (1725 mm) |
| V. Track Gauge | 58.3 in (1480 mm) |
| W. Overall Width | 76 in (1930 mm) |

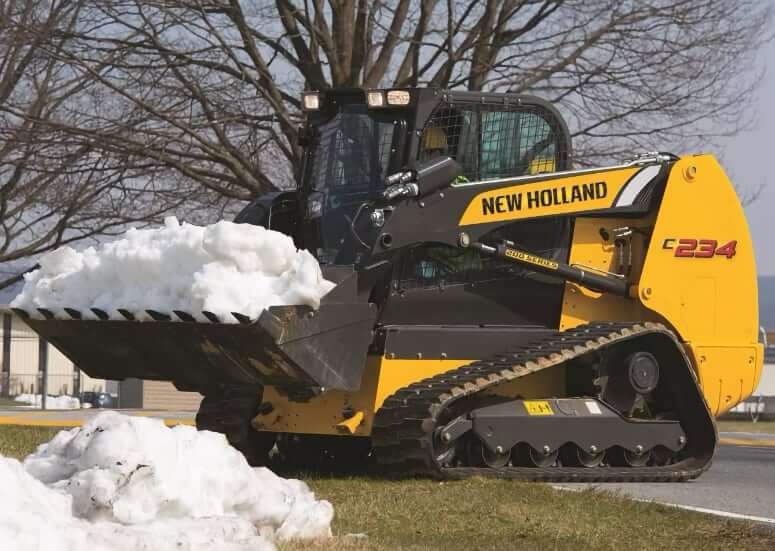

Undercarriage

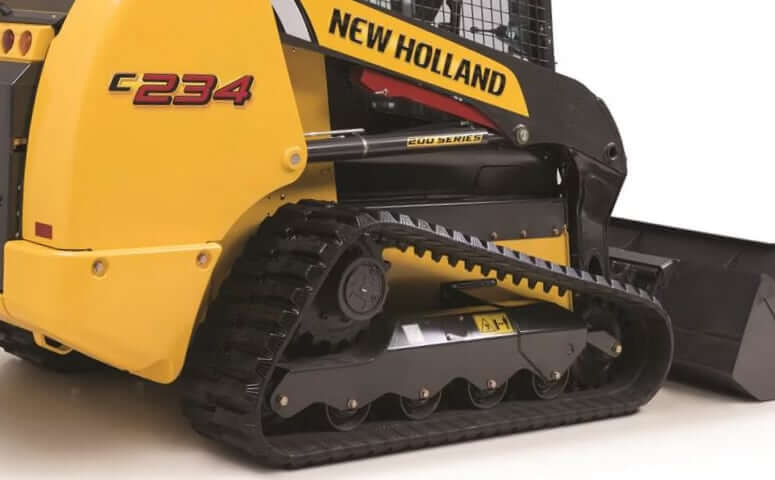

| System | S-Wave Pattern |
| Shoe Size (track belt) | 17.7 in (450 mm) |
| Number of Track Rollers (per side) | 4 |
| Number of Track Idlers (per side) | 2 |
| Ground Pressure | 4.2 psi (29 kPa) |
| Track Guage | 58.3 in (1480 mm) |
| Length of Track on Ground | 64.5 in (1639 mm) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | FPT Industrial |
| Engine Model | FPT F5B FL413E*B002 |
| Displacement | 207 cu in (3.38 L) |
| Bore | 3.9 in (99 mm) |
| Stroke | 4.3 in (110 mm) |
| Gross Power | 90 hp (67 kw) |
| Net Power | 84 hp (63 kw) |
| Power Measured @ | 2500 rpm |
| Peak Torque | 282 lb ft (383 Nm) |
| Torque Measured @ | 1400 rpm |
| Low Idle | 1150 rpm |
| High Idle | 2500 rpm |
| Fuel Filter | Pre-filter 99.8% @ 30 microns. Main filter 95% @ 4 microns |
| Lubrication System | Forced by gear pump, pressure relief valve, oil filter |
| Fuel System | HPCR Direct Injection |
| Aspiration | Turbocharged Aftercooled with external EGR |
| Emission Standards | US EPA Tier 4 Final + EU Stage IIIB |

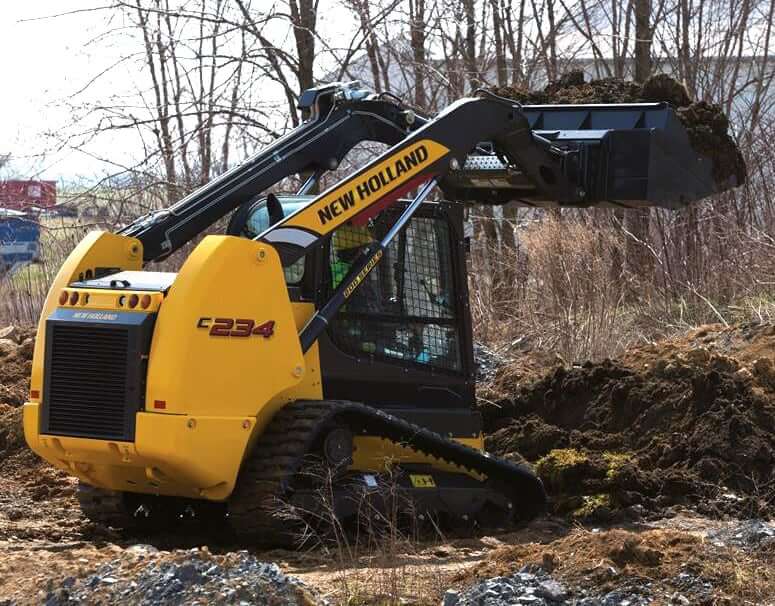

Operational Specs
| Operating Weight | 10000 lb (4536 kg) |
| Shipping Weight | 9656 lb (4380 kg) |
| Operating Voltage | 12 V |
| Alternator | 100 amps |
| Battery | 12 V, CCA 1000 |
| Bucket Types | Heavy duty; foundry/excavating with short lip; light material; low profile extended; manur and slurry bucket |
Power Train
| Type | Hydrostatic transmission |
| Max Travel Speed, Low | 5.1 mph (8.2 km/h) |
| Max Travel Speed, High | 7.6 mph (12.2 km/h) |
| Parking Brake | SAHR disc. Depress on/off brake button on instrument panel, disconnect lapbelt, get off seat, or stop engine |
| Final Drive | Planetary gearbox with 2-speed motor |
| Drive Pump Flow | 28.8 gal/min (109 L/min) |
| Drive System Relief | 5220 psi (36000 kPa) |
| Control | Electro hydraulic |
Hydraulic System
| Main Pump Type | Gear pump |
| Pump Flow Capacity | 24.2 gal/min (91.7 L/min) |
| Pump Flow Capacity, High Flow (Optional) | 37.6 gal/min (142.4 L/min) |
| Pump Flow Capacity, High Flow (Enhanced) | 35 gal/min (132.5 L/min) |
| Loader Control Valve Type | 3 spool / open center / series |
| Relief Valve Pressure | 3046 psi (21000 kPa) |
| Relief Valve Pressure (Enhanced) | 4000 psi (27600 kPa) |
| Hydrauli Filter | 6 microns / spin on |
Hydraulic Circle Time
| Raise Time | 4.4 sec |
| Lower Time | 2.6 sec |
| Dump Time | 2.6 sec |
| Roll Back Time | 2.0 sec |
Service Refill Capacities
| Fuel Tank Capacity | 25.5 gal (96.5 L) |
| Engine Oil Capacity (w/ filter) | 2.2 gal (8.5 L) |
| Cooling System Capacity | 3.4 gal (13 L) |
| Hydraulic System Capacity (w/ tank) | 11.8 gal (44.5 L) |
