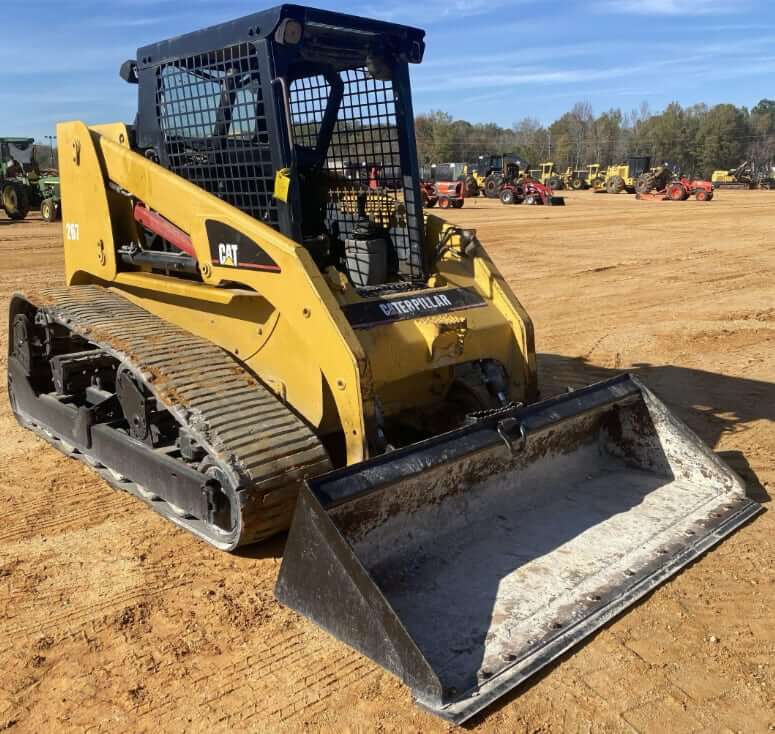

Loader
| Rated Operating Capacities – 50% Tipping Load | 2900 lb (1316 kg) |
| Rated Operating Capacities – 35% Tipping Load | 2030 lb (921 kg) |
| Tipping Load | 5800 lb (2631 kg) |
| Breakout Force – Tilt Cylinder | 5259 lb (2386 kg) |
| Breakout Force – Lift Cylinder | 4339 lb (1968 kg) |
| Tipping Angle | 40° |
| Reach At Max Lift And Dump | 26.6 in (676 mm) |
| Clearance At Max Lift And Dump | 91.1 in (2315 mm) |
Dimensions
| Length With Bucket | 146 in (3712 mm) |
| Length With Out Bucket | 115 in (2923 mm) |
| Overall Width | 78 in (1974 mm) |
| Height To Top Of Cab | 82 in (2074 mm) |
| Ground Clearance | 13.9 in (353 mm) |
| Turning Radius From Center – Inc Bucket | 99 in (2514 mm) |
GP Buckets
| Model / Width | Bucket Capacity | Bucket Weight |
|---|---|---|
| 1883 mm (74 in) | 0.58 yd3 (0.44 m3) | 515.9 lb (234 kg) |
| 2188 mm (86 in) | 0.82 yd3 (0.63 m3) | 634.9 lb (288 kg) |
| 1576 mm (62 in) | 0.47 yd3 (0.36 m3) | 374.8 lb (170 kg) |
| 1730 mm (68 in) | 0.52 yd3 (0.40 m3) | 476.2 lb (216 kg) |
| 2036 mm (80 in) | 0.63 yd3 (0.48 m3) | 544.5 lb (247 kg) |
Undercarriage
| Length Of Track On Ground | 80.5 in (2045 mm) |
| Width Of Track | 18 in (457 mm) |
| Ground Contact Area | 2898 in2 (1.9 m2) |
| Ground Pressure | 3.1 psi (21.37 kPa) |
Engine Details
| Number Of Cylinders | 4 |
| Engine Make | Caterpillar |
| Engine Model | CAT 3034 |
| Displacement | 183 cu in (3 L) |
| Bore | 3.82 in (97 mm) |
| Stroke | 3.94 in (100 mm) |
| Gross Power | 63 hp (47 kw) |
| Net Power | 59 hp (44 kw) |
| Power Measured @ | 2600 rpm |
| Aspiration | Naturally aspirated |
Operational Specs
| Operating Weight | 9015 lb (4089 kg) |
| Max Operating Weight | 9088 lb (4131 kg) |
| Max Lift Capacity | 2900 lb (1316 kg) |
| Operating Voltage | 12 V |
| Battery | 12 V, 70 Ah, CCA 850 |
Power Train
| Type | The closed-loop, high-output hydrostatic system |
| Pump Type | Dual, closed-loop, axial piston hydrostatic pumps are driven directly off the engine |
| Max Forward Speed | 6 mph (9.7 km/h) |
| Max Reverse Speed | 6 mph (9.7 km/h) |
Hydraulic System
| Pump Flow | 21.7 gal/min (82 L/min) |
| Controls | Two pilot-operated joysticks |
| Right Lever Controls | The right lever controls the machine’s loader functions |
| Left Lever Controls | The left lever controls machine direction and speed |
Service Refill Capacities
| Fuel Tank Capacity | 22.7 gal (86 L) |
| Engine Oil Capacity | 1.8 gal (7 L) |
| Cooling System Capacity | 2.6 gal (10 L) |
| Hydraulic Tank Capacity | 9.2 gal (35 L) |
| Hydraulic System Capacity | 13.7 gal (52 L) |
