Loader

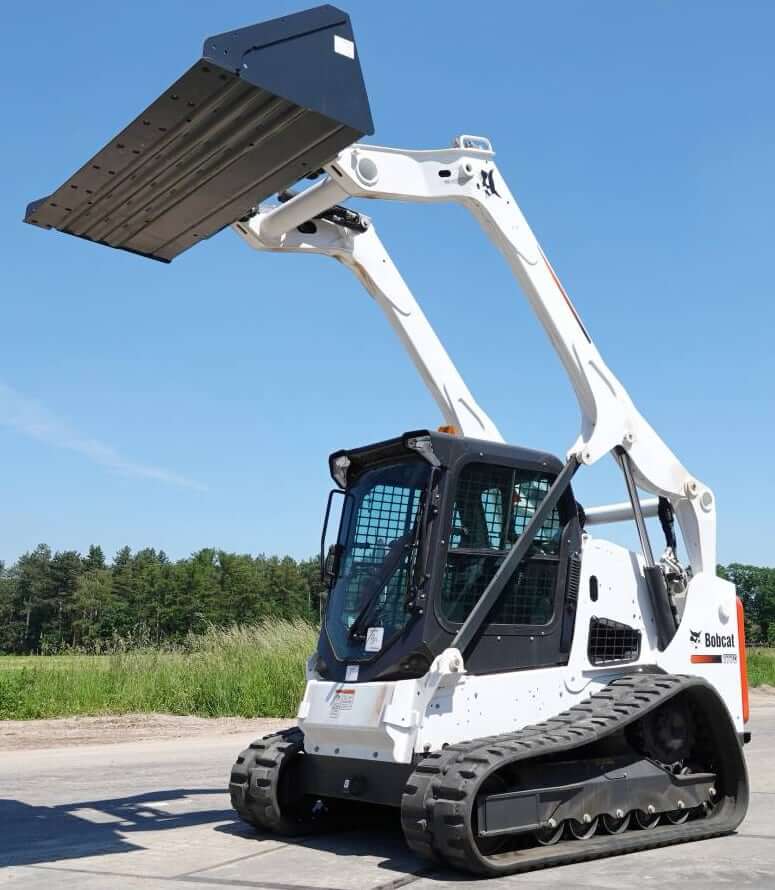

| Tipping Load | 9929 lb (4504 kg) |
| Rated Operating Capacity (35% of tipping load) | 3325 lb (1508 kg) |
| Rated Operating Capacity (50% of tipping load) | 4750 lb (2155 kg) |
| ROC w/ Counterweight, 200 lb (90 kg) optional | 3575 lb (1622 kg) |
| Breakout Force (Lift) | 5659 lbf (25.2 kN) |
| Breakout Force (Tilt) | 6346 lbf (28.2 kN) |
| Push Force | 6715 lbf (29.9 kN) |
| Bucket Width | 80 in (2032 mm) |
| Lift Arm Path | Vertical |

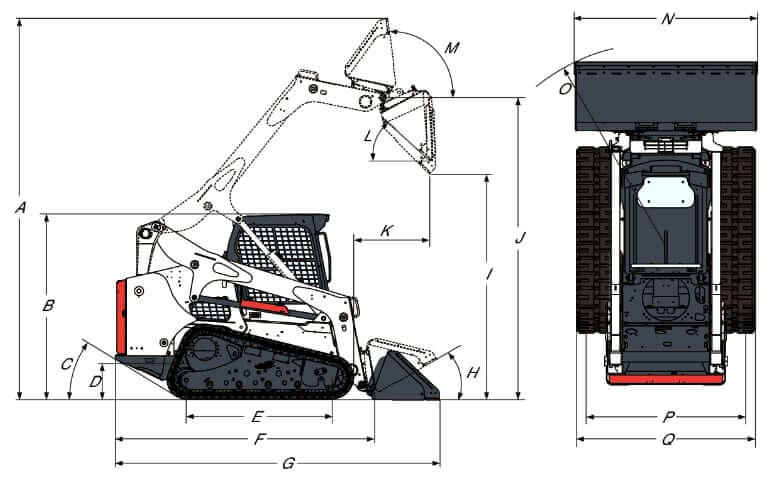

Dimensions
| A. Operating Height | 166.6 in (4232 mm) |
| B. Height with Operator Cab | 81.3 in (2065 mm) |
| C. Angle of Departure | 31° |
| D. Ground Clearance | 8.1 in (206 mm) |
| E. Ground Contact Length | 63.7 in (1618 mm) |
| F. Length without Attachment | 114.3 in (2903 mm) |
| G. Length with Standard Bucket | 141.6 in (3597 mm) |
| H. Rollback @ Ground | 30° (32°) |
| I. Dump Height with Standard Bucket | 104.3 in (2649 mm) |
| J. Dump Reach @ Maximum Height | 132.0 in (3353 mm) |
| K. Height to Bucket Hinge Pin | 33.6 in (853 mm) |
| L. Dump Angle @ Maximum Height | 42° |
| M. Rollback Fully Raised @ Maximum Height | 98° |
| N. Width (over bucket) | 80 in (2032 mm) |
| O. Turning Radius with Standard Bucket | 88 in (2235 mm) |
| P. Track Tread | 60.3 in (1532 mm) |
| Q. Track (width over track) | 78 in (1981 mm) |
Engine Details
| Engine Make | Kubota | Doosan |
|---|---|---|
| Number of Cylinders | 4 | 4 |
| Engine Model | Kubota V3800 DI-T-E3 | Doosan D34 |
| Displacement | 230 cu in (3.769 L) | 208 cu in (3.409 L) |
| Bore | 3.94 in (100 mm) | 3.85 in (98 mm) |
| Stroke | 4.72 in (120 mm) | 4.45 in (113 mm) |
| Max Horsepower | 92.0 hp (68.6 kw) | 92.1 hp (68.7 kw) |
| Power Measured @ | 2400 rpm | 2400 rpm |
| Peak Torque | 232.3 lb ft (315 Nm) | 262.0 lb ft (355.3 Nm) |
| Torque Measured @ | 1600 rpm | 1600 rpm |
| Fuel System | In-line pump | Common rail |
| Combustion System | Direct injection | Direct injection |
| Lubrication System | Pressure pump, reducing valve and filter | Pressure lubrication |
| Aspiration | Turbocharged | Turbocharged |
| Emission Standards | US EPA/CARB Tier 4 + EU Stage III | US EPA/CARB Tier 4 + EU Stage IV |
Operational Specs

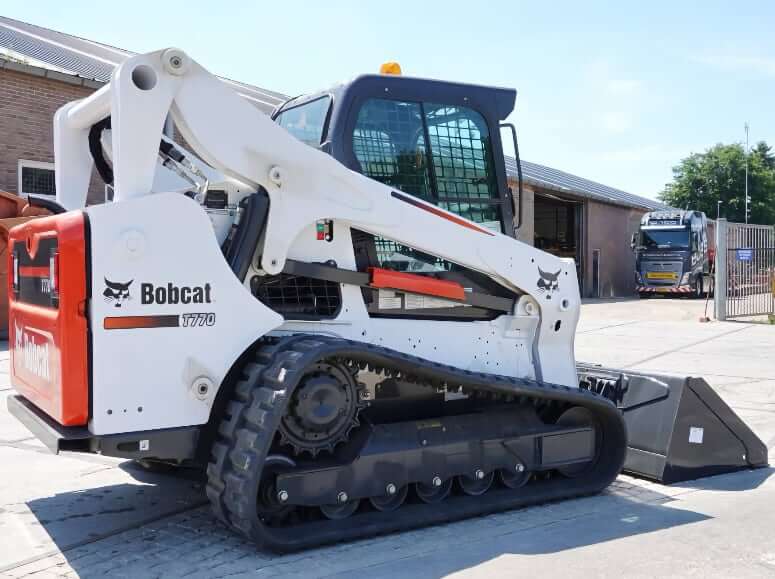

| Operating Weight | 10331 lb (4686 kg) |
| Shipping Weight | 9780 lb (4300 kg) |
| Tipping Load | 9929 lb (4504 kg) |
| Rated Operating Capacity (35% of tipping load) | 3325 lb (1508 kg) |
| Rated Operating Capacity (50% of tipping load) | 4750 lb (2155 kg) |
| ROC w/ Counterweight, 200 lb (90 kg) optional | 3575 lb (1622 kg) |
| Operating Voltage | 12 V |
| Alternator | 90 amps |
| Battery | 12 V, RC: 180 min, CCA 950 |
| Starter | 12 V, gear type, 4 hp (3 kw) |
Power Train
| Type | Hydrostatic transmission |
| Number of Gears | Infinitely variable tandem hydrostatic piston pumps, driving two fully reversing hydrostatic motors |
| Max Travel Speed (Low) | 6.6 mph (10.7 km/h) |
| Max Travel Speed (High) | 10.7 mph (17.2 km/h) |

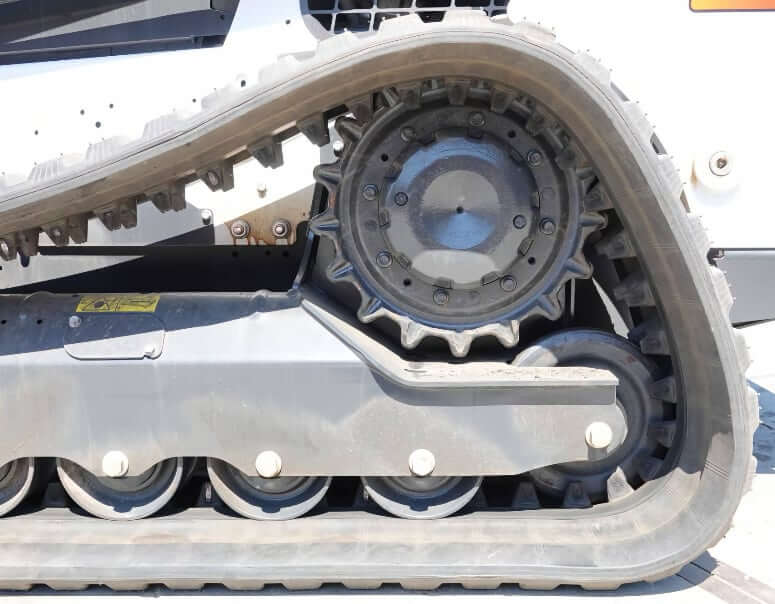

Undercarriage
| Length of Track on Ground | 63.7 in (1618 mm) |
| Track Width (Rubber) | 17.7 in (450 mm) |
| Number of Track Rollers (per side) | 5 (Triple Flange) |
| Ground Pressure | 4.1 psi (29.0 bar) |
| Lubrication | Idlers and rollers are permanently sealed and lubricated |
| Departure Angle | 31° |
Operator Environment
| Cab Type | Deluxe operator cab Includes interior cab foam, side, top and rear windows, Deluxe wire harness, dome light, electrical power port, cup holder, storage place and horn |
| ROPS | SAE-J1040 and ISO 3471 |
| FOPS | SAE-J1043 and ISO 3449, Level I |
| Operator Seat | Mechanical / Cushion suspension seat |
| Operator Seat (Optional) | Air ride seat with 3 point seat belt |
| Working Lights | 2x Front + 2 Rear working lights |
| Noise Level Operator LpA | 85 dB(A) |
| Noise level LWA | 104 dB(A) |
| Whole Body Vibration (ISO 2631–1) | 0.91 m/s2 |
| Whole Body Vibration (ISO 2631-1) uncertainty | 0.46 m/s2 |
| Hand-arm Vibration (ISO 5349–1) | 1.83 m/s2 |
Hydraulic System
| Type | Open center hydraulic system |
| Standard Pump Flow | 23 gal/min (87.1 L/min) |
| High Flow Pump Flow (optional) | 36.6 gal/min (138.5 L/min) |

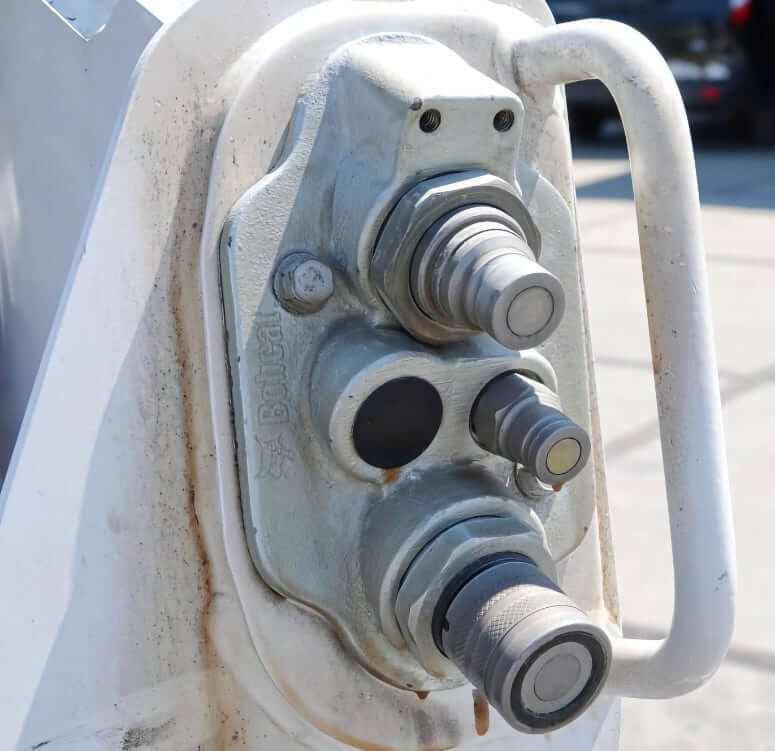

| Standard Relief Pressure at Quick Couplers | 3452 – 3553 psi (23800 – 24500 kPa) |
| Hydraulic Filter | Full flow replaceable, 3 micron synthetic media element |

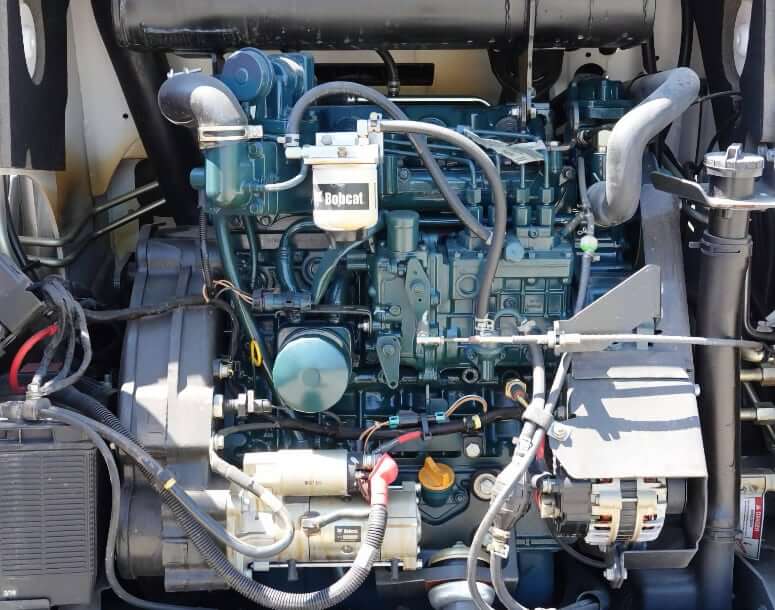

Service Refill Capacities
| Engine Model | Kubota V3800 | Doosan D34 |
|---|---|---|
| Fuel Tank Capacity | 43.8 gal (165.8 L) | 35.7 gal (135 L) |
| Engine Oil Capacity | 3.0 gal (11.4 L) | 3.2 gal (12.6 L) |
| Cooling System Capacity (Cab w/o HVAC) | 3.8 gal (14.4 L) | 3.6 gal (13.6 L) |
| Cooling System Capacity (Cab w/ HVAC) | 4.0 gal (15.1 L) | 3.8 gal (14.3 L) |
| Hydraulic System Fluid Capacity | 9.5 gal (36 L) | 9.5 gal (36 L) |
| Hydraulic Tank Capacity | 2.6 gal (9.8 L) | 2.6 gal (9.8 L) |
| Travel Reduction Unit (each) | 0.05 gal (0.18 L) | 0.05 gal (0.18 L) |
Bobcat T770 Filters
| Filter | Part Number |
|---|---|
| Air Filter (Inner) | 7010031 |
| Air Filter (Outer) | 7286652 |
| Engine Oil Filter (SN A3P811001-; A3P911001-; AUYB11001-; AN8T11001-; ATF711001-) | 6678233 |
| Engine Oil Filter (SN B3BW11001-; AT6311001-) | 7012303 |
| Fuel Filter (SN A3P811001-; A3P911001-; AUYB11001-) | 6667352 |
| Fuel Filter (SN AN8T11001-; ATF711001-; B3BW11001-; AT6311001-) | 7023589 |
| Hydraulic Filter (SN A3P811001-; A3P911001-; AUYB11001-; AN8T11001-; ATF711001-) | 7012314 w/ 7015308 |
| Hydraulic Filter (SN B3BW11001-; AT6311001-) | 7248874 (add 7248873 for AT6311001-) |
| Hydraulic Fill/Breather Cap | 6727475 |
| Charge Filter | 6686926 – Spin-on / 6692337 – Canister |
| Heater Filter | 7176099 |
| Recirculating Air Filter | 7193354 |

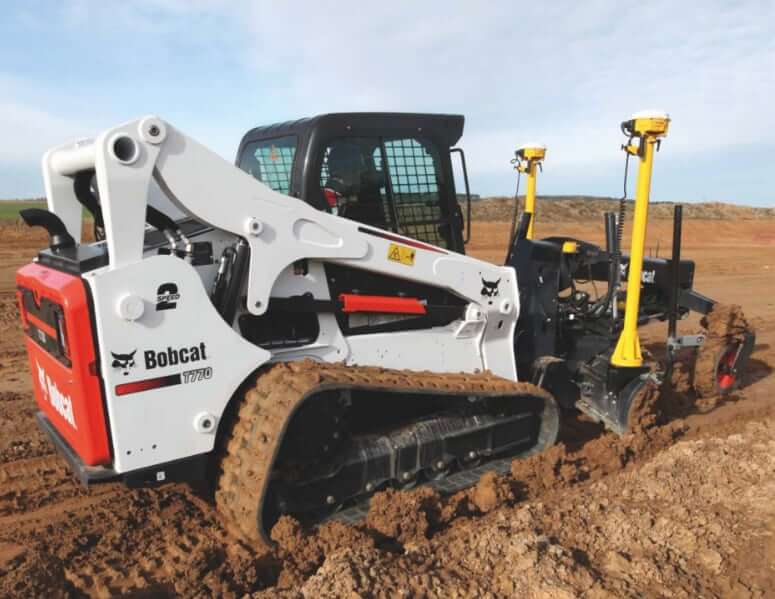

The Bobcat T770 Compact Track Loader is engineered for powerful performance and maximum versatility across a wide range of job sites. With a robust hydraulic system and exceptional lifting capacity, the T770 is built to handle demanding attachments with precision and efficiency.
This model supports an extensive lineup of Bobcat-approved attachments, making it ideal for construction, landscaping, agriculture, roadwork, snow removal, forestry, and more. From heavy-duty tools like trenchers, planers, and forestry cutters to precision grading and snow clearing implements, the Bobcat T770 adapts seamlessly to specialized tasks. Whether you’re trenching, sweeping, cutting, lifting, or drilling, this loader is ready to power through with unmatched attachment compatibility and productivity.
