Loader

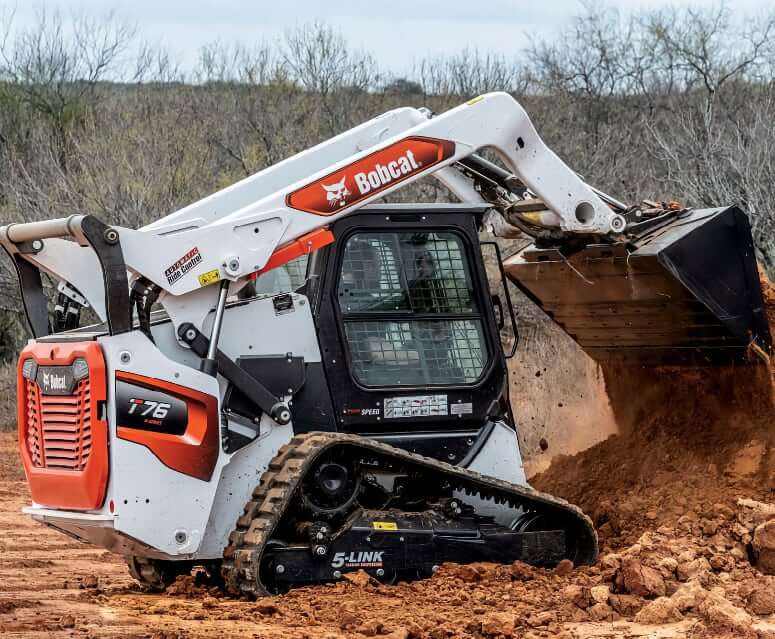

| Tipping Load | 8285 lb (3758 kg) |
| Rated Operating Capacity (35% of tipping load) | 2900 lb (1315 kg) |
| Rated Operating Capacity (50% of tipping load) | 4143 lb (1879 kg) |
| ROC with Counterweight 300 lb (136 kg) | 3100 lb (1406 kg) |
| ROC with Torsion | 2800 lb (1270 kg) |
| Breakout Force (Lift) | 7967 lbf (35.44 kN) |
| Breakout Force (Tilt) | 6454 lbf (28.71 kN) |
| Push Force | 7967 lbf (35.44 kN) |
| Bucket Width | 68 in (1727 mm) 74 in (1880 mm) 80 in (2032 mm) |
| Lift Arm Path | Vertical |

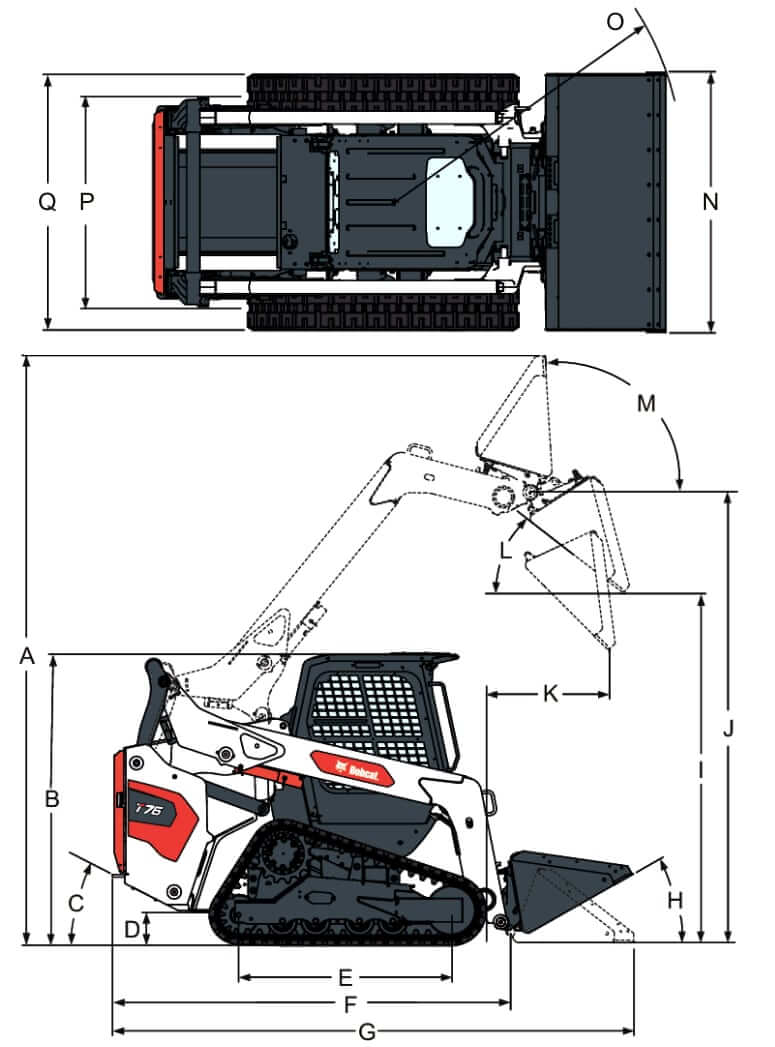

Dimensions
| A. Operating Height | 167.4 in (4252 mm) |
| B. Height with Operator Cab | 81.9 in (2079 mm) |
| C. Angle of Departure | 27° |
| D. Ground Clearance | 9.3 in (235 mm) |
| E. Ground Contact Length | 59.2 in (1505 mm) |
| F. Length without Attachment | 113.9 in (2894 mm) |
| G. Length with Standard Bucket | 147.1 in (3737 mm) |
| H. Rollback @ Ground | 30° |
| I. Dump Height with Standard Bucket | 99.4 in (2526 mm) |
| J. Height to Bucket Hinge Pin | 128.3 in. (3259 mm) |
| K. Dump Reach @ Maximum Height | 40.0 in (1014 mm) |
| L. Dump Angle @ Maximum Height | 37° |
| M. Rollback Fully Raised @ Maximum Height | 94° |
| N. Width over 68″ bucket (standard) | 68 in (1727 mm) |
| N. Width over 74″ bucket (optional) | 74 in (1880 mm) |
| N. Width over 80″ bucket (optional) | 80 in (2032 mm) |
| O. Turning Radius with 68″ Bucket | 89.3 in (2268 mm) |
| O. Turning Radius with 80″ Bucket | 90.6 in (2301 mm) |
| P. Track Tread (450 mm track) | 60.3 in (1531 mm) |
| Q. Width over Track (450 mm track) | 78.0 in (1982 mm) |

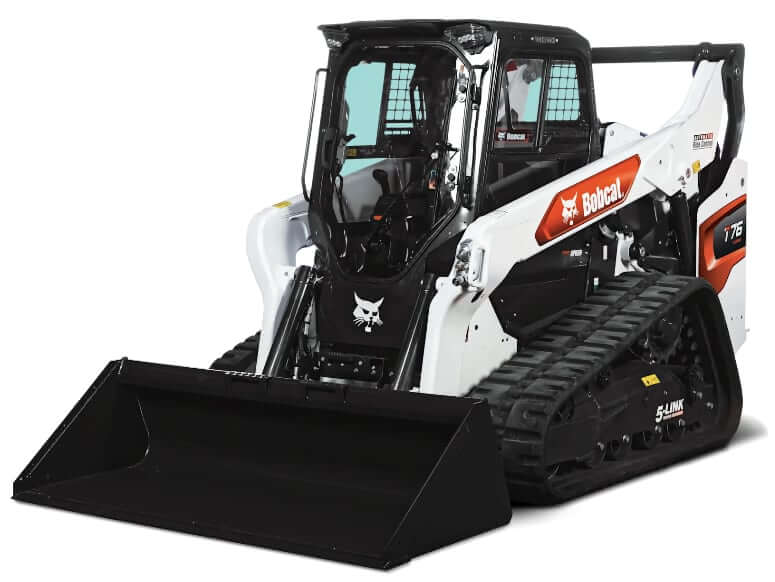

Weight
| Operating Weight | 10250 lb (4649 kg) |
| Max Operating Weight | 11136 lb (5051 kg) |
| Shipping Weight | 9687 lb (4394 kg) |
| Counterweight (7129173) | 50 lb (23 kg) |
| Counterweight Kit (7407734 for Loaders) | 200 lb (92 kg) |
Bobcat T76 operating weight with 68 in (1727 mm) bucket, operator and full fuel tank

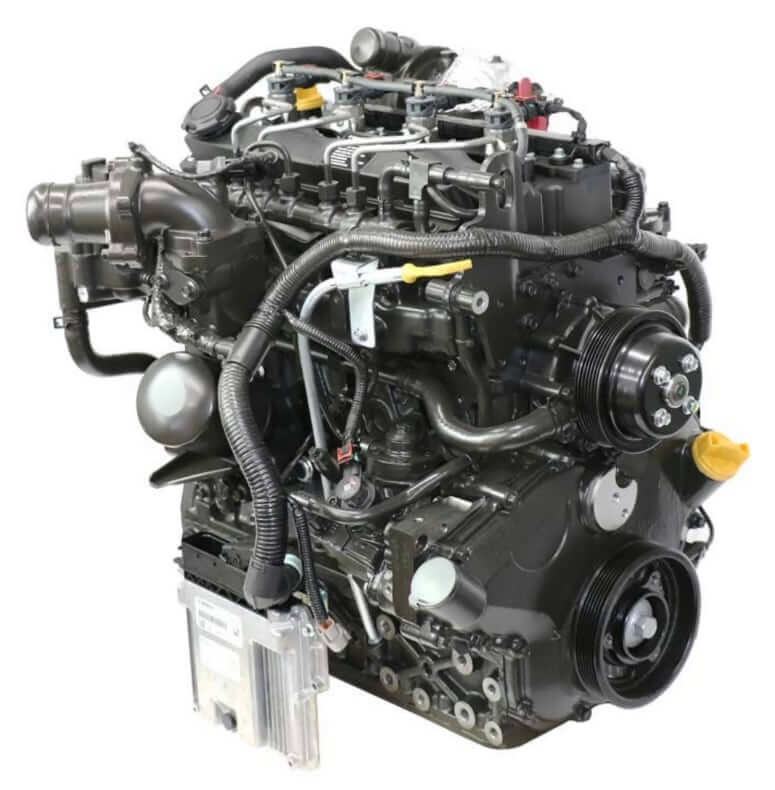

Engine Details
| Number of Cylinders | 4 |
| Engine Make | Bobcat / Doosan |
| Engine Model | Bobcat D24 |
| Displacement | 146.0 cu in (2.392 L) |
| Bore | 3.54 in (90 mm) |
| Stroke | 3.70 in (94 mm) |
| Gross Horsepower | 74 hp (55.2 kw) |
| Net Horsepower | 66 hp (49.2 kw) |
| Power Measured @ | 2600 rpm |
| Peak Torque | 209.4 lb ft (283.9 Nm) |
| Torque Measured @ | 1800 rpm |
| Injection Pump | Bosch Common-rail Pump |
| Fuel Consumption @ 2600 rpm | 218 g/kWh |
| Fuel Consumption @ 1600 rpm | 214 g/kWh |
| Lubrication System | Fully forced pressure feed type |
| Air Cleaner | Dry replaceable cartridge with safety element |
| Aspiration | Turbocharged and air-to-air aftercooled |
| Emission Standards | US EPA Tier 4 Final + EU Stage V |
Operator Environment
| Cab (Standard) | Deluxe pressurized cab with HVAC |
| ROPS | SAE-J1040 and ISO 3471 |
| FOPS | SAE-J1043 and ISO 3449, Level I (Level II optional) |
| Operator Seat | Adjustable suspension seat with 3 point seat belt |
| Operator Seat (Optional) | Heated cloth air ride seat with 3 point seat belt |
| Working Lights | 2x LED Front working lights + 2 LED Rear working lights |
| Whole Body Vibration (ISO 2631–1) | 0.8 m/s2 |
| Hand-arm Vibration (ISO 5349–1) | 2.8 m/s2 |
| Noise Level Operator LpA | 80 dB(A) |
| Noise level LWA | 103 dB(A) |
Operational Specs
| Operating Weight | 10250 lb (4649 kg) |
| Tipping Load | 8285 lb (3758 kg) |
| Rated Operating Capacity (35% of tipping load) | 2900 lb (1315 kg) |
| Rated Operating Capacity (50% of tipping load) | 4143 lb (1879 kg) |
| Operating Voltage | 12 V |
| Alternator | 90 amps |
| Battery | 12 V, RC: 115 min, CCA 600 |
| Starter | 12 V, gear type, 4.3 hp (3.2 kw) |
Power Train
| Type | Hydrostatic transmission |
| Number of Gears | Infinitely variable tandem hydrostatic piston pumps, driving two fully reversing hydrostatic motors |
| Max Travel Speed (Low) | 6.8 mph (10.9 km/h) |
| Max Travel Speed (High) | 9.2 mph (14.8 km/h) |
| Service Brakes | 2 independent hydrostatic systems controlled by two hand-operated steering levers |
| Parking Brake | Mechanical disc activated by manually operated switch on left instrument panel |
| Vehicle Steering | Direction and speed controlled by Selectable Joystick Controls (SJC) |

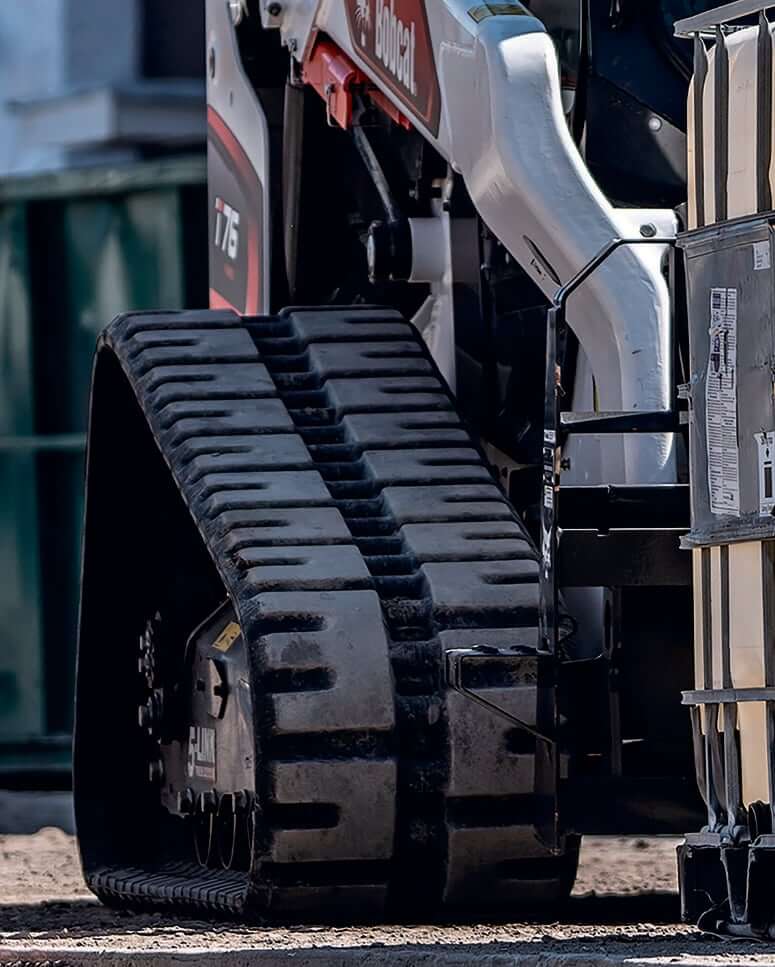

Undercarriage
| Type | Tension-grease cylinder and triple-flange spring rollers |
| Type (Optional) | 5-Link Torsion Suspension Undercarriage |
| Length of Track on Ground | 59.2 in (1504 mm) |
| Track Width, Rubber (Standard) | 12.6 in (320 mm) |
| Track Width, Rubber (Optional) | 17.7 in (450 mm) |
| Ground Pressure, 320 mm Track | 6.2 psi (43 kPa) |
| Ground Pressure, 450 mm Track | 4.6 psi (31 kPa) |
| Departure Angle | 27° |
Hydraulic System
| Type | Open center hydraulic system |
| Hydraulic Pump Type | Engine driven, gear type pump |
| Standard Pump Flow | 23.3 gpm (88.2 L/min) |
| High Flow Pump Capacity (optional) | 30.3 gpm (114.7 L/min) |
| Standard Relief Pressure at Quick Couplers | 3500 psi (24100 kPa) |
| Control Valve | Three-spool, open-centre type with float detent on lift and electrically controlled auxiliary spool |
| Fluid Lines | SAE standard tubelines, hoses, and fittings |
| Hydraulic Oil Level Check and Fill Location | Access to the hydraulic oil filler and level check is carried out from the left side of the machine |

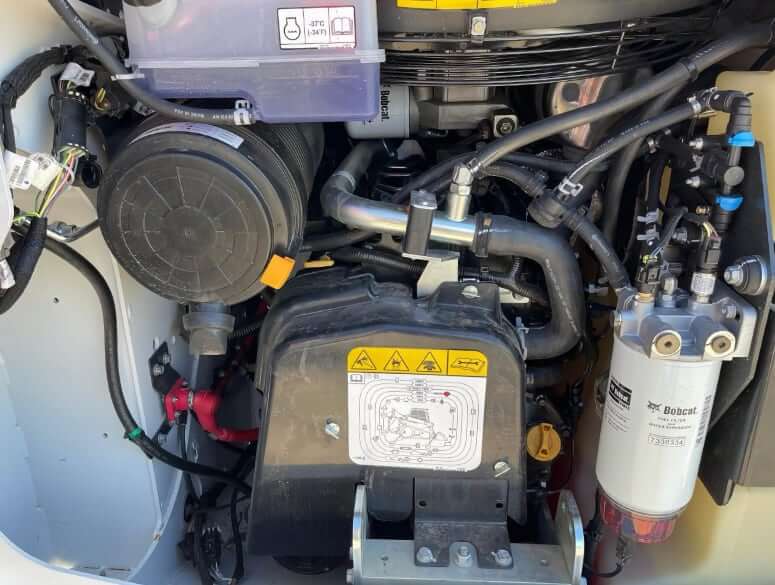

Service Refill Capacities
| Fuel Tank Capacity | 31.7 gal (120 L) |
| Engine Oil Capacity (w/ filter) | 2.4 gal (9.2 L) |
| Cooling System Capacity (w/ heater) | 3.1 gal (11.7 L) |
| Cooling System Capacity (w/o heater) | 3.0 gal (11.4 L) |
| Hydraulic System Fluid Capacity | 11.9 gal (45 L) |
| Hydraulic Tank Capacity | 2.7 gal (10.2 L) |
Bobcat T76 Filters
| Filter | Part Number |
|---|---|
| Inner Air Filter | 7386224 |
| Outer Air Filter | 7386225 |
| Air Filter | 7380114 |
| Fresh Air Filter | 7313306 |
| Recirculating Air Filter | 7310820 |
| Engine Oil Filter | 7343102 |
| Fan Manifold for Loaders | 7351273 / 7450695 |
| Cartridge Filter for Loaders | 7488100 |
| In-Line Fuel Filter | 7348032 |
| Fuel Filter with Water Separator | 46825328 |
| Fuel Breather Vent | 7340277 |
| Fuel Filter Assembly | 7314484 |
| Fuel Filter Bowl | 7374979 |
| Hydraulic Oil Filter | 46923666 |
| Hydraulic Oil Filter and O-rings | 7414582 |
| Hydraulic Breather Vent | 7025626 |
| Case Drain Filter | 7334208 |
| Hydraulic Oil Filter Assembly for Loaders | 7310693 |
| Hydraulic Filter Screen | 7003487 |
The Bobcat T76 Compact Track Loader is built for maximum performance, precision, and versatility across tough job site environments. Featuring a vertical lift path design, high hydraulic capabilities, and refined operator comfort, the T76 is an ideal match for a wide array of Bobcat-approved attachments, allowing it to excel in construction, landscaping, agriculture, roadwork, and snow removal tasks.

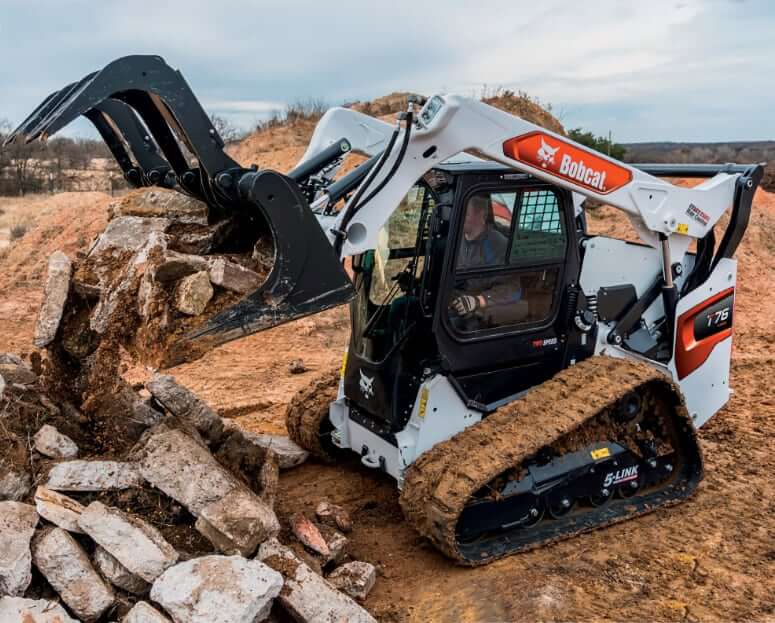

Compatible with an extensive lineup of attachments – including augers, breakers, brush cutters, buckets, grapples, planers, snow blowers, sweepers, trenchers, and more – the T76 empowers operators to tackle everything from earthmoving and lifting to finishing and cleanup with one efficient and powerful machine. Whether it’s digging, grading, lifting, or snow management, the Bobcat T76 offers unmatched adaptability and performance for demanding workloads.
