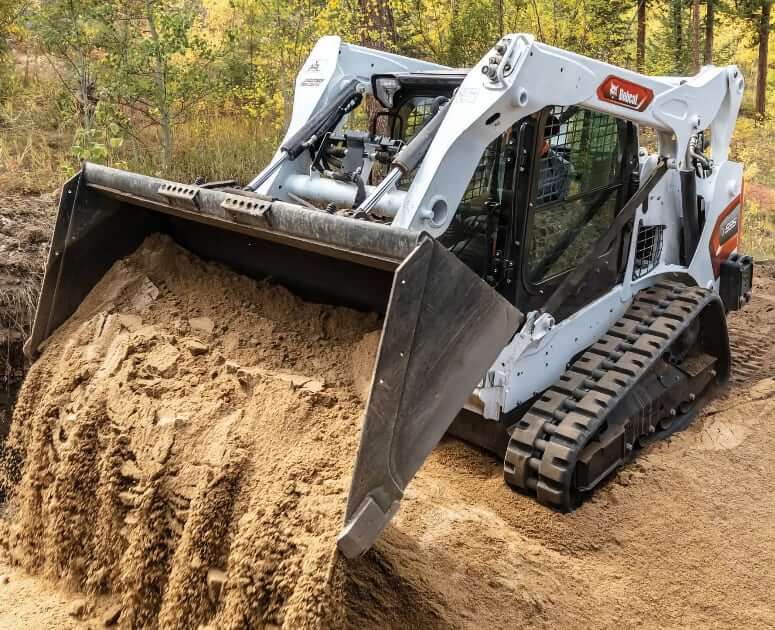

Loader Performance
| Tipping Load | 7343 lb (3330 kg) |
| Rated Operating Capacity (35% of tipping load) | 2570 lb (1165 kg) |
| Rated Operating Capacity (50% of tipping load) | 3670 lb (1664 kg) |
| ROC w/ Counterweight, 200 lb (90 kg) | 2670 lb (1211 kg) |
| Breakout Force (Lift) | 5324 lbf (23.7 kN) |
| Bucket Width | 68.0 in (1727 mm) |
| Lift Arm Path | Vertical path |

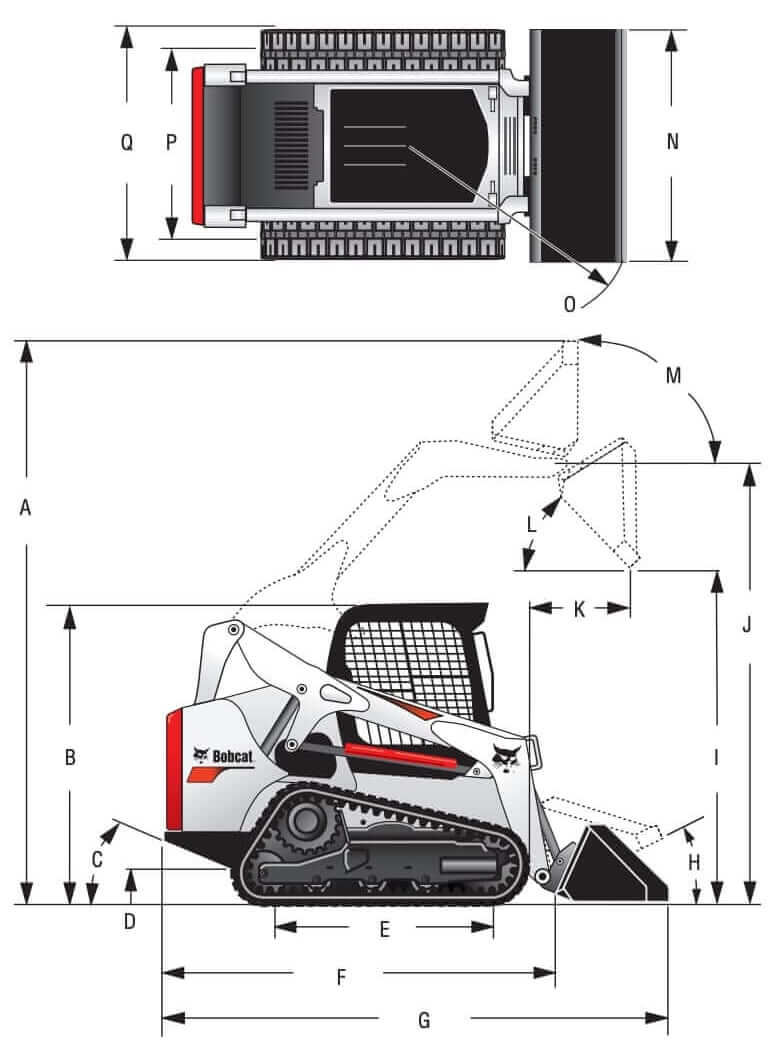

Dimensions
| A. Operating Height | 153.6 in (3901 mm) |
| B. Height with Operator Cab | 77.8 in (1972 mm) |
| C. Angle of Departure | 28.8° |
| D. Ground Clearance | 7.4 in (188 mm) |
| E. Ground Contact Length | 54.1 in (1374 mm) |
| F. Length without Attachment | 104.6 in (2657 mm) |
| G. Length with Standard Bucket | 133 in (3378 mm) |
| H. Rollback @ Ground | 30.0° |
| I. Dump Height with Standard Bucket | 91.3 in (2319 mm) |
| J. Height to Bucket Hinge Pin | 119.0 in (3023 mm) |
| K. Dump Reach @ Maximum Height | 34.9 in (886 mm) |
| L. Dump Angle @ Maximum Height | 42° |
| M. Rollback Fully Raised @ Maximum Height | 97° |
| N. Width (over bucket) | 68 in (1727 mm) |
| O. Turning Radius with Standard Bucket | 80 in (2032 mm) |
| P. Track Tread | 54.4 in (1382 mm) |
| Q. Track (width over track) | 67 in (1702 mm) |

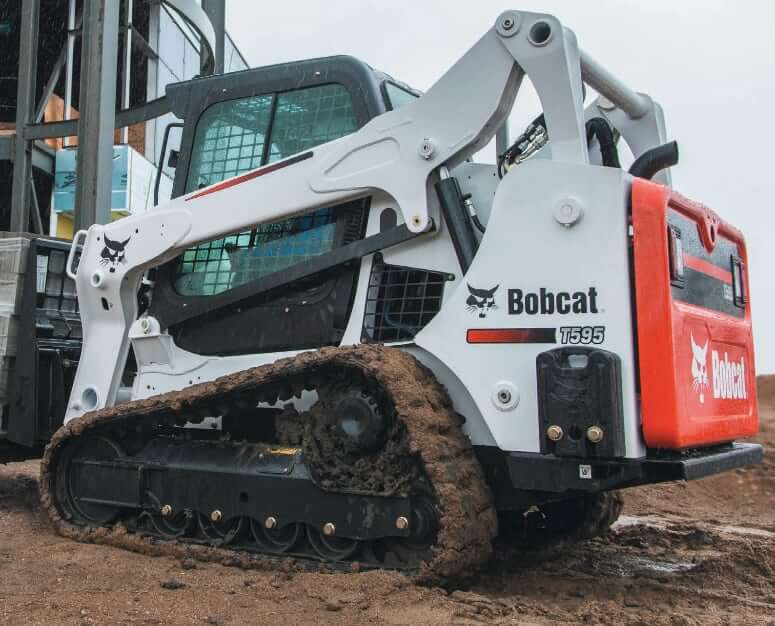

Weight
| Operating Weight | 7822 lb (3548 kg) |
| Max Operating Weight | 8055 lb (3654 kg) |
| Counterweight | 200 lb (90 kg) |

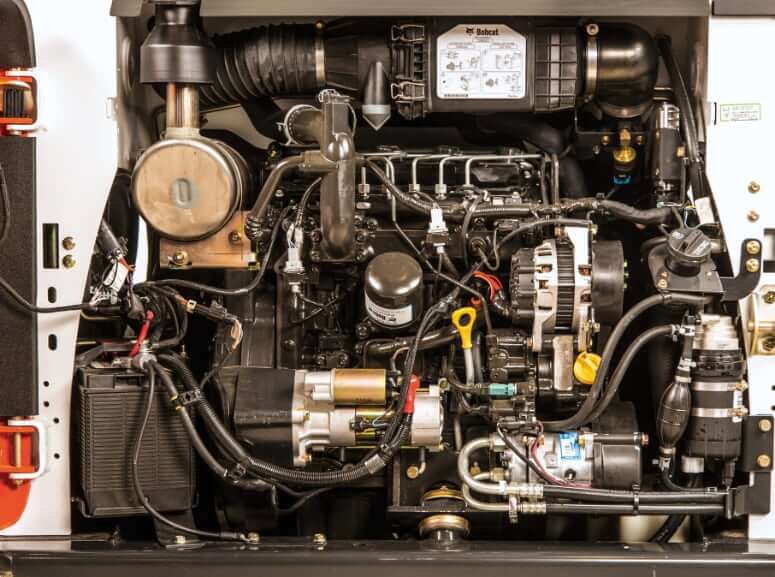

Engine Details
| Number of Cylinders | 4 |
| Engine Make | Bobcat / Doosan |
| Engine Family | Doosan JD1CL02.4LEA |
| Engine Model | Doosan D24 NAP |
| Displacement | 146.0 cu in (2.392 L) |
| Bore | 3.54 in (90 mm) |
| Stroke | 3.70 in (94 mm) |
| Horsepower, Gross | 74 hp (55.2 kw) |
| Horsepower, Net | 70 hp (52.2 kw) |
| Power Measured @ | 2600 rpm |
| Peak Torque | 206.5 lb ft (280 Nm) |
| Torque Measured @ | 1800 rpm |
| Lubrication System | Fully forced pressure feed type |
| Fuel System | Common-rail pump |
| Governor | Controlled by ECU |
| Combustion System | Direct injection |
| Fuel Consumption @ 2600 rpm, 74 hp | 0.358 lb/hph (218 g/kWh) |
| Fuel Consumption @ 1600 rpm, 74 hp | 0.352 lb/hph (214 g/kWh) |
| Horsepower Management | Included |
| Aspiration | Turbocharged and air-to-air aftercooled |
| Aftertreatment | EGR, DOC, DFl, TC, CAC, ECM |
| Emission Standards | US EPA Tier 4 |
Operational Specs

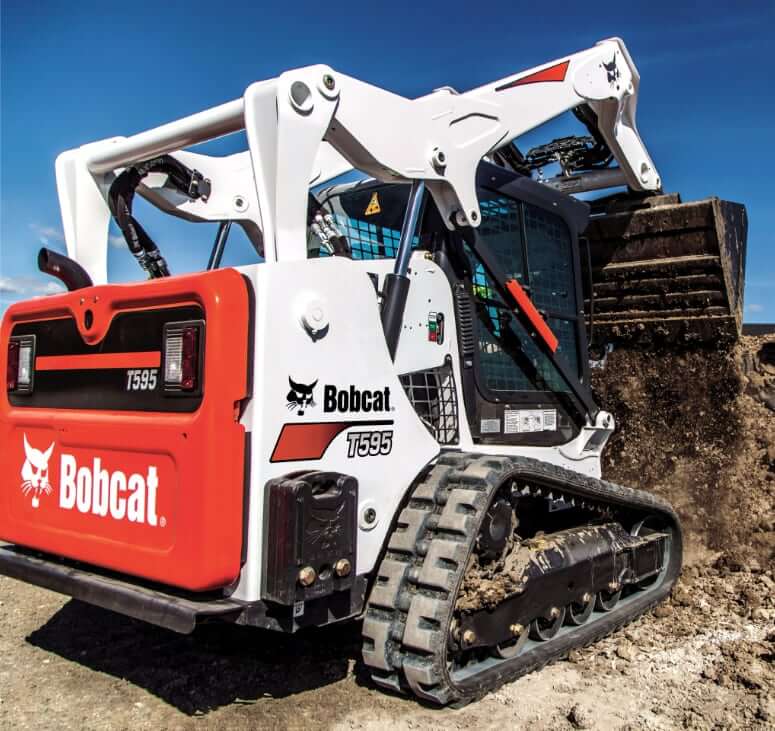

| Max Lift Capacity (50% of tipping load) | 3000 lb (1361 kg) |
| Operating Weight | 7822 lb (3548 kg) |
| Operating Voltage | 12 V |
| Alternator | 90 amps |
| Battery (Standard) | 12 V, RC: 115 min, CCA 650, BCI Group 24 |
| Battery (Optional) | 12 V, RC: 115 min, CCA 1000, BCI Group 31A |
| Starter | 12 V, 11 Pinion Gear Teeth, 3.6 hp (2.7 kw) |

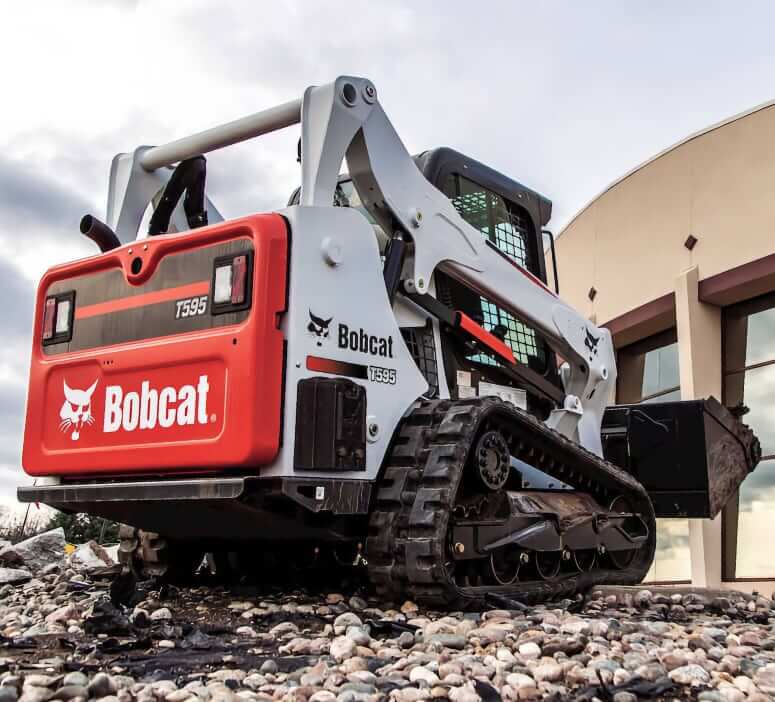

Power Train
| Type | Fully hydrostatic transmission |
| Number of Gears | Infinitely variable tandem hydrostatic piston pumps, driving two fully reversing hydrostatic motors |
| Max Speed (1-Speed, standard) | 7.1 mph (11.4 km/h) |
| Max Speed (2-Speed, optional) | 10.4 mph (16.7 km/h) |
| Parking Brake | Spring applied pressure release multiple-disc brake activated by manually operated switch on left instrument panel |
| Service Brakes | Two independent hydrostatic systems controlled by two hand operated steering levers or optional joystick(s) |
| Secondary Brake | One of the hydrostatic transmissions |

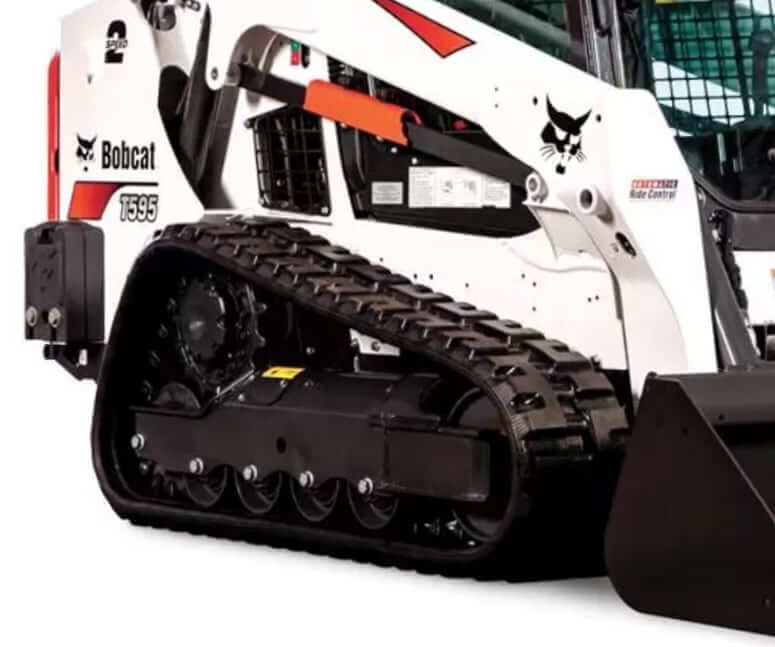

Undercarriage
| Length of Track on Ground | 54.1 in (1374 mm) |
| Track Width, Rubber (Standard) | 12.60 in (320 mm) |
| Track Width, Rubber (Optional) | 15.75 in (400 mm) |
| Ground Pressure, 320 mm Track | 5.1 psi (35.2 kPa) |
| Ground Pressure, 400 mm Track | 4.1 psi (28.3 kPa) |
| Lubrication | Grease cylinder track tensioning |
| Departure Angle | 28.8° |

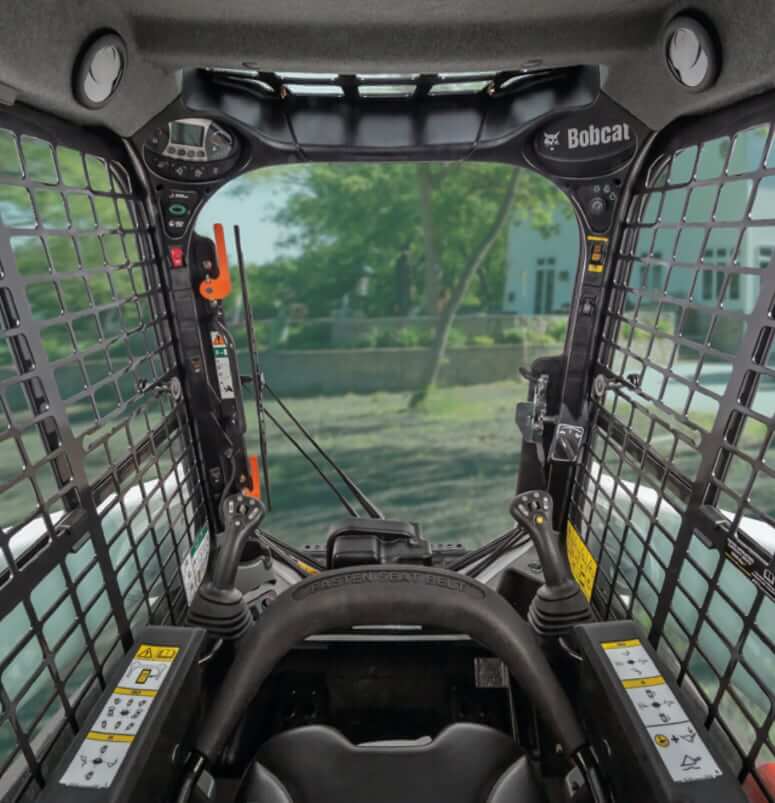

Operator Environment
| Cab Type | Tip-Up Cab |
| Pressurized Enclosed Cab | Optional |
| Cab HVAC | Optional Cab with HVAC |
| ROPS | SAE-J1040 and ISO 3471 |
| FOPS | SAE-J1043 and ISO 3449, Level I |
| Operator Seat | Mechanical suspension seat |
| Operator Seat (Optional) | Heated Cloth Air-Ride Seat |
| Working Lights | 2x Front + 2 Rear working lights |

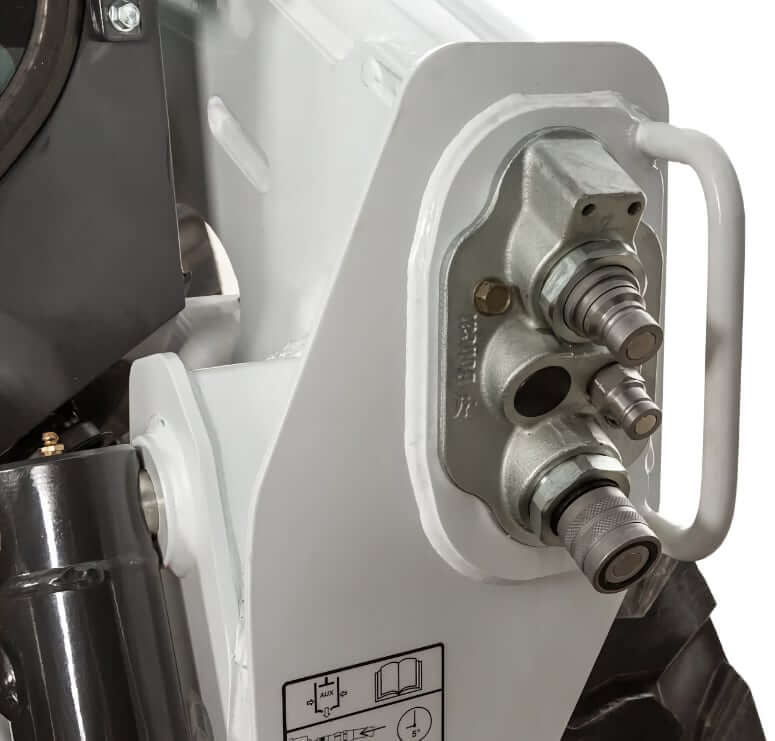

Hydraulic System
| Type | Open center |
| Main Pump Type | Engine driven gear pump |
| Standard Pump Capacity | 17.1 gal/min (64.7 L/min) |
| High Flow Pump Capacity | 26.7 gal/min (101.1 L/min) |
| Hydraulic System Pressure | 3500 psi (24100 kPa) |
| Hydraulic Filter | Replaceable beta 10 micron = 200, drop in element |
| Fluid Lines | SAE Standard tubelines, hoses, and fittings |
Service Refill Capacities
| Fuel Tank Capacity | 36.5 gal (138.2 L) |
| Engine Oil Capacity (w/ Filter) | 2.4 gal (9.2 L) |
| Cooling System Capacity | 2.8 gal (10.6 L) |
| Hydraulic System Capacity | 9.5 gal (36 L) |
| Hydraulic Tank Capacity | 2.0 gal (7.6 L) |
| Travel Reduction Unit (each) | 0.05 gal (0.18 L) |
Bobcat T595 Filters
| Filter | Part Number |
|---|---|
| Air Filter (Inner) | 7221934 |
| Air Filter (Outer) | 7286322 |
| Engine Oil Filter | 7343102 |
| Fuel Filter | 7400454 |
| Hydraulic Filter (w/ Two O-rings) | 7414581 |
| Hydraulic Oil Filter (This filter is the direct replacement of 6686926 and 7319444) | 46923666 |
| Hydraulic Oil Canister Cap | 7496373 |
| Hydraulic Oil Vent Cap | 6727475 |
| Fresh Air Filter | 7176099 |
| Cab Recirculating Air Filter | 7193354 |

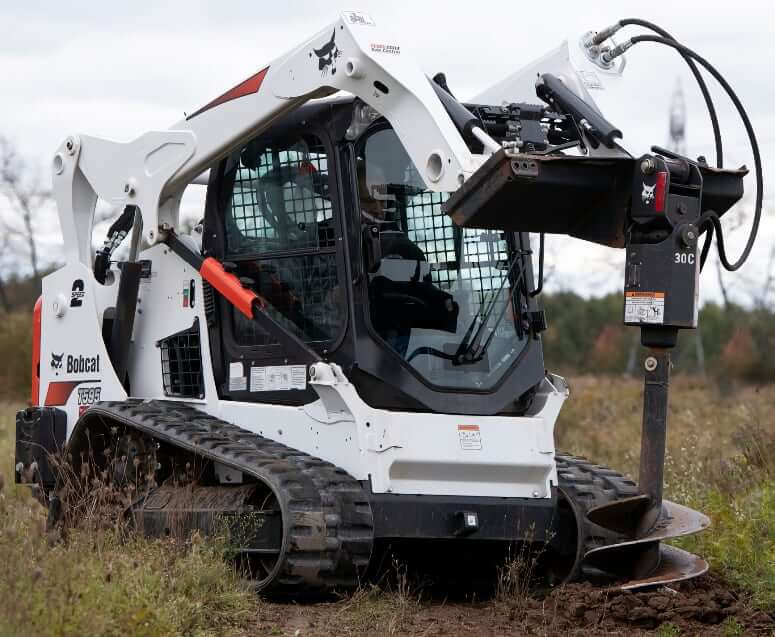

The Bobcat T595 Compact Track Loader is a powerful and versatile machine designed to tackle demanding tasks across construction, landscaping, agriculture, and snow management industries. Its compatibility with a wide array of factory-approved attachments makes it a go-to solution for operators who require adaptability without compromising performance.
From earthmoving essentials like standard-duty, heavy-duty, and severe-duty buckets to specialized tools like stump grinders, planers, and seeders, the T595 transforms to meet diverse jobsite demands.
Whether you’re grading with a box blade, trenching with a high-efficiency trencher, or clearing snow with a V-blade or snowblower, the T595 handles it with power and control. Additional attachments such as the angle broom, hydraulic breaker, and grapple options enhance productivity in material handling, site cleanup, and demolition. With support for precision tools like landscape rakes, silt fence installers, and soil conditioners, the Bobcat T595 stands out as a true multi-role track loader engineered for year-round performance.
