Boom
| Min Height @ Max Raise Angle | 32 ft in (9.7 m) |
| Max Height @ Max Raise Angle – No Jib | 150 ft in (45 m) |
| Max Height @ Max Raise Angle – With Jib | 199 ft in (60.7 m) |
| Max Lift Capacity | 1322774 lb (600000 kg) |
| Max Elevating Angle | 82 degrees |
| Number Of Sections | 6 |

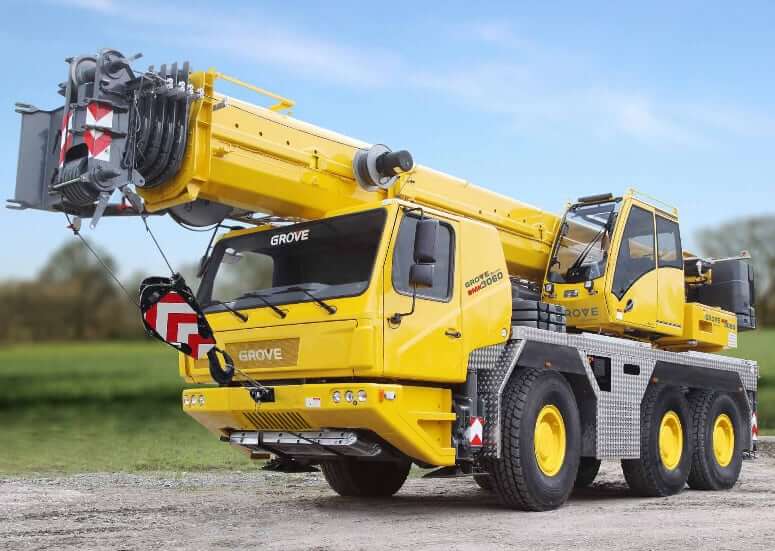

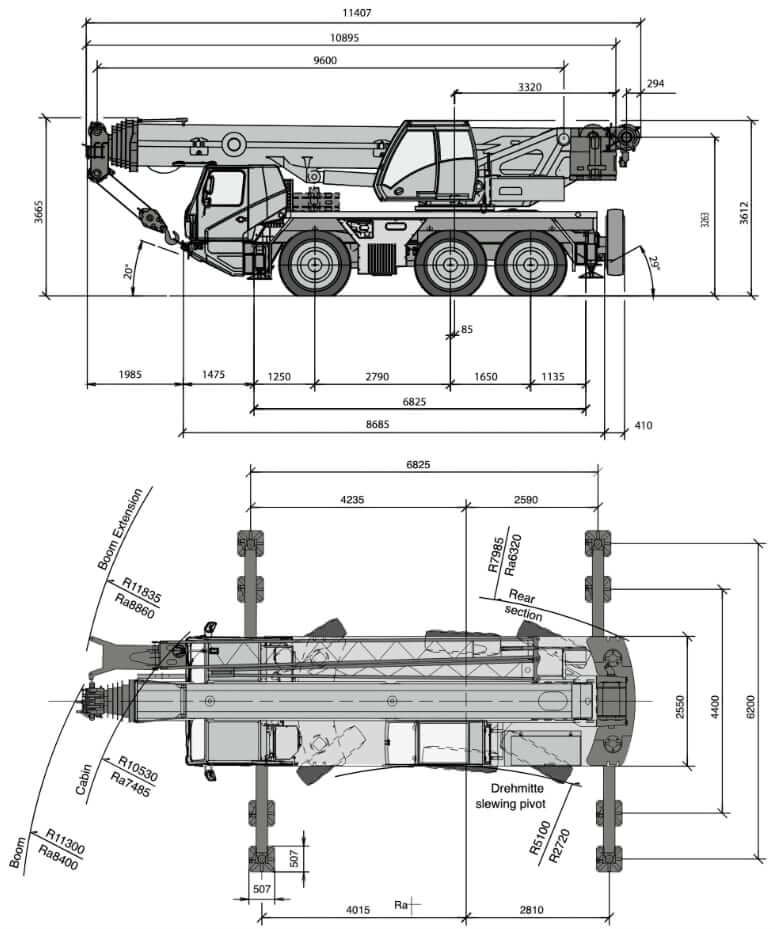

Dimensions
| Transport Length | 37.43 ft in (11407 mm) |
| Transport Height | 12.01 ft in (3665 mm) |
| Height to Top of Cab | 11.85 ft in (3612 mm) |
| Transport Width | 8.37 ft in (2550 mm) |
| Width with Outriggers | 14.44 ft in (4400 mm) |
| Width with Outriggers Extended | 20.35 ft in (6200 mm) |
| Carrier Length | 28.5 ft in (8685 mm) |
| Upper Structure Tail Swing Radius | 10.9 ft in (3320 mm) |
| Gradeability | 82 % |
Engine Details
| Engine Model | Mercedes Benz OM501LA | Cummins QSL9-C350 |
|---|---|---|
| Number Of Cylinders | 6 | 6 |
| Displacement | 729 cu in (11.9 L) | 543 cu in (8.9 L) |
| Gross Power | 355 hp (265 kw) | 350 hp (261 kw) |
| Power Measured @ | 1800 rpm | 2100 rpm |
| Max Torque | 1276 lb ft (1730 Nm) | 1100 lb ft (1491 Nm) |
| Torque Measured @ | 1080 rpm | 1500 rpm |
| Aspiration | Turbocharged and intercooled | Turbocharged and intercooled |
| Emission Level | Tier 3 / Euro 3 | Tier 4 Final |
Weight
| Operating Weight | 79366 lb (36000 kg) |
| Front Axle Total Weight | 26455 lb (12000 kg) |
| Mid Axle Total Weight | 26455 lb (12000 kg) |
| Rear Axle Total Weight | 26455 lb (12000 kg) |
| Counterweight | 16700 lb (7600 kg) |
| Counterweight (Additional) | 13200 lb (6000 kg) counterweight providing a total maximum counterweight of 29900 lb (13600 kg) |
Operational Specs
| Operating Voltage | 24 V |
| Alternator | 100 amps, 28 V, 3-phase alternator |
| Battery | 2x 12 V, 170 Ah |
| Tire Size | 385/95 R25 (14.00 R25); 445/95 R25 (16.00 R25) – Carrier width 2.75 m; 525/80 R25 (20.5 R25) – Carrier width 2.85 m |
Transmission
| Transmission Type | ZF-AS TRONIC automatic transmissiom. Single speed transfer case with inter-axle differential lock |
| Number Of Forward Gears | 12 |
| Number Of Reverse Gears | 2 |
| Max Speed – Forward | 49.8 mph (80 km/h) |
| Axles | 3 axle lines. Axle lines 1, 2 and 3 steered, 2 and 3 driven |
| Drive | 6x4x6 |
| Suspension | MEGATRAK® all wheels with independent hydro pneumatic suspension and hydraulic lockout. Longitudinal and transverse level control with automatic on-highway leveling system |
| Service Brake | Pneumatic dual circuit, acting on all wheels, air dryer. Anti-lock braking system (ABS) |
| Permanent Brake | Exhaust brake and constant throttle brake |
| Parking Brake | Pneumatically operated spring-loaded brake, acting on 1st and 3rd axle lines. |
Hydraulic System
| Type | 2 separate pump circuits operating in an open center circuit. Thermostatically controlled oil cooler |
| Hydraulic Pumps | 1 axial piston variable displacement pump (load sensing) + 1 geared constant delivery pump for slewing |
Service Refill Capacities
| Engine Model | Mercedes Benz OM501LA | Cummins QSL9-C350 |
|---|---|---|
| Fuel Tank Capacity | 105 gal (400 L) | 105 gal (400 L) |
| Engine Oil Capacity | 9 gal (34 L) | 6 gal (22.7 L) |
| Cooling System Capacity | 10.8 gal (41 L) | 7.7 gal (29.3 L) |
| Hydraulic System Capacity (Upper Structure) | 159 gal (600 L) | 159 gal (600 L) |
