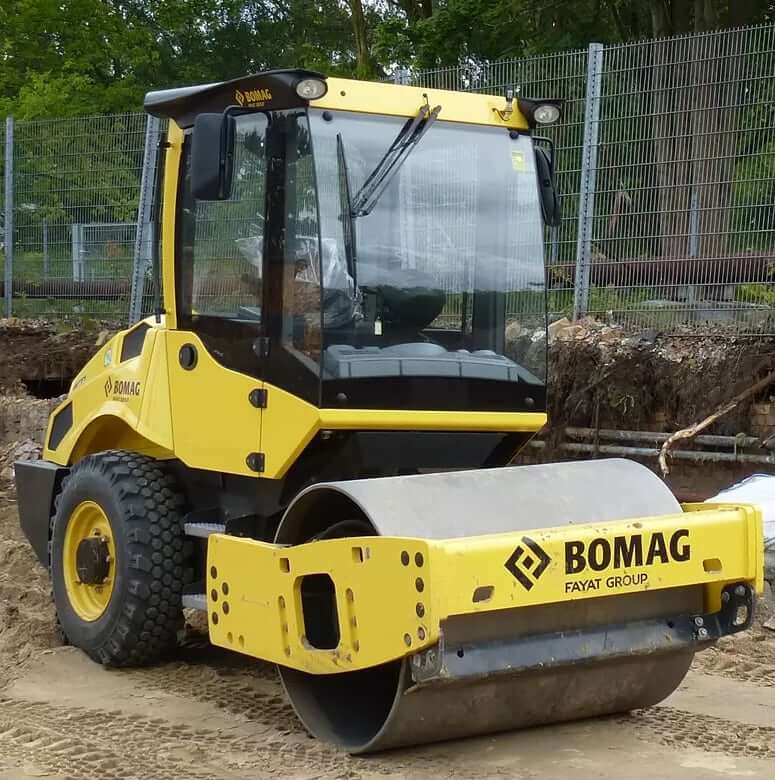

Drum
| Drum Diameter | 42 in (1058 mm) |
| Drum Width (Working Width) | 56 in (1426 mm) |
| Drum Thickness | 0.8 in (20 mm) |
| Static Linear Load | 98 lb/in (17.5 kg/cm) |
| Vibration Frequency 1 | 1860 vpm (31 Hz) |
| Vibration Frequency 2 | 2100 vpm (35 Hz) |
| Amplitude 1 | 0.067 in (1.70 mm) |
| Amplitude 2 | 0.031 in (0.80 mm) |
| Centrifugal Force 1 | 17985 lbf (80 kN) |
| Centrifugal Force 2 | 12589 lbf (56 kN) |

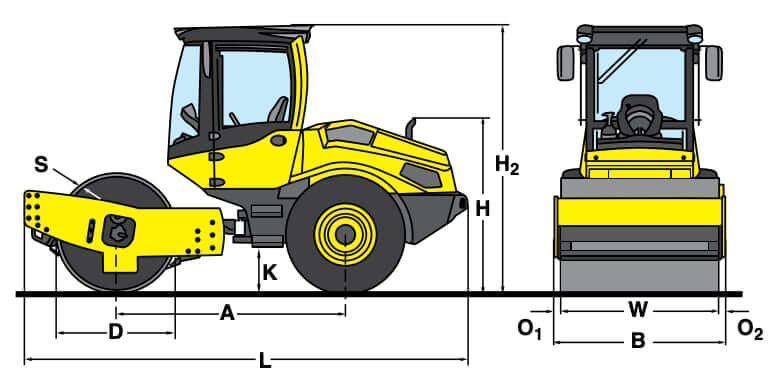

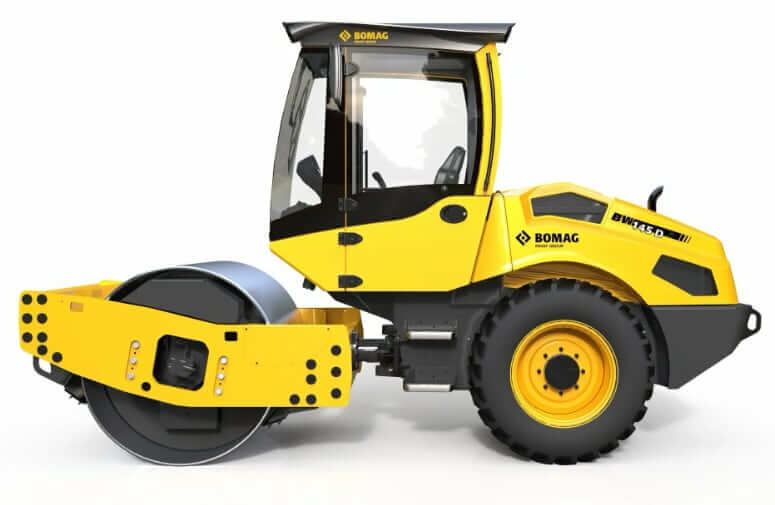

Dimensions
| A. Wheelbase | 89 in (2250 mm) |
| B. Overall Width | 61 in (1560 mm) |
| D. Drum Diameter | 42 in (1058 mm) |
| H. Height to Exhaust Pipe | 62 in (1570 mm) |
| H2. Height to Top of ROPS | 107 in (2720 mm) |
| K. Ground Clearance | 12.6 in (320 mm) |
| L. Overall Length | 172 in (4370 mm) |
| O. Overhang | 2.6 in (65 mm) |
| S. Drum Thickness | 0.8 in (20 mm) |
| W. Drum Width | 56 in (1426 mm) |
| Length w/ Tamper Transport Bracket (optional) | 186 in (4734 mm) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Deutz |
| Engine Model | Deutz TD 2.9 L04 |
| Displacement | 177 cu in (2.9 L) |
| Bore | 3.6 in (92 mm) |
| Stroke | 4.3 in (110 mm) |
| Gross Horsepower | 74 hp (55.4 kw) |
| Power Measured @ | 2400 rpm |
| Peak Torque | 192 lb ft (260 Nm) |
| Torque Measured @ | 1600 rpm |
| Low Idle | 900 rpm |
| High Idle | 2600 rpm |
| Fuel Consumption | 0.37 lb/hph (225 g/kWh) |
| Aspiration | Turbocharged |
| Aftertreatment | DOC / DOC+DPF |
| Emission Standards | US EPA Tier 4 Final + EU Stage IIIB / Stage V |
Operational Specs
| Max Operating Weight | 12346 lb (5600 kg) |
| Operating Weight (Cab w/ ROPS) | 10472 lb (4750 kg) |
| Front Axle Load (Drum) | 5490 lb (2490 kg) |
| Rear Axle Load (Wheels) | 4982 lb (2260 kg) |
| Max Operating Weight | 12346 lb (5600 kg) |
| Working Width | 56.1 in (1426 mm) |
| Operating Voltage | 12 V |
| Battery | 12 V |
| Noise Level (interior) | 75 dB(A) |
| Noise Level (exterior) | 106 dB(A) |
| Operator Station | Cab (ROPS / FOPS) / Canopy (ROPS / FOPS) |
Steering System
| Type | Hydraulic articulated steering |
| Steering Angle | ±35° |
| Oscillating Angle | ±12° |
| Rear Tire Size | 12.5-20 12PR |
| Rear Tire Air Pressure | 21.8 psi (150 kPa) |
| Track Radius (inner) | 114 in (2890 mm) |
Transmission
| Type | Hydrostatic transmission |
| Number of Gears | 4 ranges |
| Max Travel Speed | 5.6 mph (9 km/h) |

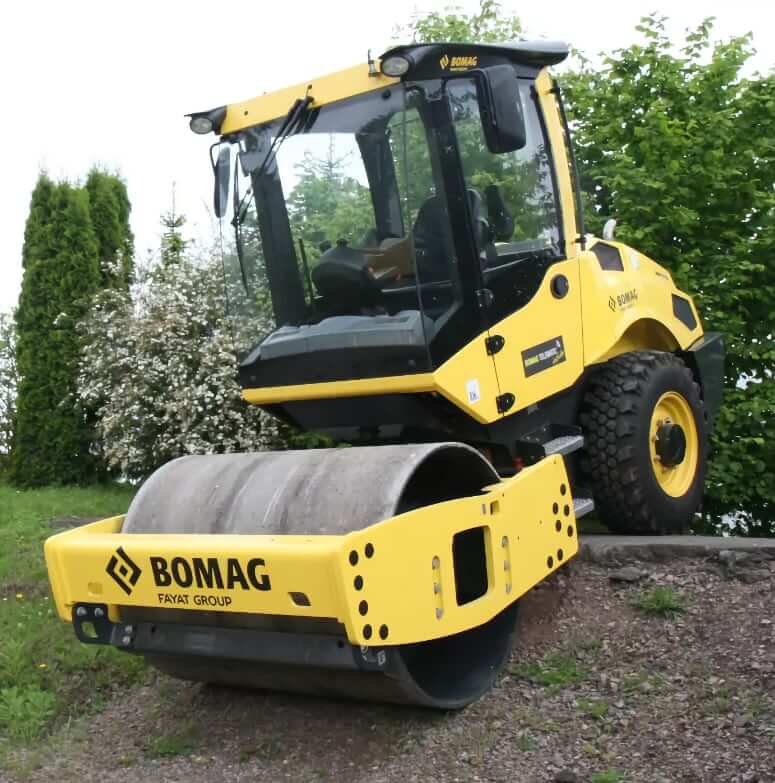

| Max Gradeability w/ Vibration | 48% |
| Max Gradeability w/o Vibration | 51% |
| Service Brakes | Hydrostatic |
| Parking Brake | Hydro-mechanical |
| Rear Axle | Rear axle with (SAHR) brakes |
| Rear Axle Differential | No-Spin rear differential |

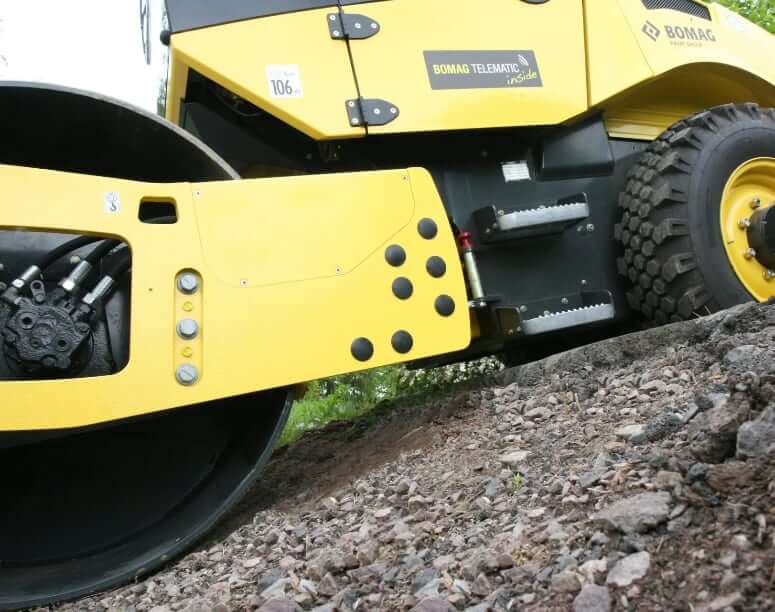

Hydraulic System
| Mineral Hydraulic Oil | HV 46 (ISO). When refilling or changing oil, use only hydraulic oil type HVLP according to DIN 51524, or type HV according to ISO 6743/4. |
| Bio-degradable Oil | Panolin HLP Synthetic 46 or Plantohyd 46 S hydraulic oil |
| Hydraulic Oil Filter | Bomag 07993108 |
Service Refill Capacities
| Fuel Tank Capacity | 29 gal (110 L) |
| Engine Oil Capacity (w/ filter) | 2.8 gal (11 L) |
| Cooling System Capacity | 3.4 gal (13 L) |
| Hydraulic System Capacity (w/ tank) | 16 gal (60 L) |

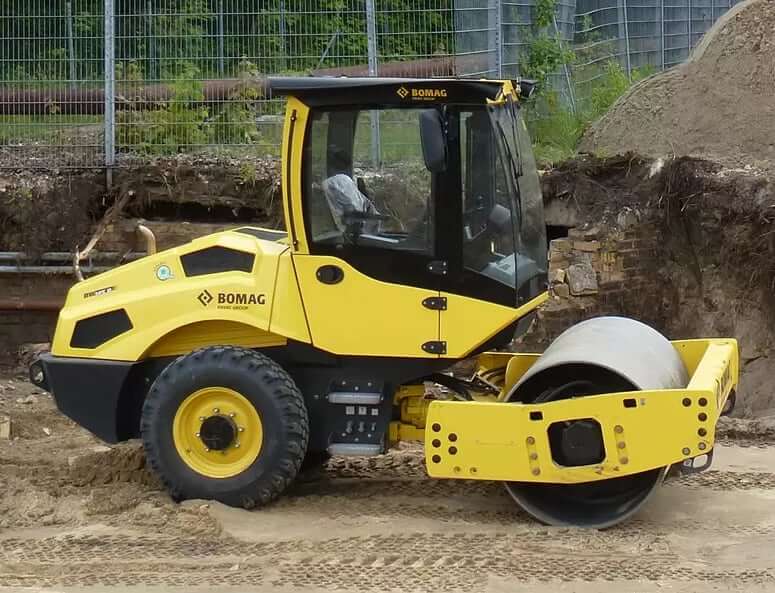

| Rear Axle Differential Oil Capacity | 2 gal (7.5 L) |
| Rear Axle Wheel Hub Capacity (each) | 0.18 gal (0.7 L) |
| Exciter Housing Fluid Capacity (each) | 0.48 gal (1.8 L) |
Recommended Soil Layer / Lift Thickness
| Bomag BW145D-5 | Compaction Output | Layer Thickness |
|---|---|---|
| Gravel, Sand | 209 – 419 yd3/h (160 – 320 m3/h) | 16 in (406 mm) |
| Mixed Soils | 157 – 314 yd3/h (120 – 240 m3/h) | 12 in (305 mm) |
| Silt, Clay | 78 – 157 yd3/h (60 – 120 m3/h) | 6 in (152 mm) |
