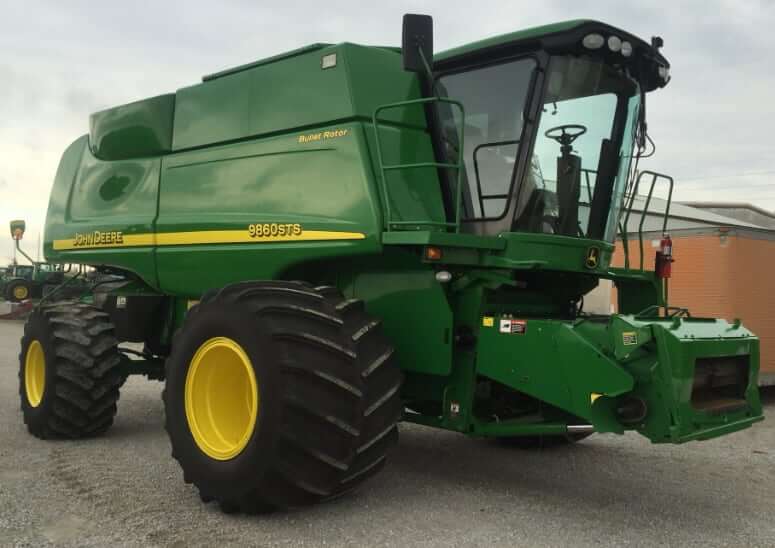

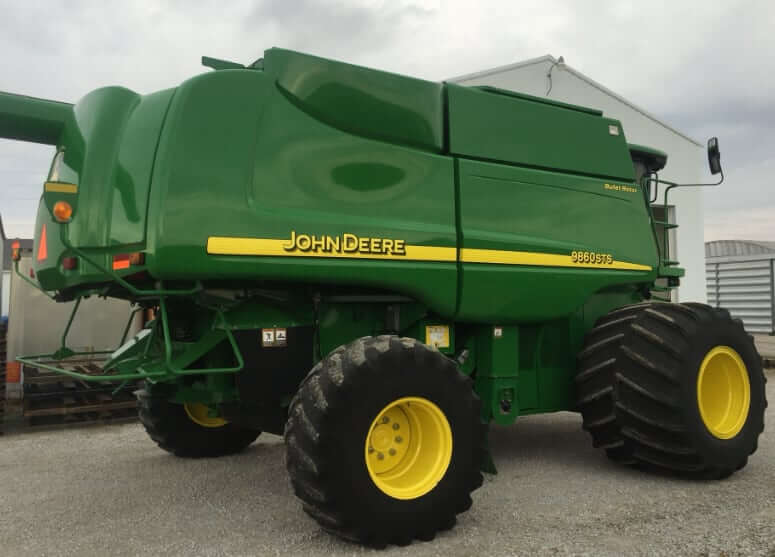

Dimensions
| Overall Length (w/o head, w/ auger) | 34 ft 9 in (10650 mm) |
| Overall Length (w/o head, w/o auger) | 24 ft 9 in (7620 mm) |
| Wheelbase | 11 ft 6 in (3530 mm) |
| Front Track Width | 10 ft (3050 mm) |
| Rear Track Width | 10 ft 1 in (3090 mm) |
| Overall Height | 14 ft 9 in (4530 mm) |
| Height to Top of Cab | 12 ft 4 in (3770 mm) |
| Ground Clearance | 1 ft 5 in (470 mm) |
| Rear Wheel Tread Width | 10 ft 10 in (3300 mm) |
| Turning Radius (Non-Powered Axles) | 25 ft 4 in (7730 mm) |
| Turning Radius (Powered Axles) | 26 ft 9 in (8190 mm) |
Feeding
| Conveyor Width | 55 in (1397 mm) |
| Conveyor Length | 68 in (1727 mm) |
| Conveyor Speed | 520 rpm |
Threshing
| Rotor Diameter | 29.6 in (750 mm) |
| Rotor Length | 123.3 in (3130 mm) |
| Rotor Speed – Low | 210 rpm |
| Rotor Speed – High | 1000 rpm |
| Concave Area | 1705 in2 (1.1 m2) |
Separating
| Separator Type | Rotary |
| Separating Area | 2387 in2 (1.6 m2) |
| Discharge Grate Area | 558 in2 (0.4 m2) |
Cleaning System
| Total Cleaning Area | 7099 in2 (4.6 m2) |
| Cleaning Fan Speed – Low | 500 rpm |
| Cleaning Fan Speed – High | 1200 rpm |
Grain Handling
| Grain Tank Capacity | 300 bu (10570 L) |
| Unloading Auger Length | 22.7 ft in (6.9 m) |
| Unloading Discharge Height | 14.4 ft in (4.4 m) |
| Average Unloading rate | 198 bu/min (6977 L/min) |
| Maximum Unloading rate | 216 bu/min (7612 L/min) |
Engine Details
| Number of Cylinders | 6 |
| Engine Make | John Deere |
| Engine Model | John Deere 6125HH |
| Displacement | 762.8 cu in (12.5 L) |
| Bore | 5.0 in (127 mm) |
| Stroke | 6.5 in (150 mm) |
| Net Power | 375 hp (280 kw) |
| Power Boost Power | 413 hp (308 kw) |
| Power Measured @ | 2200 rpm |
| Air Cleaner | Dry-type air filter with safety element |
| Aspiration | Turbocharged, air-to-air aftercooled |
Operational Specs
| Operating Weight (Corn Combine, w/o header) | 33577 lb (15228 kg) |
| Operating Weight (Rice Combine, w/o header) | 35138 lb (15936 kg) |
| Operating Voltage | 12 V |
| Alternator | 125 amps |
| Front Tire Size | 800/65R32 |
| Rear Tire Size | 18.4-26 R1 (18.4-30 R2) |

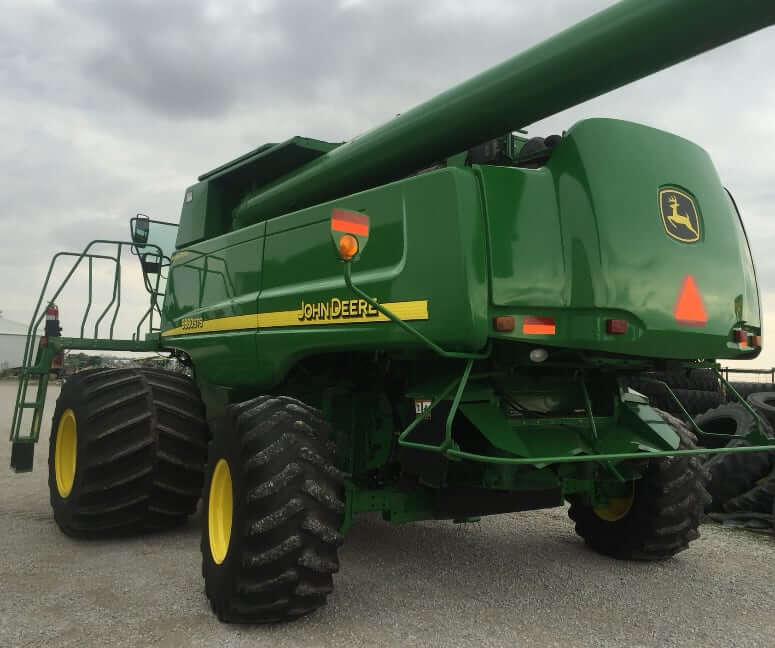

Transmission
| Type | Hydrostatic transmission |
| Number of Gears | 3 |
| Max Work Speed (field) | 5 mph (8 km/h) |
| Max Travel Speed (road) | 20 mph (32 km/h) |
| Service Brakes | Hydraulic shoe brakes |
| Parking Brake | Manual engage and disengage parking brake pedals |
Service Refill Capacities
| Fuel Tank Capacity | 250 gal (945 L) |
| Engine Oil Capacity (SN: -715600) | 7.8 gal (29.5 L) |
| Engine Oil Capacity (SN: 715601-) | 11.1 gal (42 L) |
| Cooling System Capacity (SN: -715600) | 14.5 gal (55 L) |
| Cooling System Capacity (SN: 715601-) | 17.9 gal (67.7 L) |
| Transmission Oil Capacity | 2.5 gal (9.6 L) |
| Final Drives Fluid Capacity | 2.1 gal (8 L) |
| Hydraulic System Capacity (SN: -715600) | 9 gal (34 L) |
| Hydraulic System Capacity (SN: 715601-) | 9.2 gal (35 L) |
