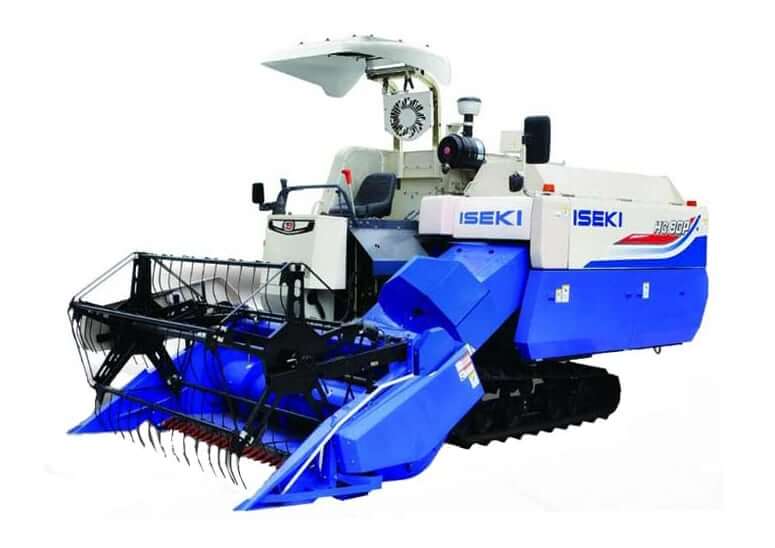

Iseki HC80P Hopper Combine

Contents

Dimensions
Reaping
Threshing
Engine Details
Traveling System
Operational Specs

Dimensions

Overall Length	194.9 in (4950 mm)
Overall Height	115.9 in (2945 mm)
Overall Width	89.4 in (2272 mm)

Reaping

Reel Diameter	37.4 in (950 mm)
Reaping Width	78.7 in (2000 mm)
Feeding Auger Diameter	19.7 in (500 mm)
Tine	Coil spring

Threshing

Threshing Method	Axial flow
Drum Diameter	24.4 in (620 mm)
Drum Width (Rotor Length)	70.9 in (1800 mm)
Drum Type	Small Diameter
Drum Cover	Half-cylindical
Concave Type	Wire mesh
Grain Storage	Hopper
Grain Unloading	Manual

Engine Details

Number Of Cylinders	4
Engine Make	Iseki
Engine Model	Iseki E4DE-TDA02
Power	80 hp (58.8 kw)
Power Measured @	2500 rpm
Displacement	180 cu in (2.95 L)
Aspiration	Turbocharged

Traveling System

Crawler Width	19.7 in (500 mm)
Crawler Grounding Length	66.9 in (1700 mm)
Tread	47.2 in (1200 mm)
Average Contact Pressure	2.64 psi (18.2 kPa)
Working Speed (Low)	0-2.2 mph (0-3.5 km/h)
Working Speed (High)	0-3.5 mph (0-5.6 km/h)
Travel Speed	0-4.4 mph (0-7 km/h)

Operational Specs

Operating Weight	6989 lb (3170 kg)
Fuel Tank Capacity	23.8 gal (90 L)
Grain Tank Capacity	14.19 bu (500 L)
