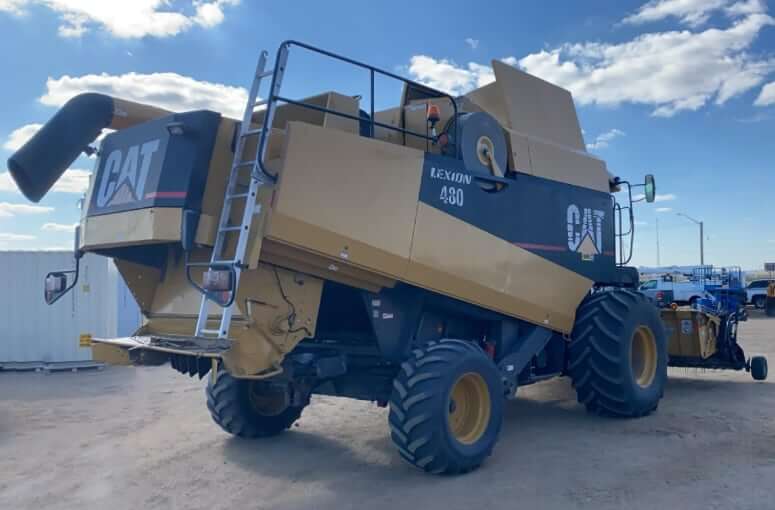

CAT Lexion 480 Combine

Contents

Dimensions
Capacities
Threshing
Separating
Engine Details
Transmission
Operating Specs

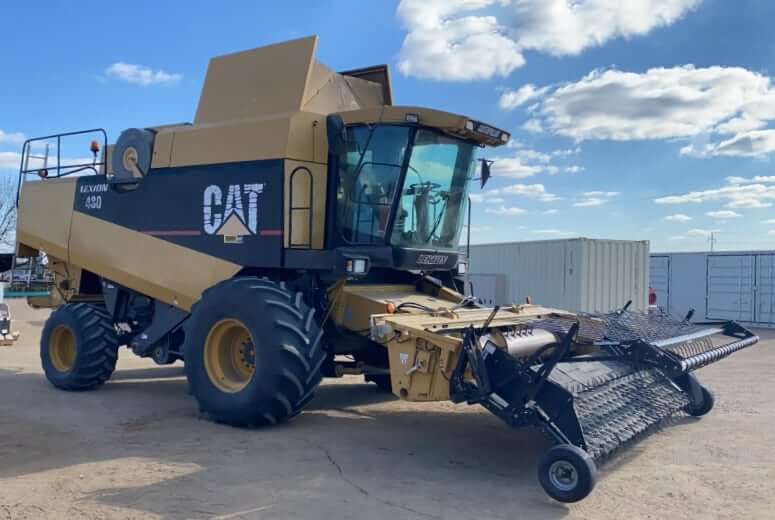

Dimensions

Combine Height	12′ 9″ (3870 mm)
Operating Length	30′ (9136 mm)
Shipping Length	29′ 2″ (8886 mm)
Outside Width	16′ 11″ (5140 mm)
Width to Center of Tread	15′ (4565 mm)

Capacities

Cleaning Area	9286 in2 (6 m2)
Grain Tank Capacity	280 bu (9867 L)

Threshing

Threshing System	APS
Cylinder Width	67 in (1701.8 mm)
Total Concave Area	2677 in2 (1.8 m2)

Separating

Separating Area	9641 in2 (6.3 m2)
Separation System	Rotary
Number Of Rotors	Two

Engine Details

Number Of Cylinders	6
Engine Make	Caterpillar
Engine Model	Cat 3176C ATAAC
Displacement	629 cu in (10.3 L)
Gross Power	365 hp (272 kw)
Power Measured @	2100 rpm
Aspiration	Turbocharged and aftercooled ATAAC
Emission Standards	US EPA Tier 2

Transmission

Type	Hydrostatic Variable 3-speed Transmission
Front Tire Size	24.5R32 170 A8 Radial; 800/65 167 A8 Radial; 800/65 172 A8 Radial; 18.4R38 Radial Duals; 20.8R42 Radial Duals; 35.5L32 12PR (R2); 73-44.00-32 12PR
Rear Tire Size	28LR26; 16.5/85-24 8PR; 500/60-26.5 8PR; 600/55-26.5 8PR; 480/70 R28

Operating Specs

Fuel Tank Capacity	170 gal (650 L)
Transport Weight	35000 lb (15876 kg) with 30.5R-32 tires
Headers	Corn heads; grain, flexible, rice, pickup and draper headers
