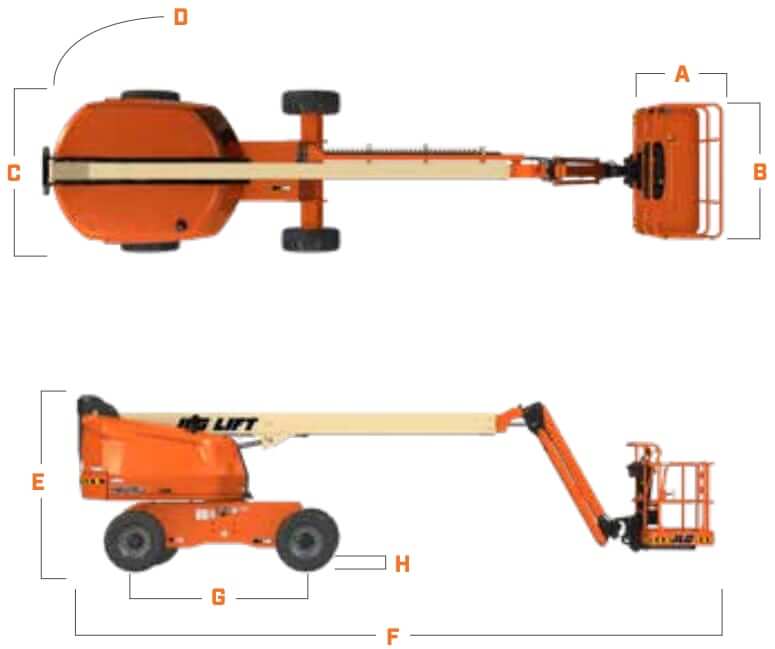

Dimensions
| A. JLG 460SJ Platform Width | 36 in (910 mm) |
| B. Platform Length | 96 in (2440 mm) |
| C. Machine Width | 90.8 in (2310 mm) |
| D. Tailswing | 34 in (860 mm) |
| E. Machine Height | 97 in (2470 mm) |
| F. Machine Length | 299 in (7600 mm) |
| G. Wheelbase | 93.5 in (2370 mm) |
| H. Ground Clearance | 12.1 in (310 mm) |

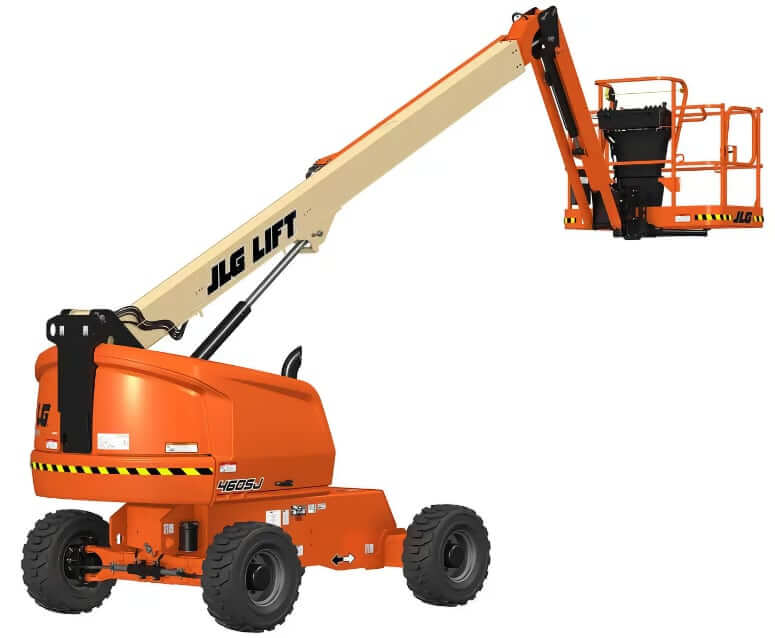

Weight
| Operating Weight | 16600 lb (7530 kg) |
| Gross Machine Weight | 16370 lb (7425 kg) |
| Counterweight | 2700 lb (1227.3 kg) |
| Max. Ground Bearing Pressure | 60 psi (414 kPa) |

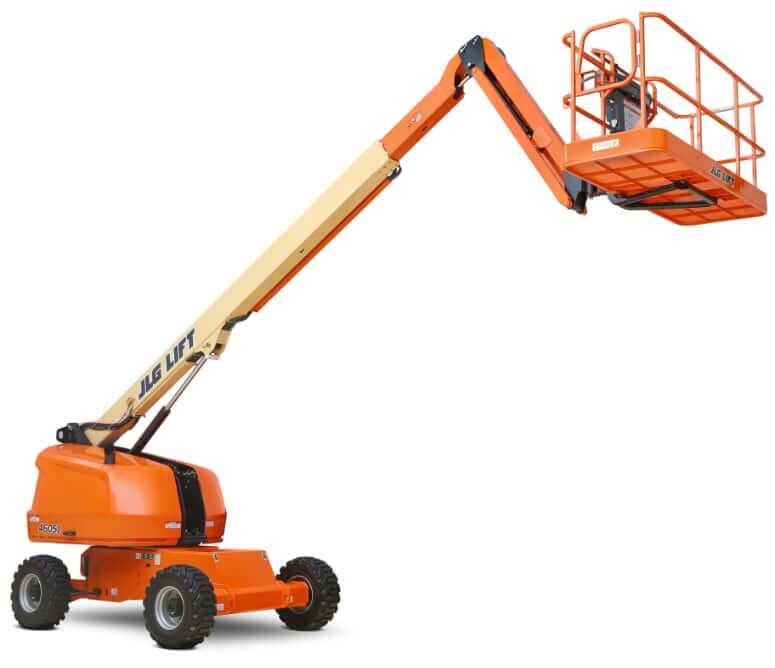

Platform

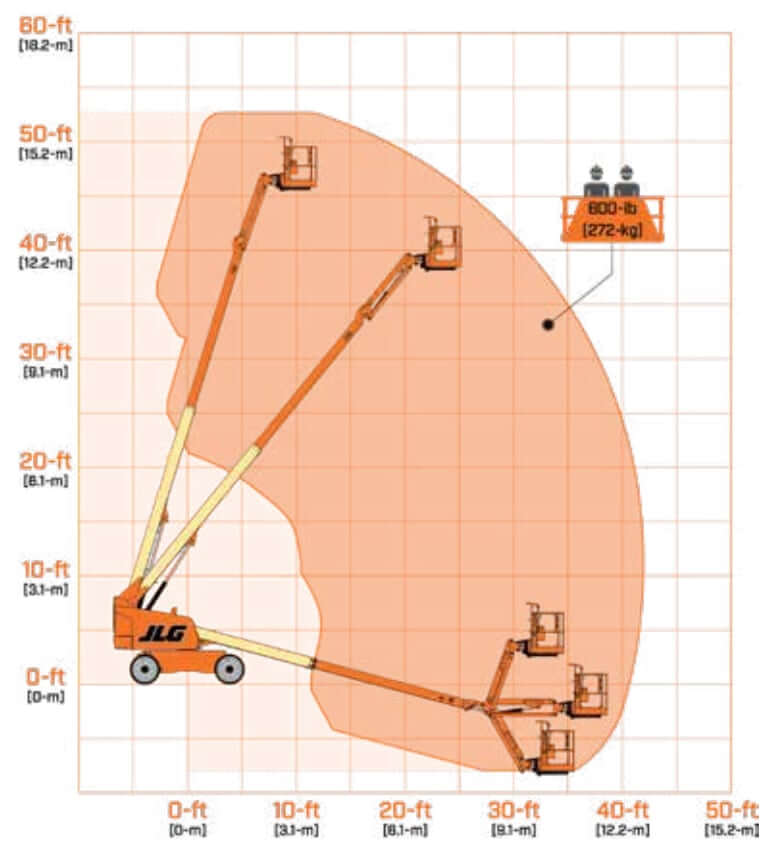

| Max Platform Height | 46 ft (14050 mm) |
| Max Horizontal Reach | 39 ft (12000 mm) |
| Max Platform Capacity | 600 lb (272 kg) |
| Swing | 360° Continuous |
| Platform Rotation | 180° |
| Jib Length | 6 ft (1830 mm) |
| Jib Range of Articulation | 130° (+70° / -60°) |
Engine Details
| Engine Model | Deutz D2.9 L4 | Kubota WG2503 |
|---|---|---|
| Number of Cylinders | 4 | 4 |
| Fuel Type | Diesel | Gasoline / LPG |
| Displacement | 177 cu in (2.9 L) | 152 cu in (2.5 L) |
| Bore | 3.6 in (92 mm) | 3.5 in (88 mm) |
| Stroke | 4.3 in (110 mm) | 4 in (102.4 mm) |
| Gross Horsepower | 49 hp (36.4 kw) | 61 hp (45.5 kw) |
| Power Measured @ | 2600 rpm | 2700 rpm |
| Peak Torque | 108 lb ft (147 Nm) | 126 lb ft (171 Nm) |
| Torque Measured @ | 1600 rpm | 1800 rpm |
| Aspiration | Naturally aspirated | Naturally aspirated |
| Emission Standards | US EPA Tier 4 Final + EU Stage IIIB | US EPA Tier 2 + CARB Tier 3 + EU Stage V |
Fuel Consumption
| Kubota WG2503 | In Drive | @ Idle |
|---|---|---|
| Fuel Consumption (Gasoline) | 2.45 gal/h (9.26 L/h) | 0.64 gal/h (2.43 L/h) |
| Fuel Consumption (LPG) | 2.68 gal/h (10.14 L/h) | 0.66 gal/h (2.52 L/h) |
Operational Specs
| Operating Weight | 16600 lb (7530 kg) |
| Gross Machine Weight | 16370 lb (7425 kg) |
| Platform Capacity | 600 lb (272 kg) |
| Counterweight | 2700 lb (1227.3 kg) |
| Operating Voltage | 12 V |
| Alternator | 55 amps |
| Battery | 12 V, CCA 1000, Group 31 |
| Accessory Packages | SkyPower / SkyWelder / SkyGlazier |

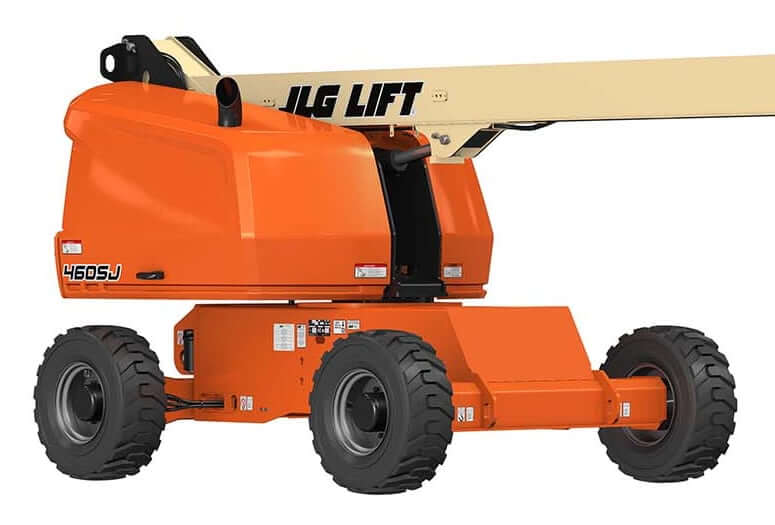

Chassis
| TransmissionType | Hydrostatic transmission |
| Drive | 4WD |
| Max Travel Speed | 4.25 mph (6.8 km/h) |
| Axle Oscillation | 4 in (100 mm) |
| Gradeability | 45% |
| Turning Radius, Inside | 79 in (2.0 m) |
| Turning Radius, Outside | 189 in (4.8 m) |
Tires
| Tire Size | Type |
|---|---|
| 12×16.5 (Standard) | Foam Filled |
| 12×16.5 (Optional) | Foam Filled Non-Marking |
| 14×17.5 (Optional) | Foam Filled |
| 33/16LLx16.1 (Optional) | Foam Filled, Turf & Sand |
Hydraulic System
| Type | Load Sensing System |
| Pump Type | Variable displacement pump |
| Pump Flow Capacity | ≅10 gal/min (38 L/min) |
| Max System Pressure | 3000 psi (20684 kPa) |
| Arctic Package | Hydraulic Hoses (Drive And Steer Only), Hydraulic Tank Heater, Arctic Hydraulic Oil |
Hydraulic Oil
| Hydraulic System Operating Temperature Range | SAE Viscosity Grade |
|---|---|
| +0° to + 180° F (-18° to +83° C) | 10W |
| +0° to + 210° F (-18° to +99° C) | 10W-20, 10W-30 |
| +50° to + 210° F (+10° to +99° C) | 20W-20 |
Service Refill Capacities
| Fuel Tank Capacity | 22 gal (83.3 L) |
| Propane Tank (optional) | 43.5 lb (38.4 L) |
| Hydraulic Tank Capacity | 32.5 gal (123 L) |
| Hydraulic System Capacity (w/ tank) | 40 gal (151.4 L) |
| Drive Hub Capacity (each) | 0.18 gal (0.7 L) |
| Drive Brake Capacity | 0.21 gal (0.8 L) |
| Engine Oil Capacity (Kubota WG2503 w/ filter) | 2.5 gal (9.5 L) |
| Engine Oil Capacity (Deutz D2.9 L4 w/ filter) | 2.4 gal (8.9 L) |
| Cooling System Capacity (Kubota WG2503) | 1.4 gal (5.4 L) |
| Cooling System Capacity (Deutz D2.9 L4 w/ radiator) | 3.2 gal (12.1 L) |

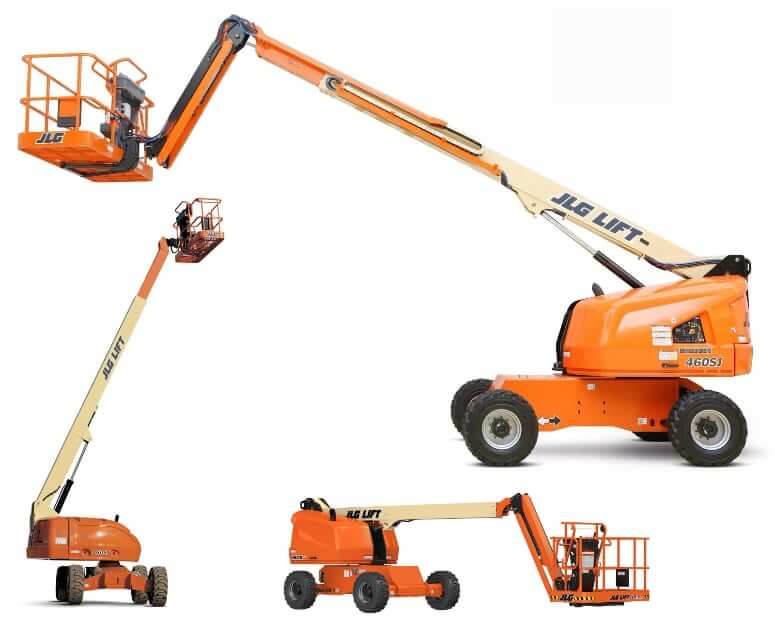

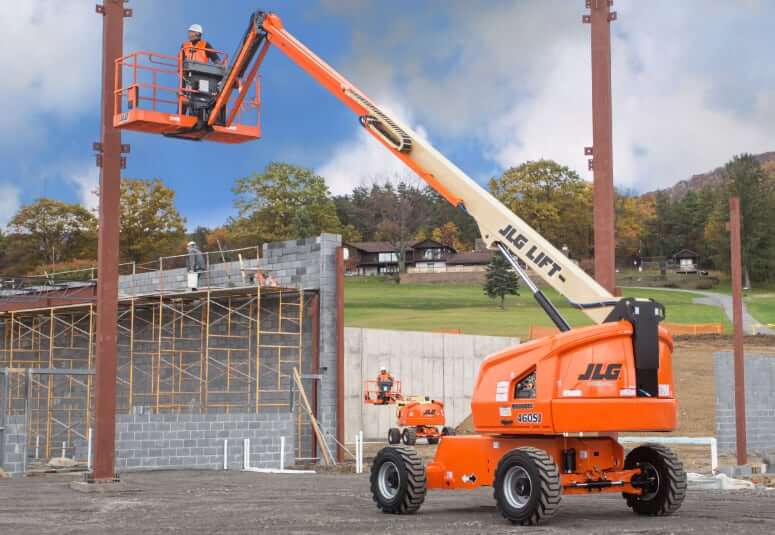

The JLG 460SJ Telescopic Boom Lift is a versatile and high-performance aerial work platform designed to deliver exceptional reach and stability for a wide range of construction, maintenance, and industrial applications. Available with either a Deutz D2.9 L4 diesel engine or a Kubota WG2503 gasoline/LPG engine, the 460SJ offers flexible powertrain options to meet diverse operational requirements.
This boom lift features a straight telescopic boom for extended horizontal outreach and a maximum platform height of approximately 46 feet, enabling operators to access hard-to-reach areas efficiently. Built for durability and productivity, the 460SJ combines rugged construction, smooth operation, and ease of service to perform reliably in demanding environments.
