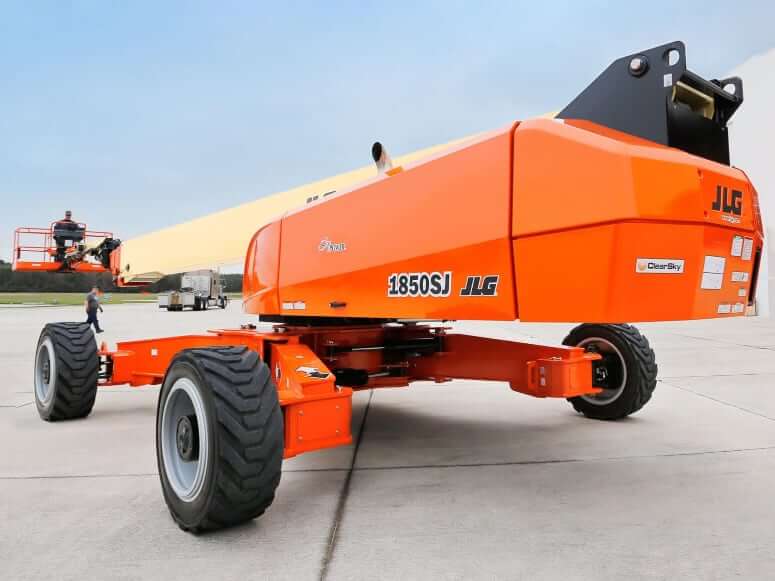

Dimensions
| Platform Width | 36 in (910 mm) |
| Platform Length | 96 in (2440 mm) |
| Machine Width (Axles Extended) | 197 in (5000 mm) |
| Machine Width (Axles Retracted) | 98 in (2490 mm) |
| Tailswing | 91 in (2320 mm) |
| Machine Height | 120 in (3050 mm) |
| Machine Length (Stowed) | 574 in (14570 mm) |
| Machine Length (Overall) | 766 in (19450 mm) |
| Wheelbase | 206 in (5220 mm) |
| Ground Clearance (Axle) | 13.5 in (340 mm) |
| Ground Clearance (Chassis) | 16.2 in (410 mm) |

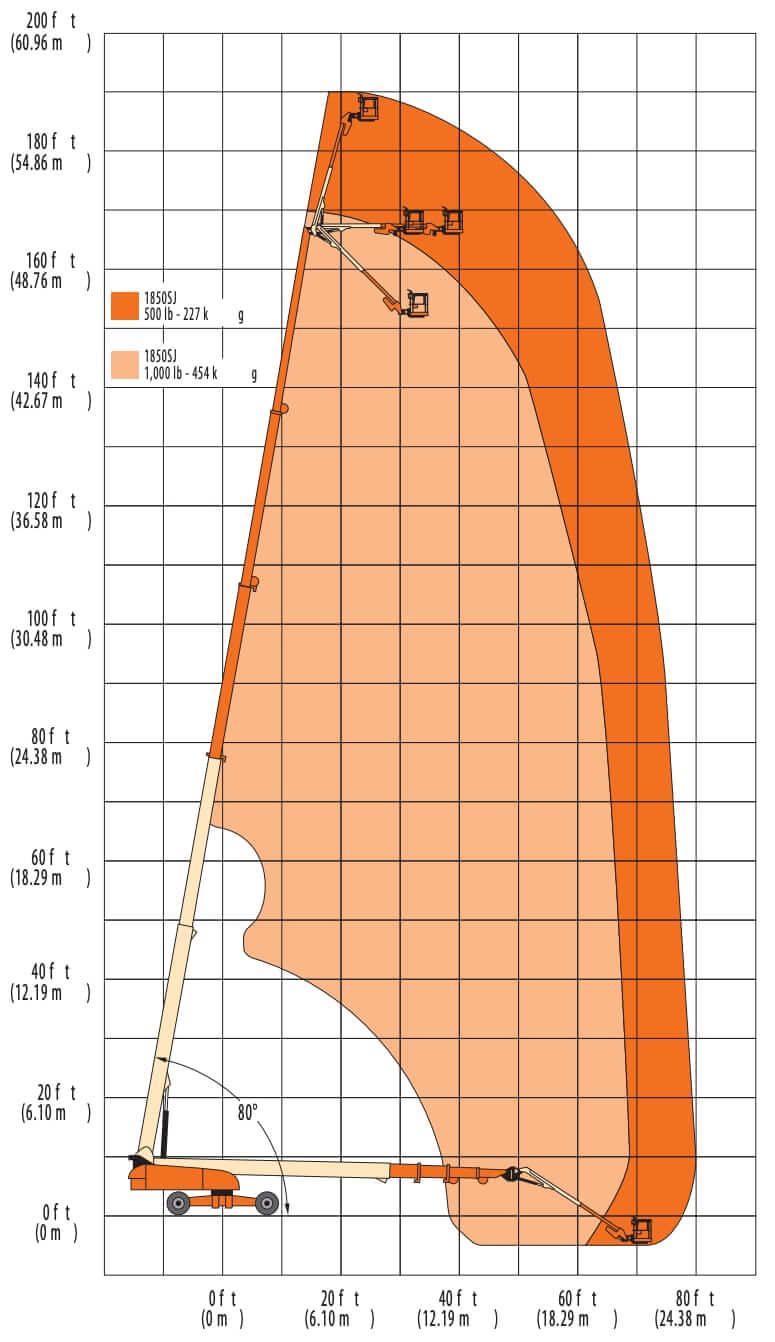

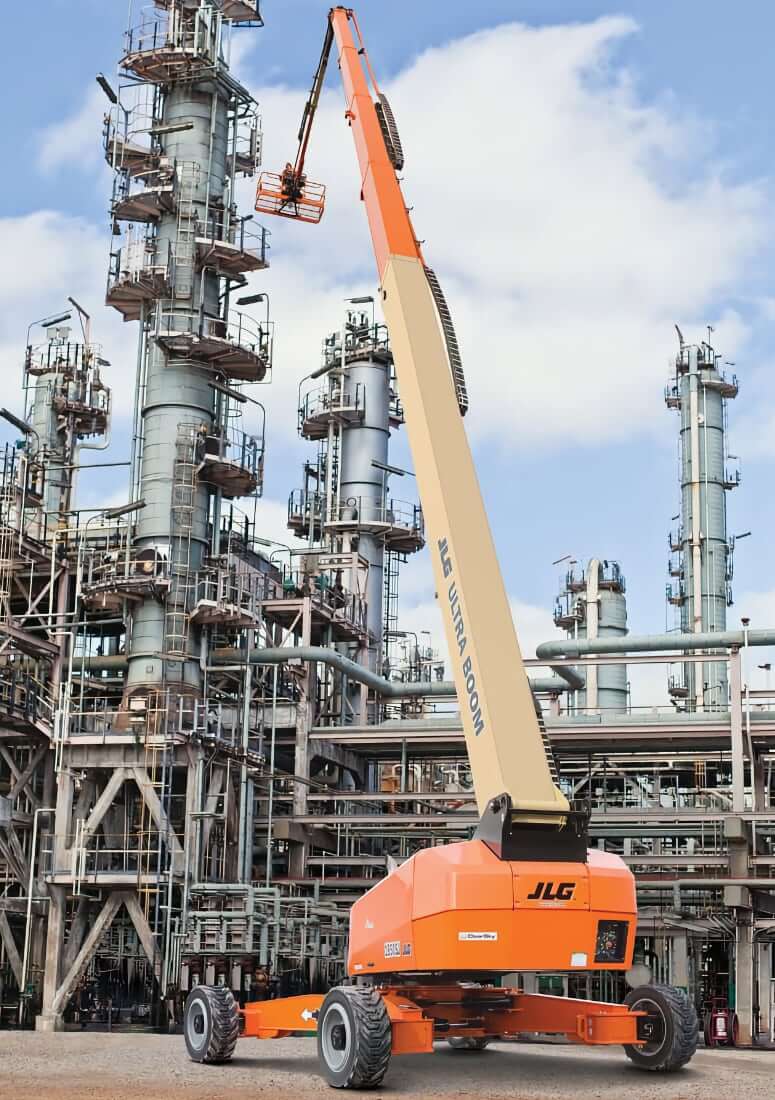

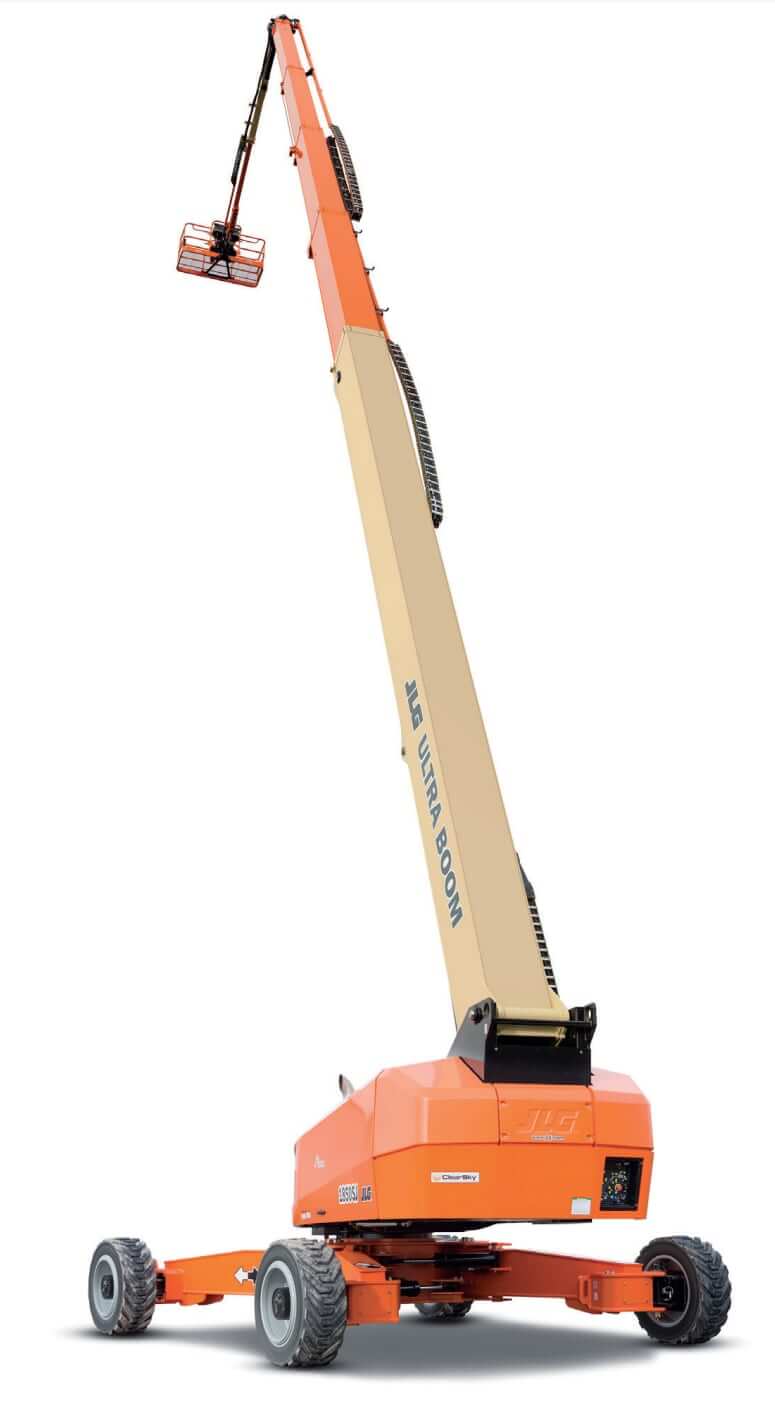

Platform Performance
| Max Platform Height | 185.6 ft (56560 mm) |
| Max Horizontal Reach | 80 ft (24384 mm) |
| Platform Capacity (Restricted) | 1000 lb (454 kg) |
| Platform Capacity (Unrestricted) | 500 lb (227 kg) |
| Platform Rotator | 173° (Hydraulic) |
| Jib Range of Articulation | 120° (+75°, -45°) |
| Jib Length (Retracted) | 13 ft (3960 mm) |
| Jib Length (Extended) | 20 ft (6100 mm) |
Swing System
| Swing | 360° |
| Swing Type | Continuous |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Deutz |
| Engine Model | Deutz TCD 3.6L Tier IV F |
| Displacement | 221 cu in (3.6 L) |
| Bore | 3.9 in (98 mm) |
| Stroke | 4.7 in (120 mm) |
| Net Power | 99.8 hp (74.4 kw) |
| Power Measured @ | 2200 rpm |
| Peak Torque | 369 lb ft (500 Nm) |
| Torque Measured @ | 1600 rpm |
| Aftertreatment | DOC / DPF / SCR |
| Aspiration | Turbocharged |
| Emission Standards | US EPA Tier 4 Final + EU Stage V |

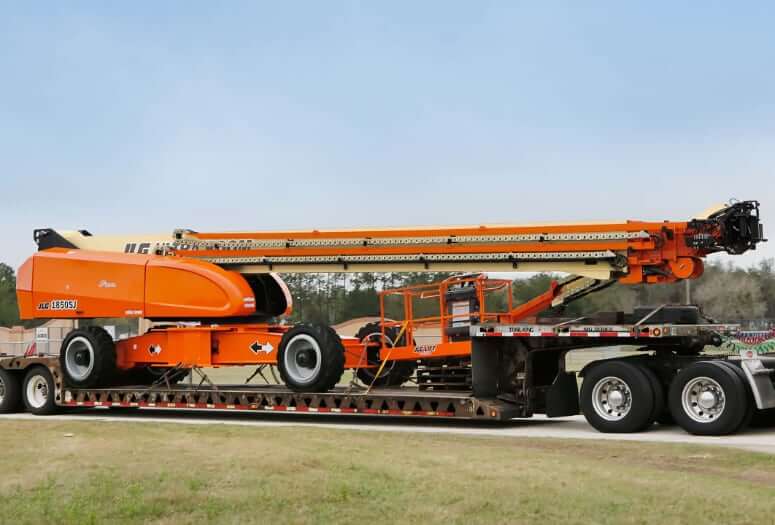

Operational Specs
| Operating Weight | 59900 lb (27170 kg) |
| Max Platform Capacity | 1000 lb (454 kg) |
| Operating Voltage | 12 V |
| Tire Size | 445/50D710 Foam-filled |
| Maximum Ground Bearing Pressure | 119.6 psi (825 kPa) |
Transmission
| Type | Hydrostatic transmission |
| Drive | Full-Time 4WD |
| Max Travel Speed | 2.8 mph (4.5 km/h) |
| Max Travel Speedat Elevation | 0.3 mph (0.48 km/h) |
| Gradeability | 40 % |
| Turning Radius – Inside (Axles Retracted) | 280 in (7120 mm) |
| Turning Radius – Inside (Axles Extended) | 91 in (2300 mm) |
| Turning Radius – Outside (Axles Retracted) | 375 in (9520 mm) |
| Turning Radius – Outside (Axles Extended) | 260 in (6600 mm) |
Service Refill Capacities
| Fuel Tank Capacity | 45 gal (170 L) |
| DEF Tank Capacity | 5.7 gal (21.5 L) |
| Engine Oil Capacity | 2.4 gal (9 L) |
| Cooling System Capacity | 4.2 gal (16 L) |
| Hydraulic System Capacity | 75.1 gal (284.2 L) |
| Swing Gearbox Capacity . | 0.74 gal (2.8 L) |
| Drive Hub Capacity | 0.66 gal (2.5 L) |
