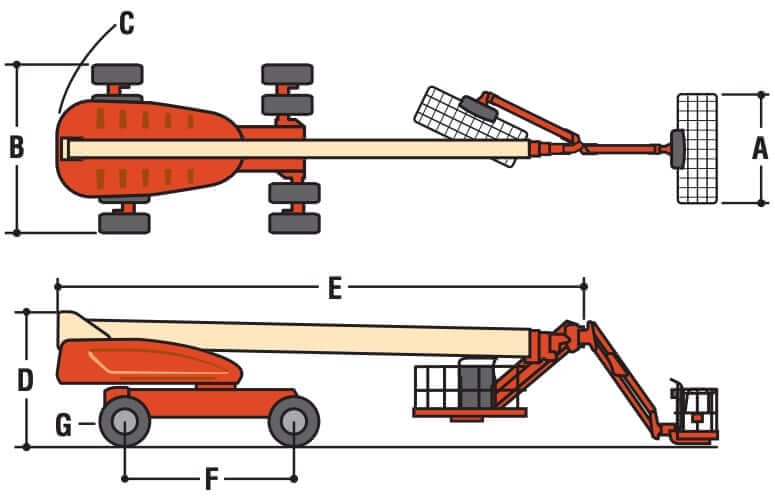

Dimensions
| A. Platform Size | 36 x 96 in (910 x 2440 mm) |
| A. Platform Size (Optional) | 36 x 72 in (910 x 1830 mm) |
| B. Overall Width, Axles Retracted | 98 in (2490 mm) |
| B. Overall Width, Axles Extended | 150 in (3810 mm) |
| C. Tailswing | 66 in (1670 mm) |
| D. Stowed Height | 120 in (3050 mm) |
| E. Overall Length, Jib Stowed | 467 in (11860 mm) |
| E. Overall Length, Jib Deployed | 586.25 in (14890 mm) |
| F. Wheel Base | 150 in (3810 mm) |
| G. Ground Clearance, Axle | 12 in (300 mm) |
| G. Ground Clearance, Chassis | 25.5 in (650 mm) |

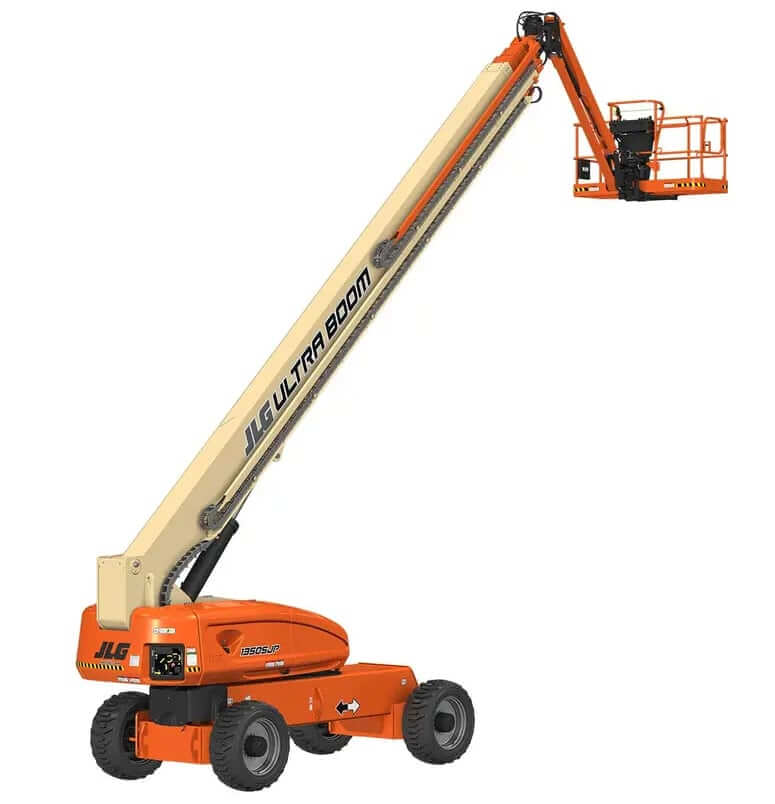

Weight
| Operating Weight | 45000 lb (20411 kg) |
| Gross Machine Weight (Platform Empty) | 44750 lb (20298 kg) |
| Platform Weight (36×96) | 245 lb (111 kg) |
| Platform Weight (36×72) | 195 lb (89 kg) |
| Boom Weight (Complete) | 11850 lb (5375 kg) |
| Counterweight | 8500 lb (3856 kg) |

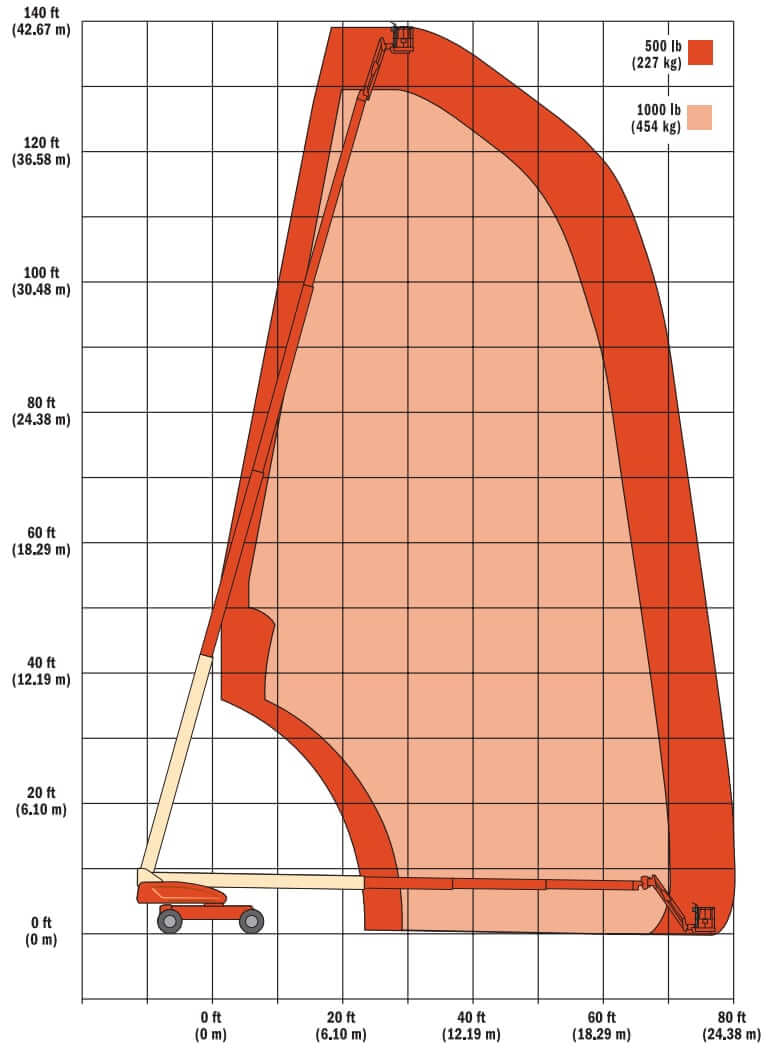

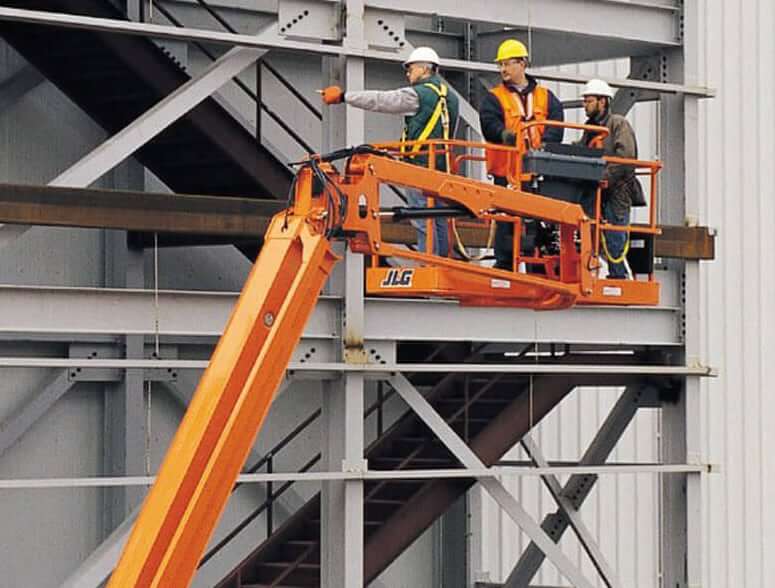

Platform

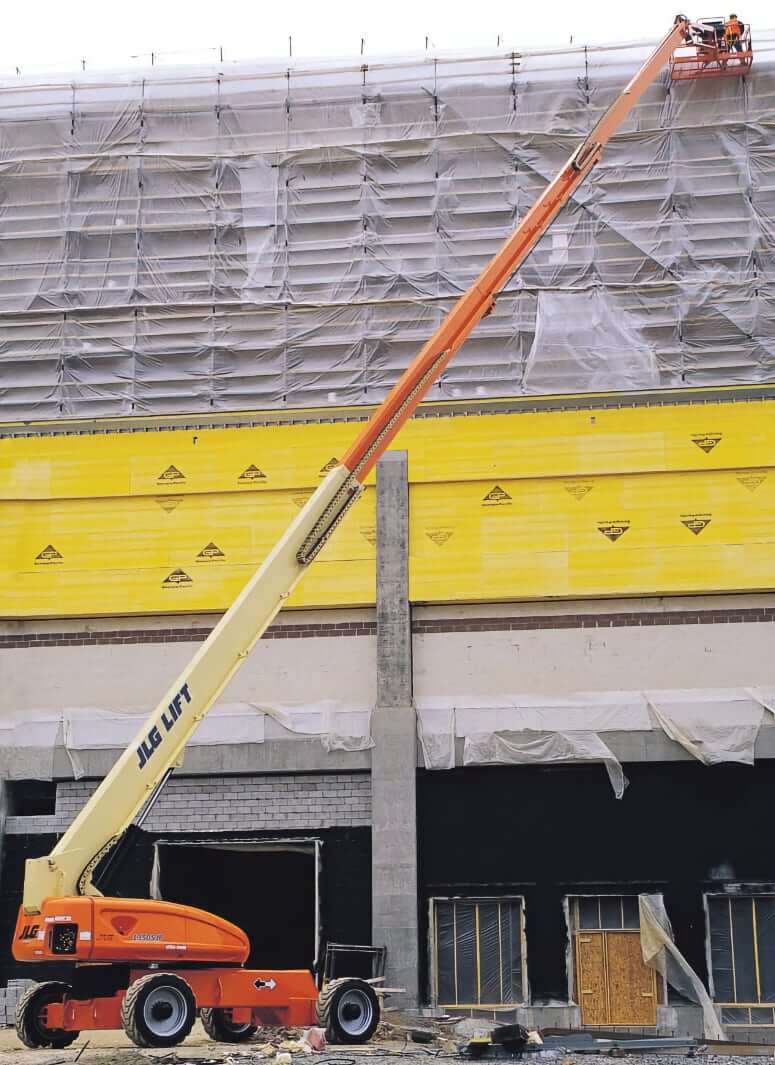

| Max Platform Height | 135 ft (41.15 m) |
| Max Horizontal Reach | 80 ft (24.38 m) |
| Swing | 360° Continuous |
| Max Platform Capacity, Restricted | 1000 lb (454 kg) |
| Max Platform Capacity, Unrestricted | 500 lb (227 kg) |
| Platform Rotation | 180° |
| Jib (JibPLUS) Length | 8 ft (2.44 m) |
| Jib (JibPLUS) Horizontal Motion* | 180° |
| Jib (JibPLUS) Vertical Motion | 130° (+75° / -55°) |
*Capacity is limited to 500 lb (227 kg) when JibPLUS is extended horizontally.

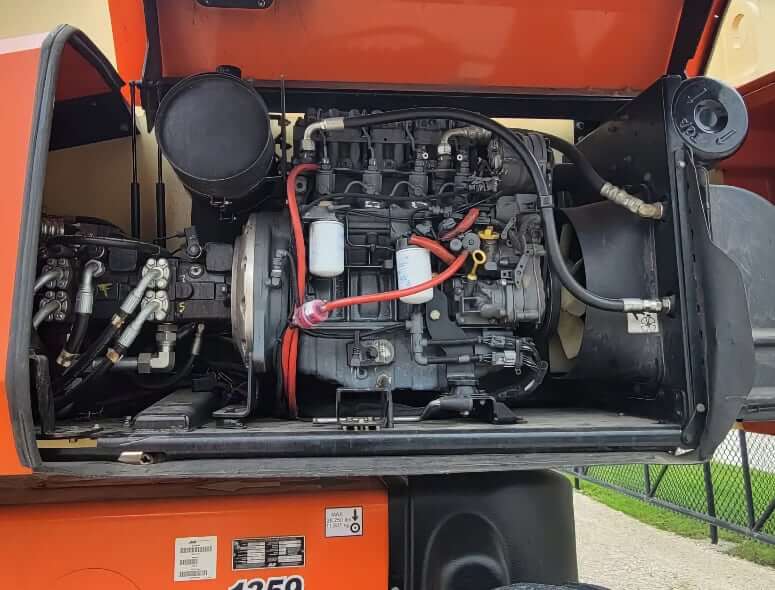

Engine Details
| Engine Model | Deutz TD 2.9 L4 | Deutz TD 3.6 L4 |
|---|---|---|
| Number of Cylinders | 4 | 4 |
| Displacement | 177 cu in (2.9 L) | 220 cu in (2.9 L) |
| Bore | 3.6 in (92 mm) | 3.9 in (98 mm) |
| Stroke | 4.3 in (110 mm) | 4.7 in (120 mm) |
| Gross Horsepower | 74.2 hp (55.4 kw) | 74 hp (55.4 kw) |
| Power Measured @ | 2600 rpm | 2600 rpm |
| Peak Torque | 192 lb ft (260 Nm) | 243 lb ft (330 Nm) |
| Torque Measured @ | 1600 rpm | 1600 rpm |
| Fuel Consumption | 0.37 lb/hph (225 g/kWh) | 0.36 lb/hph (220 g/kWh) |
| Aspiration | Turbocharged | Turbocharged |
| Emission Standards | US EPA Tier 4 Final + EU Stage IIIB | US EPA Tier 4 Final + EU Stage IIIB |
Operational Specs
| Operating Weight | 45000 lb (20411 kg) |
| Gross Machine Weight (Platform Empty) | 44750 lb (20298 kg) |
| Platform Capacity, Restricted | 1000 lb (454 kg) |
| Platform Capacity, Unrestricted | 500 lb (227 kg) |
| Accessory Packages | SkyPower / SkyWelder |
| Operating Voltage | 12 V |
| Alternator | 95 amps |
| Battery | 12 V, CCA 1000, Group 31 |

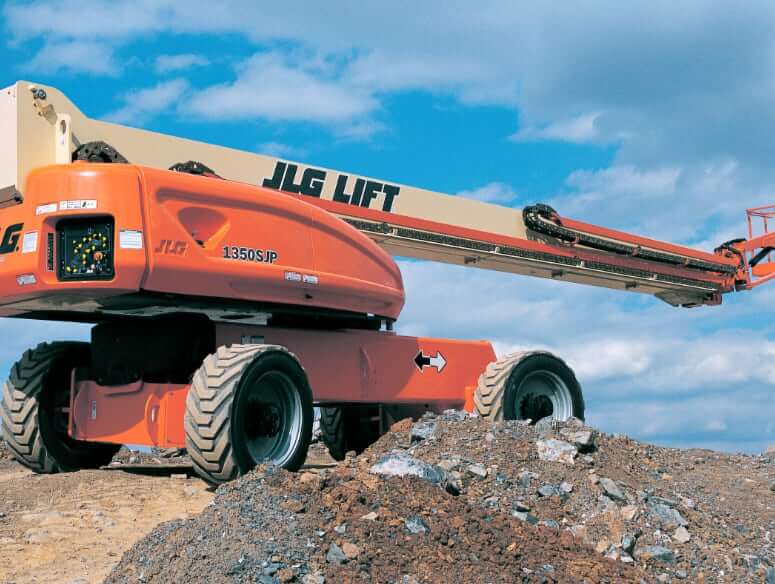

Chassis
| Transmission Type | Hydrostatic transmission |
| Drive Modes | Full-time 4WD |
| Max Travel Speed | 3.25 mph (5.2 km/h) |
| Axle Oscillation | 12 in (300 mm) |
| Gradeability | 45% |
| Max Travel Grade w/ Boom in Stowed Position | 5% |
| Crab Steer Ratio | 1:1 |
| Max Ground Bearing Pressure | 107 psi (738 kPa) |
| Turning Radius (Inside) Axles Retracted | 14 ft 5 in (4.39 m) |
| Turning Radius (Inside) Axles Extended | 8 ft (2.44 m) |
| Turning Radius (Outside) Axles Retracted | 22 ft 6 in (6.86 m) |
| Turning Radius (Outside) Axles Extended | 19 ft 4 in (5.89 m) |
Tires
| Standard Tire Size | 445/50D710 |
| Load Range | J |
| Ply Rating | 18 |
| Load Rating | 26500 lb @ 100 psi (12020 kg @ 690 kPa) |
| Foam Fill | Poly urethane HD (55 Durometer) Foam |
| Max Tire Load | 26250 lb (11907 kg) |
| Optional Tire Size / Type | 445/50D710 Protector Lug Tread Tires |
Hydraulic System
| Type | Load Sensing System |
| Pump Flow Capacity | 48.2 gal/min (182.5 L/min) |
| Pump High Pressure Relief | 3400 psi (23442 kPa) |
| Max System Pressure | 4600 psi (31716 kPa) |
| Arctic Package | Hydraulic Hoses (Drive And Steer Only), Hydraulic Tank Heater, Arctic Hydraulic Oil |
Hydraulic Oil
| Hydraulic System Operating Temperature Range | SAE Viscosity Grade |
|---|---|
| +0° to + 180° F (-18° to +83° C) | 10W |
| +0° to + 210° F (-18° to +99° C) | 10W-20, 10W30 |
| +50° to + 210° F (+10° to +99° C) | 20W-20 |
Service Refill Capacities
| Fuel Tank Capacity | 31 gal (117 L) |
| Fuel Tank Capacity (Optional) | 53 gal (200 L) |
| Hydraulic Tank Capacity | 55 gal (208 L) |
| Hydraulic System Capacity | 66 gal (250 L) |
| Drive Hub Capacity (each) | 0.13 gal (0.5 L) |
| Swing Reduction Unit Capacity | 0.61 gal (2.3 L) |
| Swing Brake Capacity | 0.21 gal (0.8 L) |
| Engine Oil Capacity (with filter) | |
| Deutz TD 2.9 L4 | 2.4 gal (8.9 L) |
| Deutz TD 3.6 L4 | 2.1 gal (8 L) |
| Deutz BF4M-2011 | 2.8 gal (10.5 L) |
| Deutz TD 2011 L04 | 2.8 gal (10.5 L) |
| Caterpillar 3.4T | 2.6 gal (10 L) |
The JLG 1350SJP Boom Lift is a high-reach, telescopic boom lift designed to tackle the most demanding elevated job sites with speed, strength, and stability. With a platform height of up to 135 feet (41.15 meters) and a restricted horizontal outreach of 80 feet (24.38 meters), it offers one of the highest reaches in its class.
This model features JLG’s exclusive QuikStik® boom design, enabling faster cycle times from ground to full elevation and back in under 95 seconds. Ideal for industrial maintenance, steel erection, construction, and large-scale facility work, the 1350SJP also provides superior terrain capability with its oscillating axle, four-wheel drive, and optional four-wheel steer. With both diesel and dual fuel engine options, the 1350SJP is built for productivity at height.
