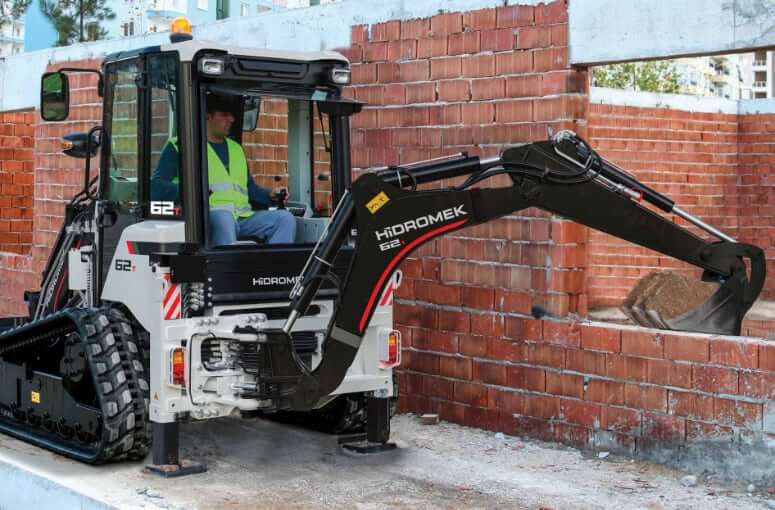

Backhoe Performance

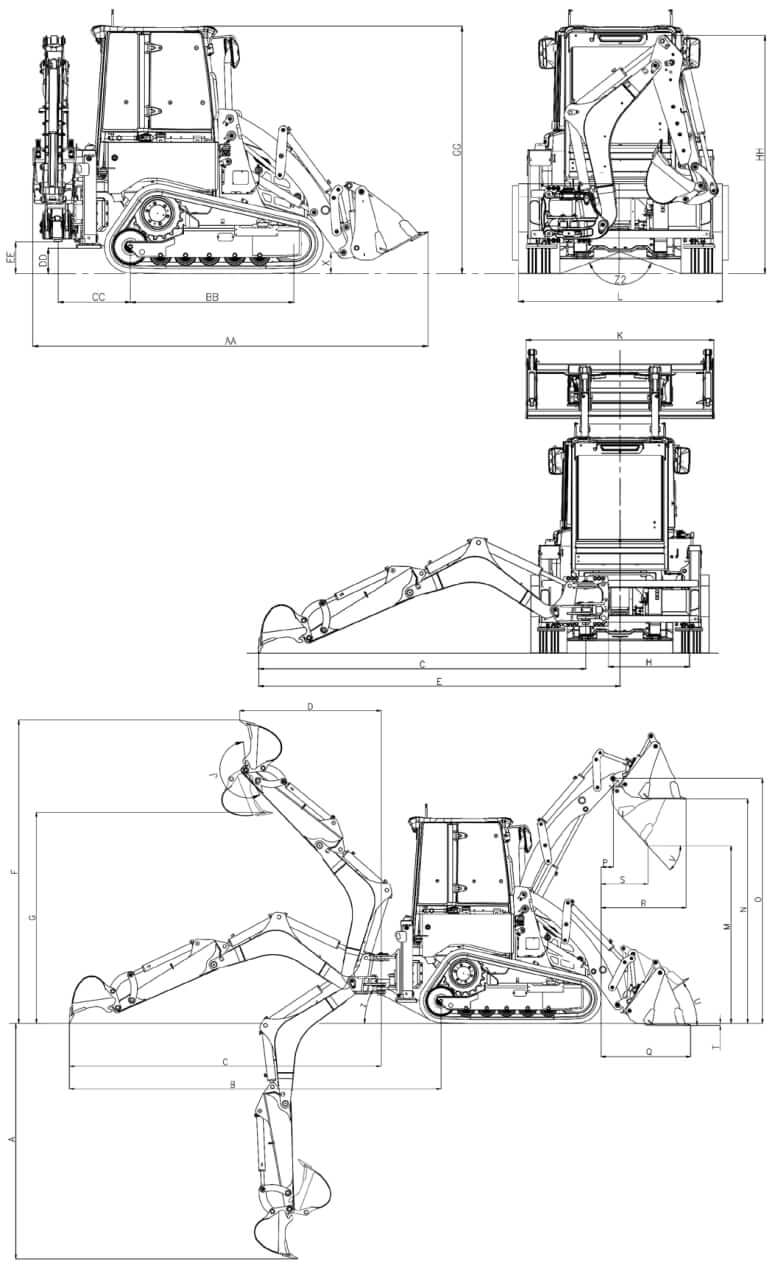

| HMK 62T Backhoe Arm | Standard Arm | Telescopic (retracted) | Telescopic (extended) |
|---|---|---|---|
| A. Max Digging Depth | 108.3 in (2751 mm) | 108.8 in (2764 mm) | 128.5 in (3264 mm) |
| B. Ground Level to Rear Wheel Centre | 168.6 in (4283 mm) | 169.0 in (4296 mm) | 188.2 in (4782 mm) |
| C. Ground Level to Slew Centre | 142.0 in (3608 mm) | 142.6 in (3622 mm) | 161.6 in (4108 mm) |
| D. At Full Height to Slew Centre | 63.8 in (1620 mm) | 64.2 in (1630 mm) | 78.2 in (1988 mm) |
| E. To Centre Line of Machine | 156.9 in (3986 mm) | 157.5 in (4000 mm) | 176.6 in (4486 mm) |
| F. Operating Height | 136.7 in (3472 mm) | 137.1 in (3482 mm) | 151.6 in (3850 mm) |
| G. Maximum Loader Height | 94.5 in (2400 mm) | 94.9 in (2410 mm) | 109.3 in (2778 mm) |
| H. Total Kingpost Travel | 29.8 in (756 mm) | 29.8 in (756 mm) | 29.8 in (756 mm) |
| J. Bucket Rotation | 204° | 204° | 204° |
| Bucket Breakout Force | 4376 lbf (19.5 kN) | 4376 lbf (19.5 kN) | 4376 lbf (19.5 kN) |
| Arm Breakout Force | 3307 lbf (14.7 kN) | 3307 lbf (14.7 kN) | 3307 lbf (14.7 kN) |
| Lifting Capacity at Max Height | 1076 lb (488 kg) | 1076 lb (488 kg) | 1076 lb (488 kg) |
| Backhoe Bucket Capacity | 0.08 yd3 (0.06 m3) | 0.08 yd3 (0.06 m3) | 0.08 yd3 (0.06 m3) |
Loader Performance
| Hidromek 62T | 6 in 1 Bucket |
|---|---|
| K. Loader Bucket Width | 82.5 in (2095 mm) |
| M. Dump Height | 79.6 in (2022 mm) |
| N. Load Over Height | 101.1 in (2567 mm) |
| O. Loader Hinge Pin Height | 110.2 in (2800 mm) |
| P. Pin Forward Reach | 5.6 in (143 mm) |
| Q. Grab Lug – Bumper Distance | 40.9 in (1039 mm) |
| R. Max Reach at Full Height | 38.9 in (987 mm) |
| S. Reach at Full Height Fully Dumped | 21.4 in (544 mm) |
| T. Dig Depth | 2.2 in (55 mm) |
| U. Roll Back at Ground | 36° |
| V. Dump Angle | 47° |
| Z. Departure Angle | 24° |
| Bucket Breakout Force | 6356 lbf (28.3 kN) |
| Arm Breakout Force | 5732 lbf (25.5 kN) |
| Lifting Capacity at Max Height | 1903 lb (863 kg) |
| 6 in 1 Bucket Capacity | 0.59 yd3 (0.45 m3) |
Dimensions
| AA. Overall Length | 146.5 in (3720 mm) |
| BB. Wheelbase | 62.0 in (1575 mm) |
| CC. Slew Centre to Rear Axle Centre Distance | 27.3 in (694 mm) |
| DD. Stabiliser Feet Clearance | 9.0 in (228 mm) |
| EE. Kingpost Clearance | 11.6 in (295 mm) |
| GG. Height to Top of Cab with ROPS | 93.7 in (2380 mm) |
| HH. Total Travel Clearance (Standard arm) | 90.5 in (2298 mm) |
| HH. Total Travel Clearance (Telescopic arm) | 90.8 in (2308 mm) |
| L. Rear Frame Width | 77.4 in (1966 mm) |
| X. Ground Clearance (Loader Pin Centre) | 7.2 in (182 mm) |
| Z2. Ramp Angle | 140° |

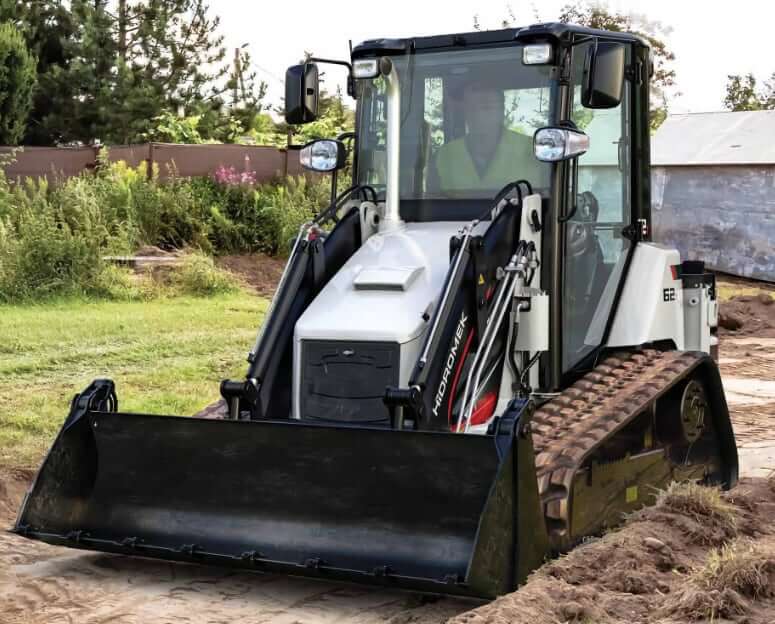

Undercarriage
| Shoe Type | Rubber Track |
| Shoe Size | 15.7 in (400 mm) |
| Number of Track per Side | 56 |
| Pitch | 86 |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Kubota |
| Engine Model | Kubota V2403-CR-T-EW03 |
| Displacement | 149 cu in (2.434 L) |
| Bore | 3.43 in (87 mm) |
| Stroke | 4.03 in (102.4 mm) |
| Gross Power | 65.2 hp (48.6 kw) |
| Power Measured @ | 2700 rpm |
| Peak Torque | 146.4 lb ft (198.5 Nm) |
| Torque Measured @ | 1600 rpm |
| Air Cleaner | Two-stage air filter with clogged indicator |
| Aspiration | Turbocharged |
| Emission Standards | US EPA Tier 4 Final + EU Stage V |
Operational Specs

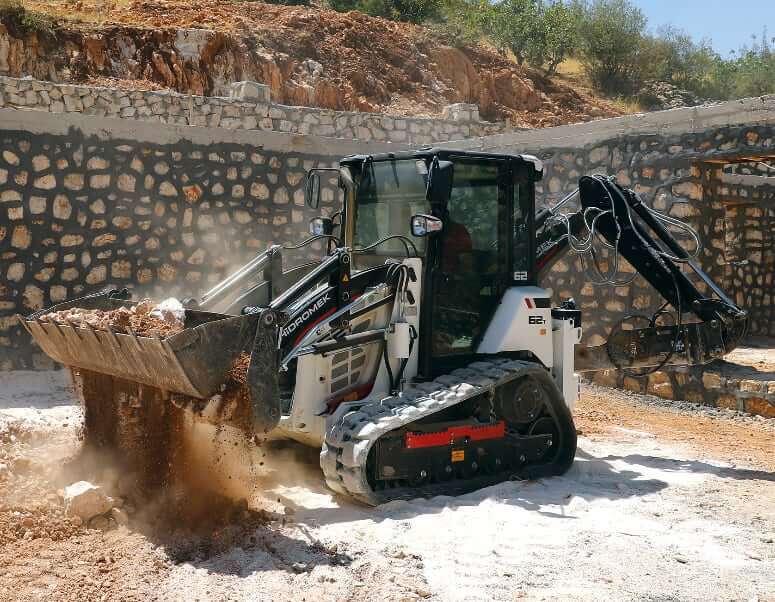

| Operating Weight | 11640 lb (5280 kg) |
| Operating Voltage | 12 V |
| Alternator | 60 amps |
| Battery | 12 V, 100 Ah |
| Opera Control System | Standard |
| Cab | Pressurized and sound isolated cabin with ROPS / FOPS |
| Cab Windows | Sliding rear window, opening side windows |
| HVAC | Automatic air conditioning system |
| Control | Joysticks integrated into the seat used for loading, digging and travelling |
| Noise Level (interior) | 78 dB(A) |
| Noise Level (exterior) | 99 dB(A) |
Transmission
| Type | Hydrostatic transmission with variable displacement piston pump |
| Max Travel Speed | 4.7 mph (7.5 km/h) |
| Max Gradeability | 57% (30°) |

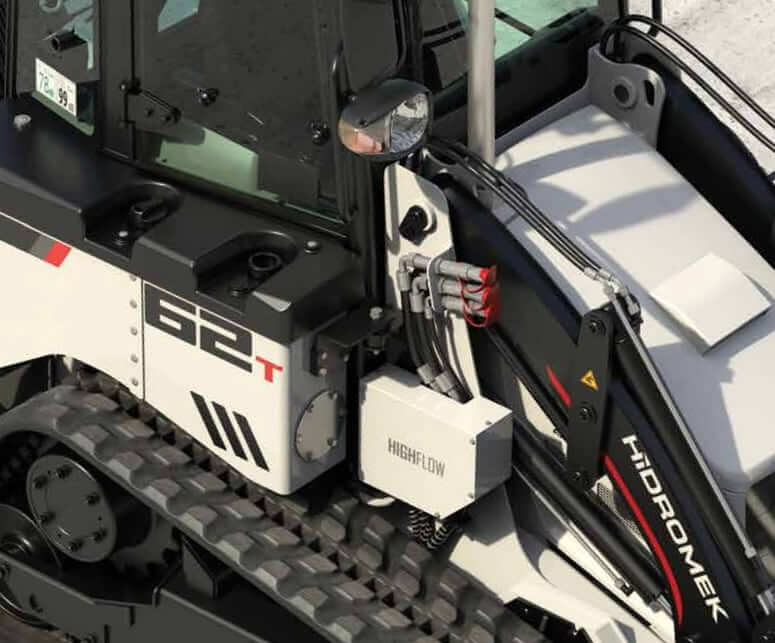

Hydraulic System
| Type | Standard Flow | High Flow (Option) |
|---|---|---|
| Main Control Valve | Open center | Open center |
| Main Pump Type | Gear pump | Gear pump |
| Main Pump Flow Capacity | 15.8 gal/min (60 L/min) | 31.7 gal/min (120 L/min) |
| Relief Valve Pressure | 3191 psi (22000 kPa) | 3626 psi (25000 kPa) |
| Backup Ports (Valves) | Standard | Standard |
| Hose Burst Valve | Standard | Standard |
| Quick Coupling Line | Standard | Standard |
| Bi-directional Working | Standard | Standard |
| Single-acting Hydraulic Line, Breaker | Standard | Standard |
| Double-acting Hydraulic Line, Backhoe | Optional | Optional |

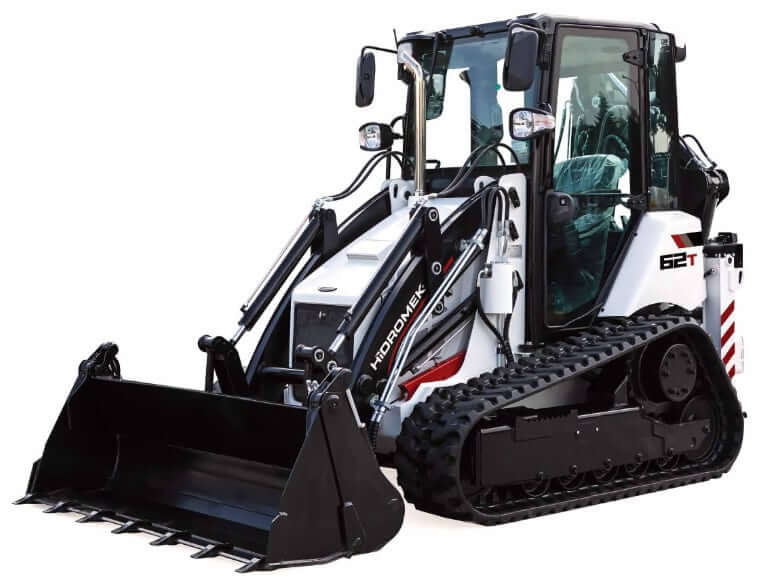

Service Refill Capacities
| Fuel Tank Capacity | 13.2 gal (50 L) |
| Engine Oil Capacity (w/ filter) | 2.5 gal (9.5 L) |
| Cooling System Capacity | 3 gal (11.5 L) |
| Hydraulic System Capacity (w/ tank) | 20.6 gal (78 L) |
| Hydraulic Tank Capacity | 9.5 gal (36 L) |
