Dimensions
| Transport Length | 269.3 in (6840 mm) |
| Transport Width | 89.0 in (2260 mm) |
| Transport Height | 135.8 in (3450 mm) |
| Wheelbase (2WD) | 82.7 in (2100 mm) |
| Wheelbase (4WD) | 81.4 in (2067 mm) |
| Ground Clearance | 11.7 in (297 mm) |

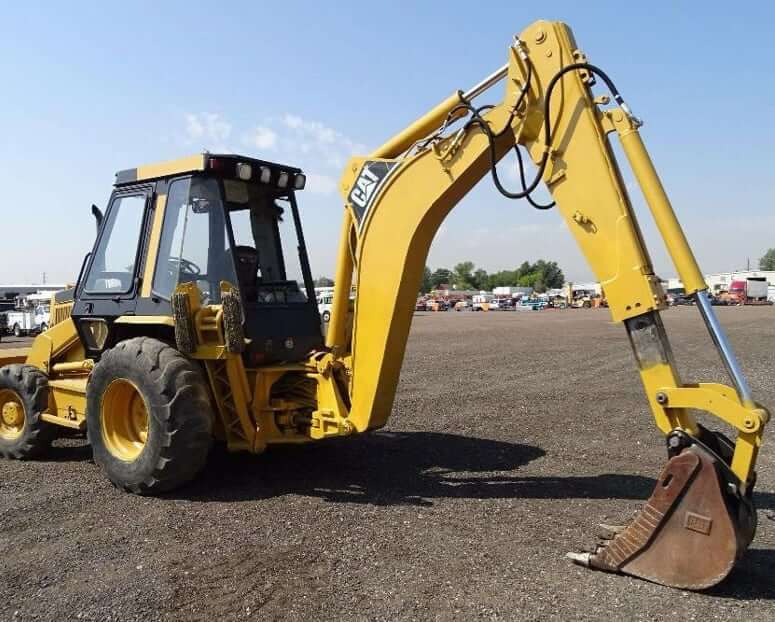

Backhoe
| Digging Depth | 174 in (4420 mm) |
| Max Dump Height | 103.9 in (2640 mm) |
| Max Reach Horizontal | 265 in (6730 mm) |
| Bucket Capacity | 0.09-0.42 yd3 (0.07-0.32 m3) |
| Bucket Breakout Force | 11690 lbf (52 kN) |

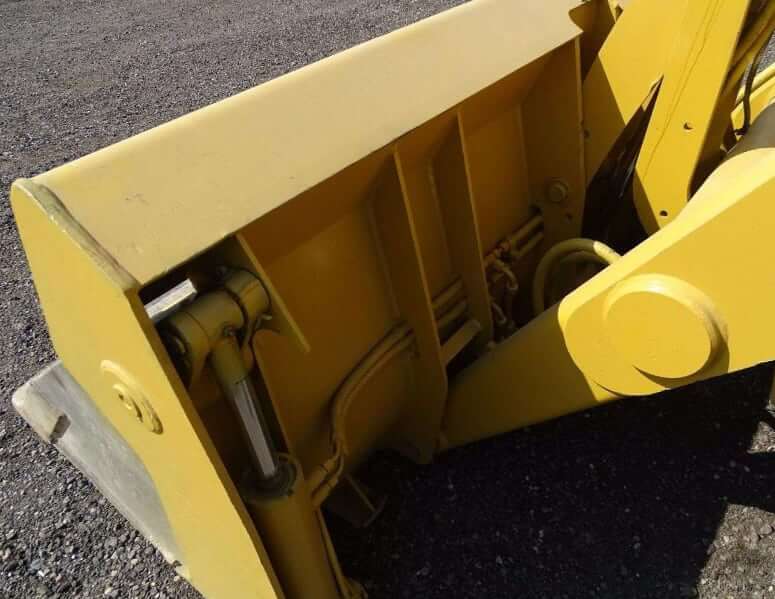

Loader
| Bucket Width | 89 in (2260 mm) |
| Bucket Capacity | 1.0 yd3 (0.76 m3) |
| Bucket Breakout Force | 8992 lbf (40 kN) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Caterpillar |
| Engine Model | CAT 3054 (Perkins 3054) |
| Displacement | 269 cu in (4.41 L) |
| Bore | 4.13 in (105 mm) |
| Stroke | 5.00 in (127 mm) |
| Gross Power | 74 hp (55.2 kw) |
| Power Measured @ | 2200 rpm |
| Peak Torque | 369 lb ft (500 Nm) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharged |
Operational Specs
| Operating Weight | 18894 lb (8570 kg) |
| Operating Voltage | 12 V |
| Alternator | 52 amps |
| Battery | 12 V, BCI 31, CCA 750 |
| Cab | ROPS canopy or cab |
Transmission
| Type | Power shuttle transmission |
| Number of Gears | 4F / 4R |
| Max Travel Speed | 20.5 mph (33 km/h) |
| Drive | 4×2 2WD / 4X4 4WD (MFWD) |
| Service Brakes | Wet disc brakes |
| Front Tire Size (2WD/4WD) | 12.5/80-18 or 11L-16 10PR |
| Rear Tire Size (2WD/4WD) | 19.5-L24 or 16.9-24 8PR |
Hydraulic System
| Pump Flow Capacity | 41 gal/min (155.3 L/min) |
| Relief Valve Pressure | 3000 psi (20684 kPa) |
Service Refill Capacities
| Fuel Tank Capacity | 28.1 gal (106 L) |
| Engine Oil Capacity (w/ filter) | 2.2 gal (8.4 L) |
| Cooling System Capacity | 4.0 gal (15.4 L) |
| Hydraulic System Capacity | 10 gal (37.9 L) |
| Front Axle Fluid Capacity | 2 gal (7.5 L) |
| Rear Axle Fluid Capacity | 4.9 gal (18.5 L) |
