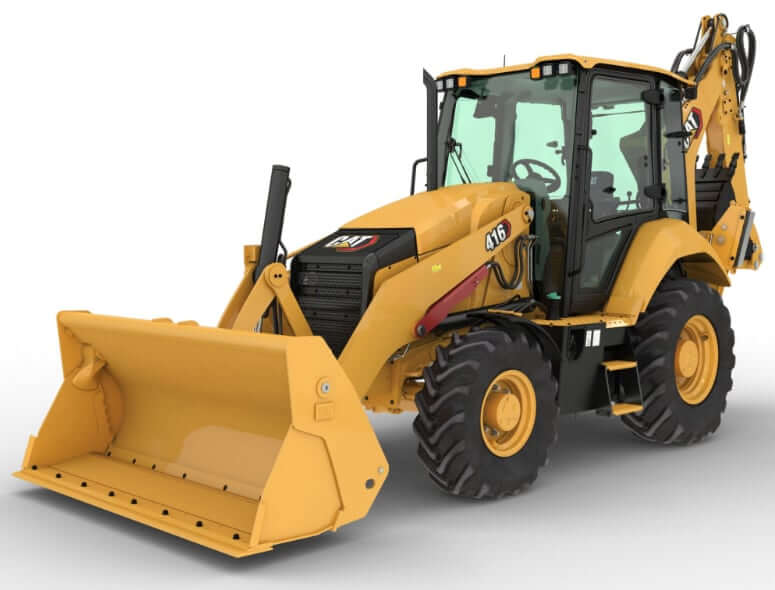

CAT 416 Backhoe Loader (2021-2025) Specs, Horsepower, Weight & Dimensions

Contents

Dimensions
Loader Performance
Backhoe Performance
Lift Capacity (Standard Stick)
Lift Capacity (Extended Stick)
Standard Backhoe Buckets
Tire Combination
Weight
Engine Details
Operational Specs
Transmission
Axle Ratings
Steering and Brakes
Hydraulic System
Service Refill Capacities

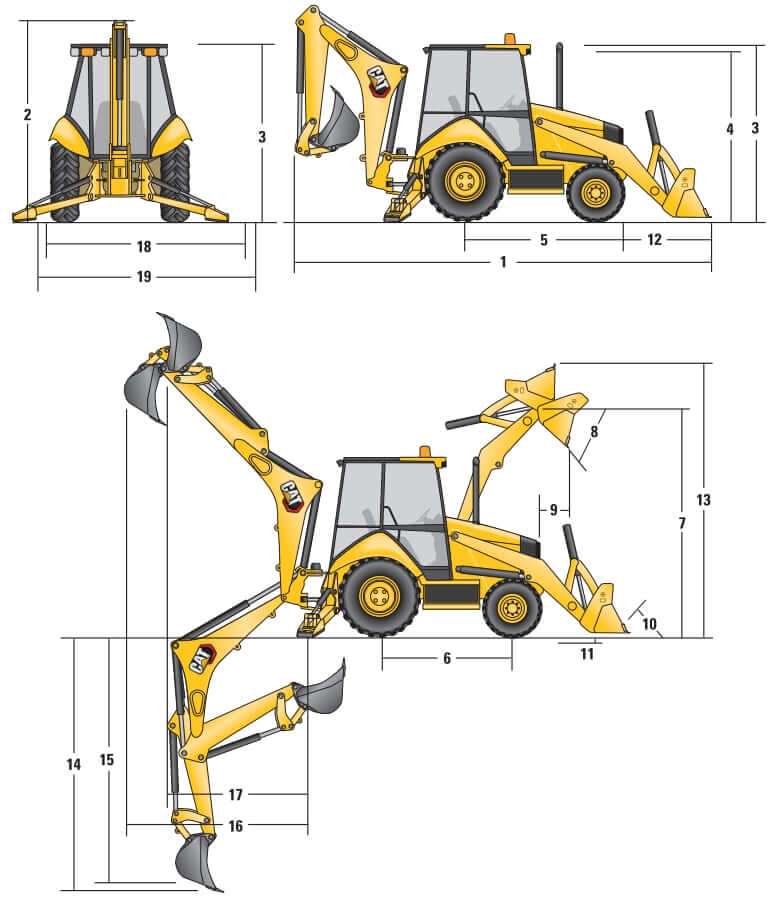

Dimensions

Single Tilt with Pin-On Buckets	GP 1.0 yd3 (0.76 m3)	GP 1.31 yd3 (1.00 m3)	MP 1.4 yd3 (1.07 m3)
1. Overall Length (loader on ground), S-Stick	276.3 in (7018 mm)	279.0 in (7086 mm)	277.9 in (7059 mm)
1. Overall Length (loader on ground), E-Stick	276.5 in (7024 mm)	279.1 in (7091 mm)	278.1 in (7064 mm)
1. Overall Transport Length, S-Stick	278.6 in (7079 mm)	280.5 in (7128 mm)	280.7 in (7129 mm)
1. Overall Transport Length, E-Stick	278.9 in (7084 mm)	280.7 in (7134 mm)	280.7 in (7135 mm)
2. Overall Transport Height, Standard Stick	143.5 in (3646 mm)	143.5 in (3646 mm)	143.5 in (3646 mm)
2. Overall Transport Height, Extendible Stick	144.3 in (3666 mm)	144.3 in (3666 mm)	144.3 in (3666 mm)
Overall Width	88.5 in (2248 mm)	88.5 in (2248 mm)	88.5 in (2248 mm)
3. Height to Top of Cab/Canopy	110.8 in (2815 mm)	110.8 in (2815 mm)	110.8 in (2815 mm)
4. Height to Top of Exhaust Stack	107.1 in (2720 mm)	107.1 in (2720 mm)	107.1 in (2720 mm)
4. Height to Loader Hinge Pin (transport)	14.9 in (379 mm)	14.9 in (378 mm)	16.5 in (420 mm)
Ground Clearance (Left Hand step)	12.4 in (316 mm)	12.4 in (316 mm)	12.4 in (316 mm)
Ground Clearance (AWD guard)	12.3 in (312 mm)	12.3 in (312 mm)	12.3 in (312 mm)
Ground Clearance (w/ counterweight)	11.4 in (289 mm)	11.4 in (289 mm)	11.4 in (289 mm)
5. Rear Axle Centerline to Front Grill	106.5 in (2706 mm)	106.5 in (2706 mm)	106.5 in (2706 mm)
Front Wheel Tread Gauge	74.6 in (1895 mm)	74.6 in (1895 mm)	74.6 in (1895 mm)
Rear Wheel Tread Gauge	68.0 in (1728 mm)	68.0 in (1728 mm)	68.0 in (1728 mm)
6. Wheelbase	86.6 in (2200 mm)	86.6 in (2200 mm)	86.6 in (2200 mm)

Machine configuration: standard stick hoe, OROPS canopy, 4WD standard shift transmission, 1.25 yd3 (0.96 m3) GP loader bucket, 24 in (610 mm) standard duty hoe bucket, 340/80-18 and 500/70-24 tires, 530 lb (240 kg) counterweight, 176 lb (80 kg) operator, full fuel tank.

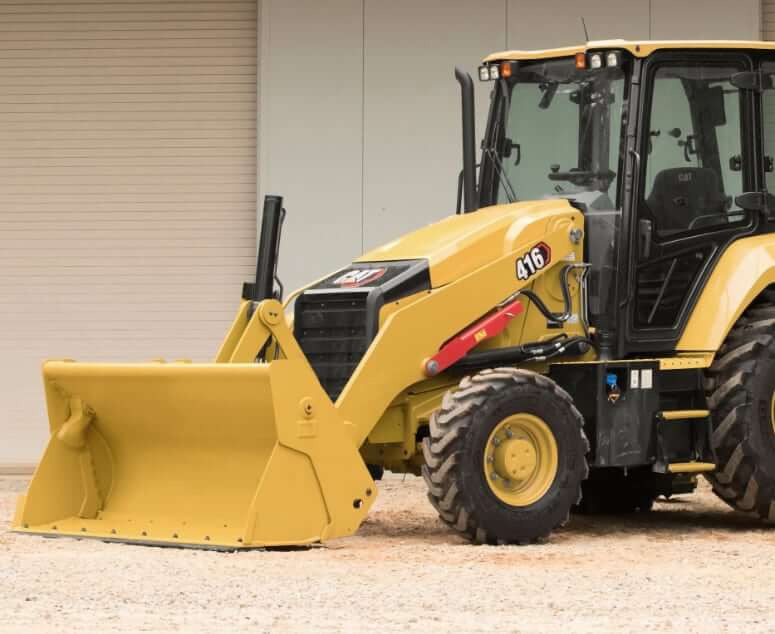

Loader Performance

Pin-On Buckets	GP 1.0 yd3 (0.76 m3)	GP 1.31 yd3 (1.00 m3)	MP 1.4 yd3 (1.07 m3)
Rated Capacity (SAE)	1.0 yd3 (0.76 m3)	1.31 yd3 (1.00 m3)	1.40 yd3 (1.07 m3)
Overall Bucket Width	89.0 in (2262 mm)	94.7 in (2406 mm)	95.5 in (2425 mm)
Lift Capacity at Max Height	6730 lb (3053 kg)	6541 lb (2967 kg)	6005 lb (2724 kg)
Lift Breakout Force	10854 lbf (48.3 kN)	10422 lbf (46.4 kN)	9978 lbf (44.4 kN)
Tilt Breakout Force	12207 lbf (54.3 kN)	10926 lbf (48.6 kN)	11551 lbf (51.4 kN)
Tipping Load at Breakout Point	15363 lb (6969 kg)	14638 lb (6640 kg)	14342 lb (6505 kg)
7. Max Hinge Pin Height	137.3 in (3488 mm)	137.3 in (3488 mm)	137.3 in (3488 mm)
8. Dump Angle at Full Height	44°	44°	44°
Dump Height at Max Angle	111.6 in (2837 mm)	109.8 in (2790 mm)	110.4 in (2803 mm)
9. Dump Reach at Max Angle	28.6 in (726 mm)	30.5 in (774 mm)	28.4 in (722 mm)
10. Max Bucket Rollback at Ground Level	36°	36°	37°
11. Digging Depth	2.8 in (70 mm)	2.8 in (70 mm)	3.8 in (97 mm)
Max Grading Angle	116°	114°	116°
12. Grill to Bucket Cutting Edge, Carry Position	55.0 in (1397 mm)	57.0 in (1447 mm)	57.0 in (1447 mm)
13. Max Operating Height	165.6 in (4206 mm)	171.4 in (4354 mm)	173.4 in (4407 mm)
Jaw Opening Maximum	N/A	N/A	33.2 in (843 mm)
Bucket Jaw Clamping Force	N/A	N/A	8370 lbf (37.2 kN)
Weight (does not include teeth or forks)	847 lb (384 kg)	1019 lb (462 kg)	1706 lb (774 kg)

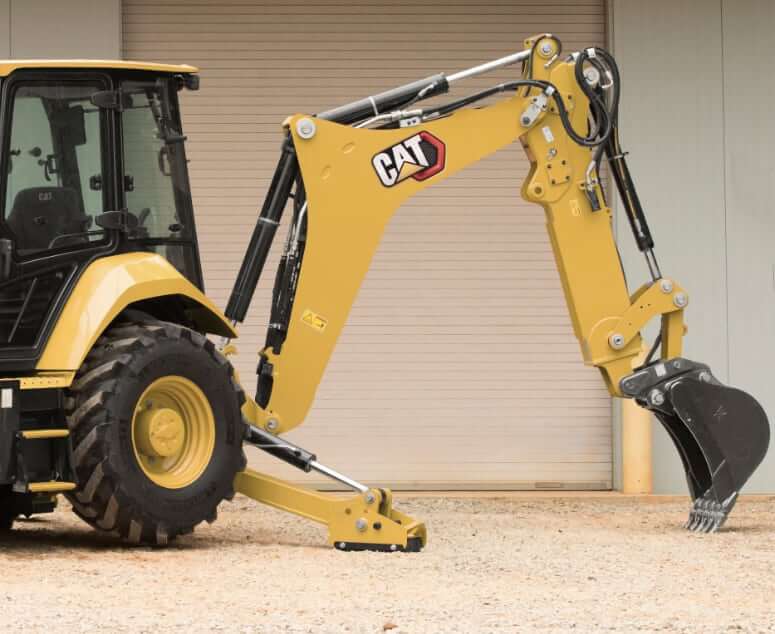

Backhoe Performance

CAT 416	Standard Stick	E-Stick Retracted	E-Stick Extended
14. Digging Depth, Max (SAE)	168.3 in (4277 mm)	170.0 in (4317 mm)	211.4 in (5371 mm)
15. Digging Depth, 8 ft Flat Bottom	153.5 in (3899 mm)	155.2 in (3942 mm)	199.6 in (5072 mm)
Digging Depth, 2 ft Flat Bottom	166.9 in (4239 mm)	168.4 in (4279 mm)	210.0 in (5334 mm)
Reach from Rear Axle Centerline at Ground Line	263.4 in (6690 mm)	264.7 in (6726 mm)	304.4 in (7731 mm)
16. Reach from Swing Pivot at Ground Line	220.5 in (5600 mm)	221.9 in (5636 mm)	261.5 in (6641 mm)
Maximum Operating Height	220.5 in (5601 mm)	221.4 in (5625 mm)	250.6 in (6368 mm)
Loading Height	146.1 in (3710 mm)	144.4 in (3667 mm)	166.9 in (4238 mm)
17. Loading Reach	72.5 in (1841 mm)	75.9 in (1928 mm)	112.0 in (2846 mm)
Swing Arc	180°	180°	180°
Bucket Rotation	205°	204°	204°
18. Stabilizer Spread, Operating Position (center)	130.3 in (3310 mm)	130.3 in (3310 mm)	130.3 in (3310 mm)
Stabilizer Spread, Operating Position (outside)	148.4 in (3770 mm)	148.4 in (3770 mm)	148.4 in (3770 mm)
Stabilizer Spread, Transport Position	91.4 in (2322 mm)	91.4 in (2322 mm)	91.4 in (2322 mm)
Bucket Dig Force	13291 lbf (59.1 kN)	13104 lbf (58.3 kN)	13104 lbf (58.3 kN)
Stick Dig Force	7278 lbf (32.4 kN)	7288 lbf (32.4 kN)	5350 lbf (23.8 kN)

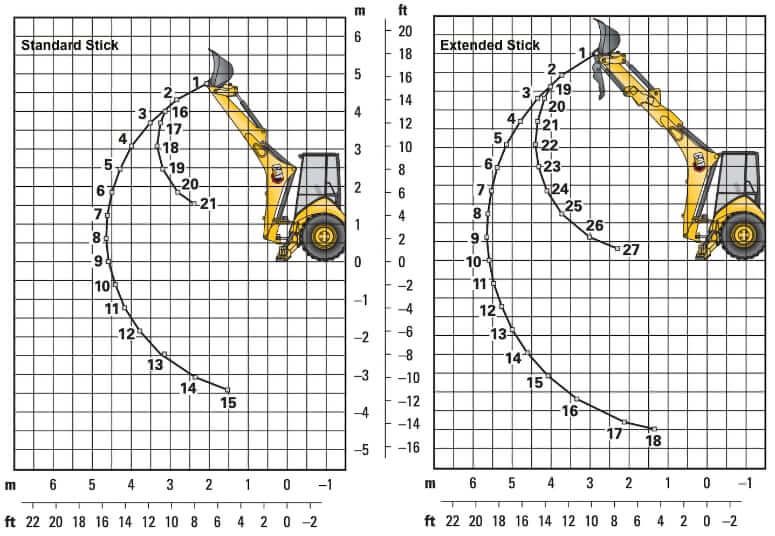

Lift Capacity (Standard Stick)

Backhoe Boom Lifting
1	2941 lb (1334 kg)	9	2358 lb (1069 kg)
2	3144 lb (1426 kg)	10	2254 lb (1022 kg)
3	3101 lb (1407 kg)	11	2158 lb (979 kg)
4	2983 lb (1353 kg)	12	2071 lb (939 kg)
5	2849 lb (1292 kg)	13	1996 lb (905 kg)
6	2716 lb (1232 kg)	14	1952 lb (885 kg)
7	2589 lb (1174 kg)	15	2019 lb (916 kg)
8	2469 lb (1120 kg)
Backhoe Stick Lifting
16	3456 lb (1568 kg)	19	5371 lb (2436 kg)
17	4224 lb (1916 kg)	20	6358 lb (2884 kg)
18	5133 lb (2328 kg)	21	7805 lb (3540 kg)

Lift capacities are over-end values calculated according to SAE J31. Values are 87% of the maximum lift force available. The CAT 416 equipped with 4WD, OROPS, 1.25 yd3 (0.96 m3) general purpose bucket and no counterweight. Extendible stick includes 1015 lb (460 kg) counterweight.

Lift Capacity (Extended Stick)

Backhoe Boom Lifting
1	1412 lb (640 kg)	10	1442 lb (654 kg)
2	1700 lb (771 kg)	11	1388 lb (630 kg)
3	1767 lb (802 kg)	12	1339 lb (607 kg)
4	1761 lb (799 kg)	13	1295 lb (587 kg)
5	1724 lb (782 kg)	14	1259 lb (571 kg)
6	1673 lb (759 kg)	15	1237 lb (561 kg)
7	1616 lb (733 kg)	16	1248 lb (566 kg)
8	1557 lb (706 kg)	17	1429 lb (648 kg)
9	1498 lb (680 kg)	18	1911 lb (867 kg)
Backhoe Stick Lifting
19	1316 lb (597 kg)	24	3260 lb (1479 kg)
20	1692 lb (767 kg)	25	3773 lb (1711 kg)
21	2222 lb (1008 kg)	26	5082 lb (2305 kg)
22	2597 lb (1178 kg)	27	7730 lb (3506 kg)
23	2915 lb (1322 kg)

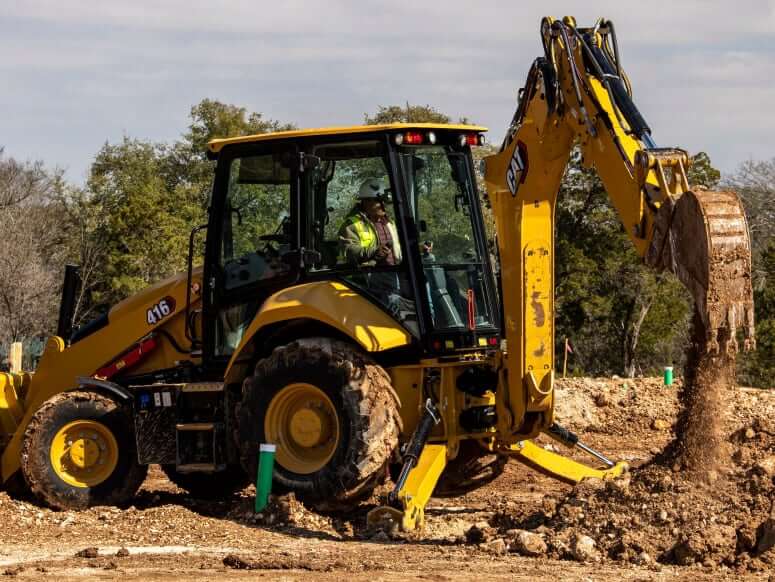

Standard Backhoe Buckets

Bucket Width	Rated Capacity	Bucket Weight	Teeth
12 in (305 mm)	2.8 ft3 (80 L)	245 lb (111 kg)	3
18 in (457 mm)	4.2 ft3 (120 L)	268 lb (122 kg)	4
24 in (610 mm)	6.2 ft3 (180 L)	311 lb (141 kg)	5
30 in (762 mm)	8.1 ft3 (230 L)	345 lb (157 kg)	5
36 in (914 mm)	10.1 ft3 (290 L)	388 lb (176 kg)	6

Tire Combination

CAT 416	Front Tires	Rear Tires
Tire Size (Standard)	340-80R 18	500/70R24 157B
Tire Size (Optional)	11L-16 (12 ply) F-3	19.5L-24 (12 ply) R4 ATU
Tire Size (Optional)	12.5/80-18 (12 ply) 1-3	19.5L-24 (12 ply) ATU
Tire Size (Optional)	12.5/80-18 NHS (12 ply) 1-3	21L-24 (16 ply) R4 ATU

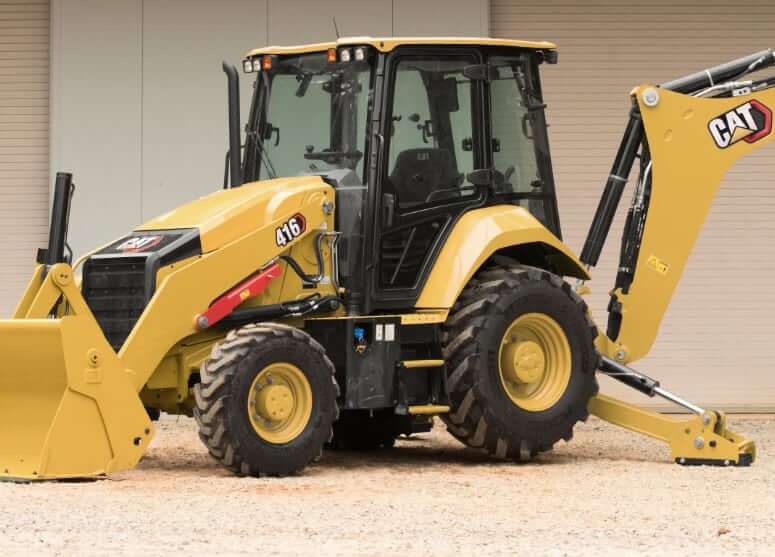

Weight

Operating Weight (estimated)	16532 lb (7499 kg)
Operating Weight (max)	24251 lb (11000 kg)
Operating Weight (min)	15591 lb (7072 kg)
Extendible Stick	+ 613 lb (278 kg)
Counterweights, Base	+ 256 lb (115 kg)
Counterweights, Stackable	+ 529 lb (240 kg)
Counterweights, Maximum	+ 1014 lb (460 kg)

Engine Details

Engine Model	CAT C3.6	CAT C4.4	Cat 3054C
Number of Cylinders	4	4	4
Displ.	220 cu in (3.6 L)	269 cu in (4.4 L)	269 cu in (4.4 L)
Bore	3.86 in (98 mm)	4.13 in (105 mm)	4.13 in (105 mm)
Stroke	4.72 in (120 mm)	5.00 in (127 mm)	5.00 in (127 mm)
Gross Power, SAE	96 hp (72 kw)	96 hp (71 kw)	93 hp (69 kw)
Net Power, SAE	86 hp (64 kw)	87 hp (65 kw)	86 hp (64 kw)
Power Measured @	2200 rpm	2200 rpm	2200 rpm
Peak Torque, SAE	292 lb ft (396 Nm)	282 lb ft (383 Nm)	283 lb ft (384 Nm)
Torque Measured @	1400 rpm	1400 rpm	1400 rpm
Torque Rise	43%	37%	38%
Fuel System	Direct injection	Direct injection	Direct injection
Aspiration	Turbo (TA)	Turbo (TA)	Turbo
Emission Standards	US EPA Tier 4 Final + EU Stage V	US EPA Tier 3 + EU Stage IIIA	US EPA Tier 2 + EU Stage II

Operational Specs

Operating Weight (estimated)	16532 lb (7499 kg)
Operating Weight (max)	24251 lb (11000 kg)
Operating Weight (min)	15591 lb (7072 kg)
Operating Voltage	12 V
Alternator	150 amps, 14 V
Battery	12 V, 100 Ah, RC: 150 min, CCA 750, BCI 31
Cab	Canopy with ROPS + FOPS / Cab with OROPS + FOPS (Optional)
Operator Sound Pressure Level (ISO 6396:2008)	76 dB(A)
Exterior Sound Power Level (ISO 6395:2008)	101 dB(A)

Transmission

Type	Power Shuttle Transmission	Power-Shift (Optional)
Number of Gears	4F / 4R	4F / 3R
Max Travel Speed (Forward)	23 mph (38 km/h)	25 mph (40 km/h)
Max Travel Speed (Reverse)	23 mph (38 km/h)	17 mph (27 km/h)
Torque Converter	Single stage	Single stage
Drive	2WD or 4WD	2WD or 4WD

Axle Ratings

Front Axle Rating, Static (4WD)	51808 lb (23500 kg)
Front Axle Rating, Dynamic (4WD)	19841 lb (9000 kg)
Rear Axle Rating, Static	58422 lb (26500 kg)
Front Axle Rating, Dynamic	22046 lb (10000 kg)

Steering and Brakes

Type	Front Wheel Steering
Power Steering	Hydrostatic
Steering Cylinder	One Double-Acting Cylinder, bore 2.6 in (60 mm), stroke 4.2 in (106 mm), rod 1.6 in (40 mm)
Front Axle Oscillation	±11°
Front Axle Oscillation	±11°
Turning Circle w/o Brakes, Outside Front Wheels	323 in (8205 mm)
Turning Circle w/o Brakes, Outside Widest Loader Bucket	423 in (10745 mm)
Service Brakes	Hydraulically boosted, oil disc, dual pedals, interlocking brakes
Parking Brake	Spring Applied Hydraulically Released (SAHR) Parking Brake. Activated at the push of a button and automatically engages when the machine is powered down

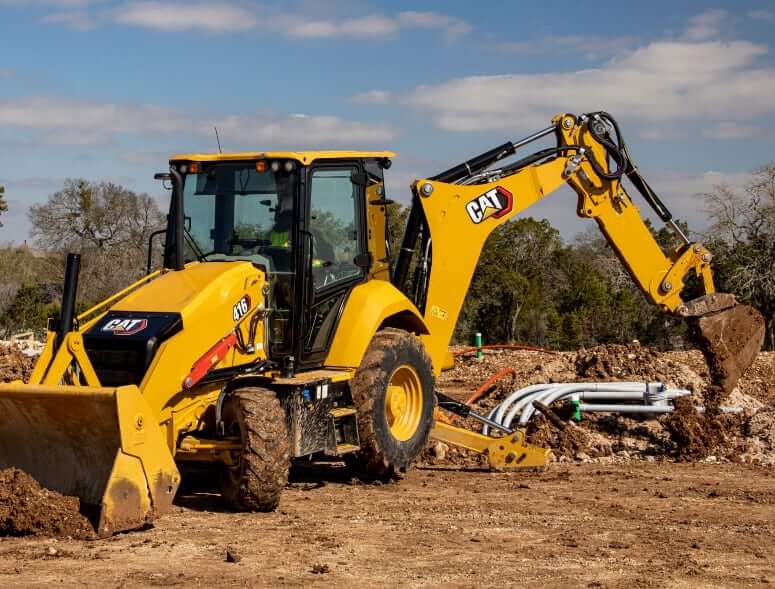

Hydraulic System

Type	Closed center, load sensing hydraulics
Pump Type	Variable-flow, axial piston pump
Pump Flow Capacity	34.9 gal/min (132 L/min)
Relief Valve Pressure (Backhoe)	3336 psi (23000 kPa)
Relief Valve Pressure (Loader)	3336 psi (23000 kPa)

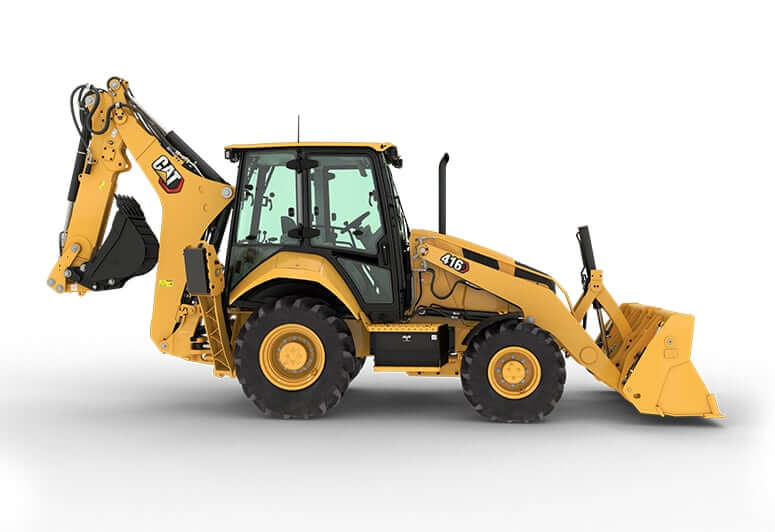

Service Refill Capacities

Engine	CAT C3.6	CAT C4.4	Cat 3054C
Fuel Tank Capacity	42.3 gal (160 L)	42.3 gal (160 L)	42.3 gal (160 L)
DEF Tank Capacity	5.0 gal (19.0 L)
Engine Oil Capacity (w/ filter)	2.4 gal (9.0 L)	2.3 gal (8.8 L)	2.3 gal (8.8 L)
Cooling System Capacity (w/ AC)	4.8 gal (18.0 L)	4.9 gal (18.5 L)	4.9 gal (18.5 L)
Transmission Oil Capacity (2WD, Power Shuttle)		4 gal (15 L)	4 gal (15 L)
Transmission Oil Capacity (4WD, Power Shuttle)	4.8 gal (18.0 L)	4 gal (15 L)	4 gal (15 L)
Transmission Oil Capacity (4WD, Power Shift)	5.0 gal (19.0 L)
Front Axle Fluid Capacity (4WD)	2.9 gal (11 L)	2.9 gal (11 L)	2.9 gal (11 L)
Front Axle Planetaries	0.2 gal (0.7 L)	0.2 gal (0.7 L)	0.2 gal (0.7 L)
Rear Axle Fluid Capacity	4.2 gal (16.0 L)	4.4 gal (16.5 L)	4.4 gal (16.5 L)
Rear Axle Planetaries	0.4 gal (1.7 L)	0.4 gal (1.7 L)	0.4 gal (1.7 L)
Hydraulic Tank Capacity	11.1 gal (42 L)	10.6 gal (40 L)	10.6 gal (40 L)
Hydraulic System Capacity (w/ tank)	25.1 gal (95 L)	23.8 gal (90 L)	23.8 gal (90 L)
