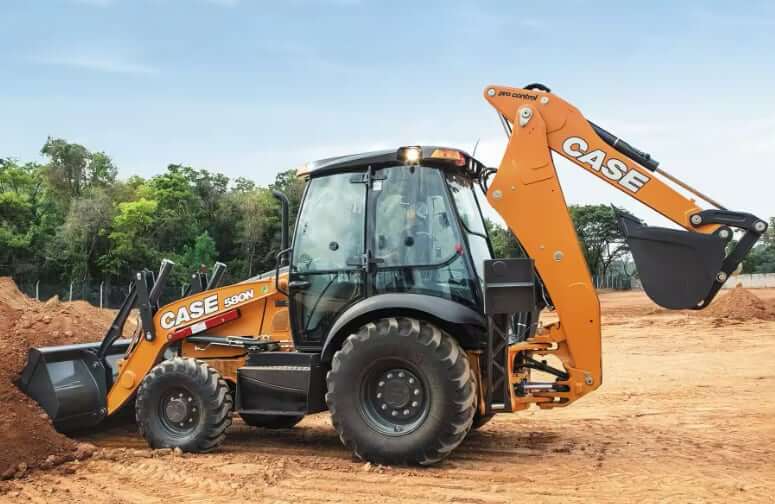

Dimensions
| Case 580N | 2WD | 4WD, |
|---|---|---|
| Overall Transport Length w/ Long Lip Bucket | 276.4 in (7020 mm) | 275.6 in (7000 mm) |
| Overall Transport Length w/ 4-in-1 Bucket | 274.0 in (6960 mm) | 272.8 in (6930 mm) |
| Overall Transport Width over Rear Tires | 276.4 in (7020 mm) | 275.6 in (7000 mm) |
| Overall Transport Length w/ Long Lip bucket | 85.4 in (2170 mm) | 85.4 in (2170 mm) |
| Overall Transport Height w/ Standard Dipper | 130 in (3300 mm) | 132.7 in (3370 mm) |
| Height to Top of Canopy | 104.7 in (2660 mm) | 104.7 in (2660 mm) |
| Height to Top of Cab | 107.1 in (2720 mm) | 107.1 in (2720 mm) |
| Height to Top of Exhaust Stack | 103.1 in (2620 mm) | 102.8 in (2610 mm) |
| Wheelbase | 84.0 in (2130 m) | 84.5 in (2150 m) |
| Ground Clearance (at Backhoe Frame) | 15 in (380 mm) | 15 in (380 mm) |
Dimensions taken with 19.5Lx24 Rear tires.
Turning Radius: Curb to Curb
| Type | Case 580N 2WD | Case 580N 4WD |
|---|---|---|
| Brakes on | 127.6 in (3240 mm) | 135.8 in (3450 mm) |
| Brakes off | 148.0 in (3760 mm) | 165.7 in (4210 mm) |
Turning radius dimensions curb to curb w/ 12.0 x 16.5 front tires and 19.5 L x 24.0 rear tires.

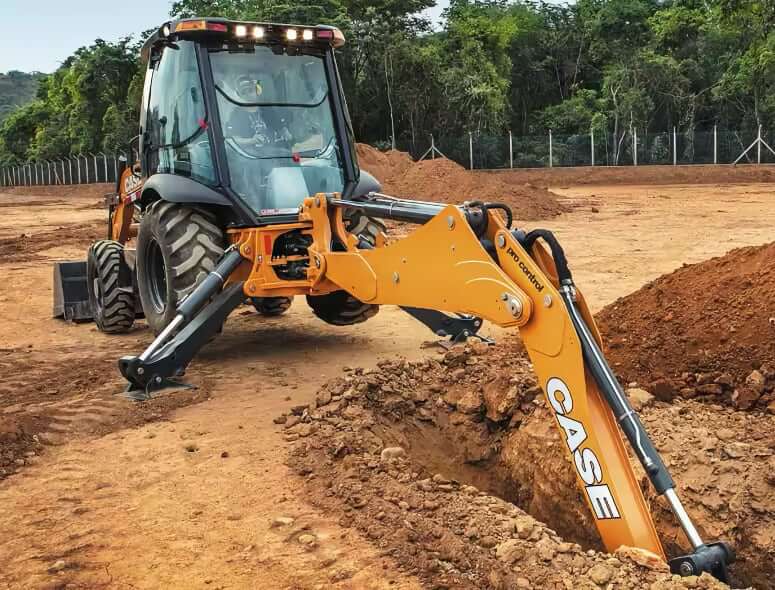

Backhoe
| Type | Standard | Extendahoe |
|---|---|---|
| Digging Depth | 180.3 in (4580 mm) | 221.6 in (5630 mm) |
| Reach from Rear Axle Centerline | 263 in (6680 mm) | 304 in (7720 mm) |
| Reach from Swing Pivot | 222.4 in (5650 mm) | 263 in (6680 mm) |
| Loading Height | 139 in (3530 mm) | 167 in (4240 mm) |
| Loading Reach | 54.7 in (1390 mm) | 85.8 in (2180 mm) |
| Swing Arc | 180° | 180° |
| Stabilizer Spread – Flip Pad Centers | 113 in (2870 mm) | 113 in (2870 mm) |
| Stabilizer Spread – Cast Pad Centers | 117 in (2970 mm) | 117 in (2970 mm) |
| Bucket Digging Force | 11517 lbf (51.2 kN) | 11517 lbf (51.2 kN) |
| Dipper Digging Force | 6710 lbf (29.5 kN) | 4895 lbf (21.7 kN) |
Dimensions taken with 2WD, 17.5 L x 24 Rear tires, Universal coupler.
Loader
| Type | Long Lip Bucket | 4-in-1 Bucket |
|---|---|---|
| Bucket Cutting Edge Width | 82.5 in (2090 mm) | 82.0 in (2080 mm) |
| Bucket Capacity | 0.88 yd3 (0.67 m3) | 0.85 yd3 (0.65 m3) |
| Overall Operating Height | 164.2 in (4170 mm) | 171.3 in (4350 mm) |
| Bucket Hinge Pin Fully Raised | 134.3 in (3410 mm) | 134.3 in (3410 mm) |
| Dump Angle at Full Height | 46° | 46° |
| Dump Clearance at Full Height, 45° Dump | 103.5 in (2630 m) | 106.7 in (2710 m) |
| Dump Reach at Full Height, 45° Dump – from Bumper | 26.7 in (679 mm) | 26.2 in (666 mm) |
| Bucket Rollback @ Groundline | 40° | 40° |
| Digging Depth below grade | 7.8 in (199 mm) | 7.1 in (180 mm) |
| Reach from Front Axle Centerline – Bucket on Ground | 82 in (2080 mm) | 80 in (2030 mm) |
| Lift Capacity to Full Height | 6503 lb (2950 kg) | 6537 lb (2965 kg) |
| Breakout Force – Lift Cylinders | 9271 lbf (41.24 kN) | 8904 lbf (39.61 kN) |
| Breakout Force – Dump Cylinders | 9607 lbf (42.73 kN) | 10302 lbf (45.83 kN) |
Loader dimensions taken with 4WD, 12.0 x 16.5 front tires and 19.5 L x 24.0 rear tires
Engine Details
| Number Of Cylinders | 4 |
| Engine Make | Case FPT |
| Engine Model | FPT F5HFL463D |
| Displacement | 207 cu in (3.4 L) |
| Gross Power | 74 hp (55 kw) |
| Net Power | 68 hp (51 kw) |
| Power Measured @ | 2200 rpm |
| Net Max Torque | 220 lb ft (298 Nm) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharged |
| Air cleaner | Replaceable dual element dry type with radial seal |
| Emission Standards | Tier 4 Final |
Electrical
| Operating Voltage | 12 V |
| Alternator | 120 amps |
| Battery | 12 V, CCA 850 (Optional 2x 12 V, CCA 850) |
| Power Plugs | 2x 30 amps total |
Transmission
| Transmission Type | Power Shuttle Synchromesh Transmission manual gear shift, fully synchronized |
| Torque Converter Ratio | 3.2 |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Forward Speed | 21.3 mph (34.3 km/h) |
| Max Reverse Speed | 25.5 mph (41.0 km/h) |
| Front Tire Size (2WD) | 11.0 L x 16.0, 10-ply rating |
| Front Tire Size (4WD) | 12.0 L x 16.5, 8-ply rating |
| Rear Tire Size (2WD/4WD) | 19.5 L x 24.0, 10-ply rating |
| Service Brake | Wet Multi Disc |
Hydraulic
| Pump Type | Parker P330 Single Selection Gear Pump |
| Pump Flow Capacity | 28.5 gal/min (108 L/min) |
| Relief Valve Pressure | 3350 psi (23100 kPa) |
| Filtration | 7-micron, return line, full flow, spin on element |
| Loader Control Valve | 2 or 3-spool open center monoblock valve. 2 and 3-spool valves have a single lever manual control for lift and tilt functions. 3-spool valve uses a proportional Electro-Hydraulic control for the auxiliary function. The lift lever has a positive hold “Float” position and a “return-to-dig” feature. |
| Backhoe Control Valve | 6-spool monoblock open center control valve w/ seventh and eighth spool bolt-on sections. Basic control valve has an open center parallel circuit for all functions. |
Weight
| Operating Weight (2WD) | 15995 lb (7255 kg) |
| Operating Weight (4WD) | 16093 lb (7300 kg) |
| Cab-over Canopy | + 309 lb (140 kg) |
| Fabricated Stabilizer Pads | + 141 lb (64 kg) |
| Extendahoe® | + 285 lb (129 kg) |
Service Refill Capacities
| Fuel Tank Capacity | 30 gal (114 L) |
| Engine Oil Capacity (w/ Filter) | 2.1 gal (8 L) |
| Cooling System Capacity (w/ Heater) | 4.8 gal (18 L) |
| Hydraulic System Capacity | 26.4 gal (100 L) |
| Hydraulic System Capacity (w/ Extendahoe) | 28.0 gal (106 L) |
| Hydraulic Tank Capacity (w/ Filter) | 14.5 gal (55 L) |
| Transmission Oil Capacity (2WD) | 4.5 gal (17 L) |
| Transmission Oil Capacity (4WD) | 5.1 gal (19.4 L) |
| Front Axle Differential Capacity | 1.45 gal (5.5 L) |
| Front Axle Planetaries (each) Capacity | 0.18 gal (0.7 L) |
| Rear Axle (Differential + Planetaries) Capacity | 3.6 gal (13.6 L) |
| Window Washer Reservoir | 0.73 gal (2.8 L) |
