John Deere 4110 Attachments (Specs)

The John Deere 4110 is a versatile compact tractor suitable for a variety of tasks. With its powerful engine (20 hp / 14.9 kW Yanmar diesel engine) and responsive controls, it offers excellent maneuverability and performance in tight spaces. The hydrostatic transmission ensures smooth operation, while the comfortable seat and ergonomic design enhance operator comfort during long hours of use. However, some users may find the lack of certain features compared to larger models limiting for more demanding applications. Overall, the John Deere 4110 is a reliable and efficient Compact Utility tractor ideal for homeowners and small-scale agricultural operations.

John Deere 4110 Attachment List with Specs

The John Deere 4110 is compatible with a range of attachments designed to enhance its versatility and productivity. From loaders to mowers and tillers, these attachments are engineered to deliver exceptional performance and durability. With specifications tailored to meet various needs, the attachments for the John Deere 4110 ensure efficient operation across different tasks and environments. Explore the specifications of these attachments to maximize the capabilities of your compact utility tractor.

John Deere 4110 Attachment List with Specs

Attachments provide the John Deere 4110 with enhanced functionality for various agricultural and landscaping tasks: 54″ mid-mount mower deck / 60″ mid-mount mower deck; John Deere 200CX Front-end Loader; John Deere 410 Front Loader; John Deere 46 Backhoe Loader; 54″ Front-mount Blade; 47″ Snow Blower; 54″ Snow Blower.

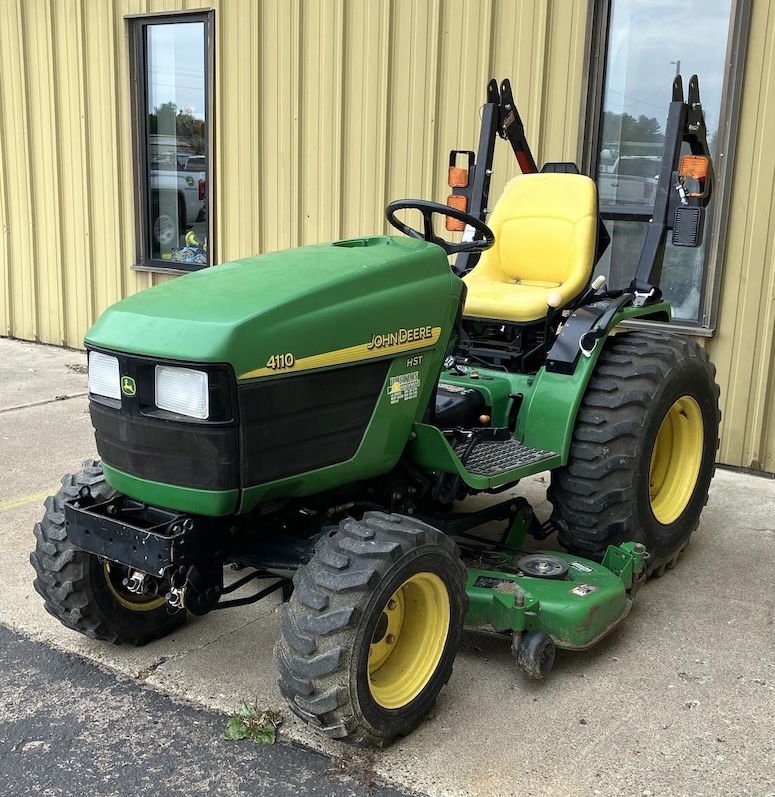

54″ Mid-mount Mower Deck

54" Mid-mount Mower Deck for John Deere 4110

54″ Mower Deck Specs
Type Mid-mount John Deere
Blades 3
Cutting Width 54 inches (137 cm)
Weight 190 lbs (86 kg)
Overall Width 57.9 inches (147 cm)

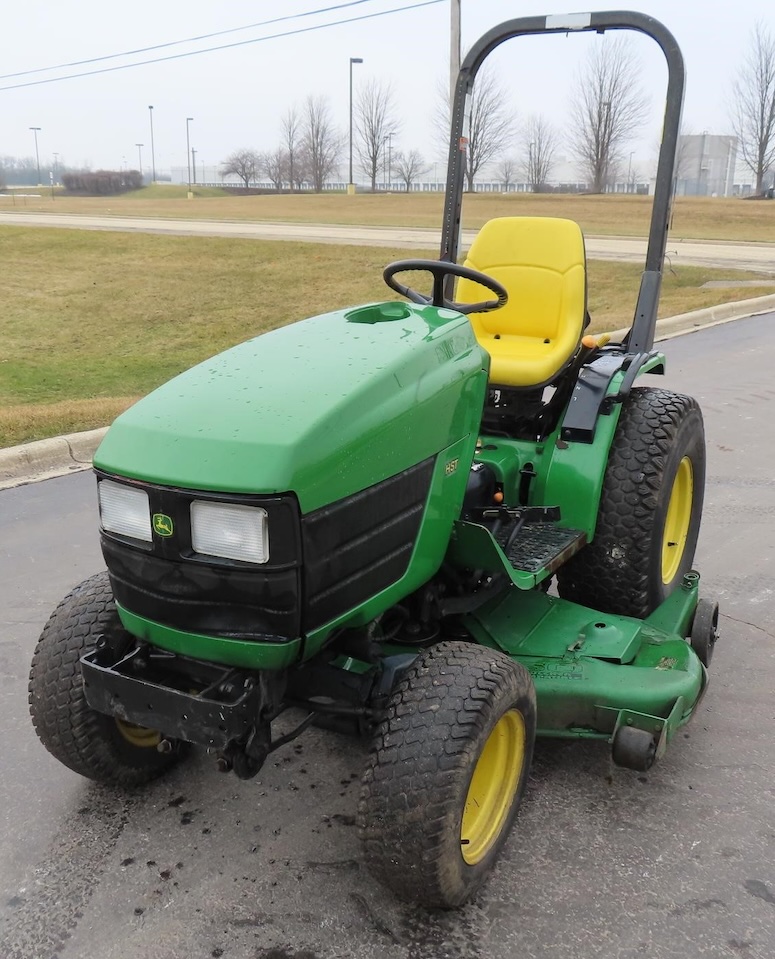

60″ Mid-mount Mower Deck

John Deere 4110 54" Mid-mount Mower Deck Attachment

60″ Mower Deck Specs
Type Mid-mount John Deere
Blades 3
Cutting Width 60 inches (152 cm)
Weight 325 lbs (147 kg)
Overall Width 73.5 inches (186 cm)

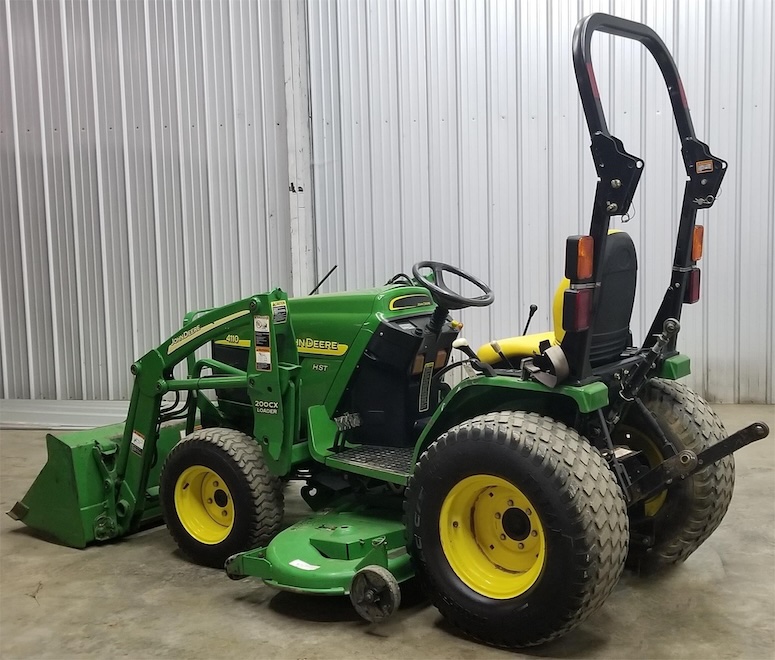

John Deere 200CX Front-end Loader

John Deere 200CX Front-end Loader for JD 4110 Compact Utility Tractor

John Deere 200CX Loader Specs
Loader Model JD 200CX
Leveling System Non-Self Leveling
Weight 234 kg (515 lbs)
Maximum Lift Height at Pin 1990 mm (78.5 in)
Clearance With Bucket Dumped 1830 mm (72.2 in)
Reach At Max Lift Height 740 mm (29.5 in)
Maximum Dump Angle 38 deg.
Reach With Bucket On Ground 1270 mm (50.3 in)
Maximum Rollback Angle 25 deg.
Rollback Angle at Full Height 105 deg.
Lift Capacity to Max Height at Pivot Point 410 kg (902 lbs)
Lift Capacity to Max Height at 500 mm Forward of Pivot Point 285 kg (630 lbs)
Lift Capacity to 1500 mm Height at Pivot Point 510 kg (1124 lbs)
Lift Capacity to 1500 mm Height (at 500 mm) Forward of Pivot Point 375 kg (827 lbs)
Breakout Force at Pivot Point 1015 kg (2240 lbs)
Breakout Force at 500 mm Forward of Pivot Point 687 kg (1515 lbs)
Bucket Rollback Force at Max Height 772 kg (1702 lbs)
Loader Raise 3.2 sec.
Loader Lower 1.9 sec.
Bucket Dump 3.1 sec.
Bucket Rollback 2.0 sec.
Standard Material Bucket 49″
Bucket Width 1250 mm (49 in)
Struck Capacity 0.17 m3 (6.0 cu.ft)
Heaped Capacity 0.21 m3 (7.3 cu.ft)
Bucket Weight 70.5 kg (155 lbs)
Standard Material Bucket 53″
Bucket Width 1345 mm (53 in)
Struck Capacity 0.22 m3 (7.8 cu.ft)
Heaped Capacity 0.26 m3 (9.3 cu.ft)
Bucket Weight 77.3 kg (170 lbs)

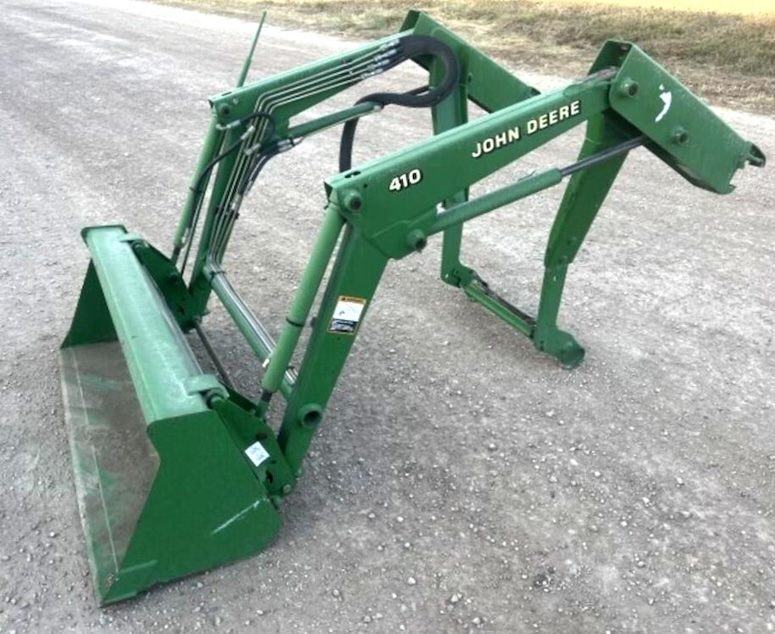

John Deere 410 Front Loader

John Deere 410 Front Loader Attachment

John Deere 410 Loader Specs
Height (to pin) 74 inches (187 cm)
Clearance, dumped bucket 55.1 inches (139 cm)
Dump reach 24.8 inches (62 cm)
Dump angle 45°
Clearance, level bucket 67.8 inches (172 cm)
Reach at ground 44.6 inches (113 cm)
Breakout force (at pin) 2257 lbs (1023 kg)
Breakout force (at 500 mm) 1500 lbs (680 kg)
Breakout force (bucket) 1661 lbs (753 kg)
Lift Capacity to full height (at pin) 882 lbs (400 kg)
Lift Capacity to full height (at 500 mm) 618 lbs (280 kg)
Lift Capacity to 1500 mm (at pin) 1072 lbs (486 kg)
Lift Capacity to 1500 mm (at 500 mm) 782 lbs (354 kg)

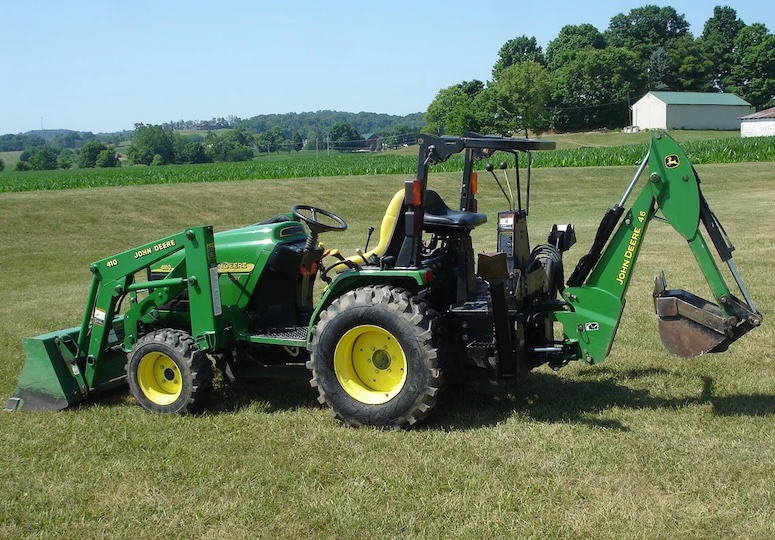

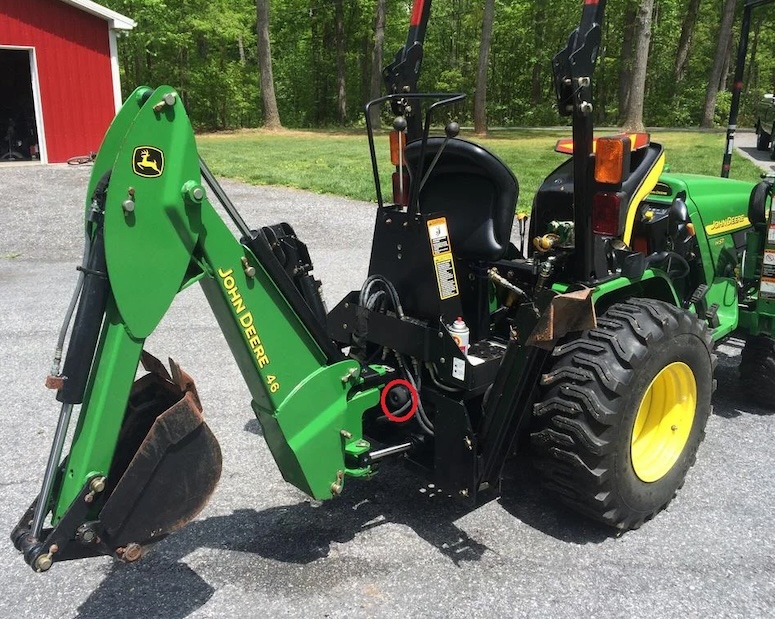

John Deere 46 Backhoe Loader

John Deere 46 Backhoe Loader

Parameter Value
Transport height (with boom fully retracted) 60 in (1500 mm)
Boom pivot pin height 12 in (305 mm)
Operating weight (with 20-in bucket) 896 lbs (407 kg)
Digging depth (2-ft flat bottom) 78 in (1980 mm)
Loading height 60 in (1500 mm)
Loading reach 38 in (970 mm)
Reach from swing pivot 101 in (2570 mm)
Bucket rotation 180 degrees
Transport overhang 41 in (1040 mm)
Swing arc 180 degrees
Undercut length 28 in (710 mm)
Stabilizers spread width (raised) 47 in (1190 mm)
Stabilizer spread width (lowered) 78 in (1980 mm)
Boom Lift Capacity 348 lbs (158 kg)
Bucket Digging Force 2450 lbs (1115 kg)
Dipperstick Digging Force 1250 lbs (570 kg)
Bucket Width 9 in (230 mm)
Struck Capacity 0.49 cu.ft (0.014 m3)
Heaped Capacity 0.64 cu.ft (0.018 m3)
Weight 46 lbs (20.9 kg)
Bucket Width 13 in (330 mm)
Struck Capacity 0.77 cu.ft (0.022 m3)
Heaped Capacity 1.04 cu.ft (0.029 m3)
Weight 52 lbs (23.6 kg)
Bucket Width 16 in (410 mm)
Struck Capacity 0.98 cu.ft (0.028 m3)
Heaped Capacity 1.33 cu.ft (0.038 m3)
Weight 57 lbs (25.9 kg)
Bucket Width 20 in (510 mm)
Struck Capacity 1.26 cu.ft (0.036 m3)
Heaped Capacity 1.74 cu.ft (0.049 m3)
Weight 65 lbs (29.5 kg)
Bucket Width 24 in (610 mm)
Struck Capacity 1.54 cu.ft (0.044 m3)
Heaped Capacity 2.14 cu.ft (0.061 m3)
Weight 78 lbs (35.5 kg)
Bucket Width 36 in (910 mm)
Struck Capacity 2.38 cu.ft (0.067 m3)
Heaped Capacity 3.34 cu.ft (0.095 m3)
Weight 102 lbs (46.6 kg)

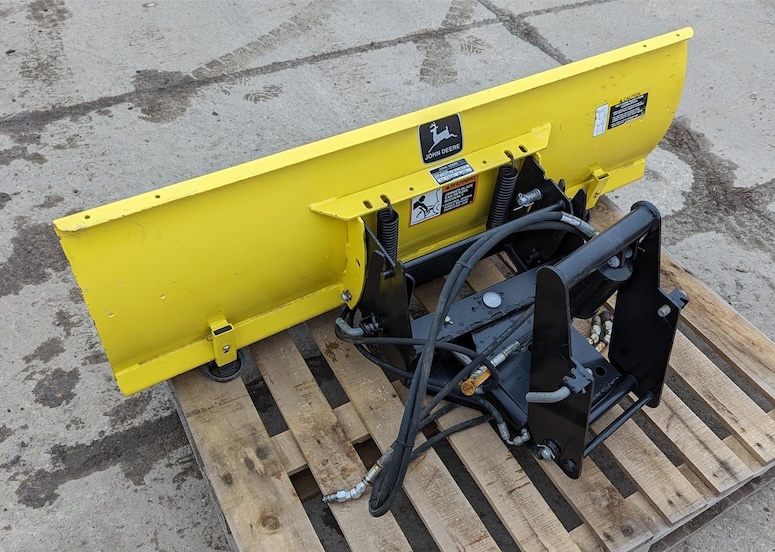

54″ Front-mount Blade

John Deere 54" Front-mount Blade Attachment

Original John Deere 54″ front-mount snow blade features:

  • 54-inch Clearing Width Straight;
  • 48-inch Clearing Width Fully Angled; Replaceable Cutting Edge;
  • Heavy 11-Gauge, Curved Blade;
  • Angled Left or Right Up to 27 degrees;
  • Two Adjustable Skid Shoes;
  • Reinforced Angle Bar on Back of Blade Spring Breakaway with Lock-Out Pin

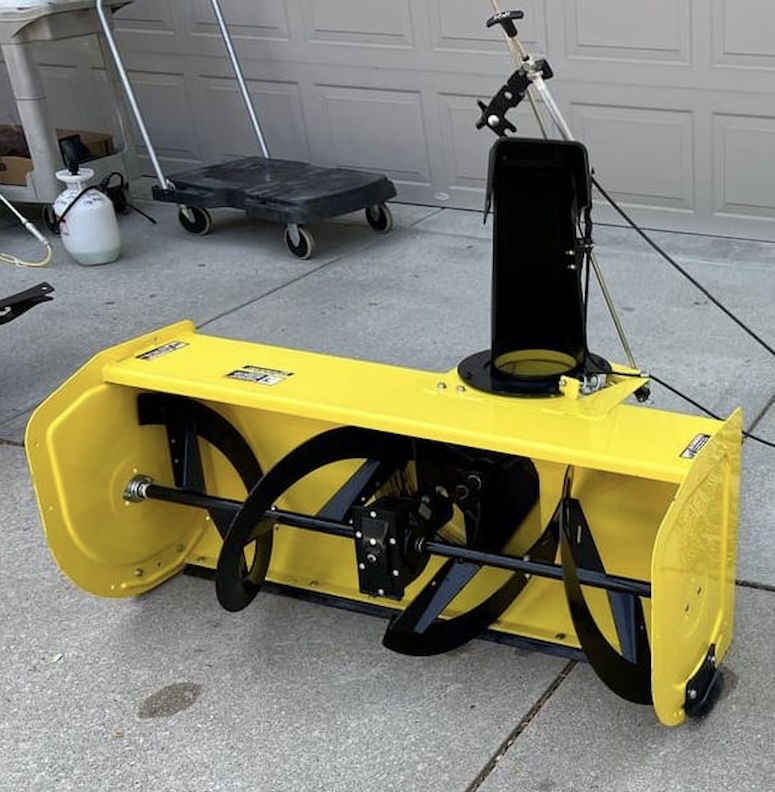

47″ Snow Blower

John Deere 47″ Snow Blower

Model Mount Width Height Lift Type Stage Weight
47″ Snow Blower Front-mount 47.5 inches / 120 cm 50 inches / 127 cm Hydraulic Lift Single-stage 250 lbs / 113 kg

54″ Snow Blower

The snow blower utilizes a low-speed auger to gather snow and direct it towards the machine’s center, where a high-speed impeller expels it through the discharge chute. Its robust front 3-point hitch enables quick attachment of implements. Enhancing snow processing capabilities, the Heavy-Duty Snow Blowers boast:

  • A 23-inch (584-mm) housing height;
  • A 7.25-inch (184-mm) spout diameter;
  • A 16-inch (406-mm) diameter auger with double center flighting;
  • Two drift cutters.

In conclusion, the attachments available for the John Deere 4110 compact utility tractor offer versatility and efficiency for various tasks. From loaders to mowers and tillers, each attachment is designed to enhance the tractor’s functionality, making it suitable for a wide range of applications. With durable construction and user-friendly features, these attachments contribute to the overall performance and productivity of the John Deere 4110, ensuring that it remains a reliable choice for agricultural and landscaping needs.
