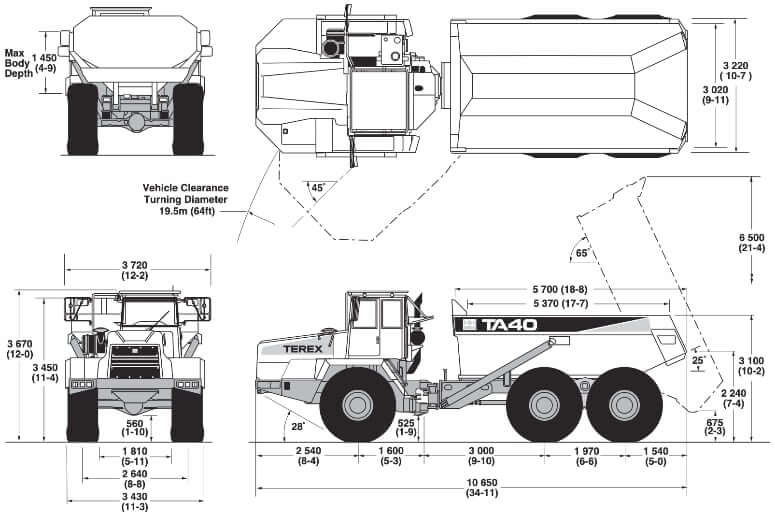

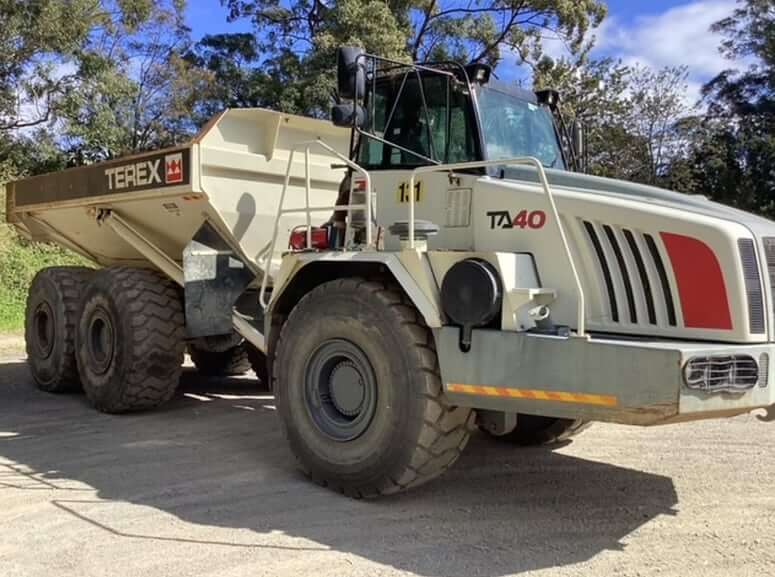

Dimensions
Overall Length | 34.1 ft in (10650 mm) |
Wheelbase | 15.1 ft in (4600 mm) |
Overall Width | 12.2 ft in (3720 mm) |
Overall Height | 12.0 ft in (3670 mm) |
Dump Height | 21.4 ft in (6500 mm) |
Ground Clearance | 1.9 ft in (525 mm) |
Dump Ground Clearance | 2.3 ft in (675 mm) |
Hydraulic System
Type | Open center. Gear pump driven from transmission power take-off |
Main Pump Flow | 111 gal/min (420 L/min) |
Brake Pump Flow | 32 gal/min (121 L/min) |
Max System Pressure | 2988 psi (20600 kPa) |
Full Flow Filtration | 12 microns |

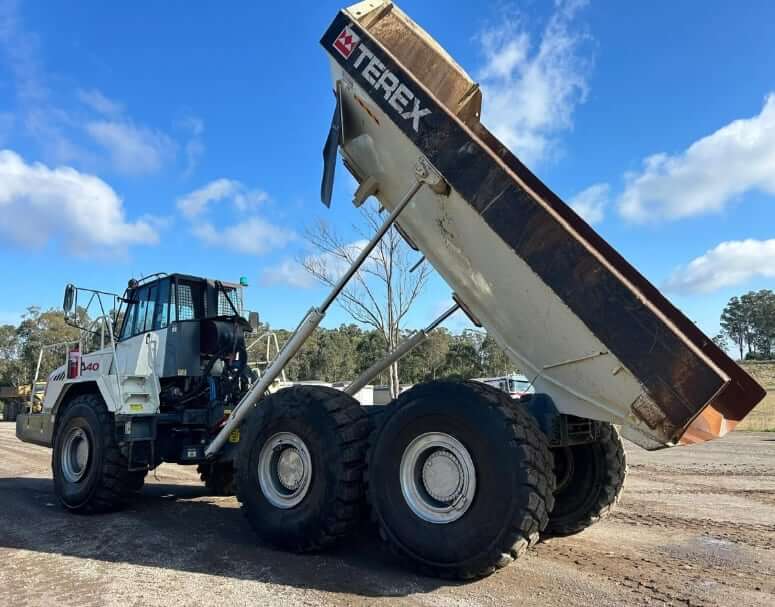

Dump
Rated Payload | 80470 lb (36500 kg) |
Capacity, Heaped 2:1 (SAE) | 28.8 yd3 (22.0 m3) |
Capacity, Struck (SAE) | 22.2 yd3 (17.0 m3) |
Dump Angle | 65 degrees |
Body Raise Time (loaded) | 16 sec |
Body Lower Time (power down) | 12 sec |
Engine Details
Number Of Cylinders | 6 |
Engine Make | Detroit Diesel |
Engine Model | Detroit Diesel Series 60 |
Displacement | 774 cu in (12.7 L) |
Gross Power | 445 hp (332 kw) |
Net Power | 390 hp (291 kw) |
Power Measured @ | 2200 rpm |
Max Torque | 1475 lb ft (2000 Nm) |
Torque Measured @ | 1350 rpm |
Aspiration | Turbocharged with air-to-air charge cooling |
Emission Standards | US EPA Tier 2 |
Transmission
Transmission Type | ZF 6WG 310 Automatic with manual override |
Number of Gears (Forward / Reverse) | 6 / 3 |
Max Travel Speed | 32.1 mph (51.7 km/h) |
Max Travel Reverse Speed | 20.7 mph (33.3 km/h) |
Tire Size | 29.5 R25 |
Service Brake | All hydraulic braking system with dry disc on each wheel and single heavy-duty calliper per disc |
Parking Brake | Spring-applied, hydraulic-released disc on rear driveline |
Operational Specs
Net Operating Weight | 67745 lb (30730 kg) |
Gross Operating Weight | 148215 lb (67230 kg) |
Operating Voltage | 24 V |
Alternator | 70 amps |
Battery | 2x 12 V, 175 Ah |
Noise Level, Operator Ear (ISO 6394) | 80 db(A) |
Exterior Sound Rating (ISO 6395) | 112 db(A) |
Weights
Front Axle – Empty | 33675 lb (15275 kg) |
Center Axle – Empty | 17085 lb (7750 kg) |
Rear Axle – Empty | 16985 lb (7705 kg) |
Total Empty | 67745 lb (30730 kg) |
Front Axle – Loaded | 44465 lb (20170 kg) |
Center Axle – Loaded | 51875 lb (23530 kg) |
Rear Axle – Loaded | 51875 lb (23530 kg) |
Total Loaded | 148215 lb (67230 kg) |
Service Refill Capacities
Fuel Tank Capacity | 122 gal (463 L) |
Cooling System Fluid Capacity | 21.1 gal (80 L) |
Engine Oil Capacity | 9.8 gal (37 L) |
Transmission Fluid Capacity | 14.8 gal (56 L) |
Hydraulic System Capacity | 55 gal (209 L) |
Differential – Dana (Front) | 9.9 gal (37.5 L) |
Differential – Dana (Centre) | 10 gal (38 L) |
Differential – Dana (Rear) | 8.3 gal (31.5 L) |
Planetaries – Dana | 2.2 gal (8.5 L) |
Driveshaft Bearings | 0.4 gal (1.5 L) |
