Bucket
| Bucket Capacity, Heaped | 1.84 yd3 (1.4 m3) |
| Bucket Width | 88.6 in (2250 mm) |
| Dump Clearance At Max Raise | 107.9 in (2740 mm) |
| Hinge Pin – Max Height | 140 in (3555 mm) |
| Reach At Max Lift And Dump | 31.9 in (810 mm) |
| Breakout Force | 12814 lbf (57 kN) |

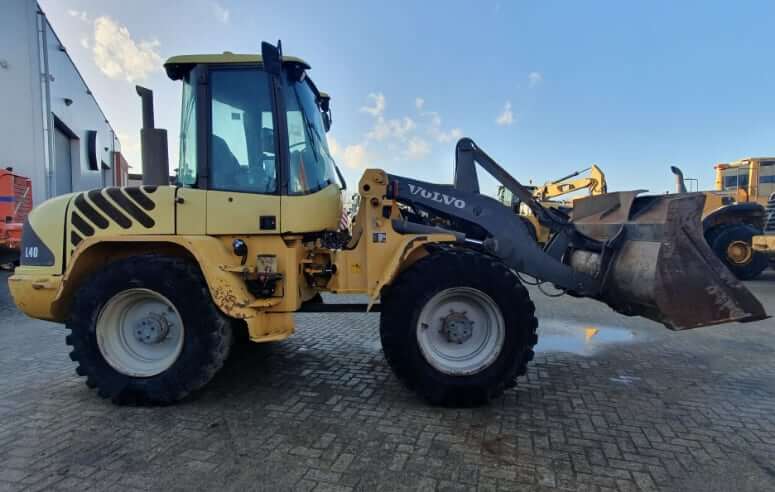

Dimensions
| Length With Bucket On Ground | 228 in (5790 mm) |
| Width Over Tires | 85 in (2159 mm) |
| Height To Top Of Cab | 116.1 in (2950 mm) |
| Wheelbase | 94.5 in (2400 mm) |
| Ground Clearance | 16.5 in (420 mm) |
Engine Details
| Number Of Cylinders | 4 |
| Engine Make | Deutz |
| Engine Model | Deutz BF4M 1013 |
| Displacement | 290.5 cu in (4.8 L) |
| Net Power | 86 hp (64.2 kw) |
| Gross Power | 94 hp (70.1 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 280.3 lb ft (380 Nm) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharged |
Transmission
| Type | Hydrostatic transmission |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed – Forward | 21.8 mph (35 km/h) |
| Max Speed – Reverse | 21.8 mph (35 km/h) |
Operational Specs
| Operating Weight | 15984 lb (7250 kg) |
| Static Tipping Weight | 11464 lb (5200 kg) |
| Operating Voltage | 12 V |
| Alternator | 55 amps |
| Rear Axle Oscillation | 20° |
| Tire Size | 15.5-25 |
| Turning Radius | 188 in (4775 mm) |
Hydraulic System
| Pump Type | Axial piston pump |
| Relief Valve Setting | 3045.8 psi (21000 kPa) |
| Pump Flow Capacity | 28.1 gal/min (106 L/min) |
| Raise Time | 6.0 sec |
| Dump Time | 1.5 sec |
| Lower Time | 5.0 sec |
Service Refill Capacities
| Fuel Tank Capacity | 34.4 gal (130 L) |
| Engine Oil Fluid Capacity | 3.2 gal (12 L) |
| Hydraulic System Fluid Capacity | 29.1 gal (110 L) |
| Front Axle/Diff Fluid Capacity | 2.1 gal (7.9 L) |
| Rear Axle/Diff Fluid Capacity | 2.7 gal (9.9 L) |
