| Static Tipping Load |
44291 lb (20090 kg) |
| Static Tipping Load – Full Turn |
39926 lb (18110 kg) |
| Breakout Force |
54404 lbf (242 kN) |
| Standard Bucket Capacity |
6.0 yd3 (4.6 m3) |
| Standard Bucket Capacity, Struck |
5.1 yd3 (3.9 m3) |
| Standard Bucket Width |
135.7 in (3447 mm) |
| Dump Clearance at Max Raise |
130.2 in (3306 mm) |
| Bucket Pin at Maximum Lift (Standard) |
177.4 in (4505 mm) |
| Bucket Pin at Maximum Lift (High Lift Option) |
186.1 in (4727 mm) |
| Reach At Max Lift And Dump |
58.7 in (1491 mm) |
| Digging Depth |
5.7 in (145 mm) |
Dimensions
| Length w/ Bucket on Ground* |
365.9 in (9294 mm) |
| Width Over Bucket |
135.7 in (3447 mm) |
| Width Over Tires |
125.7 in (3192 mm) |
| Height to Top of Cab |
147.8 in (3753 mm) |
| Wheelbase |
145.7 in (3700 mm) |
| Ground Clearance |
18.4 in (467 mm) |
* Bolt-on Cutting Edge GP Bucket 6 yd3 (4.6 m3)
Tire Size
| Tire Type |
Tire Size |
| Standard |
29.5-R25 XHA 1 STAR L-3 |
| Rock |
26.5-R25 L-3, 29.5-25 22PR L-3, 26.5-25 20PR L-3 |
| Traction Rock |
29.5-R25 GP2B L-2/L-3, 29.5-R25 RL2+, 26.5-R25 L-2/3 |
| Extra Deep Tread |
29.5-R25 XLDD2 1 STAR L-5, 29.5-R25 XMINE D2, 29.5-25 22PR L-5, 26.5-25 20PR L-5 |
Engine Details
| Number of Cylinders |
6 |
| Engine Make |
Caterpillar |
| Engine Model |
CAT 3406C DITA |
| Displacement |
893 cu in (14.64 L) |
| Bore |
5.4 in (137 mm) |
| Stroke |
6.5 in (165 mm) |
| Gross Power |
321 hp (239 kw) |
| Net Power |
300 hp (224 kw) |
| Power Measured @ |
2100 rpm |
| Peak Torque |
1230 lb ft (1668 Nm) |
| Torque Measured @ |
1000 rpm |
| Torque Rise |
46% |
| Fuel System |
Direct injection with individual adjustment-free injection pumps and valves |
| Lubrication System |
Pressure lubrication with full-flow, filtered oil and heat exchanger oil cooler |
| Air Cleaner |
Dry-type air cleaner with primary and secondary elements with automatic dust ejector and service indicator |
| Aspiration |
Turbocharged Aftercooled |
Operational Specs

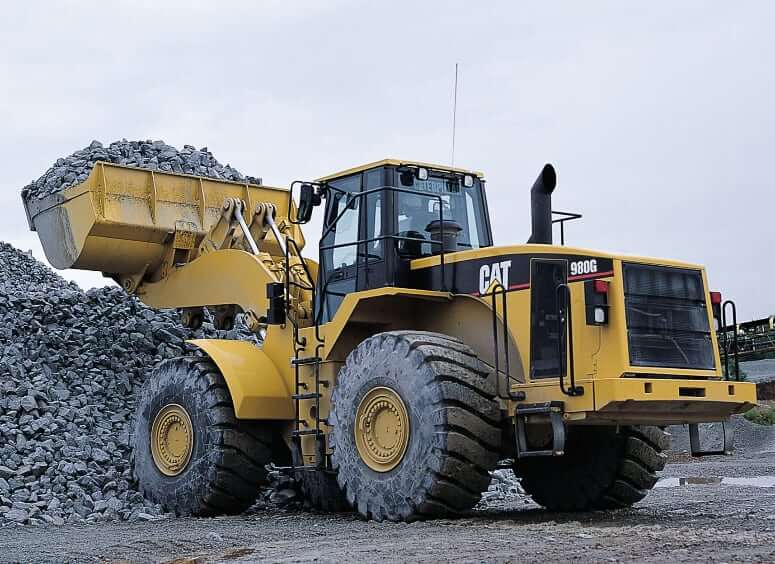

| Operating Weight |
65078 lb (29519 kg) |
| Static Tipping Load |
44291 lb (20090 kg) |

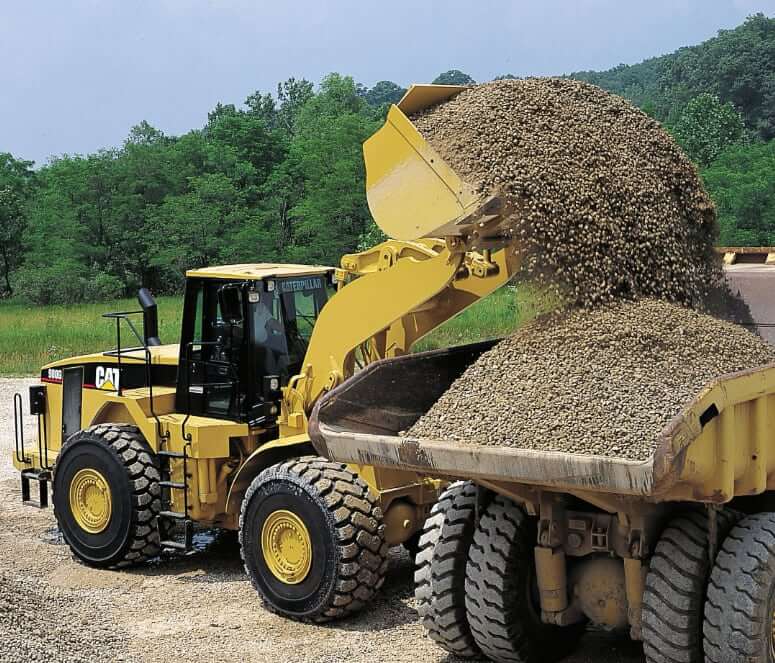

| Bucket Capacity |
5.0 – 7.5 yd3 (3.8 – 5.7 m3) |
| Operating Voltage |
24 V |
| Alternator |
70 amps |
| Battery |
2x 12 V, 100 Ah, CCA 750, RC: 165 min, 31 BCI |
| Starter |
24 V, 11 teeth, 11.4 hp (8.5 kw) |
| Operator Station |
Cab with ROPS (ISO 3471:1994) + FOPS (ISO 3449:1992 LEVEL II) |
| Controls (Standard) |
2 lever control. Lift circuit 4 positions: raise, hold, lower and float |
| Controls (Optional) |
3 lever control |
| Steering |
Full hydraulic load sensing steering |
| Noise Level (interior) |
75 dB(A) |
| Noise Level (exterior) |
107 dB(A) |
| Standard Tire Size |
29.5-R25 |
Transmission
| Type |
Power shift transmission with Variable Shift Control |
| Number of Gears |
4F / 4R |
| Max Forward Speed |
23.3 mph (37.4 km/h) |
| Max Reverse Speed |
26.6 mph (42.8 km/h) |
| Service Brakes |
Four wheel, hydraulic, oil cooled, multiple-disc brakes, completely enclosed, self adjusting with modulated engagement |
| Neutralizer Lockout |
Transmission neutralizer lockout switch lets the operator shut the neutralizer off, allowing the left pedal to work as a brake only |
| Parking Brake |
Spring applied, oil-released, dry drum brake, mounted on transmission output shaft for manual operation |
| Final Drives |
Planetary reduction at each wheel |
Axles
| Front Axle |
Fixed |
| Rear Axle |
Trunnion |
| Rear Axle Oscillating |
±13° |
| Maximum Single – Wheel Rise and Fall |
21.7 in (550 mm) |
Hydraulic System
| Type |
Electro-hydraulic completely enclosed system provide low-effort, finger-tip bucket/work tool control |
| Pump Type |
Positive-displacement hydraulic pumps |
| Pump Flow (Implement) |
126.8 gal/min (480 L/min) |
| Relief Valve Setting (Implement) |
3002 psi (20700 kPa) |
| Pump Flow (Pilot) |
5.6 gal/min (21 L/min) |
| Relief Valve Setting (Pilot) |
500 psi (3450 kPa) |
Hydraulic Circle Time
| Raise Time |
6.8 sec |
| Dump Time |
2.0 sec |
| Lower, Empty, Float Down Time |
3.4 sec |
| Total Hydraulic Cycle Time |
12.2 sec |
Service Refill Capacities
| Fuel Tank Capacity |
124 gal (470 L) |
| Engine Oil Capacity |
10.4 gal (38 L) |
| Cooling System Capacity |
20.9 gal (79 L) |
| Transmission Oil Capacity |
16.4 gal (62 L) |
| Front Differential + Final Drives |
23 gal (87 L) |
| Rear Differential + Final Drives |
21.4 gal (81 L) |
| Hydraulic Tank Capacity |
33 gal (125 L) |
| Hydraulic System Capacity (w/ tank) |
55 gal (208 L) |
