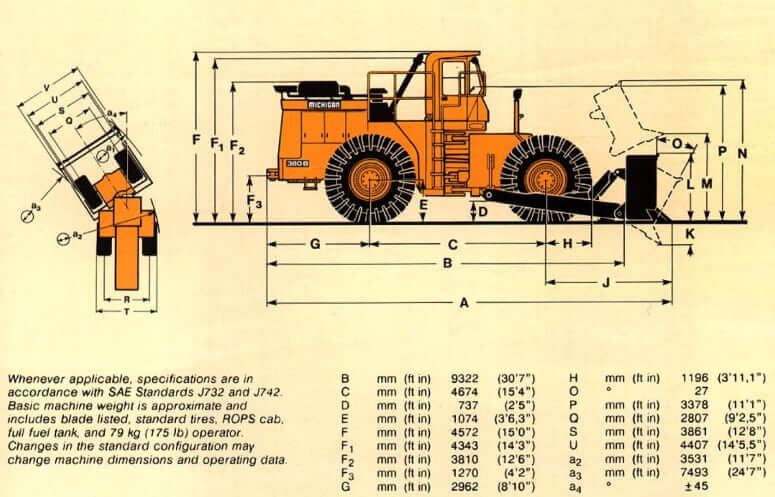

Dimensions
| Length w/o Blade | 367 in (9322 mm) |
| Overall Length w/ Straight Blade | 398.5 in (10122 mm) |
| Overall Length w/ Woodchip Blade | 426 in (10820 mm) |
| Wheelbase | 184 in (4674 mm) |
| Width Over Tires | 152 in (3861 mm) |
| Height To Top Of Cab | 180 in (4572 mm) |
| Ground Clearance | 29 in (737 mm) |
Blades
| Blade | Straight | U Blade | Coal | Woodchip |
|---|---|---|---|---|
| Blade Capacity | 13.3 yd3 (10.2 m3) | 14 yd3 (10.7 m3) | 39 yd3 (29.8 m3) | 39 yd3 (29.8 m3) |
| Blade Width | 190 in (4826 mm) | 194 in (4928 mm) | 240 in (6096 mm) | 240 in (6096 mm) |
| Blade Height | 65 in (1651 mm) | 65.5 in (1664 mm) | 89 in (2260 mm) | 87 in (2210 mm) |
| Blade Weight | 9520 lb (4318 kg) | 7800 lb (3538 kg) | 8700 lb (3946 kg) | 12080 lb (5479 kg) |
Engine Details
| Number Of Cylinders | 12 |
| Engine Make | Cummins |
| Engine Model | Cummins VTA-28-C |
| Gross Power | 635 hp (473.6 kw) |
| Net Power | 572 hp (426.6 kw) |
| Power Measured @ | 2100 rpm |
| Net Torque | 2065.2 lb ft (2800 Nm) |
| Torque Measured @ | 1300 rpm |
| Displacement | 1710 cu in (28.1 L) |
Transmission
| Transmission Type | Clark countershaft powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed – Forward | 17.8 mph (28.5 km/h) |
| Max Speed – Reverse | 17.8 mph (28.5 km/h) |
Operational Specs
| Max Weight (w/ Woodchip Blade & Counterweight) | 145290 lb (65904 kg) |
| Min Operating Weight (w/ U Blade) | 111950 lb (59780 kg) |
| Min Shipping Weight (w/ U Blade) | 110710 lb (50218 kg) |
| Operating Voltage | 24 V |
| Alternator | 100 amps |
| Front Work Lights | 4x 150W work lights |
| Rear Work Lights | 2x 150W rear work lights |
| Axle Oscillation | 14.5 degrees |
| Tire Size | 37,25-35 (30PR) E-3 |
| Noise Level in Cab | 85.0 dB(A) |
| Cab Heating Capacity | 37500 Btu/h (11.0 kW) |
Service Refill Capacities
| Fuel Tank Capacity | 200 gal (757 L) |
| Cooling System Capacity | 55 gal (208 L) |
| Engine Oil Capacity | 27 gal (102 L) |
| Transmission Fluid Capacity | 33 gal (125 L) |
| Hydraulic System Fluid Capacity | 200 gal (757 L) |
| Front Differential Oil Capacity | 24.5 gal (92.4 L) |
| Rear Differential Oil Capacity | 24.5 gal (92.4 L) |
| Front + Rear Wheel Hubs (each) | 10.6 gal (40.1 L) |
