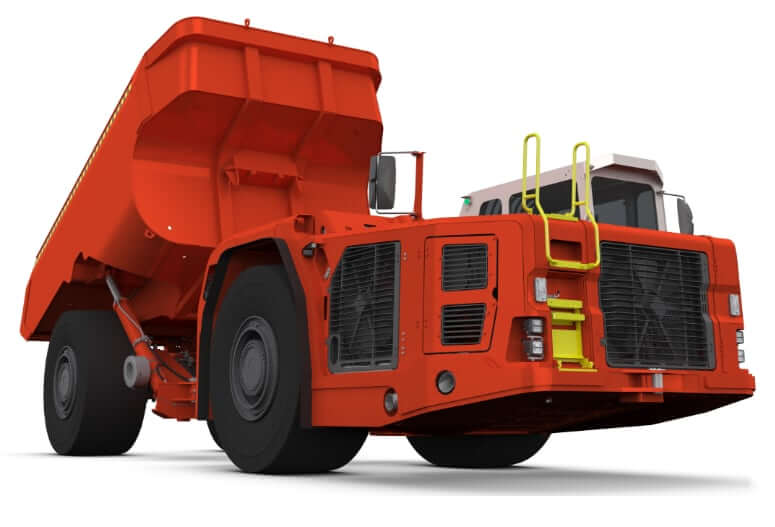

Dump System

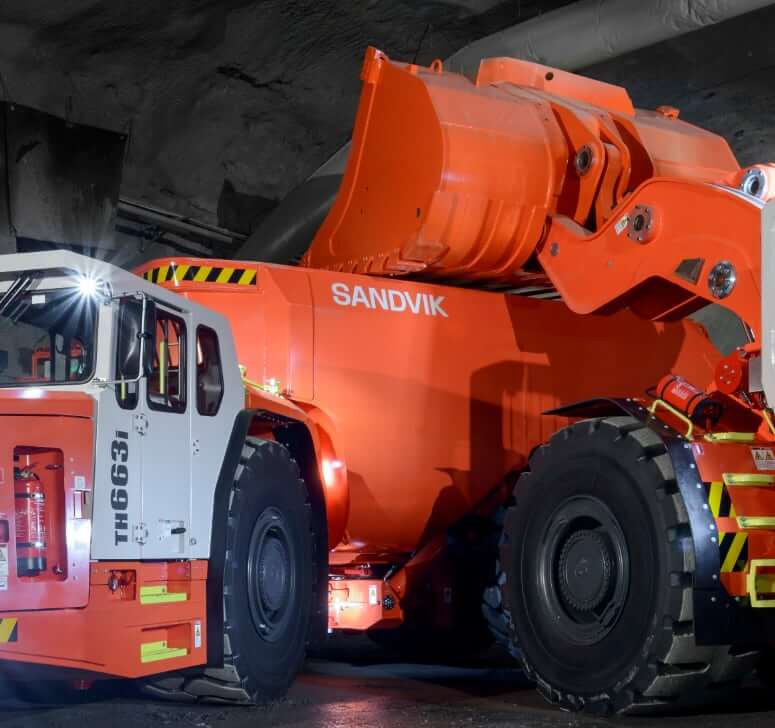

| Nominal Payload Capacity | 138891 lb (63000 kg) |
| Body Capacity 1, Dump Box | 41.9 yd3 (32 m3) |
| Body Capacity 2, Dump Box | 44.5 yd3 (34 m3) |
| Body Capacity 3, Dump Box (Standard) | 47.1 yd3 (36 m3) |
| Body Capacity 4, Dump Box | 49.7 yd3 (38 m3) |
| Body Capacity 5, Dump Box | 52.3 yd3 (40 m3) |
| Body Capacity 6, Ejector | 32.7 yd3 (25 m3) |
| Body Capacity 7, Ejector | 36.6 yd3 (28 m3) |
| Body Hoist Raise Time | 16 sec |
| Dump Angle | 62° |

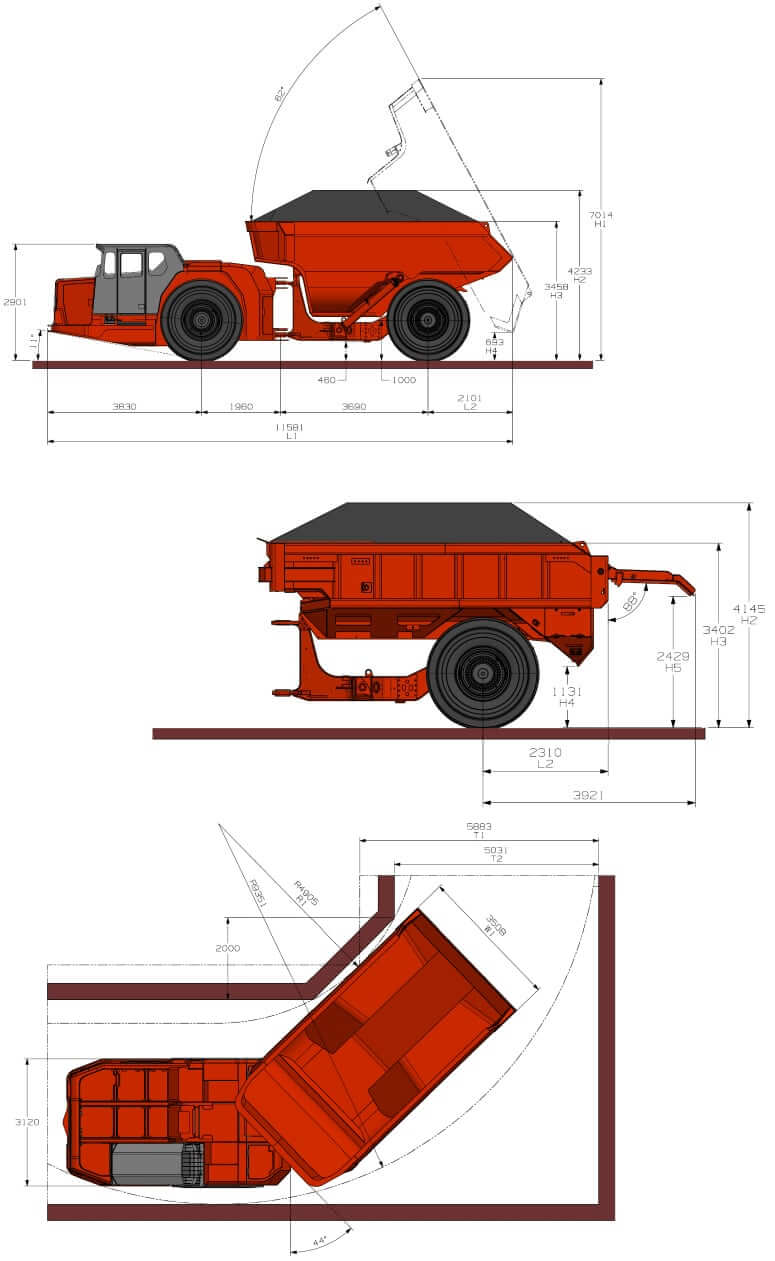

Dimensions
| Sandvik Toro TH663i | Dump Box (Standard) | Dump Box | Ejector Box |
|---|---|---|---|
| Capacity, Heaped (SAE 2:1) | 47.1 yd3 (36 m3) | 52.3 yd3 (40 m3) | 36.6 yd3 (28 m3) |
| Max Material Density with Fill Factor of 90% | 4189 lb/yd3 (1900 kg/m3) | 3748 lb/yd3 (1700 kg/m3) | 4189 lb/yd3 (1900 kg/m3) |
| L1. Overall machine length | 455.9 in (11581 mm) | 455.9 in (11581 mm) | 464.2 in (11790 mm) |
| L2. Rear axle to rear of machine | 82.7 in (2101 mm) | 82.7 in (2101 mm) | 90.9 in (2310 mm) |
| H1. Dump position height max | 276.1 in (7014 mm) | 279.2 in (7094 mm) | – |
| H2. SAE heap height | 166.6 in (4233 mm) | 173.0 in (4395 mm) | 163.2 in (4145 mm) |
| H3. Dumpbox spillguard | 136.2 in (3458 mm) | 141.0 in (3583 mm) | 133.9 in (3402 mm) |
| H4. Discharge height | 27.3 in (693 mm) | 27.3 in (693 mm) | 44.5 in (1131 mm) |
| H5. Ejector bucket tailgate height | – | – | 95.6 in (2429 mm) |
Turning Dimensions
| Sandvik Toro TH663i | Dump Box (Standard) | Dump Box | Ejector Box |
|---|---|---|---|
| W1. Dumpbox width | 138.0 in (3508 mm) | 143.9 in (3658 mm) | 126.0 in (3200 mm) |
| R1. Dumpbox inner turn radius | 193.1 in (4905 mm) | 190.2 in (4830 mm) | 193.6 in (4916 mm) |
| T1. Minimum tunnel width | 231.6 in (5883 mm) | 233.6 in (5936 mm) | 231.3 in (5875 mm) |
| T2. Tunnel width | 198.1 in (5031 mm) | 200.2 in (5086 mm) | 197.6 in (5022 mm) |

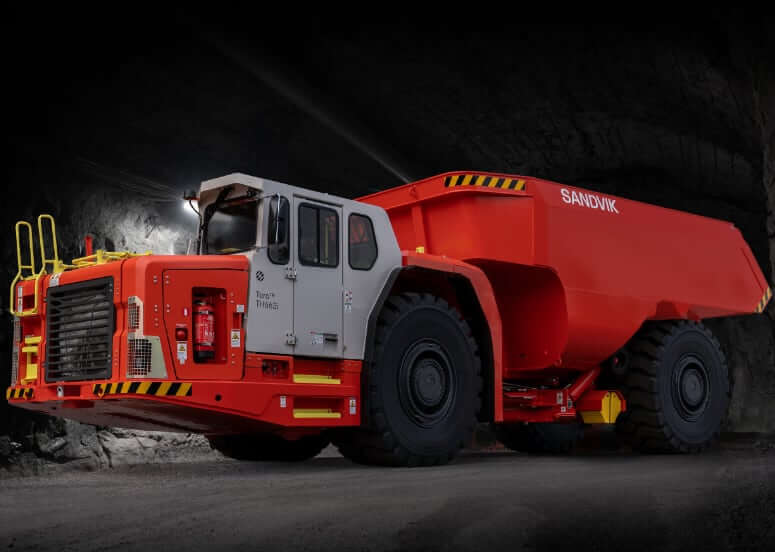

Weights
| Sandvik TH663i | Empty | Loaded |
|---|---|---|
| Operating Weight | 106792 lb (48440 kg) | 245683 lb (111440 kg) |
| Front Axle Load | 73634 lb (33400 kg) | 106968 lb (48520 kg) |
| Rear Axle Load | 33158 lb (15040 kg) | 138725 lb (62920 kg) |
Engine Details
| Engine Model | Volvo TAD1643VE-B | Volvo TWD1683VE |
|---|---|---|
| Number of Cylinders | 6 | 6 |
| Displacement | 984 cu in (16.12 L) | 984 cu in (16.12 L) |
| Bore | 5.67 in (144 mm) | 5.67 in (144 mm) |
| Stroke | 6.50 in (165 mm) | 6.50 in (165 mm) |
| Gross Horsepower | 760 hp (565 kw) | 784 hp (585 kw) |
| Power Measured @ | 1900 rpm | 1900 rpm |
| Peak Torque | 2404 lb ft (3260 Nm) | 2692 lb ft (3650 Nm) |
| Torque Measured @ | 1200 rpm | 1200 rpm |
| Average Fuel Consumption at 50% Load | 13.2 gal/h (50 L/h) | 12.2 gal/h (46 L/h) |
| Ventilation Rate | CANMET 54000 CFM, MSHA 46000 CFM | CANMET 27000 CFM, MSHA 25000 CFM |
| Particulate Index | MSHA 12000 CFM | MSHA 3000 CFM |
| Exhaust System | Catalytic converter with muffler | Selective Catalytics Reduction (SCR Only) |
| Aspiration | Turbocharged and Aftercooled | Turbocharged and Aftercooled |
| Emission Standards | US EPA Tier 2 + EU Stage II | US EPA Tier 4 Final + EU Stage V |
Operational Specs
| Max Operating Weight | 245683 lb (111440 kg) |
| Nominal Payload Capacity | 138891 lb (63000 kg) |
| Operating Voltage | 24 V |
| Alternator | 150 amps |
| Battery | 2x 12 V, 180 Ah |
| Starter | 24 V, 9.4 hp (7 kw) |
| Driving Lights | 4x LED front lights + 4x LED rear lights |
| Working Lights | 4x LED front working lights + 4x LED rear working lights |
Transmission
| Type | Fully automatic Dana transmission with electric shifting system and retarder includes converter with lock-up and drop box |
| Speed Assist | Standard Operator Speed Assist helps operators maintain speed control when traveling downhill. |
| Number of Gears | 8F / 2R |
| Max Speed (Empty) | 22.1 mph (35.5 km/h) |
| Max Speed (Loaded) | 21.3 mph (34.3 km/h) |

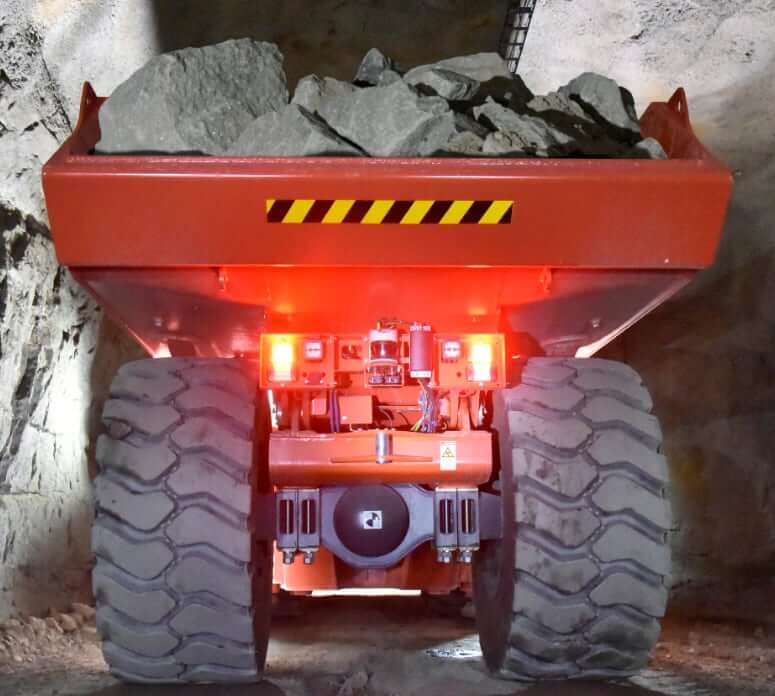

Axles and Brakes
| Front Axle | Oscillation (±8°). Kessler D111 series, spring applied hydraulic operated brakes, hydraulic suspension |
| Rear Axle | Fixed. Kessler D111 series, spring applied hydraulic operated brakes |
| Service Brakes | Spring applied; hydraulically operated multi disc wet brakes on all wheels. 2 independent circuits: one for the front and one for the rear axle |
| Parking Brake | Service brakes also function as an emergency and parking brake |
| Neutral Brake | Neutral brake, brake activates after 3sec in neutral gear. Automatic brake activation system, ABA |
| Emergency Brake | Electrically driven emergency brake release pump |
| Brake Pedal Valve | Foot operated pedal, fully modulated |
| Brake Standards | Brake system performance complies with requirements of EN ISO 3450, AS2958.1 and SABS 1589 |
| Gradeability | 20% |
| Turning Angle | 44° |
| Tire Size | 35/65 R33 -E4 |

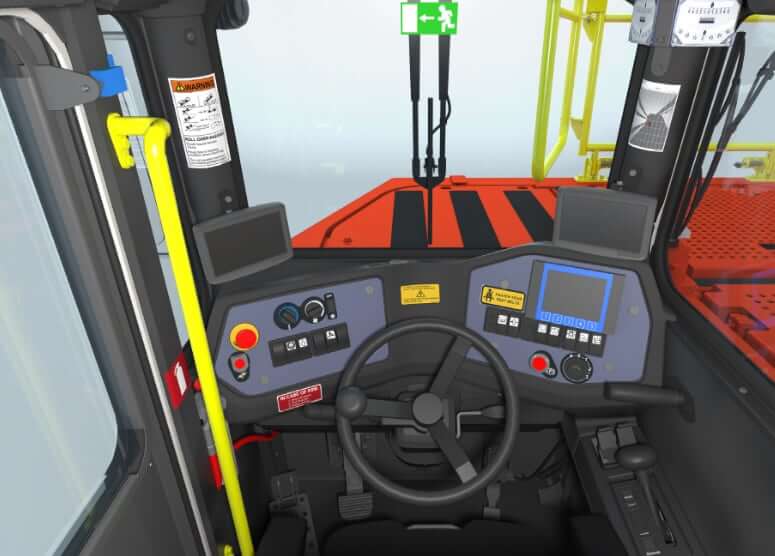

Cab
| Cab | Sealed, air conditioned, over pressurized, noise suppressed closed cab |
| ROPS | ISO 3471, SAE J1040 |
| FOPS | ISO 3449, SAE J231 |
| Fire Extinguisher | Portable fire extinguisher, 26.5 lb (12 kg), CE |
| Cold Climate Package | Arctic package 120V or 230V (preheater for hydraulic oil, brake oil transmission, up-box, drop box, and engine) |
| Operator Seat | Low frequency pneumatic suspension, adjustment according to the operator’s weight, height adjustment |
| Operator Seat Belt | 4-point seat belt on operator’s seat / 3-point seat belt on trainer’s seat |
| Control System | 5,7 in Color display, 5 modules, inbuilt system diagnostics |
| Sound Level, LpA | 76 dB(A) |
| Sound Power, LWA | 118 dB(A) |
| Whole Body Vibration | 0.64 m/s2 (driving with load) |
| Vibration Dose Value Over 15 min Period | 5.9 m/s1.75 (driving with load) |
| Steering | Fully hydraulic, center articulad, power steering |
Steering Hydraulics
| Type | Closed-center hydraulic system with pilot operated orbital wheel steering |
| Pump Type | Load sensing piston type pump |
| Steering Main Valve | Solenoid operated |
| Steering Cylinders | 2x 5.5 in (140 mm) |
Dump Box Hydraulics
| Type | Oil flows to box hydraulic system from the steering hydraulics |
| Pump Type | Variable displacement piston pump |
| Control Valve | Solenoid operated |
| Dump Box Main Valve | Solenoid operated |
| Dump Box Cylinders (bore x rod) | 2x 7.1 in (180 mm) |
Service Refill Capacities
| Fuel Tank Capacity | 224.5 gal (850 L) |
| Engine Oil Capacity | 12.7 gal (48 L) |
| Cooling System Capacity | 15.9 gal (60 L) |
| Hydraulic Tank Capacity | 74 gal (280 L) |
| Brake Oil Tank Capacity | 26.4 gal (100 L) |
