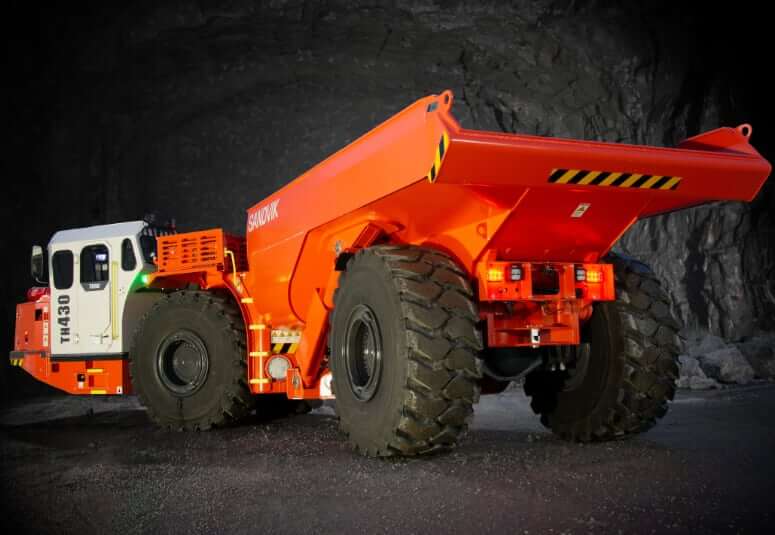

Dump System
| Nominal Payload Capacity |
66139 lb (30000 kg) |
| Body Capacity 1, Dump Box |
13.7 yd3 (14.5 m3) |
| Body Capacity 2, Dump Box |
15.7 yd3 (16 m3) |
| Body Capacity 3, Dump Box |
18.3 yd3 (18 m3) |
| Body Capacity 4, Ejector |
11.5 yd3 (14 m3) |
| Body Hoist Raise Time |
14 sec |
| Dump Angle |
61° |

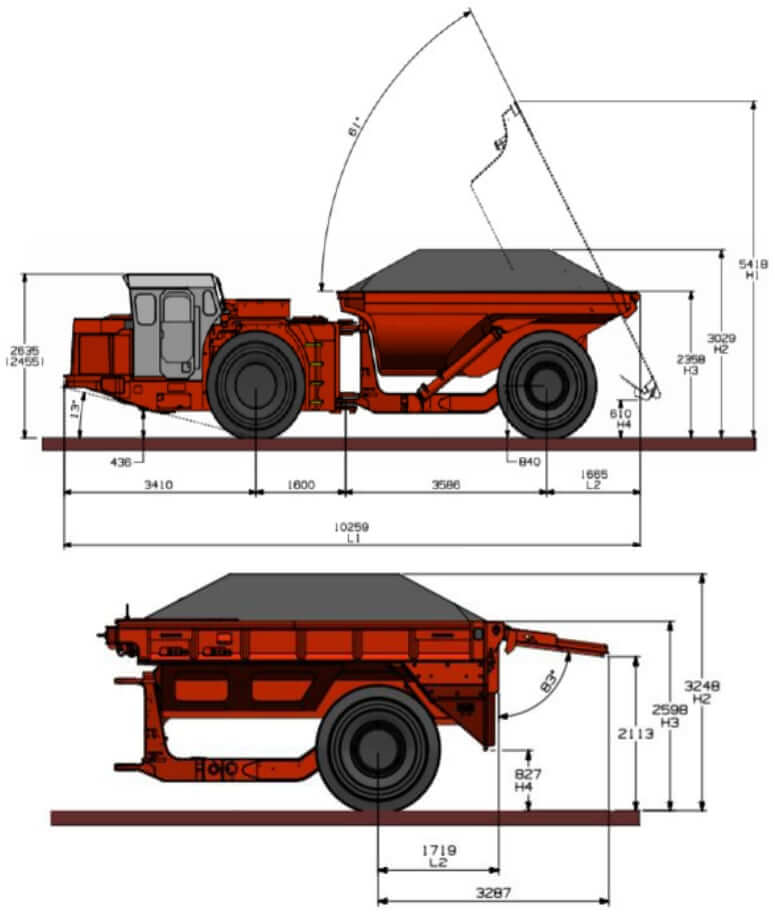

Dimensions
| Sandvik Toro TH430 |
Standard Dump Box |
Dump Box |
Ejector Box |
| Capacity, Heaped (SAE 2:1) |
19.0 yd3 (14.5 m3) |
23.5 yd3 (18.0 m3) |
18.3 yd3 (14 m3) |
| Max Material Density with Fill Factor of 90% |
5071 lb/yd3 (2300 kg/m3) |
4189 lb/yd3 (1900 kg/m3) |
4189 lb/yd3 (1900 kg/m3) |
| L1. Overall Machine Length |
403.9 in (10259 mm) |
411.5 in (10453 mm) |
411.4 in (10449 mm) |
| L2. Rear Axle to Rear of Machine |
65.4 in (1662 mm) |
73.1 in (1856 mm) |
67.7 in (1719 mm) |
| H1. Dump Position Height Max |
213.3 in (5418 mm) |
224.4 in (5700 mm) |
– |
| H2. SAE Heap Height |
119.3 in (3029 mm) |
125.9 in (3198 mm) |
127.9 in (3248 mm) |
| H3. Dumpbox Spillguard |
94.9 in (2412 mm) |
100.9 in (2562 mm) |
102.3 in (2598 mm) |
| H4. Discharge Height |
23.9 in (607 mm) |
16.2 in (412 mm) |
32.6 in (827 mm) |
| H5. Ejector Box Tailgate Height |
– |
– |
83.2 in (2113 mm) |

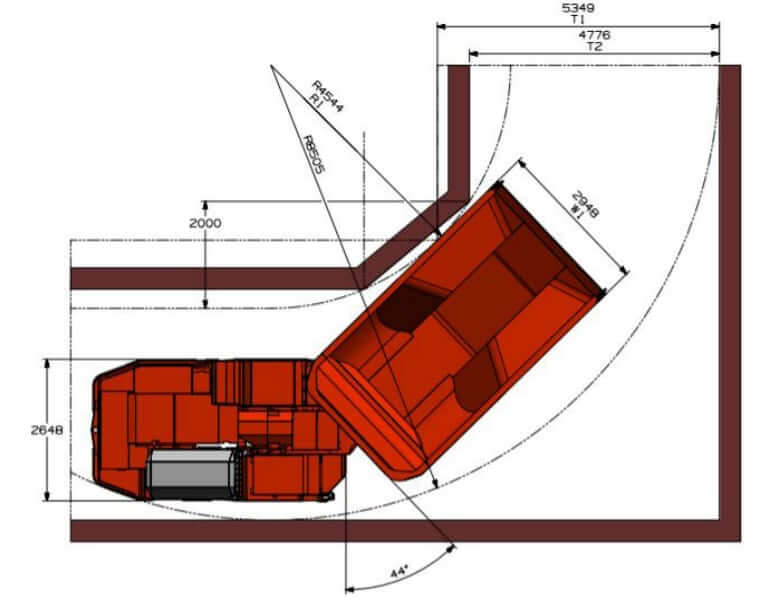

Turning Dimensions
| Sandvik Toro TH430 |
Standard Dump Box |
Dump Box |
Ejector Box |
| W1. Dumpbox Width |
116.1 in (2948 mm) |
112.1 in (2848 mm) |
112.6 in (2860 mm) |
| R1. Dumpbox Inner Turning Radius |
178.9 in (4544 mm) |
180.9 in (4597 mm) |
180.9 in (4595 mm) |
| T1. Minimum Tunnel Width |
210.6 in (5349 mm) |
206.9 in (5255 mm) |
206.9 in (5255 mm) |
| T2. Tunnel Width |
186.6 in (4740 mm) |
185.1 in (4712 mm) |
185.5 in (4713 mm) |

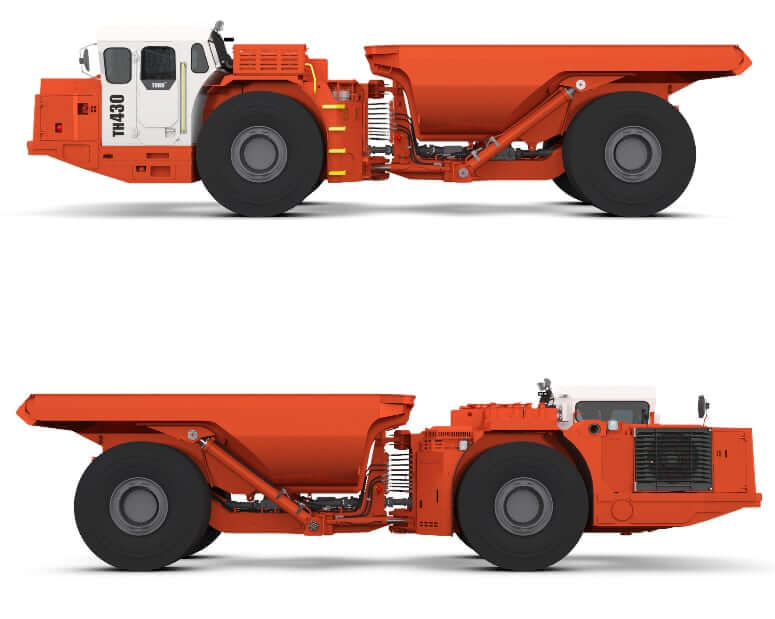

Weights
| Sandvik TH430 |
Empty |
Loaded |
| Operating Weight |
65036 lb (29500 kg) |
131175 lb (59500 kg) |
| Front Axle Load |
48281 lb (21900 kg) |
64375 lb (29200 kg) |
| Rear Axle Load |
16755 lb (7600 kg) |
66800 lb (30300 kg) |
Engine Details
| Engine Model |
Volvo TAD1342VE |
Volvo TAD1382VE |
| Number of Cylinders |
6 |
6 |
| Displacement |
780 cu in (12.78 L) |
780 cu in (12.78 L) |
| Bore |
5.16 in (131 mm) |
5.16 in (131 mm) |
| Stroke |
6.22 in (158 mm) |
6.22 in (158 mm) |
| Gross Horsepower |
416 hp (310 kw) |
428 hp (315 kw) |
| Power Measured @ |
2100 rpm |
1900 rpm |
| Peak Torque |
1479 lb ft (2005 Nm) |
1571 lb ft (2130 Nm) |
| Torque Measured @ |
1260 rpm |
1200 rpm |
| Average Fuel Consumption at 50% Load |
10.6 gal/h (40 L/h) |
10.3 gal/h (39 L/h) |
| Ventilation Rate |
MSHA 18500 CFM (Ultra low sulphur diesel) |
MSHA 14000 CFM (Ultra low sulphur diesel and AdBlue) |
| Particulate Index |
MSHA 10500 CFM (Ultra low sulphur diesel) |
MSHA 500 CFM (Ultra low sulphur fuel, AdBlue) |
| Exhaust System |
Catalytic converter with muffler |
Diesel Particulate Filter and Selective Catalytics Reduction |
| Aspiration |
Turbocharged and Aftercooled |
Turbocharged and Aftercooled |
| Emission Standards |
US EPA Tier 2 + EU Stage II |
US EPA Tier 4 Final + EU Stage V |
Operational Specs
| Max Operating Weight |
131175 lb (59500 kg) |
| Nominal Payload Capacity |
66139 lb (30000 kg) |
| Operating Voltage |
24 V |
| Alternator |
150 amps |
| Battery |
2x 12 V, CCA 950 |
| Driving Lights |
4x LED front lights + 2x LED rear lights |
| Working Lights |
1x LED light (rear of cab) + 1x LED light (side of unit) |

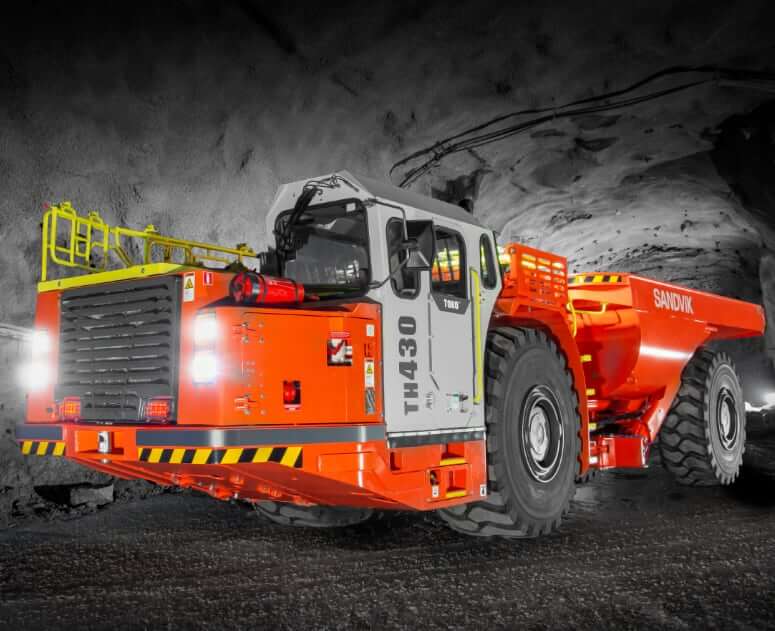

Transmission
| Type |
Fully automatic transmission with electric shifting system |
| Model |
Dana 6000 Series |
| Number of Gears |
4F / 2R |
| Max Travel Speed |
22.7 mph (36.6 km/h) |
| Torque Converter |
Dana C8000 Series with Lock up |
Axles and Brakes
| Front Axle |
Oscillation (±8°). Kessler D102 series spring applied hydraulic operated brakes, equipped with standard differential |
| Rear Axle |
Fixed. Kessler D102 series, standard differential |
| Brake Standards |
Brake system performance complies with requirements of EN ISO 3450, AS2958.1 and SABS 1589 |
| Service Brakes |
Spring applied; hydraulically operated multi disc wet brakes on all wheels. 2 independent circuits: one for the front and one for the rear axle |
| Parking Brake |
Service brakes also function as an emergency and parking brake |
| Neutral Brake |
Brake activates after 3 sec in neutral gear with Automatic brake activation system (ABA) |
| Emergency Brake |
Electrically driven emergency brake release pump |
| Brake Pedal Valve |
Foot operated pedal, fully modulated |
| Gradeability |
20% |
| Turning Angle |
44° |
| Tire Size |
26.5 R 25 E4 |

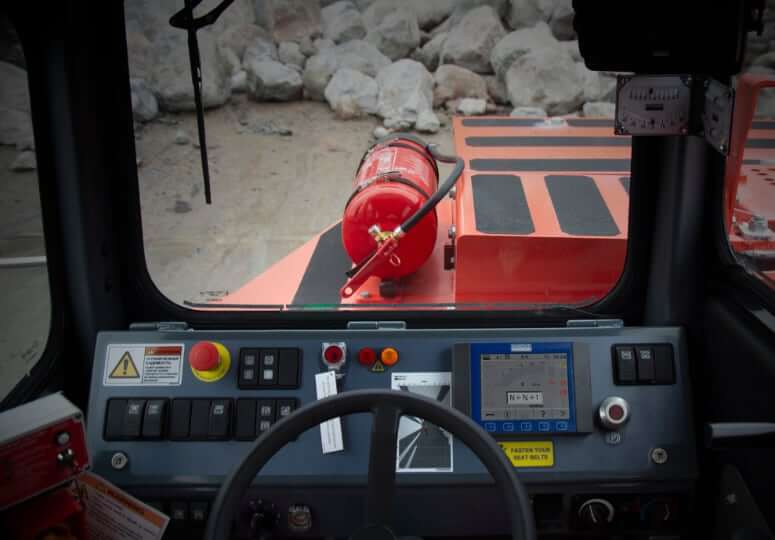

Cab
| Cab |
Sealed, air conditioned, over pressurized, noise suppressed closed cab |
| ROPS |
ISO 3471, SAE J1040 |
| FOPS |
ISO 3449, SAE J231 |
| Fire Extinguisher |
Portable fire extinguisher, 26.5 lb (12 kg), CE |
| Cold Climate Package |
Cab heater, cab window defroster and side mirrors with defrost system |
| Operator Seat |
Low frequency pneumatic suspension, adjustment according to the operator’s weight, height adjustment + two-point seat belt |
| Control System |
Sandvik Intelligent Control System. Critical warnings and alarms displayed with light |
| Instrument Panel |
Electrical gauges, 7 in Display |
| Sound Level, LpA |
81 dB(A) |
| Sound Power, LWA |
117 dB(A) |
| Whole Body Vibration |
0.64 m/s2 (driving with load) |
| Vibration Dose Value Over 15 min Period |
5.9 m/s1.75 (driving with load) |
| Steering |
Fully hydraulic, center articulad, power steering with two double acting cylinders |
Steering Hydraulics
| Type |
Closed-center hydraulic system with pilot operated orbital wheel steering |
| Pump Type |
Load sensing piston type pump |
| Steering Main Valve |
Pilot operated |
| Steering Cylinders (bore x rod) |
3.9 x 2.8 in (100 x 70 mm) |
Dump Box Hydraulics
| Type |
Oil flows to box hydraulic system from the steering hydraulics |
| Pump Type |
Variable displacement piston pump |
| Control Valve |
Solenoid operated |
| Dump Box Main Valve |
Solenoid operated |
| Dump Box Cylinders (bore x rod) |
5.5 x 3.5 in (140 x 90 mm) |
Service Refill Capacities
| Fuel Tank Capacity |
140 gal (530 L) |
| Engine Oil Capacity (w/ filter) |
9.5 gal (36 L) |
| Cooling System Capacity |
11.6 gal (44 L) |
| Torque Converter Oil Capacity (Dana C8000, standard sump) |
8.5 gal (32 L) |
| Torque Converter Oil Capacity (Dana C8000, deep sump) |
13 gal (49 L) |
| Front Differentials Capacity (Kessler D102) |
17.2 gal (65 L) |
| Rear Differentials Capacity (Kessler D102) |
17.2 gal (65 L) |
| Hydraulic Tank Capacity |
67.6 gal (256 L) |

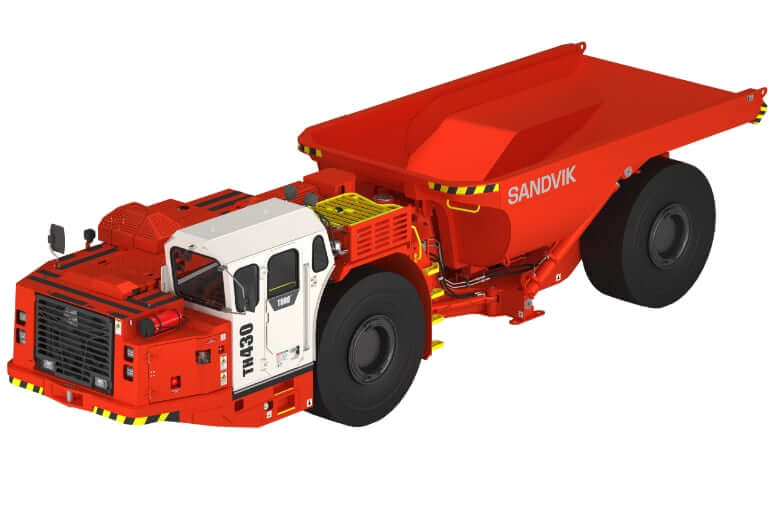

The Sandvik Toro TH430 underground truck is a robust and high-capacity hauling solution engineered for productivity and reliability in demanding underground mining environments. Designed for 30-ton payloads, the TH430 offers a variety of dump box configurations to suit different operational needs, including: 14.5 m3 standard dump box; 16 m3 dump box; 18 m3 high-capacity dump box and 14 m3 ejector box for confined space discharge.
This model delivers optimized performance with a compact footprint, advanced operator ergonomics, and proven reliability in tough conditions. The Toro TH430’s versatility in box sizes allows mines to match hauling capacity with their specific production targets and material characteristics, ensuring efficient cycle times and reduced operating costs.
